Tapered Bearing Head Cup for Big Twin 1949-Later – Fitment Checked
Fitment verified against steering stem geometry — Every tapered bearing for head cup is physically measured against the stem taper angle before dispatch to prevent binding.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 48300-60 (reference only) |
| Part Type | Tapered Bearing for Head Cup |
| Bearing Type | Tapered Bearing |
| Quantity | Sold Each, use 2 |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | 1949-later | Verify steering stem taper angle for specific frame neck |
| FX & FXR | All years | Confirm head cup bore matches frame neck dimensions |
| Sportster | 1982-later | Check if early and late frame necks require different profiles |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer.
Model names and OEM numbers are used for fitment reference only.
Why Taper Angle Dictates Head Cup Function
A slight mismatch in the inner taper angle will cause the steering to bind completely once pressed in.
When rebuilding a front end, shops often assume that if the outer dimensions match the cross-reference 48300-60, the part will function correctly. However, the inner taper angle must perfectly match the specific steering stem of the frame. If the angle is even slightly off, the rollers will not seat properly against the cup race. This forces the steering stem to bind, making the motorcycle impossible to steer safely. We physically measure every bearing and cup against the stem before clearing an order to ensure the geometry aligns with the frame specifications [NEED_CITE: factory service manual specifications for steering stem taper angles by model year].
Verifying Platform and Year Range Compatibility
Selecting the correct tapered bearing for head cup requires confirming the exact platform family and production year, as frame neck dimensions change across generations. A bearing designed for a late-model frame neck will not seat correctly in an earlier chassis, leading to excessive play or binding. We check the fitment sheet against Big Twin 1949-later, FX & FXR all years, and Sportster 1982-later to ensure the part matches your specific build. This prevents the frustration of receiving a component that looks identical but fails to interface with the steering stem [NEED_CITE: frame neck dimension changes across model years for Big Twin and Sportster platforms].

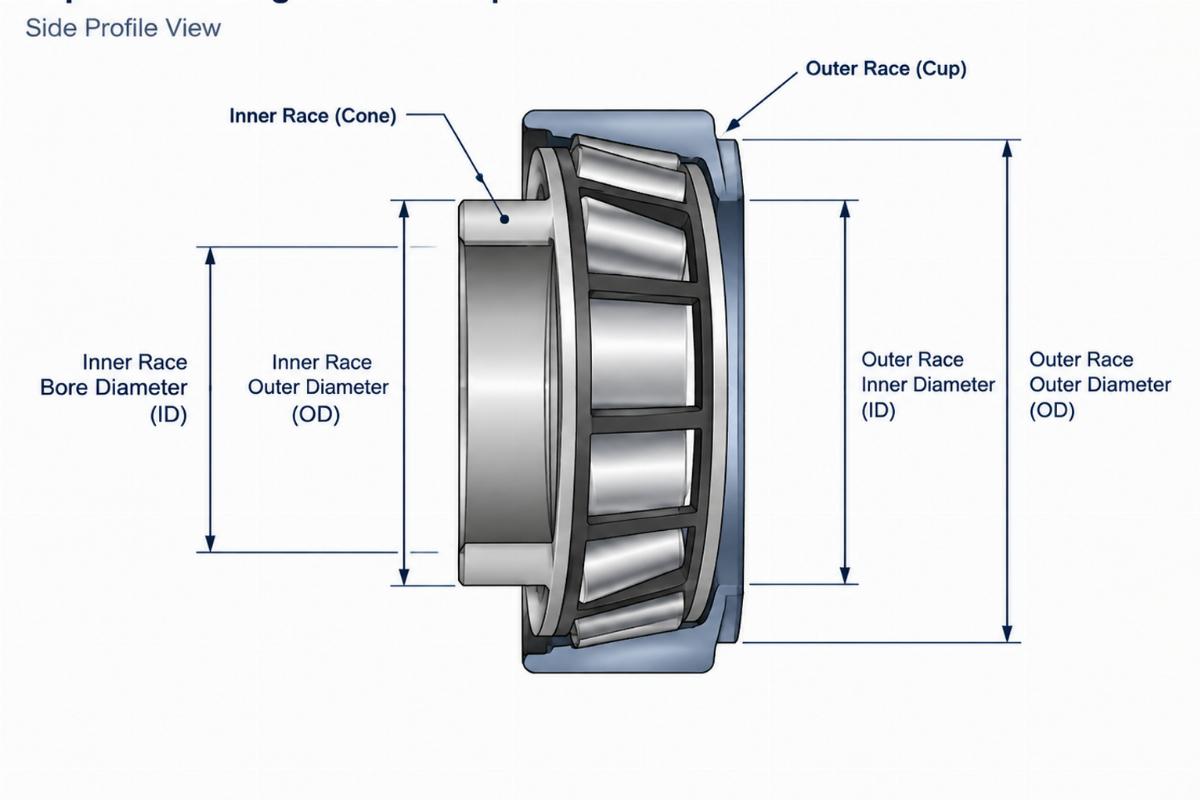

Measuring Steering Stem and Cup Bore Dimensions
Beyond the model year, the physical dimensions of the steering stem and head cup bore must be verified. The outer diameter of the bearing must press firmly into the cup bore without spinning, while the inner taper must glide smoothly along the stem. If the bore is worn or the stem is undersized, the bearing will not achieve the necessary interference fit. We recommend measuring the stem taper and cup bore with a micrometer before installation to confirm these critical interfaces match the required specifications for a secure assembly.
The Hidden Cost of Incorrect Bearing Profiles
Ordering a bearing based solely on an old part number often leads to hidden costs when the part arrives and fails to fit. If the taper angle is incorrect, the steering will bind, forcing the shop to remove the newly pressed bearing, order the correct profile, and repeat the labor. This doubles the installation time and delays the build. Furthermore, if the bearing is pressed in and then removed, the races can be damaged, rendering the part unusable. Verifying the fitment against the frame family and measuring the stem prevents this costly rework cycle [NEED_CITE: labor and parts waste caused by incorrect steering head bearing fitment].
Sourcing from a Fitment-Focused Catalogue
We specialize in front end and chassis hardware, ensuring every tapered bearing for head cup is checked against platform and year range before quotation. Our catalogue offers cross-reference against 48300-60 (reference only) to help identify the correct part for your rebuild. We support pre-1984 and discontinued models that are no longer covered by standard channels, ensuring your classic build stays on the schedule. With a single piece minimum order, you can source the exact components needed for a custom build or restoration without meeting high volume requirements.
Documentation Provided
- Fitment sheet listing Big Twin 1949-later, FX & FXR all years, and Sportster 1982-later ranges
- Cross-reference sheet marking 48300-60 as reference only
- Quality inspection record verifying taper angle and dimensions
- Packing photographs showing the bearing condition before dispatch
Receiving and Pre-Installation Checks
- Verify the tapered bearing for head cup matches the platform and year range on the fitment sheet
- Measure the steering stem taper angle with a micrometer to confirm it matches the bearing inner race

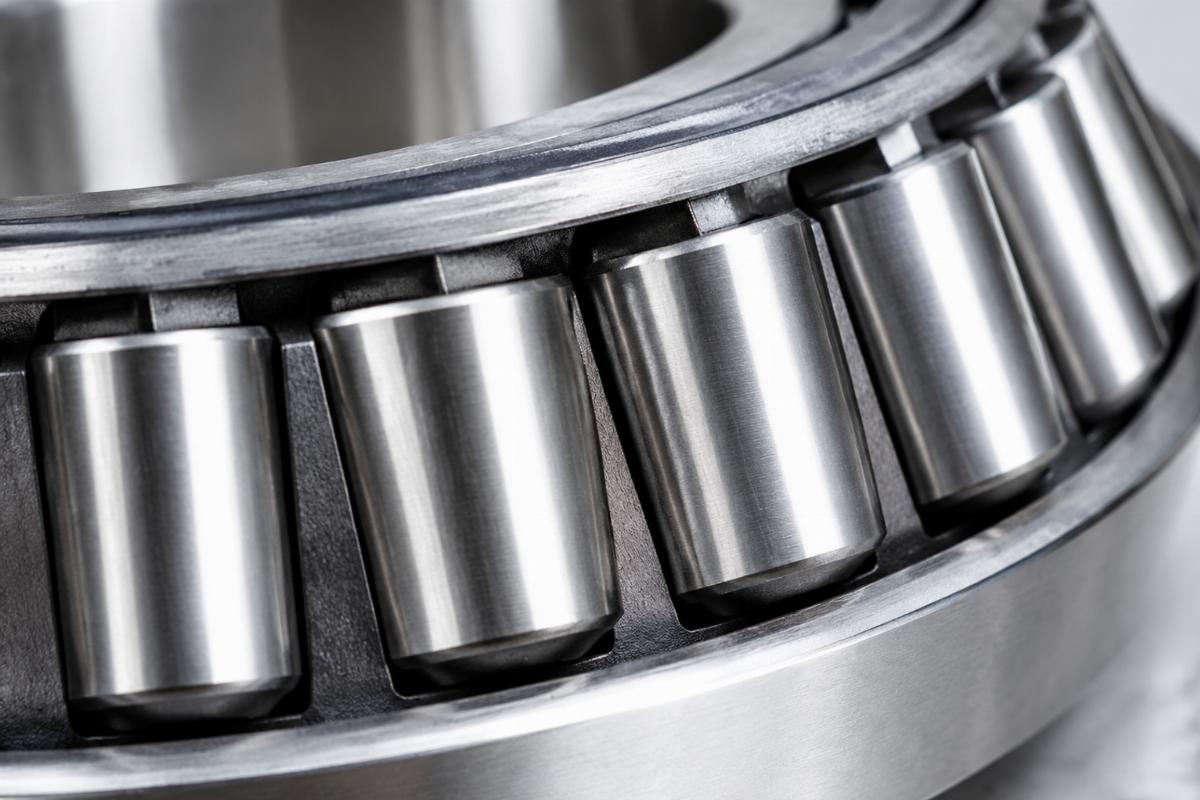

- Inspect the bearing rollers and cage for any shipping damage or surface defects before pressing
- Store the bearing in a dry environment to prevent rust on the precision machined surfaces
Requesting a Fitment Check
Send your model and year along with the cross-reference 48300-60 or a photograph of the old bearing for a fitment check. Include the steering stem diameter and head cup bore measurements if the part number is unknown. Let us know if you require a sample to verify the taper angle before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm my motorcycle model and year fits this tapered bearing?
A: Check the fitment sheet for Big Twin 1949-later, FX & FXR all years, and Sportster 1982-later. We verify the platform and year range to ensure the inner taper angle matches your specific steering stem. Send your model, year, and stem measurements for a final fitment check before ordering.
Q: What are the differences in head cup and neck bearing sizes between early and late frames?
A: Frame neck dimensions and steering stem taper angles change across model years. A bearing that fits a late-model frame neck may not seat correctly in an earlier chassis, causing binding or play. We check the specific profile required for your frame family to ensure the outer and inner dimensions align perfectly.
Q: How do I cross-reference my old part number if it has been superseded?
A: We cross-reference against 48300-60 (reference only) to identify the correct aftermarket profile. Send us the old part number or a photograph of the existing bearing. We will verify if the superseded number matches the current tapered bearing for head cup specifications for your specific platform.
Q: Can I order a single piece for a custom build or restoration?
A: Yes, we offer a single piece minimum order. You can purchase one tapered bearing for head cup at a time, which is ideal for custom builders and restoration shops working on individual projects. We also supply samples if you need to verify the fitment before placing a larger bulk order.
Q: Do you provide samples to verify fitment before placing a bulk order?
A: We supply samples for fitment confirmation before bulk orders. This allows you to physically measure the taper angle and test the bearing against the steering stem in your shop. Once the sample confirms the geometry matches your frame neck, you can proceed with the full order confidently.
