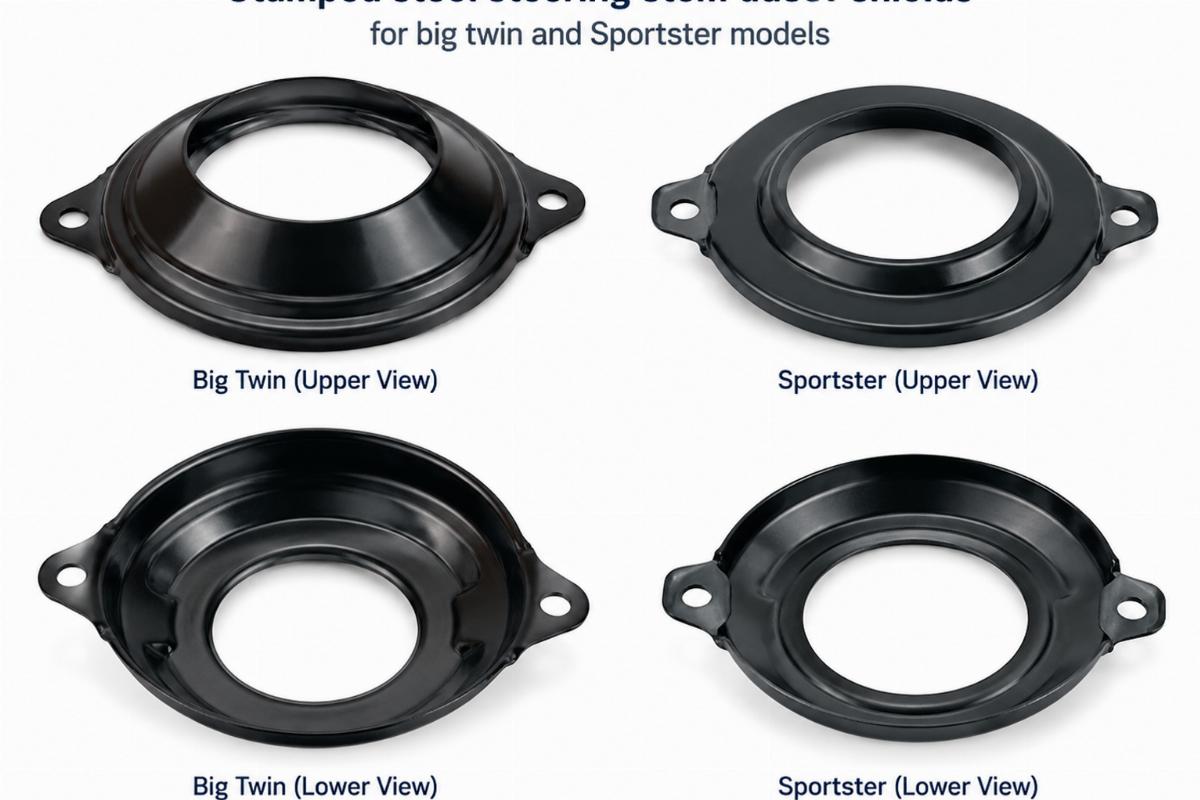

Steering Stem Dust Shields for Big Twin and Sportster – OEM Ref 48361-80
Chassis hardware produced in-house — Every steering stem dust shield is manufactured and inspected under a single account, ensuring consistent stamped steel quality and exact fitment verification before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 48361-80 (reference only) |
| Part Type | Steering stem dust shields |
| Material | Stamped steel |
| Quantity | Pair (upper and lower) |
| Bearing Compatibility | 1″ Timken style steering stem bearings |
| OEM Cross-Reference | 48365-48A (reference only) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin and Sportster models | Confirm with model and year | Requires 1″ Timken style steering stem bearings |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Bearing Types Before Ordering Steering Stem Dust Shields for Big Twin
Confirming the exact bearing style prevents costly fitment errors on early and late frames.
Head cup and neck bearing sizes differ significantly between early and late frames, making it critical to verify the specific bearing type before ordering. Builders often rely on superseded manual reference numbers, which can lead to receiving covers that do not seat correctly. Checking the actual steering stem setup ensures the steering stem dust shields for big twin applications match the required 1″ Timken style dimensions. [NEED_CITE: factory service manual specifications by model year for steering stem bearings]
Cross-Referencing Superseded Numbers for Exact Fitment
When sourcing steering stem dust shields for big twin platforms, relying solely on old manual numbers can result in receiving parts that do not align with the frame neck. The reference number 48361-80 and its cross-reference 48365-48A must be verified against the actual bearing setup on the motorcycle. We check every inquiry against the specific platform and year range to confirm compatibility with 1″ Timken style bearings before quoting. [NEED_CITE: superseded part number changes across model years for this platform]
Identifying Frame Variations in Head Cup Sizes
Early and late frames utilize different head cup and neck bearing dimensions, meaning a dust shield designed for one era will not fit another. The stamped steel construction of these shields is specifically formed to protect 1″ Timken style bearings, requiring precise dimensional matching. Verifying the frame year and measuring the existing stem components ensures the correct steering stem dust shields for big twin models are selected for the build.
Interpreting Stamped Steel Dimensions for Bearing Protection

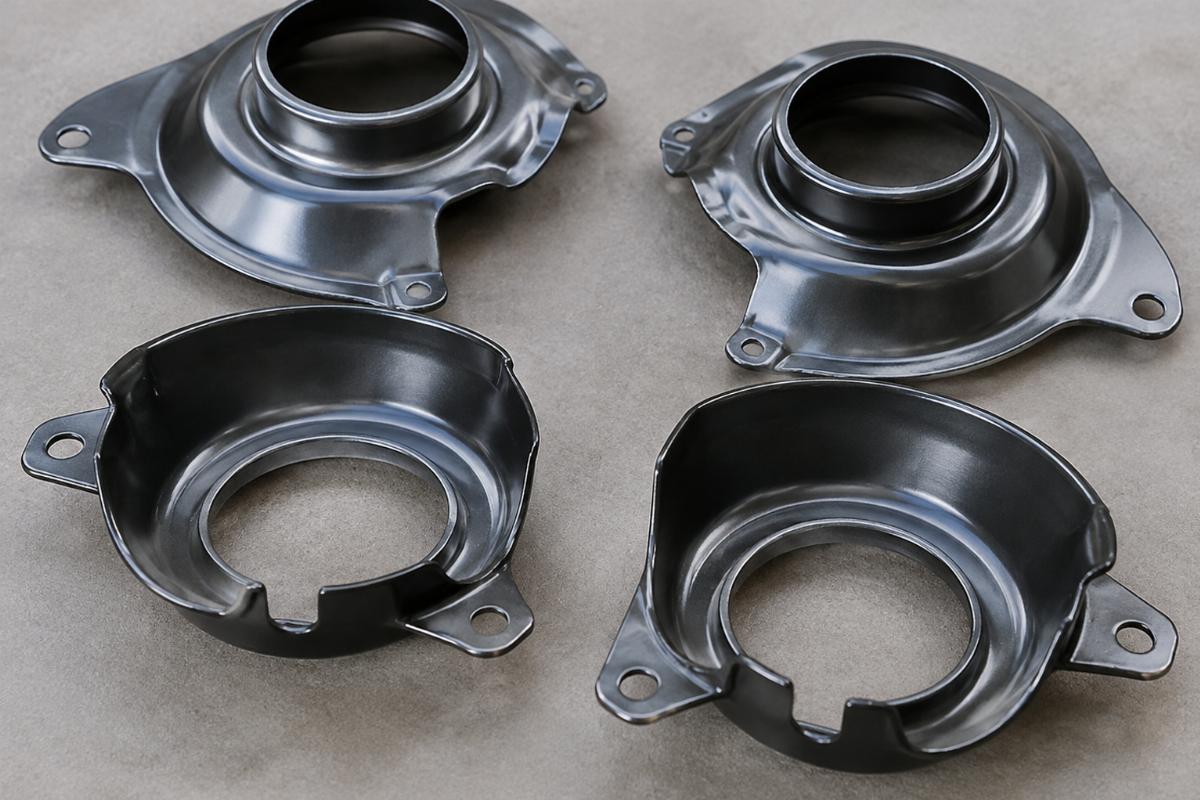

The stamped steel material provides a rigid barrier against debris, but its effectiveness relies entirely on correct dimensional alignment with the steering stem. These shields are supplied as a complete upper and lower pair to ensure both covers match the 1″ Timken style bearing profile. Incorrect sizing allows dirt to enter the bearing assembly, while an overly tight fit can interfere with steering rotation. Evaluating the exact stem diameter and bearing type is essential before installation.
Hidden Costs of Incorrect Frame Year Matching
Ordering covers based on an outdated reference number often results in parts that fail to seat properly, leaving the motorcycle stranded on the shop lift. When head cup sizes differ between early and late frames, the upper and lower shields may not align with the bearing races. This mismatch forces the builder to halt the project, return the incorrect parts, and wait for the correct steering stem dust shields for big twin applications, delaying the entire build timeline. [NEED_CITE: frame year variations affecting head cup and dust shield compatibility]
Sourcing from a Fitment-Focused Catalogue
We verify every steering stem dust shield against the specific platform family and model year range before adding it to your order. Our catalogue provides clear cross-reference sheets with OEM numbers marked strictly for identification, ensuring you know exactly what you are receiving. With a minimum order of one piece, shops can order a single pair for a custom build without meeting high volume thresholds. Every shipment includes a fitment sheet detailing the applicable platforms and year ranges for your records.
Documentation Provided with Your Shipment
- Fitment sheet listing each year range this part was checked against
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record verifying stamped steel material and pair quantity
- Finish specification detailing the surface treatment of the covers
- Packing photographs showing the upper and lower shields secured for transit
Receiving and Pre-Installation Checks
- Verify the package contains both the upper and lower stamped steel shields
- Confirm the bearing compatibility matches your 1″ Timken style steering stem
- Check the OEM reference numbers against your build specifications
- Inspect the stamped steel edges for any shipping damage or deformation
- Store the pair in a dry environment to prevent surface rust before installation
- Have a qualified technician verify frame neck dimensions prior to fitting
Requesting a Fitment Check for Your Build
Send your specific model designation and year range so we can verify the bearing type and confirm compatibility with these covers. If you are working from an old manual, provide the reference number or a photograph of the existing steering stem components for cross-referencing. Let us know if you require a sample pair to test the fit on the frame before committing to a larger order for your shop.
Frequently Asked Questions
Q: How can I confirm if my motorcycle uses 1″ Timken style steering stem bearings?
A: You must physically measure the steering stem diameter and inspect the bearing races installed in the frame neck. Early and late frames often use different bearing sizes, so relying on the model year alone is insufficient. Checking the actual components ensures the steering stem dust shields for big twin applications will seat correctly against the races.
Q: What causes head cup and dust shield sizes to differ between early and late frames?
A: Frame geometry and steering head tube dimensions were updated across different production eras to accommodate changes in fork designs and bearing loads. These dimensional shifts mean a shield designed for an earlier frame will not align properly with a later frame neck. Always verify the specific frame year and measure the existing head cup before ordering.
Q: How do I cross-reference superseded numbers for older models?
A: Start by comparing the reference number 48361-80 and 48365-48A against your service manual, but do not rely on the number alone. The supersession chain can be complex, and the physical bearing type is the ultimate deciding factor. We verify the actual platform and year range to ensure the stamped steel covers match your specific steering stem setup.
Q: Can I order a single pair of these shields for a restoration project?
A: Yes, we support single-piece minimum orders, allowing shops and restorers to purchase exactly what they need for one bike without meeting bulk quantity requirements. This is ideal for sourcing a specific upper and lower pair to complete a frame rebuild or custom chopper project while maintaining strict fitment accuracy.
Q: What documentation is included to verify fitment before bulk ordering?
A: Every order includes a detailed fitment sheet stating the applicable platforms and year ranges, along with a cross-reference sheet where OEM numbers are marked for identification only. We also provide a quality inspection record and finish specification, ensuring you have all necessary data to confirm the parts match your catalogue requirements before they arrive.
