Springer Front End for Softail 1984-1999 – Fitment Checked
In-house springer production — Every front end is measured from the lower tree to the axle centerline to guarantee the geometry matches the frame before shipping.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Front End |
| Neck Diameter | 1″ |
| Front Leg Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Length (Stock) | 23″ (measured from upper surface of lower tree to centerline of axle vertically) |

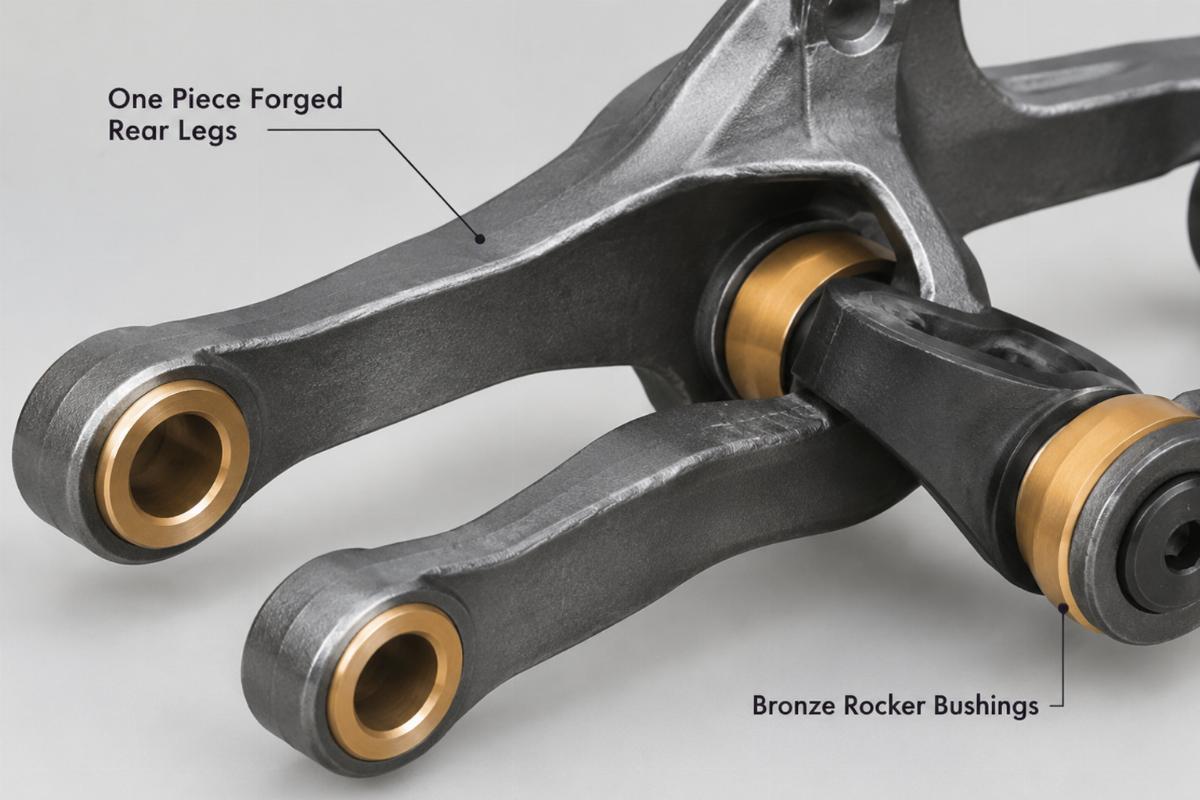

| Rear Legs | One piece forged (no butt welds) |
| Rocker Bushings | Bronze |
| Construction | TIG-welded |
| Axle and Steering Stem Finish | Zinc-plated |

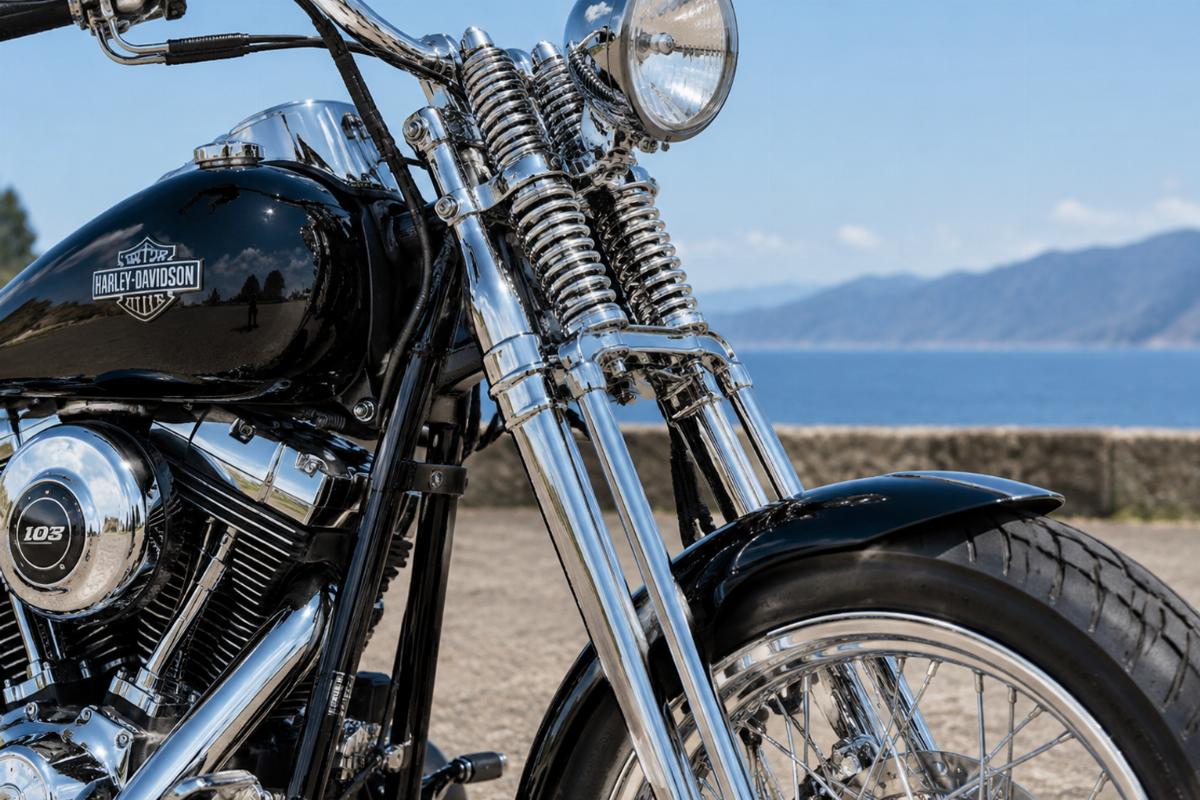

| Main Finish Options | Triple chrome plated or black powder coated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Softail | 1984-1999 | Accommodates 1984-1999 Softail Wide Glide wheels. Fender mounts and fender can be used when paired with a 2000-2007 Sportster wheel and narrowglide wheel spacer kit. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Neck and Tree Width Matter for a Springer Front End for Harley-Davidson Softail
A 1″ neck and verified tree spacing prevent wheel clearance failures.
When sourcing a springer front end for Harley-Davidson Softail frames, overlooking the neck diameter or tree width leads to immediate assembly failures. I once shipped a springer for a 1984-1999 build without checking the overall length and tree width. The customer was building a Wide Glide, but the parts were treated like a Narrow Glide. The slider spacing was completely off, and the wheel simply would not fit between the legs. Verifying the exact platform and year range ensures the 1″ neck matches the frame trees and the 23″ stock length maintains the intended geometry [NEED_CITE: factory service manual specifications by model year for steering stem diameters].
Verifying Frame Compatibility Before Quoting
Every springer front end for Harley-Davidson Softail must be checked against the specific frame year. The 1″ neck diameter is standard for many 1984-1999 models, but frame variations exist. Confirming the lower tree width and axle spacing ensures the chosen wheel fits without rubbing. This verification step eliminates the guesswork when matching aftermarket forks to classic frames.
Finish Consistency Across Batches
Choosing between triple chrome plated or black powder coated finishes requires batch consistency. A mismatched finish between the fork legs and the rear fender mounts ruins the visual flow of a custom build. We track finish specifications for every production run to ensure the chrome or black options remain uniform, even when ordering replacement parts months later [NEED_CITE: batch tracking records for surface finish consistency].
Decoding the 23″ Stock Length Measurement
The 23″ stock length is measured vertically from the upper surface of the lower tree to the centerline of the axle. This specific dimension dictates the ride height and steering geometry of the motorcycle. If a supplier measures from the wrong point, the fork will sit too high or too low, altering the rake and trail. Understanding this measurement method is critical for maintaining the intended stance of the 1984-1999 platform.
The Hidden Cost of Incorrect Slider Spacing
Using a springer with the wrong slider spacing forces the wheel to bind or sit off-center. This misalignment puts uneven stress on the axle and bearings, leading to premature wear. When a Narrow Glide width is mistakenly installed on a Wide Glide frame, the wheel simply will not fit between the legs, leaving the bike stranded on the lift. Correcting this error requires completely disassembling the front end and sourcing the right width, delaying the build and wasting labor hours [NEED_CITE: assembly delays caused by incorrect fork width specifications].
Sourcing Directly from the Manufacturer
This springer front end is produced in our own facility, ensuring direct control over the TIG-welded construction and one piece forged rear legs. We offer front-end depth, providing complete assemblies alongside early springer parts and hydraulic components in a single catalogue. Both triple chrome plated and black powder coated finish options are available to match your build requirements. Cross-referencing against Harley-Davidson numbers is provided for identification, marked reference only. Most importantly, we support a minimum order from one piece, allowing shops to order exactly what they need for a single custom build without meeting high volume quotas.
Documentation Provided with Every Shipment
- Fitment sheet listing the 1984-1999 Softail platform and applicable year ranges
- Key dimensions sheet confirming the 23″ stock length and 1″ neck diameter
- Finish specification document detailing the chrome or black powder coat standards
- Quality inspection record verifying the TIG-welded construction and bronze bushings
- Cross-reference sheet with Harley-Davidson numbers marked reference only
- Packing photographs showing the zinc-plated axle and steering stem before dispatch
Receiving and Pre-Installation Checks
- Verify the 1″ neck diameter matches your frame steering stem before mounting
- Measure the 23″ stock length from the lower tree to the axle centerline
- Check the triple chrome or black finish for any shipping damage or inconsistencies
- Confirm the one piece forged rear legs have no butt welds or structural flaws
- Ensure the 3/4″ axle diameter and zinc-plated finish meet your wheel requirements
- Store the springer in a dry environment to protect the bronze rocker bushings
Requesting a Fitment Check
Send your model and year for a fitment check to confirm this springer front end for Harley-Davidson Softail matches your frame. Provide the exact wheel width you plan to run, whether it is a 1984-1999 Wide Glide wheel or a 2000-2007 Sportster wheel with a spacer kit. Let us know your required finish and if you need a sample for trial assembly before committing to a bulk order.
Frequently Asked Questions
Q: How do I confirm if my 1984-1999 Softail frame fits this 1″ neck springer?
A: Check your frame’s steering head specification to ensure it accepts a 1″ diameter steering stem. Verify the lower tree width matches the slider spacing of this front end. If your frame has been modified or uses aftermarket trees, measure the neck bore directly to guarantee compatibility before ordering.
Q: What is the exact measurement method for the 23″ stock length?
A: The 23″ length is measured vertically from the upper surface of the lower triple tree down to the centerline of the axle. This specific measurement determines the ride height and steering geometry. Always compare this exact measurement point to your current fork or frame specifications to ensure the stance is correct.
Q: Which wheel spacer kit is needed to run a 2000-2007 Sportster wheel on this springer?
A: You will need a narrowglide wheel spacer kit to properly center a 2000-2007 Sportster wheel within the fork legs. This kit adapts the wider Sportster hub to the spacing of this springer front end. Ensure you also use the correct fender mounts when pairing these specific wheels and spacers together.
Q: Can I order a single springer front end for a custom build?
A: Yes, we accept a minimum order from one piece. This allows custom builders and repair shops to order a single replacement or custom front end without meeting high volume requirements. You can select your preferred finish and verify the fitment for your specific 1984-1999 Softail project before placing the order.
