Springer Front End for Harley-Davidson 1984-1999 – Aftermarket Replacement

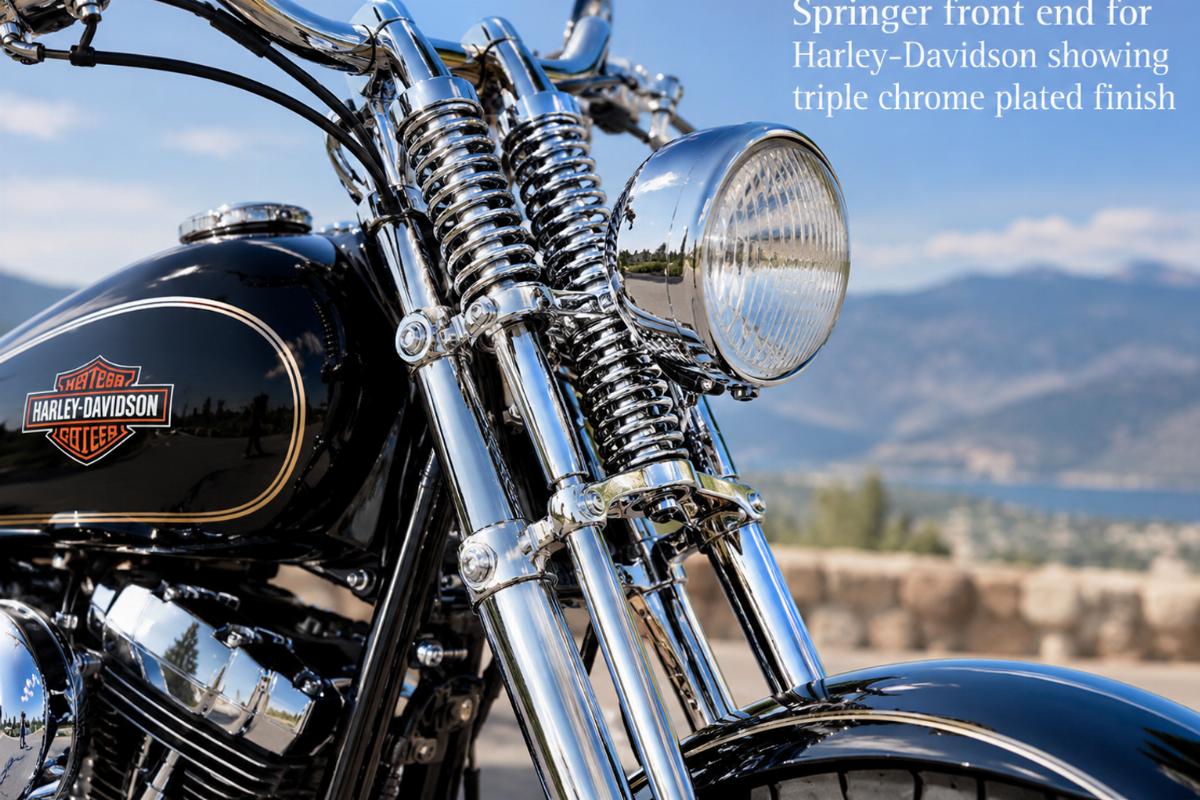

Consistent Finish Options — This springer front end for Harley-Davidson frames is offered in triple chrome plated or black powder coated finishes to match your build requirements.
Product Specification
Part Type | Springer Front End
| Parameter | Value |
|---|---|
| Neck Diameter | 1″ |
| Front Leg Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Length (Stock-length measurement) | 23″ (measured from upper surface of top of arch in lower tree to centerline of axle vertically) |
| Rear Legs | Heavy duty, tapered |

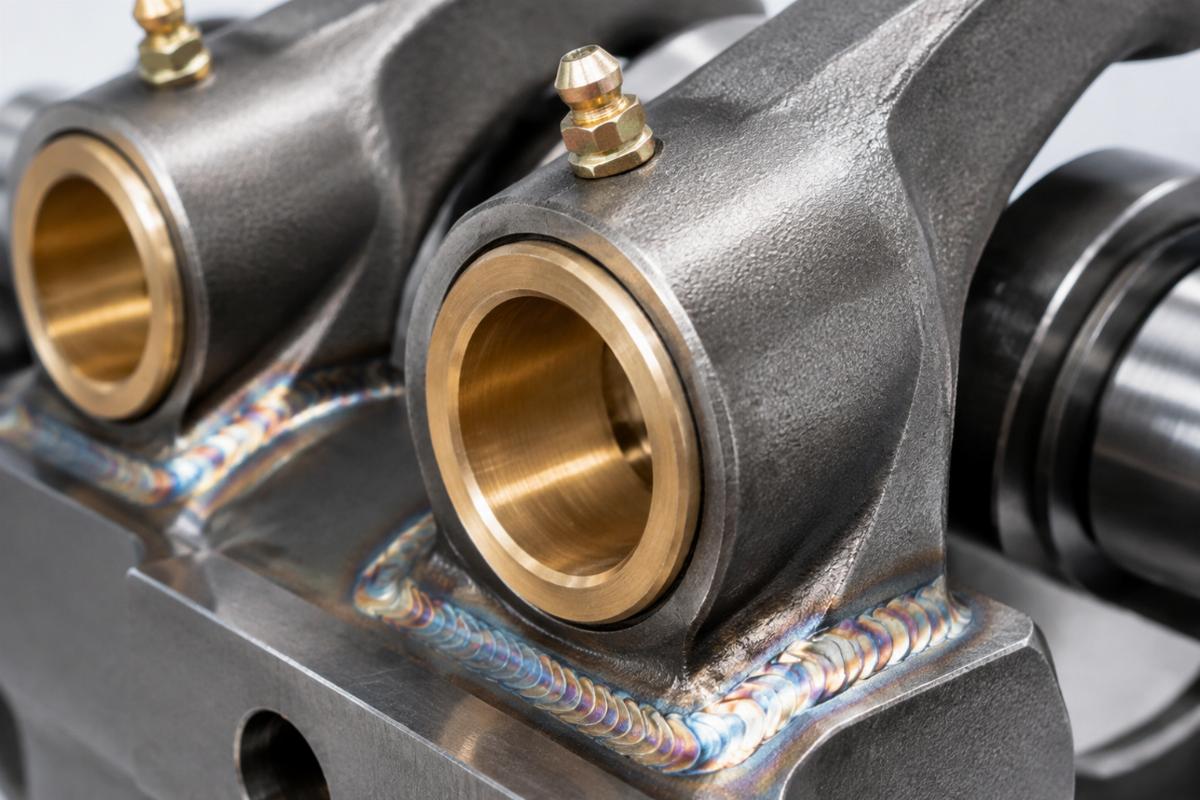

| Bushings | Greaseable bronze rocker bushings |
| Construction | TIG-welded |
| Steering Stem | Zinc-plated, threaded for steering stops |
| Axle | Zinc-plated |
| Finish Options | Triple chrome plated, black powder coated |
| Kit Contents | 3/4″ axle, spacers, nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Big Twin | 1984-1999 | Fits frames with 1″ neck; accommodates 1984-1999 Wide Glide wheels |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Neck Diameter and Wheel Spacing for a Springer Front End for Harley-Davidson
A 1″ steering neck and 3/4″ axle spacing dictate whether this assembly seats correctly and accepts your wheel hub.
Springer forks offered over stock often lack clear statements on overall length and neck diameter, making it difficult to judge ride height or steering geometry before ordering. Builders frequently measure the frame but overlook the specific triple tree spacing required for Wide Glide wheels. When these dimensions are assumed rather than verified, the front end arrives but cannot be installed without modifying the frame or sourcing different wheel spacers [NEED_CITE: frame geometry specifications by model year].
Matching the 1″ Neck to Your Steering Head
When sourcing a springer front end for Harley-Davidson models, the steering stem diameter must exactly match the frame’s neck bore. This assembly features a 1″ neck diameter, which requires verifying the steering head cup and bearing race dimensions before installation. If the neck is too large, it will not seat; if too small, it will shift under braking loads.
Accommodating Wide Glide Wheel Hubs
The included 3/4″ axle and spacers are designed to align with 1984-1999 Wide Glide wheel hub spacing. Confirming the axle diameter and spacer length ensures the wheel centers correctly between the 1″ front legs. Mismatched spacing leads to brake caliper misalignment and improper fender clearance [NEED_CITE: wheel hub dimensions across Wide Glide model years].
Interpreting the 23″ Stock-Length Measurement
The 23″ length is measured vertically from the upper surface of the top of the arch in the lower tree to the centerline of the axle. This specific measurement determines your ride height and fork angle. Comparing this vertical drop against your frame’s geometry prevents unexpected changes to the steering rake and trail.
The Cost of Unverified Frame Dimensions
Ordering a front end without confirming the exact frame year range often results in the bike sitting on the shop floor. A steering stem length that differs by even a fraction of an inch prevents the triple tree from seating properly in the steering head cups. Additionally, receiving a kit missing the correct axle spacers forces a complete teardown to source hardware, delaying the build and increasing labor costs [NEED_CITE: assembly clearance requirements for custom front ends].
Sourcing Front Ends with Verified Dimensions
We verify the 1″ neck diameter and 23″ vertical length against the Big Twin platform before releasing any assembly. Our own production facility handles the TIG-welded construction and zinc-plated steering stems, ensuring dimensional accuracy across batches. You can order a single sample unit to confirm the triple chrome plated or black powder coated finish and fitment before committing to a larger batch.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and 1984-1999 year ranges
- Key dimensions including 23″ fork length and 1″ neck diameter
- Finish specification for triple chrome or black powder coat batches
- Quality inspection record for steering stem and axle hardware
- Warranty terms covering manufacturing defects
Receiving and Inspecting the Assembly
- Verify the 1″ neck diameter and 3/4″ axle match your frame and wheel hub
- Check the 23″ vertical length from the lower tree arch to the axle centerline
- Inspect the triple chrome plated or black powder coated finish for batch consistency
- Confirm the kit includes the 3/4″ axle, spacers, and nuts
- Ensure greaseable bronze rocker bushings are properly seated
- Store the assembly in a dry environment to protect the zinc-plated steering stem
Requesting a Fitment Check and Quote
Send your exact frame model, year range, and a photograph of the steering neck to confirm compatibility. Provide the required finish option and quantity, and let us know if a sample unit is needed for trial fitment. We will reply with a fitment sheet and quotation based on your specific dimensions.
Frequently Asked Questions
Q: How do I confirm this springer front end fits my specific frame and year range?
A: Measure your steering neck bore to ensure it is exactly 1″. Verify that your wheel hub spacing matches the 1984-1999 Wide Glide specifications for the included 3/4″ axle. Send us your model and year for a final fitment check before ordering.
Q: What key dimensions must I measure on my frame before ordering?
A: You must measure the steering neck diameter to confirm it accepts a 1″ stem. Check the vertical distance available for the 23″ fork length to ensure proper ride height. Confirm the triple tree spacing matches your frame’s steering head cups.
Q: Does the kit include the necessary axle and spacers for Wide Glide wheels?
A: Yes, the kit includes a 3/4″ zinc-plated axle and the required spacers designed for 1984-1999 Wide Glide wheel hub spacing. This ensures the wheel centers correctly between the 1″ front legs without needing additional hardware.
Q: Can I order a single sample unit to verify fitment and finish quality?
A: Yes, we support a single piece minimum order. You can purchase one unit to verify the 1″ neck fitment, 23″ length, and the triple chrome plated or black powder coated finish quality before placing a larger bulk order for your shop.
Q: How do the triple chrome and black powder coat finishes compare across batches?
A: Both finish options are applied under controlled conditions to maintain consistency. We provide a finish specification and quality inspection record with your shipment so you can verify the coating matches your previous batches and meets your visual standards.
