Springer Front End 1″ Neck for Harley-Davidson Frames 1984-1999
Single Piece Order — Minimum order from one piece lets you order a single springer front end for a custom build while we verify the 1″ neck diameter against your specific frame.
Product Specification
Part Type | Springer Front End
| Parameter | Value |
|---|---|
| Neck Diameter | 1″ |
| Front Legs Diameter | 1″ |
| Axle Diameter | 3/4″ |
| Stock Length | 23″ (measured from upper surface of lower tree to centerline of axle vertically) |
| Rear Legs | One piece forged |
| Rocker Bushings | Bronze |
| Construction | TIG-welded |
| Axle and Steering Stem | Zinc-plated |
| Finish Options | Available in triple chrome plated or black powder coated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Frame Fitment | Confirm with model and year | Requires Harley-Davidson frames with 1″ neck |
| Wheel Fitment 1 | 1984-1999 | Fits Softail Wide Glide wheels natively |
| Wheel Fitment 2 | 2000-2007 | Fits Sportster wheels; requires narrowglide wheel spacer kit |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Stock Length Measurement Dictates Your Build Geometry
This springer front end for harley-davidson frames provides a confirmed 23″ stock length measured from the upper surface of the lower tree to the axle centerline.
Builders often order custom springers without a clear statement of overall length, making it impossible to judge ride height or steering geometry before the parts arrive. When the distance from the lower tree to the axle centerline is missing or measured incorrectly, the front end sits too high or too low, completely ruining the steering geometry of the motorcycle. We measure every unit on the bench to ensure the 23″ dimension matches the intended platform, preventing geometry issues that force a rebuild [NEED_CITE: factory service manual specifications for stock length by model year].
Verifying Frame Neck Diameter Before Dispatch
A 1″ neck diameter is the critical dimension for this springer front end for harley-davidson frames. If your frame neck measures 1-1/4″, the steering stem will simply not drop in, leaving the front end unusable. We verify the exact neck size against the specific model year before anything leaves the bench to ensure a direct drop-in fit for frames designed for a 1″ stem.
Matching Wheel Hubs To The Axle Spacing
This unit accommodates 1984-1999 Softail Wide Glide wheels natively, but running 2000-2007 Sportster wheels requires a specific narrowglide wheel spacer kit. The 3/4″ axle diameter and front leg spacing must align perfectly with the wheel hub width. Failing to account for the spacer kit when using later Sportster wheels results in misaligned brakes and improper bearing preload [NEED_CITE: wheel spacer requirements for cross-platform wheel fitment].
Interpreting The 23 Inch Stock Length And 1 Inch Leg Specs

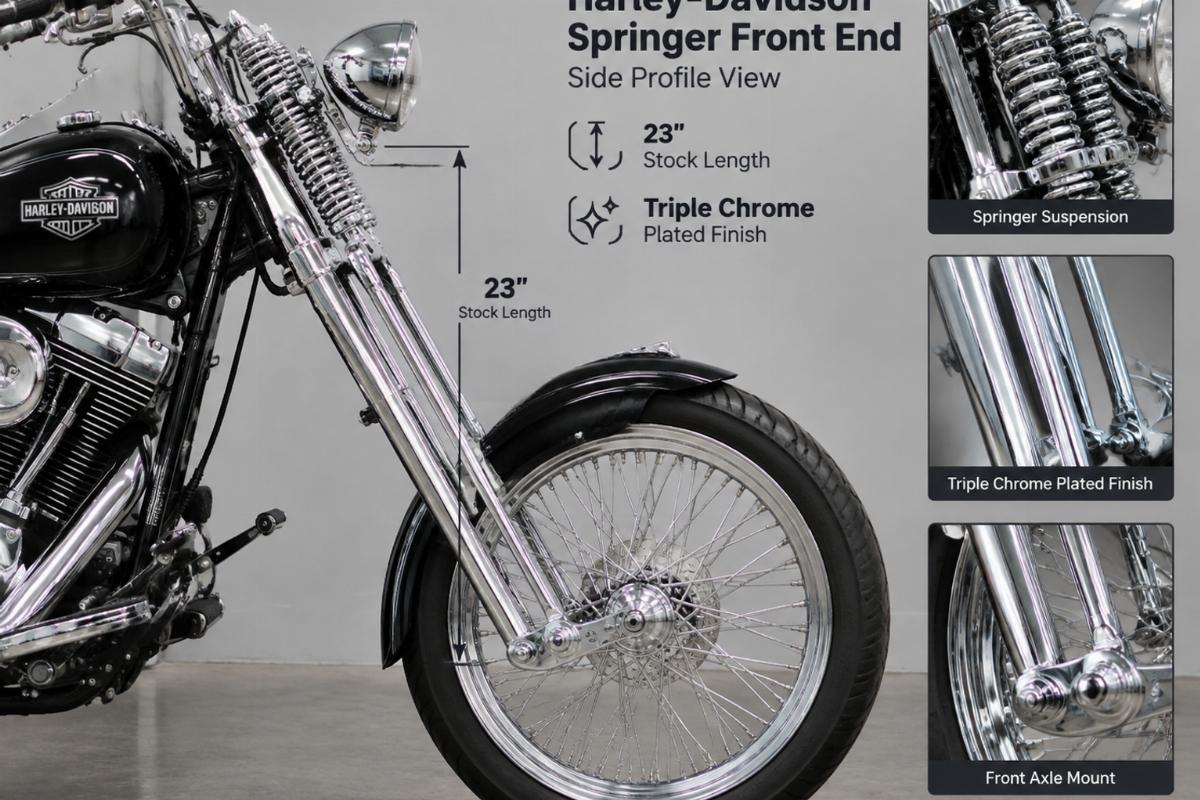

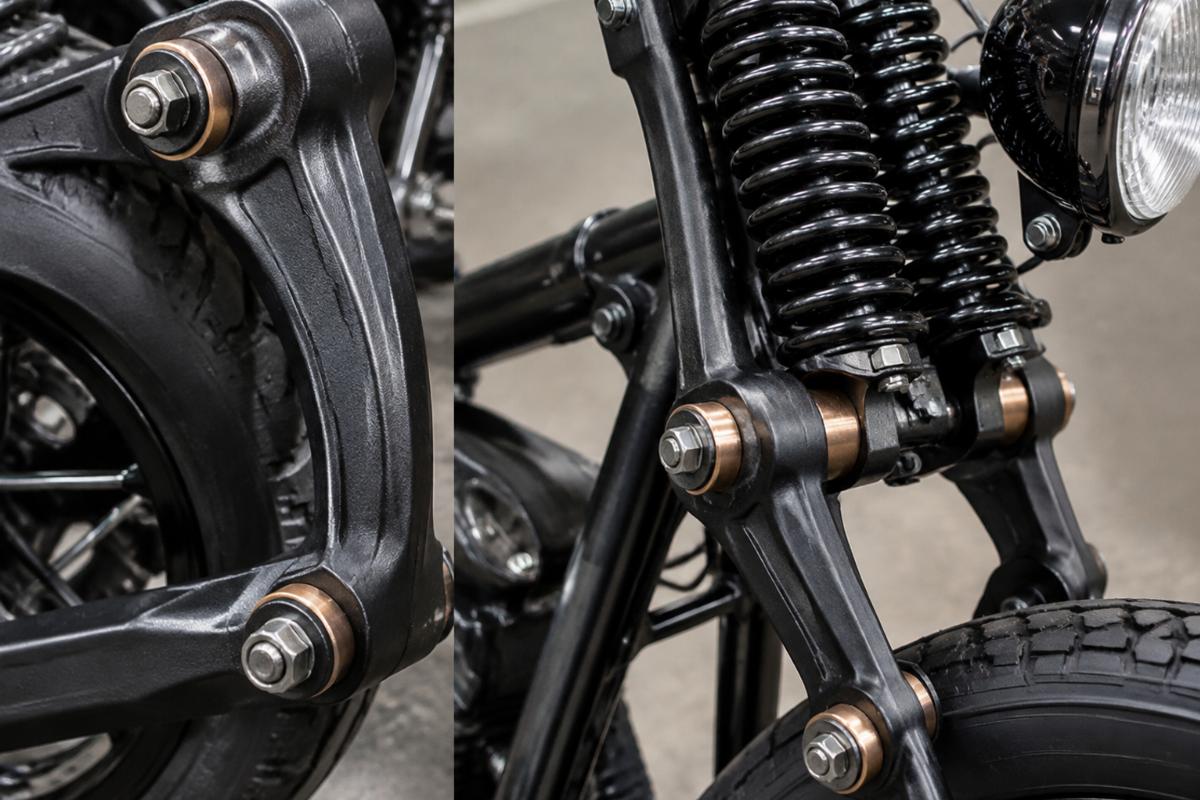

The 23″ stock length is measured vertically from the upper surface of the lower tree to the centerline of the axle. This specific vertical drop determines the ride height and directly influences the rake and trail of the motorcycle. The 1″ front legs and 1″ neck diameter provide the structural baseline for Big Twin applications, while the one-piece forged rear legs eliminate butt welds that can weaken the assembly under braking loads. The bronze rocker bushings ensure smooth pivot action without the play associated with cheaper alternatives.
The Hidden Cost Of Unverified Fitment Dimensions
Ordering a front end without confirming the neck diameter or stock length often leads to the bike sitting on the lift while the shop waits for a replacement. When steering stem sizes are mismatched, the machine cannot be assembled, delaying the entire build schedule. Furthermore, if the wheel spacer kit is overlooked for Sportster wheels, the hub will not seat correctly, requiring the front end to be disassembled and re-measured, wasting labor hours and delaying the customer delivery [NEED_CITE: common fitment errors in custom springer installations].
Sourcing Directly From The Front End Specialist
We produce springer front ends and fork parts in our own facility, ensuring direct control over the 23″ stock length and TIG-welded construction. Our catalogue offers front-end depth, combining complete springer assemblies with early and hydraulic fork parts under one account. You can choose between triple chrome plated or black powder coated finishes, with consistency checked between batches. We cross-reference against OEM numbers for identification, marked reference only, and support a minimum order from one piece for custom builders.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable platforms and 1984-1999 year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 23″ fork length and 1″ neck diameter
- Finish specification for triple chrome plated or black powder coated options
- Quality inspection record verifying TIG-welded construction
- Packing photographs showing zinc-plated axle and steering stem
Receiving And Pre-Installation Checks
- Verify the 1″ neck diameter matches your frame measurement before installation
- Check that the 23″ stock length matches your intended ride height geometry
- Confirm the presence of the narrowglide wheel spacer kit if using 2000-2007 Sportster wheels
- Inspect the triple chrome plated or black powder coated finish for any shipping damage
- Ensure the bronze rocker bushings move freely without binding before final assembly
- Store the unit in a dry environment to protect the zinc-plated axle and steering stem
Requesting A Fitment Check For Your Build
Send your specific model and year range to verify if this springer front end for harley-davidson frames matches your 1″ neck requirement. Provide your wheel setup details to confirm if the native Wide Glide fitment or the Sportster spacer kit is needed for your build. Let us know your preferred finish option and if you require a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm this springer front end fits my specific frame and year range?
A: You must verify that your frame has a 1″ neck diameter. This springer front end for harley-davidson frames is designed specifically for that measurement. Provide your exact model and year range during inquiry so we can cross-reference the fitment sheet and confirm compatibility before dispatch.
Q: What is the exact stock length measurement and how is it taken?
A: The stock length is 23″, measured vertically from the upper surface of the lower tree to the centerline of the axle. This specific measurement is critical for determining ride height and steering geometry. We verify this dimension on every unit before it leaves our facility.
Q: Which wheel spacer kit is required to run 2000-2007 Sportster wheels?
A: When using 2000-2007 Sportster wheels on this front end, a narrowglide wheel spacer kit is required. The kit adapts the wheel hub to the 3/4″ axle and correct front leg spacing. Native fitment is for 1984-1999 Softail Wide Glide wheels without spacers.
Q: Can I order a single springer front end for a custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and independent shops to order a single springer front end for a specific project without meeting bulk quantity thresholds, while still receiving full fitment verification and documentation.
