Springer Fork Assembly Kit for Big Twin 1948-1999 – Aftermarket Replacement
Single Piece Order — Custom springer fork assembly kit for big twin available without minimum order quantities, allowing shops to source exactly one +12″ over stock unit for a specific chassis build.
Product Specification
Part Type | Springer Fork Assembly Kit
| Parameter | Value |
|---|---|
| Finish | Chrome |
| Length | +12″ over stock, total length 39″ (top triple tree to rear rocker stud) |
| Wheel Size | 21″ |
| Stem Diameter | 1″ |
| Kit Contents | Neck post, top nut, crown nut, top for clamp without ears, 1″ stem |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL | 1948-1984 | Confirm with model and year |
| FX | 1971-1984 | Confirm with model and year |
| FLST | 1986-1999 | Confirm with model and year |
| FXST | 1984-1999 | Confirm with model and year |
| Rigid frames | All years | Verify frame neck dimensions |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Overall Length Dictates Your Steering Geometry
A 39″ total length measured from the top triple tree to the rear rocker stud defines the exact ride height and rake for this +12″ over stock build.
When a springer fork assembly kit for big twin is listed simply as “plus twelve inches,” builders often guess the final stance. I have seen custom shops order extended springers without verifying the 39″ overall length, only to find the rake and trail completely off once mounted. This ruins the steering geometry and leaves the front end unusable. Always double-check the total length and stem dimensions against your specific frame before clearing the assembly. [NEED_CITE: frame geometry specifications by model year]

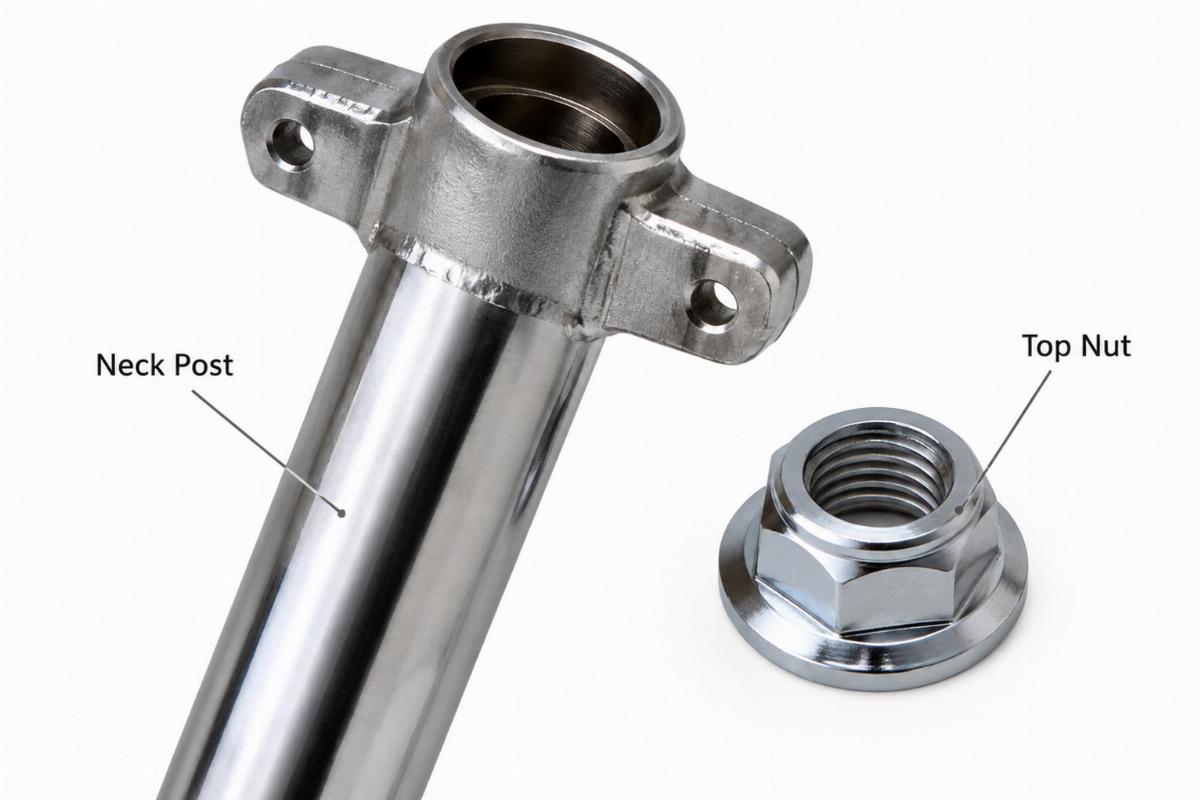

Verifying the 1″ Stem and Neck Post
This springer fork assembly kit for big twin features a 1″ stem diameter that must match your specific triple tree and frame neck specifications. The included neck post and crown nut are designed to secure the assembly within the steering head. If your rigid frame or Softail model requires a different stem size, this 1″ configuration will not seat correctly. Measure your existing steering stem or consult your frame builder to ensure the 1″ diameter aligns with your chassis.
Chrome Finish and Hardware Inclusions
The chrome finish is applied to the complete fork assembly and all included hardware, ensuring visual consistency across the front end. The kit provides the neck post, top nut, crown nut, top for clamp without ears, and the 1″ stem. Because this is a +12″ over stock extension, you must order the axle kit, risers, brake disc, wheel, headlamp, and mounting bracket separately. The assembly utilizes a 21″ wheel and a solid mount fender, which are not part of this specific kit. [NEED_CITE: hardware requirements for extended springer assemblies]

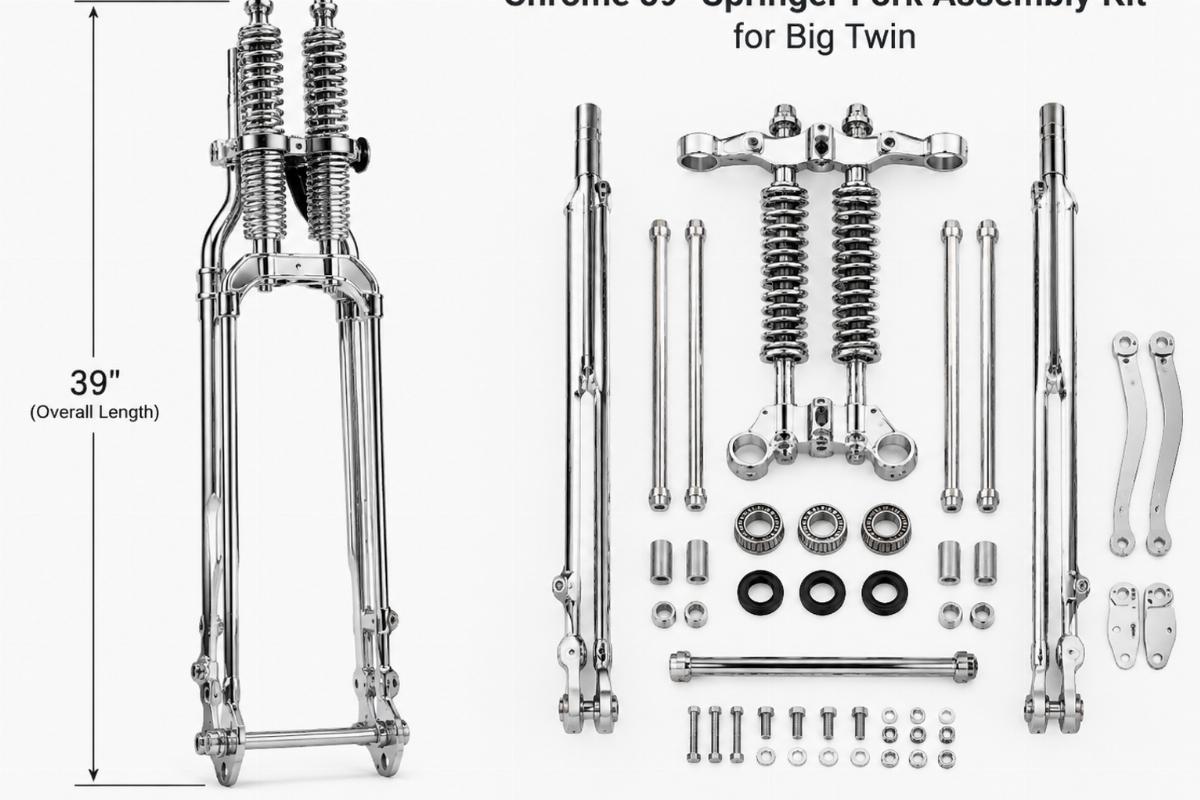

Decoding the 39″ Measurement and +12″ Extension
The 39″ total length is measured precisely from the top triple tree down to the rear rocker stud. This specific measurement point is critical because it determines where the front axle sits relative to the frame. A +12″ over stock extension pushes the front end further forward and lower, altering the trail. Understanding how this 39″ dimension interacts with your frame’s neck angle is essential. If the measurement points are ignored, the front tire may interfere with the fender or the steering may become too heavy to manage at low speeds.
The Hidden Cost of Ignoring Frame Year Ranges
Ordering a springer fork assembly kit for big twin without checking the exact year range can leave a bike stranded on the lift. Early FL models from 1948-1984 have different steering head dimensions compared to later FLST Softail models from 1986-1999. If a builder assumes a generic fitment, the 1″ stem might be too short or too long for the specific frame neck, requiring a complete teardown to source the correct hardware. This kind of mismatch wastes shop hours and delays the build timeline significantly. [NEED_CITE: steering head dimension changes across big twin generations]
Sourcing Fitment-Verified Front Ends
We verify every springer fork assembly kit for big twin against the specific platform family and model year range before it reaches your shop. Our own production facility handles the complete springer assemblies, ensuring the 39″ length and chrome finish meet consistent standards. We offer a single piece minimum order, meaning you can buy exactly one kit for a custom build without being forced into bulk purchases. Cross-referencing against older manual numbers is available for reference only, helping you match discontinued setups.
Documentation and Fitment Records
- Fitment sheet listing each year range this part was checked against
- Key dimensions including the 39″ total length and 1″ stem diameter
- Chrome finish specification and quality inspection records
- Cross-reference sheet with older manual numbers marked reference only
- Packing photographs showing the included neck post and hardware
Pre-Installation Checks for Your Shop
- Verify the 39″ total length matches your desired ride height and frame geometry
- Confirm the 1″ stem diameter fits your specific triple tree and frame neck
- Check that the 21″ wheel and solid mount fender requirements match your build plan
- Inspect the chrome finish on the fork legs and included hardware for batch consistency
- Ensure all separate components like the axle kit and risers are on hand before mounting
Requesting a Fitment Check
Send your specific model code and year range to verify if this 39″ springer fork assembly kit for big twin matches your chassis. Provide a photograph or measurements of your current steering stem if the part number is unknown. Let us know if you need a single unit for a custom build or a sample for fitment confirmation before a larger order.
Frequently Asked Questions
Q: How is the 39″ total length measured on this springer fork assembly?
A: The 39″ total length is measured precisely from the top triple tree down to the rear rocker stud. This specific measurement point determines the exact ride height and steering geometry for your +12″ over stock build. Always verify this dimension against your frame specifications before ordering.
Q: Which specific Big Twin models and year ranges are compatible with this +12″ over stock kit?
A: This springer fork assembly kit for big twin fits FL models from 1948-1984, FX models from 1971-1984, FLST models from 1986-1999, FXST models from 1984-1999, and all rigid frames. Always confirm the exact year range and frame neck dimensions with your specific build.
Q: What components are included in the kit, and which parts need to be ordered separately?
A: The kit includes the neck post, top nut, crown nut, top for clamp without ears, and the 1″ stem. You must order the axle kit, risers, brake disc, wheel, headlamp, and mounting bracket separately, as the assembly utilizes a 21″ wheel and solid mount fender.
Q: Can I order a single springer fork assembly kit for a custom build without a minimum order quantity?
A: Yes, we offer a single piece minimum order. You can source exactly one 39″ chrome springer fork assembly kit for your specific custom build without being required to purchase in bulk quantities.
