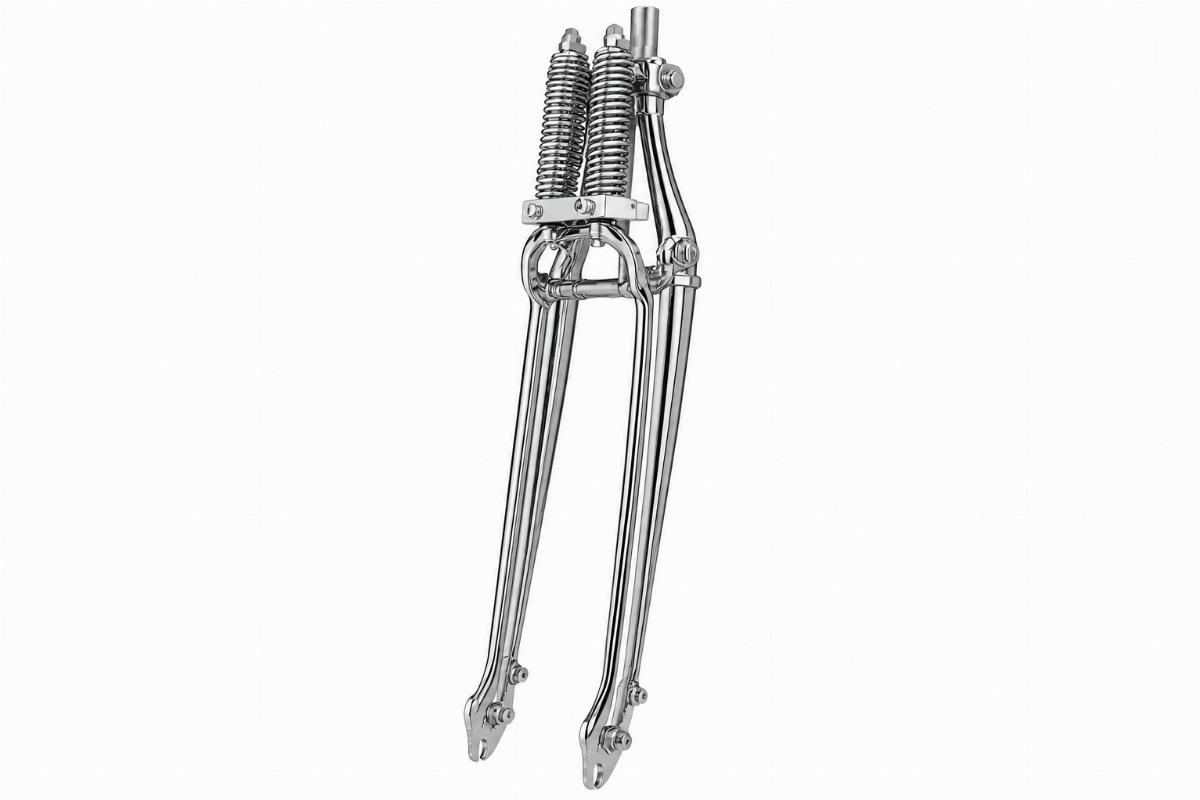

Single Piece Order Narrow Spring Fork Assembly 31″ Chrome Sample
Verified Fitment Dimensions — Every narrow spring fork assembly is checked against specific model years to confirm the 3/4″ axle hole and 31″ overall length before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Spring Fork Assembly |
| Length | 31″ (stock length) |
| Finish | Chrome |
| Axle Hole | 3/4″ |
| Top Tree | Without ears |
| Leg Thread | 1/2″-20 (drilled and tapped to mount risers) |
| Condition | Pre-production sample, cosmetic imperfections only, no physical defects |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year |
