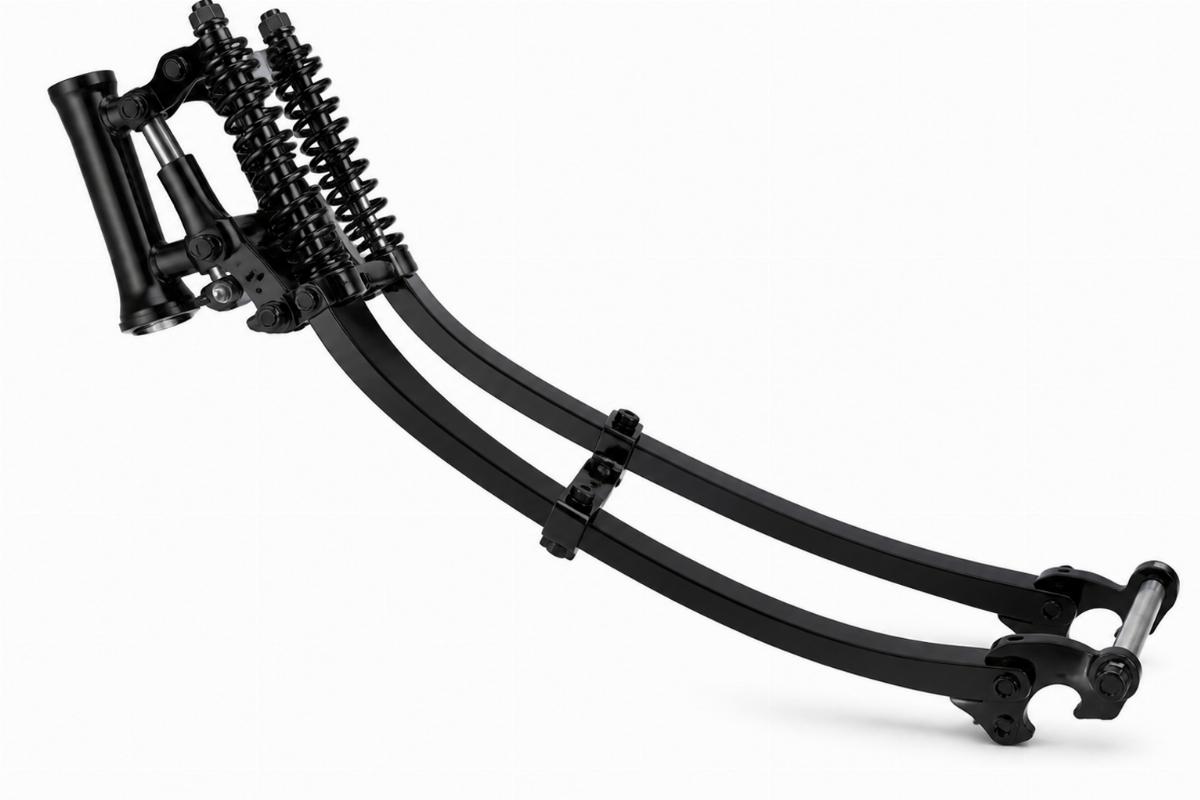

Single Piece Order Leaf Spring Fork Assembly for Custom Chopper Builds
Single Piece Order Available — We supply this leaf spring fork assembly for custom chopper builds as a one-off unit without minimum quantity blocks.
Product Specification
Part Type | Leaf Spring Fork Assembly
| Parameter | Value |
|---|---|
| Finish | Black (fork assembly), Chrome (acorn nuts) |
| Stem Diameter | 1″ |
| Thread | 1″ x 24 |
| Length | 44cm (from lever tree base to axle) |
| Axle Diameter | 3/4″ |
| Kit Contents | 1″ stem, top crown nut, 3/4″ axle, chrome acorn nuts, welded headlamp brackets for bottom mount |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom chopper builds | Confirm with model and year | Verify the 44cm overall length against your frame geometry before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Guesswork in Chopper Builds
A stated overall length prevents steering geometry errors.
Custom builders often struggle with fork kits that lack clear overall length or axle specifications, leading to delayed builds and incorrect ride heights. When a leaf spring fork assembly for custom chopper builds arrives without a verified measurement from the lever tree base to the axle, shops are forced to guess the rake and trail impact. This uncertainty frequently results in a bike sitting on the lift while the correct front end is sourced [NEED_CITE: frame geometry specifications by custom builder standards].
Verifying Stem Thread and Axle Spacing
I learned the hard way when a customer ordered a custom springer fork for a Softail but only gave the model, not the year. I shipped a standard setup, but the overall length completely changed the rake and trail, ruining the steering geometry. Now I always verify the exact year and double-check the 1″ x 24 stem thread and 3/4″ axle spacing before quoting. This leaf spring fork assembly for custom chopper builds includes the correct 1″ stem and 3/4″ axle to match standard hardware requirements.
Checking Headlamp Bracket Alignment

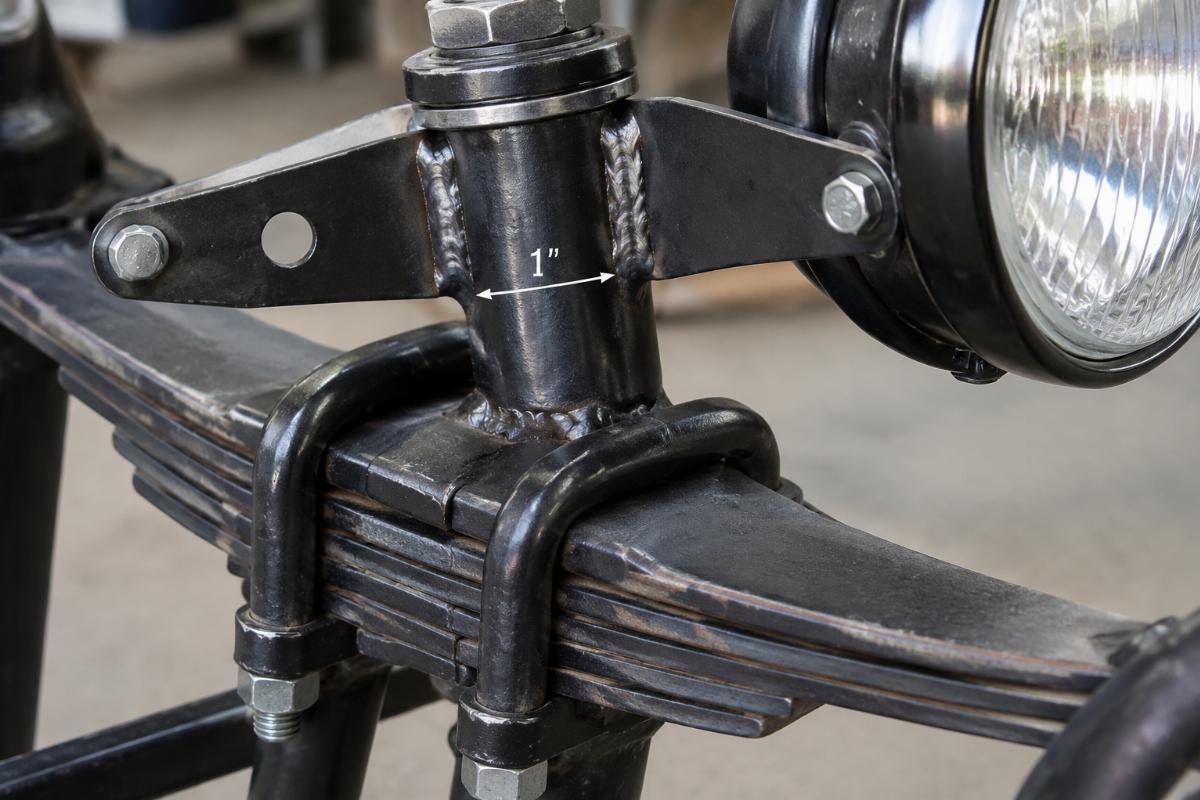

Pre-welded headlamp brackets require exact alignment with your lighting setup. This unit features brackets welded in place specifically for bottom mount headlamps. If your build utilizes a different mounting style, the brackets will not align correctly without modification. Always confirm your headlamp configuration matches the bottom mount design before finalizing your front end selection [NEED_CITE: headlamp mounting configurations across custom builds].
Understanding the 44cm Overall Length
The 44cm length is measured strictly from the lever tree base to the axle center. This specific dimension dictates your front ride height and directly influences the steering geometry of the finished chopper. A mismatch between this measurement and your frame’s designed rake will alter the handling characteristics. Confirming this 44cm dimension against your frame specifications is critical before installation.
The Cost of Unverified Front End Dimensions
Ordering a front end without confirming the stem thread or axle diameter often leads to parts that simply will not mount. A 1″ x 24 stem thread requires a matching steering neck, while a 3/4″ axle demands a wheel hub drilled to that exact spacing. When these dimensions are overlooked, the bike remains disassembled on the workbench, and the shop faces return shipping costs and project delays. Verifying these measurements against your specific frame and wheel setup prevents these costly fitment failures [NEED_CITE: steering neck and axle spacing variations in custom frames].
Sourcing Front End Components Directly
We produce front-end and chassis parts in our own facility, ensuring direct control over the manufacturing of this leaf spring fork assembly for custom chopper builds. Our catalogue offers front-end depth, combining complete assemblies and related hardware under one account. We provide both black and chrome finish options across our main lines to match your build aesthetics. Furthermore, we support one-piece minimum orders, allowing shops to purchase a single unit for a custom project without bulk requirements.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and year ranges
- Key dimensions including fork length and stem thread pitch
- Finish specification for the black fork and chrome acorn nuts
- Quality inspection record for batch consistency
- Packing photographs showing the complete kit contents
Pre-Installation Verification Steps
- Verify the 1″ x 24 stem thread matches your steering neck.
- Confirm the 3/4″ axle spacing aligns with your front wheel hub.
- Check that the 44cm overall length suits your frame geometry.
- Inspect the black finish and chrome acorn nuts for transit damage.
- Ensure the welded headlamp brackets match your bottom mount setup.
- Store the assembly in a dry environment to prevent surface corrosion.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this leaf spring fork assembly for custom chopper builds matches your project. Provide your frame’s rake requirements and headlamp mounting style to verify the 44cm length and bottom mount brackets. We can also supply a sample unit for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my frame to confirm this 44cm fork length will work with my custom geometry?
A: Measure the distance from the bottom of your steering neck to the center of your front axle mount. Compare this measurement to the 44cm length of the fork, which is measured from the lever tree base to the axle. This comparison will show if the fork maintains your desired ride height and rake.
Q: What is included in the leaf spring fork kit, and do I need to buy additional mounting hardware?
A: The kit includes the 1″ stem, top crown nut, 3/4″ axle, chrome acorn nuts, and welded headlamp brackets for bottom mount setups. You generally do not need additional stem or axle hardware, but you must supply your own front wheel, tire, and headlamp unit to complete the assembly.
Q: Can I order a single leaf spring fork assembly for a one-off custom build?
A: Yes, we support a minimum order of one piece. You can purchase a single leaf spring fork assembly for custom chopper builds without meeting bulk quantity requirements. This is ideal for custom builders working on individual projects or restorers needing a specific replacement part.
Q: How do you ensure the black finish consistency across different production batches?
A: We manufacture our front-end parts in our own facility, which allows us to control the finishing process directly. Every batch undergoes a quality inspection, and we provide finish specifications and inspection records with your documentation to ensure the black finish remains consistent across your orders.
