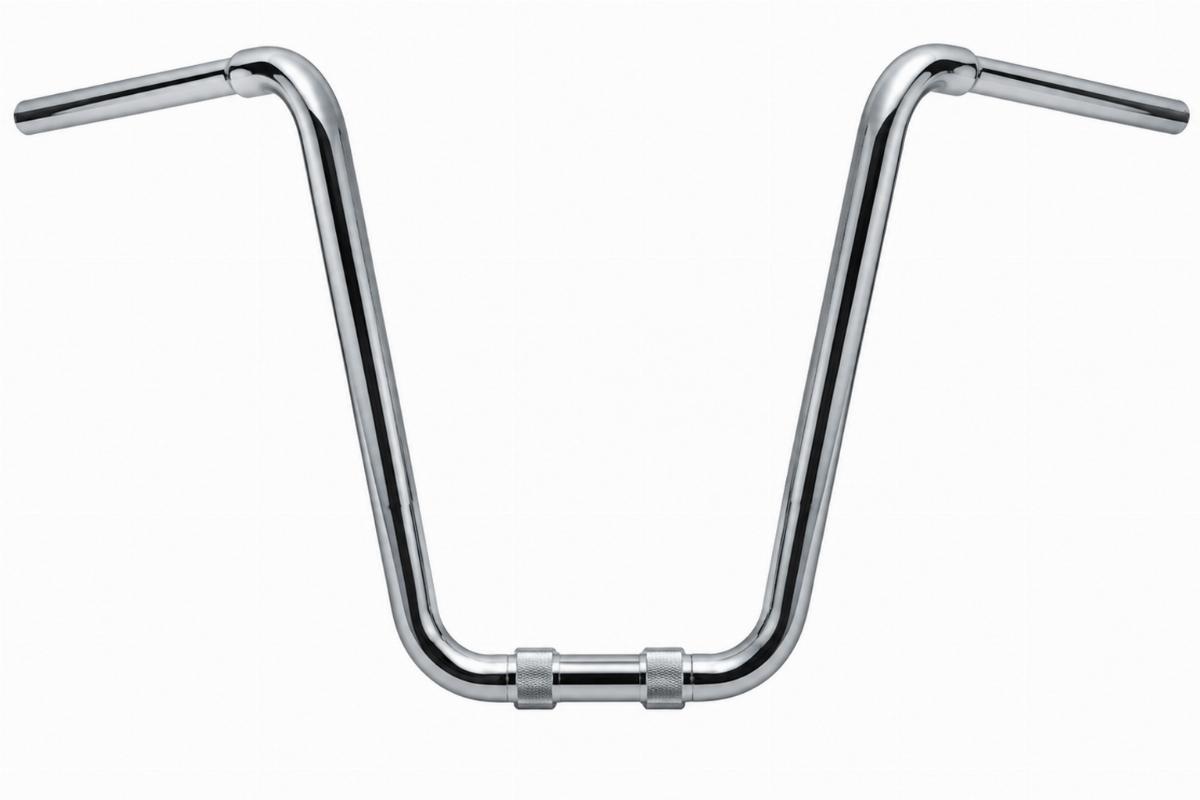

Single Piece Order Ape Hanger Handlebars for Custom Motorcycles
Fitment Checked Handlebars — Every 1-1/4 in ape hanger handlebars for custom motorcycles is verified against riser center spacing and control housing requirements before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Diameter | 1 1/4″ O.D. |
| Rise | 16″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Riser Center Spacing | 3 1/2″ |
| Finish | Chrome plated |
| Features | Dimpled at switch area, knurled at riser area, drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom motorcycles | Confirm with model and year | Dimpled at the switch area for use with any year handlebar controls; designed for risers that mount on 3 1/2″ centers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riser Center Spacing Dictates Your Handlebar Choice
A 3 1/2″ riser center spacing requirement means standard 4″ or 5″ spacing bars will not mount without modifying the triple tree.
When sourcing 1-1/4 in ape hanger handlebars for custom motorcycles, builders frequently overlook riser center spacing. If the clamp area does not align with the triple tree, the bars simply will not mount, leaving the front end incomplete. Verifying this dimension alongside the 16″ rise ensures the geometry matches the intended custom stance without forcing fabrication workarounds [NEED_CITE: frame geometry and riser spacing standards across custom builds].
Verifying Switch Housing Alignment for 1-1/4 Inch Controls
The 1-1/4″ O.D. diameter requires matching control housings and riser clamps. These 1-1/4 in ape hanger handlebars for custom motorcycles feature dimples at the switch area, accommodating standard housings without needing to drill new mounting holes. The knurled riser area prevents rotation within the clamps once tightened to the correct specification.

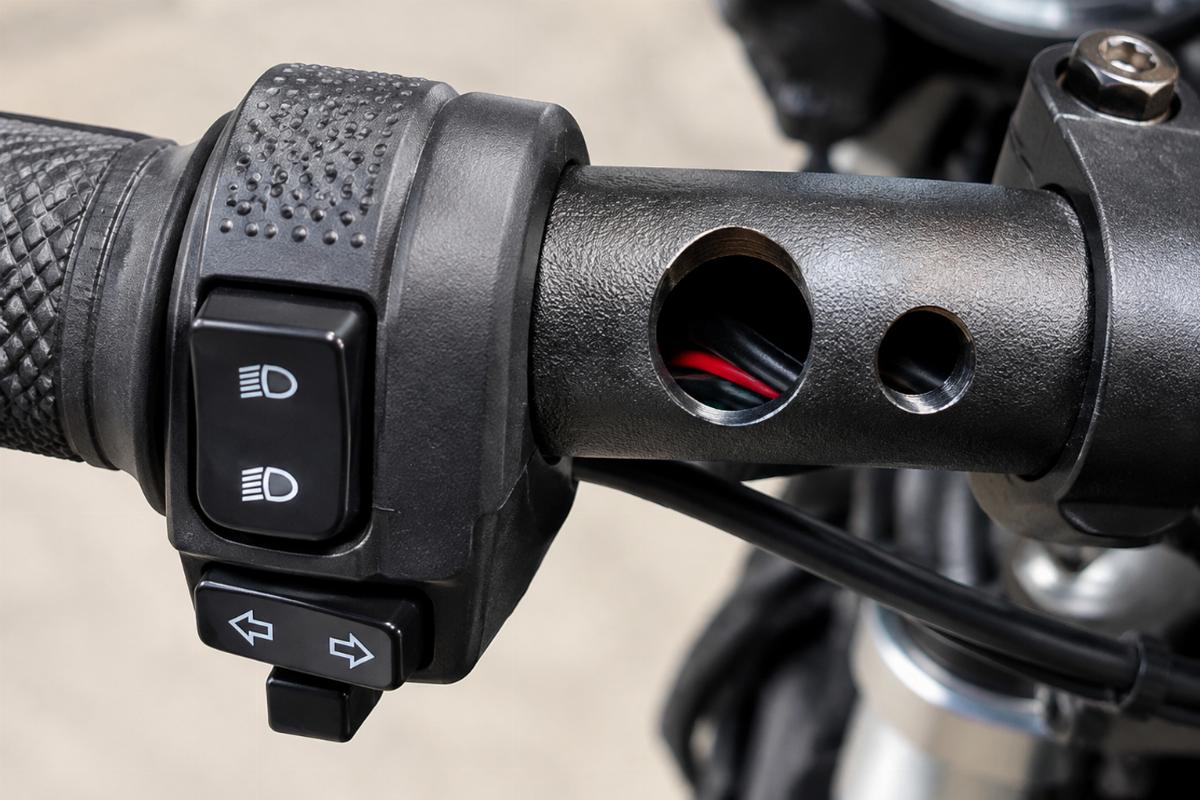

Internal Wiring Routing and Drilled Holes
Routing wires through the bars requires precise hole placement. These bars are drilled for internal wiring, allowing a clean look without external clips. When pairing these 1-1/4 in ape hanger handlebars for custom motorcycles with internal harnesses, confirm the drill hole locations align with your specific switch housing wire exits to avoid pinched cables [NEED_CITE: wiring harness routing clearances for drilled handlebars].
How Rise and Pullback Shape the Riding Position
A 16″ rise combined with a 9″ pullback significantly alters the rider’s reach and posture. The 35″ total width provides leverage for steering, while the 10″ center width dictates the clamping area. Understanding how these dimensions interact with the 3 1/2″ riser center spacing is critical for achieving the desired ergonomics on a custom build.
The Hidden Cost of Unverified Handlebar Dimensions
Ordering handlebars without confirming the exact year and control setup leads to unrideable customs. A builder once ordered 16-inch rise bars but skipped verifying the switch housing dimple placement for his specific controls. The dimples missed the switches entirely, and the drilled holes for internal wiring did not align with his harness routing. The bike sat on the lift until new bars arrived, delaying the build and wasting labor hours [NEED_CITE: control housing placement variations across model years].
Sourcing Handlebars with Fitment Certainty
We verify fitment against platform families and year ranges before quoting any handlebars. Our catalogue offers chrome plated finishes on these main front-end lines, ensuring consistency across batches. We support custom builders by allowing a single piece order, so you can test fit one pair before committing to bulk inventory. Cross-referencing against OEM numbers is available for identification, marked reference only.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for these handlebars.
- Key dimensions including 1 1/4″ O.D., 16″ rise, 35″ width, and 9″ pullback.
- Finish specification detailing the chrome plating process and standards.
- Packing photographs showing the dimpled switch area and drilled holes.
- Quality inspection record verifying the knurled riser area and center spacing.
Receiving and Pre-Installation Checks
- Measure the 3 1/2″ riser center spacing on the bars to confirm it matches your triple tree.
- Check the 1 1/4″ O.D. against your control housings and riser clamp inner diameter.
- Inspect the chrome plated finish for any plating defects before mounting.
- Verify the dimpled switch area aligns with your specific control housing mounts.
- Ensure the drilled holes for internal wiring are clear of debris before routing cables.
Request a Fitment Check for Your Build
Send your model and year for a fitment check to ensure these handlebars match your custom geometry. Provide your required finish, quantity, and any specific control housing details you are using. We can also supply a sample for fitment confirmation before you place a larger order.
Frequently Asked Questions
Q: How do I measure riser center spacing to ensure these handlebars fit?
A: Measure the distance between the center of the left riser hole to the center of the right riser hole on your triple tree. These 1-1/4 in ape hanger handlebars for custom motorcycles are designed specifically for risers that mount on 3 1/2″ centers. If your measurement differs, the bars will not align properly with the mounting holes.
Q: What dimensions are most critical when replacing ape hanger handlebars?
A: Beyond the 16″ rise and 35″ total width, the 3 1/2″ riser center spacing and 1 1/4″ O.D. are critical. The center spacing must match your triple tree, while the diameter must match your control housings and riser clamps. The 9″ pullback also dictates your reach, affecting overall riding ergonomics on the custom build.
Q: Can I order a single pair of handlebars for a custom build?
A: Yes, we support custom builders and independent shops by allowing a single piece order. You do not need to meet a high minimum order quantity to purchase these 1-1/4 in ape hanger handlebars for custom motorcycles. This allows you to test fit the bars on the bike before deciding whether to order additional inventory for future projects.
Q: Are the handlebars drilled and dimpled for internal wiring and stock controls?
A: Yes, these bars are drilled for internal wiring and dimpled at the switch area. The dimples accommodate standard handlebar controls for any year, meaning you can use your existing switch housings without modifying them. The drilled holes allow you to route the wiring harness cleanly through the bars for a custom appearance.
