Single Piece Order Ape Hanger Handlebars for Custom Motorcycles
Consistent black finish options — Every batch of these handlebars undergoes visual inspection to ensure the black coating matches your existing chassis components without color variation.

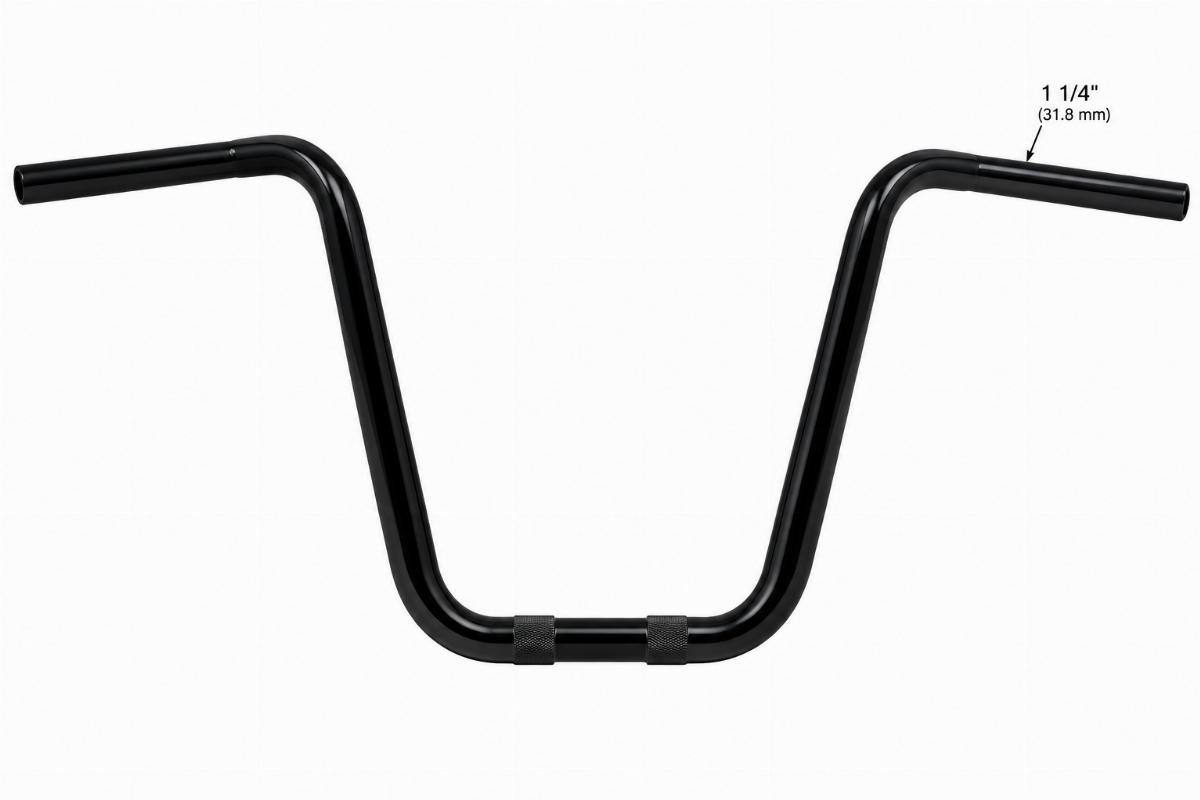

Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Finish | Black |
| Diameter | 1 1/4″ O.D. |
| Rise | 18″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Riser Center Spacing | 3 1/2″ |
| Features | Dimpled at switch area, knurled at riser area, drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom motorcycles | Confirm with model and year | Verify riser center spacing and control compatibility before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Handlebar Dimensions Delay Custom Builds
Incomplete dimension listings force builders to guess control compatibility and wiring routes.
When sourcing ape hanger handlebars for custom motorcycles, builders often encounter listings that omit bar diameter, rise, width, pullback, or wiring-hole details. I have seen shops receive bars only to discover the drilled holes for internal wiring mismatch their harness routing, leaving the bike stranded on the lift. Verifying exact dimensions against your specific control setup prevents these costly delays [NEED_CITE: handlebar dimension standards across custom build platforms].
Verifying Riser Centers And Control Dimples

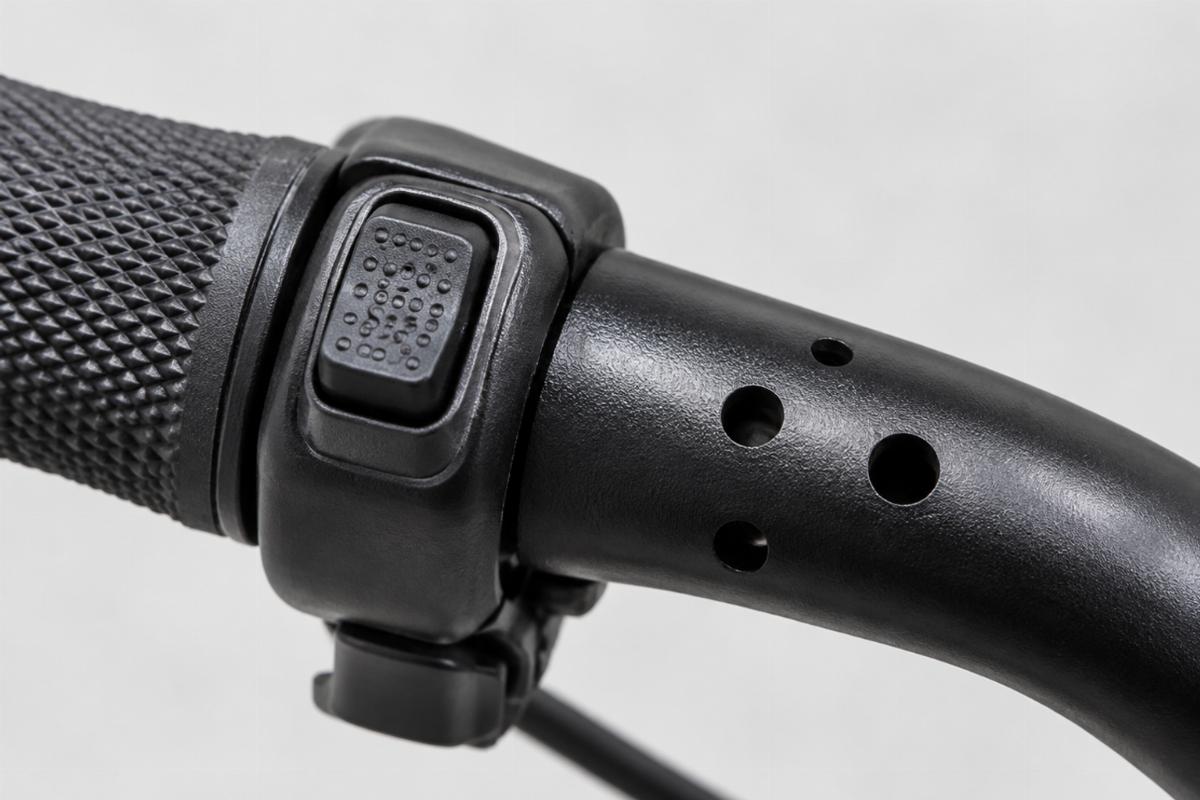

Confirming that your risers match the 3 1/2″ riser center spacing is the first step in ensuring these ape hanger handlebars for custom motorcycles will mount correctly. The 1 1/4″ O.D. provides a solid grip, while the knurled riser area helps prevent slippage once clamped. Additionally, the switch area is dimpled to accommodate standard handlebar controls, ensuring your switches sit flush without modification.
Matching Internal Wiring Routes To Your Harness
The 18″ rise and 35″ total width dictate your cable and wire lengths, making it crucial to measure your harness before finalizing the build. These bars are drilled for internal wiring, offering a clean setup, but the hole placement must align with your specific routing needs. Builders must check that their handlebar controls are fully compatible with the dimpled switch area to avoid cutting or splicing wires unnecessarily [NEED_CITE: wiring harness routing variations by model year].
How Rise And Pullback Affect Your Riding Geometry
The 18″ rise combined with a 9″ pullback significantly alters your riding position and reach to the controls. This geometry change requires you to verify that your clutch, brake, and throttle cables are long enough to accommodate the new stance without binding. The 10″ center width and 35″ total width also impact your steering leverage, so checking your frame geometry ensures the bike handles predictably at various speeds.
The Hidden Cost Of Unchecked Fitment Details
Ordering bars without confirming the exact year and model requirements often leads to mismatched control housings. I once shipped 1 1/4″ O.D. dimpled bars to a builder who skipped providing the exact year, resulting in switch housing dimples that did not align with his specific year controls. The drilled holes for internal wiring also mismatched his harness routing, forcing a complete swap and delaying the build. These fitment errors keep bikes parked in the shop while waiting for replacement parts [NEED_CITE: control housing dimple spacing changes across model years].
Sourcing With Fitment Certainty
We confirm fitment against the platform family and model year range before providing a quotation for your build. Our catalogue offers cross-reference checks against OEM numbers, marked reference only, to ensure you get the correct replacement dimensions. You can order a single piece for a custom build without meeting high minimum order quantities. We also provide sample supply for fitment confirmation before you commit to bulk orders for your shop.
Documentation And Build Verification
- Fitment sheet stating applicable platforms and confirmed year ranges.
- Key dimensions sheet including bar diameter, rise, width, and pullback.
- Finish specification detailing the black coating application.
- Quality inspection record verifying dimple and drill placement.
- Packing photographs showing the black finish and knurled areas.
Receiving And Pre-Installation Checks
- Measure the 3 1/2″ riser center spacing to confirm clamp compatibility.
- Check the 1 1/4″ O.D. against your control housing inner diameter.
- Inspect the black finish for consistency across the 35″ total width.
- Verify the drilled holes align with your internal wiring harness path.
- Ensure the 18″ rise and 9″ pullback match your cable length requirements.
Requesting A Fitment Check
Send your model and year along with any old part photographs or key measurements to verify compatibility. Let us know your required finish and quantity, and whether you need a sample for fitment confirmation before placing a bulk order. Providing exact control housing details ensures we match the correct dimpled switch area for your specific setup.
Frequently Asked Questions
Q: How do I confirm my custom build fits these handlebar dimensions?
A: Measure your riser clamp spacing to ensure it matches the 3 1/2″ centers. Verify your control housings fit the 1 1/4″ O.D. dimpled area. Check that your cables are long enough for the 18″ rise and 9″ pullback. Send us your model and year for a final fitment verification.
Q: What should I check regarding riser center spacing and control dimples?
A: Confirm your risers accept a 1 1/4″ O.D. bar and are spaced exactly 3 1/2″ apart. Ensure your switch housings are designed for dimpled handlebars so they sit flush. The knurled riser area will grip the clamps securely once tightened.
Q: How do I measure rise, pullback, and total width on ape hangers?
A: Measure the rise from the center of the clamp area straight up to the top of the bar. Pullback is the distance from the centerline of the clamp to the center of the grip. Total width is measured from the outer edge of one grip to the outer edge of the other.
Q: Can I order a single piece for a custom build?
A: Yes, we accept single piece orders for custom builds and restorations. There are no minimum order quantities blocking a one-off purchase. You can also request a sample for fitment confirmation before committing to larger quantities for your shop.
Q: Do you provide samples for fitment confirmation before bulk orders?
A: We offer sample supply specifically for fitment confirmation. This allows you to test the 3 1/2″ riser centers, dimpled switch area, and drilled wiring holes on your specific frame before placing a bulk order for your inventory or multiple builds.
