Regulator Rectifier – Black Anodized – Fits Harley-Davidson Big Twin 1997-Later
Fitment Verified by Year Range — Every regulator rectifier for harley-davidson is checked against the exact platform and connector shift for 1997 and later models.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 74505-09 (reference only) |
| Part Type | regulator/rectifier |
| Finish | Black Anodized |
| Output | 45/60 amps |
| Connector Type | Deutsch and Delphi (for 1997/later applications) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Big Twin | 1997-later | Verify connector type for specific model. |
| Harley-Davidson Sportster | 1997-later | Confirm plug type matches wiring harness. |
| Harley-Davidson FLT | 2009-later | Specific year range applies to FLT platform. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Connector Shifts Matter for Your Regulator Rectifier for Harley-Davidson
Plug types changed for 1997 and later applications, making old manual part numbers unreliable for modern wiring.
When sourcing a regulator rectifier for harley-davidson, buyers often rely on decades-old service manuals that list superseded part numbers. A replacement unit might arrive with the correct amperage, but if the pins do not match the Deutsch or Delphi connectors introduced in later years, the bike remains on the lift. Verifying the exact model year and connector type prevents this mismatch, ensuring the solid state circuitry actually interfaces with the existing harness without requiring custom adapters. [NEED_CITE: connector changes across model years for this platform]
Verifying Platform and Year Range Before Quotation

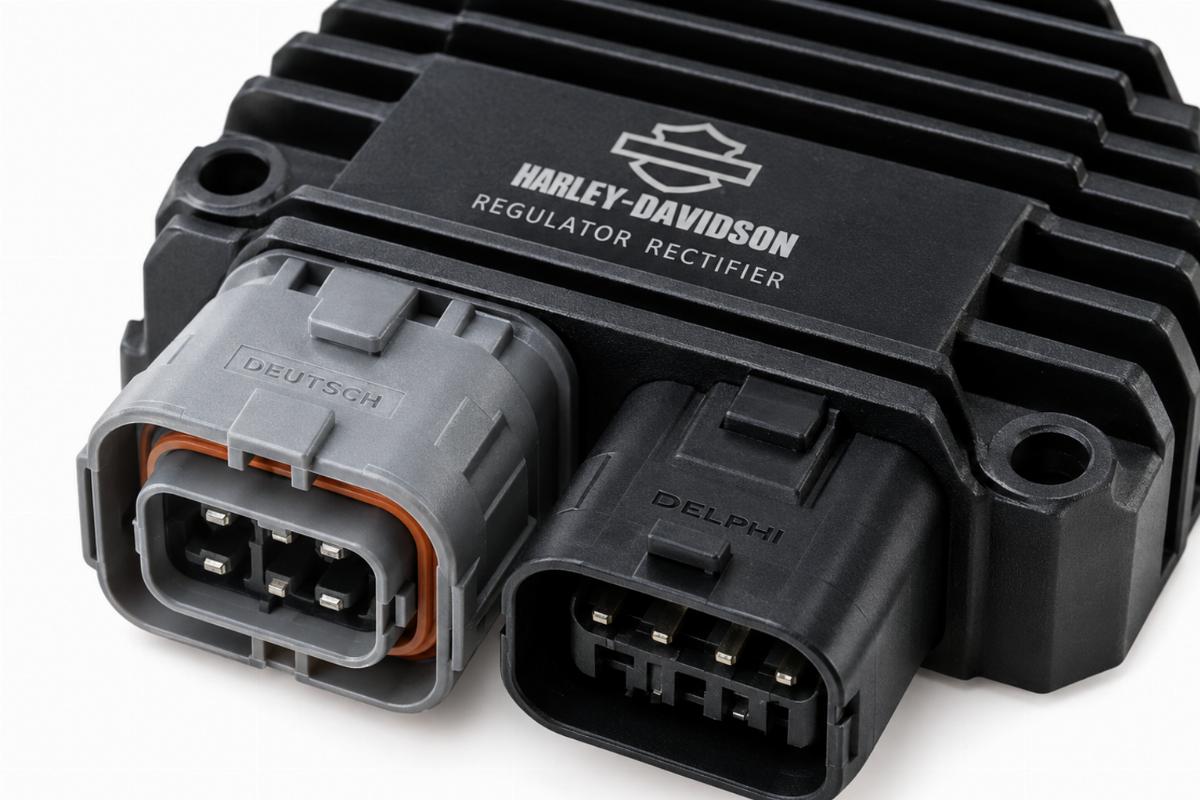

Finding the correct regulator rectifier for harley-davidson requires more than just matching a visual appearance. The transition to Deutsch and Delphi connectors for 1997 and later applications means that a unit designed for an earlier generation will physically not mate with the stator or main harness. We verify the exact platform, whether it is a Big Twin, Sportster, or FLT, and cross-check the specific year range to ensure the terminal layout matches your build requirements.
Cross-Referencing Superseded Numbers
Part numbers get superseded across model years, and a number from an older catalog often no longer matches the physical plug. When you provide an old manual number, we cross-reference it against current fitment data to find the correct 45/60 amps unit. This process guarantees that the black anodized replacement you receive features the correct Deutsch and Delphi connectors for your specific FLT or Big Twin application. [NEED_CITE: factory service manual specifications by model year]
Understanding Output and Finish Specifications
The 45/60 amps output rating determines how effectively the unit manages the alternating current generated by the stator, converting it to direct current for the battery and electrical loads. Selecting a unit with the correct amperage prevents undercharging or overloading the system. The black anodized finish provides a durable exterior that resists corrosion from road debris and engine bay heat, maintaining a clean appearance behind the side covers.
The Hidden Cost of Incorrect Fitment
Ordering a regulator based solely on a visual match or an outdated parts list often leads to a unit that arrives but does not plug in. The bike sits on the shop floor while the builder tracks down the correct Deutsch or Delphi pigtail, delaying the build and increasing labor costs. In some cases, forcing an incorrect connector can damage the stator wires or the new regulator pins, turning a simple replacement into a costly electrical repair. [NEED_CITE: wiring harness damage from forced connector mating]
Sourcing Electrical Components with Confidence
We confirm fitment against the platform family and model year range before issuing any quotation for a regulator rectifier for harley-davidson. Our cross-reference process accounts for superseded numbers, ensuring you receive a unit with the correct Deutsch and Delphi connectors for 1997 and later applications. We support single-piece minimum orders, allowing shops to test fit a sample before committing to bulk inventory. Every 45/60 amps unit is inspected for terminal alignment and black anodized finish consistency prior to dispatch.
Documentation Provided
- Fitment sheet listing each year range this part was checked against.
- Cross-reference sheet with OEM numbers marked reference only.
- Electrical rating and connector type details included in documentation.
- Finish specification for the black anodized exterior.
- Quality inspection record verifying terminal alignment.
Receiving and Pre-Installation Checks
- Verify the 45/60 amps rating matches your charging system requirements.
- Confirm the Deutsch and Delphi connectors match your existing wiring harness.
- Check the black anodized finish for any shipping damage or surface defects.

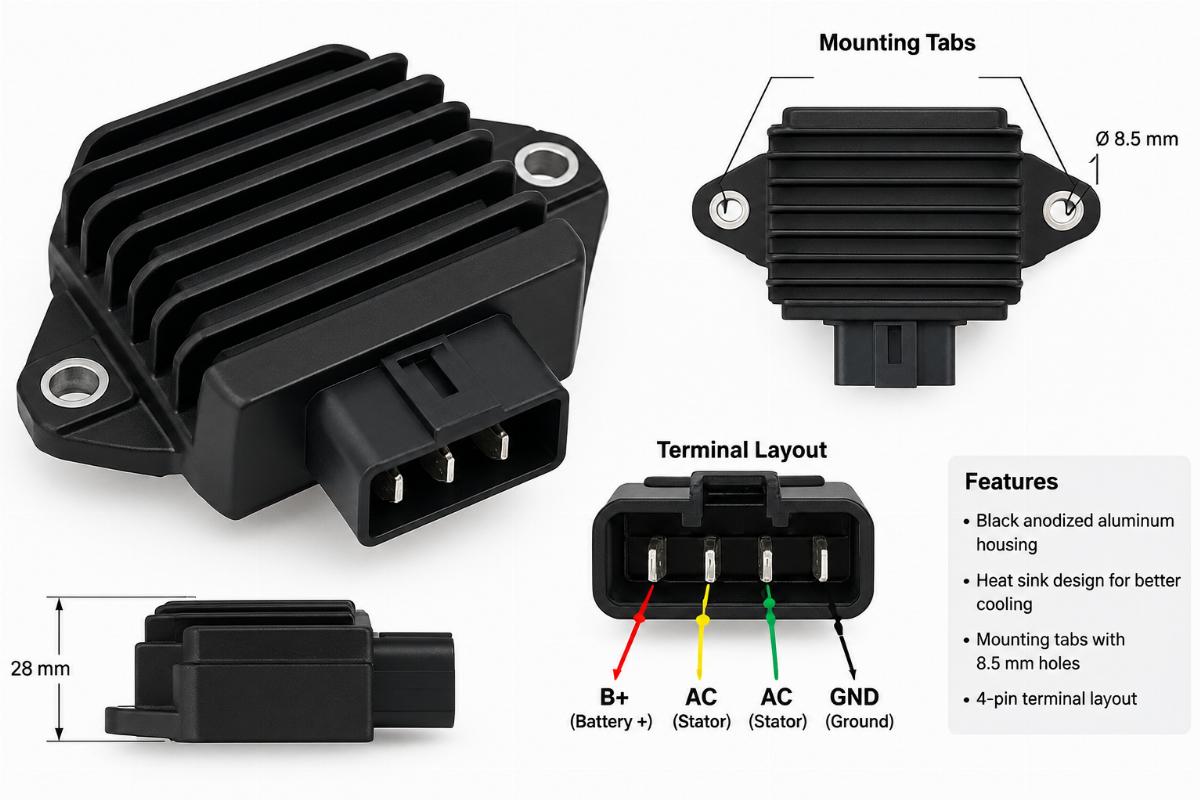

- Ensure the mounting tabs align with your frame or battery box location.
- Store the unit in a dry environment to protect the anodized exterior.
Send Your Details for a Fitment Check
Provide your exact model and year range to confirm this regulator rectifier for harley-davidson matches your connector requirements. Include any old part numbers or photographs of your current unit to help us verify the Deutsch or Delphi plug type. Let us know if you need a single piece for sample fitment before placing a larger order.
Frequently Asked Questions
Q: How do I confirm my Harley-Davidson model and year fits this regulator?
A: Provide your exact model designation and year range. We verify this against our fitment data to ensure the Deutsch or Delphi connectors match the wiring harness introduced for 1997 and later applications, preventing plug mismatches.
Q: What are the differences in connectors for 1997 and later applications?
A: Models from 1997 onward transitioned to specific Deutsch and Delphi plug types. Earlier units used different terminal layouts. We cross-reference your model year to ensure the replacement features the correct connector for your specific platform.
Q: How can I check the electrical output before ordering?
A: This unit is rated at 45/60 amps. You should verify this output against your motorcycle’s charging system requirements and stator specifications to ensure it can handle the electrical load without undercharging the battery.
Q: Can I order a single piece to confirm fitment before bulk orders?
A: Yes, we support a minimum order of one piece. This allows you to receive a sample, verify the Deutsch and Delphi connector fitment, and check the black anodized finish before committing to a larger inventory purchase.
