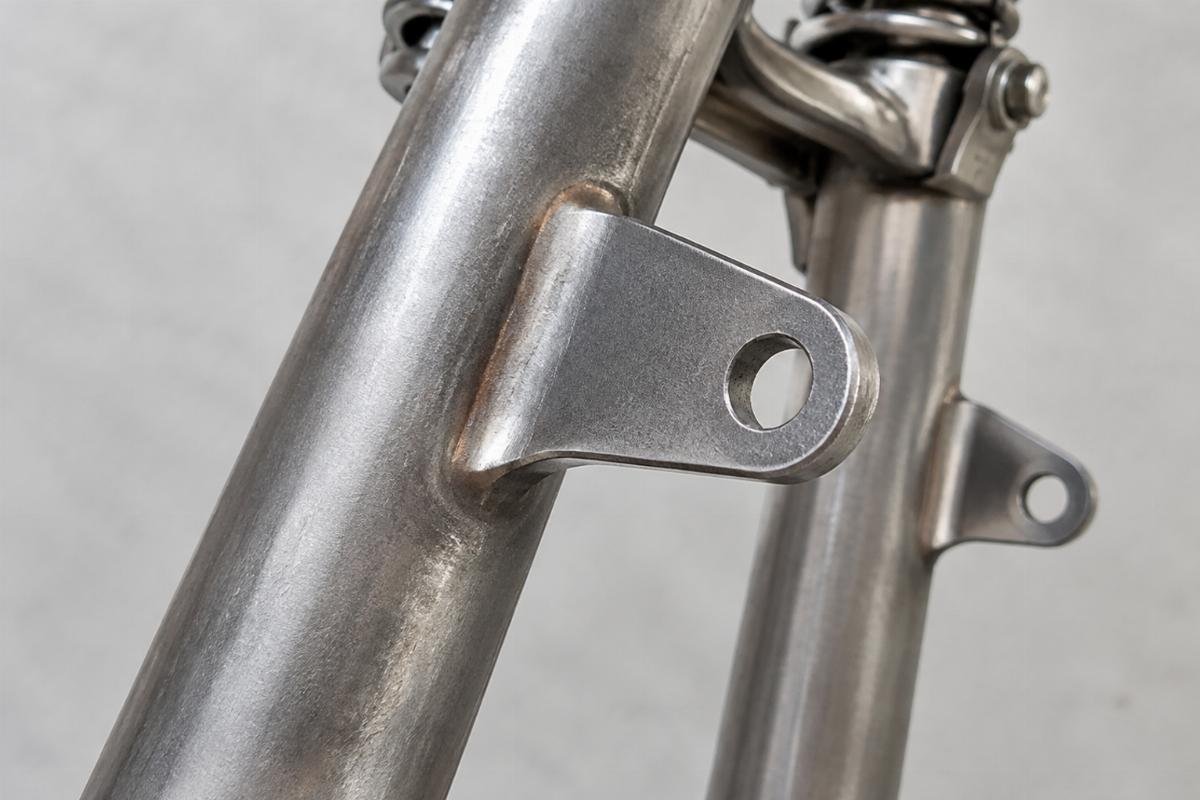

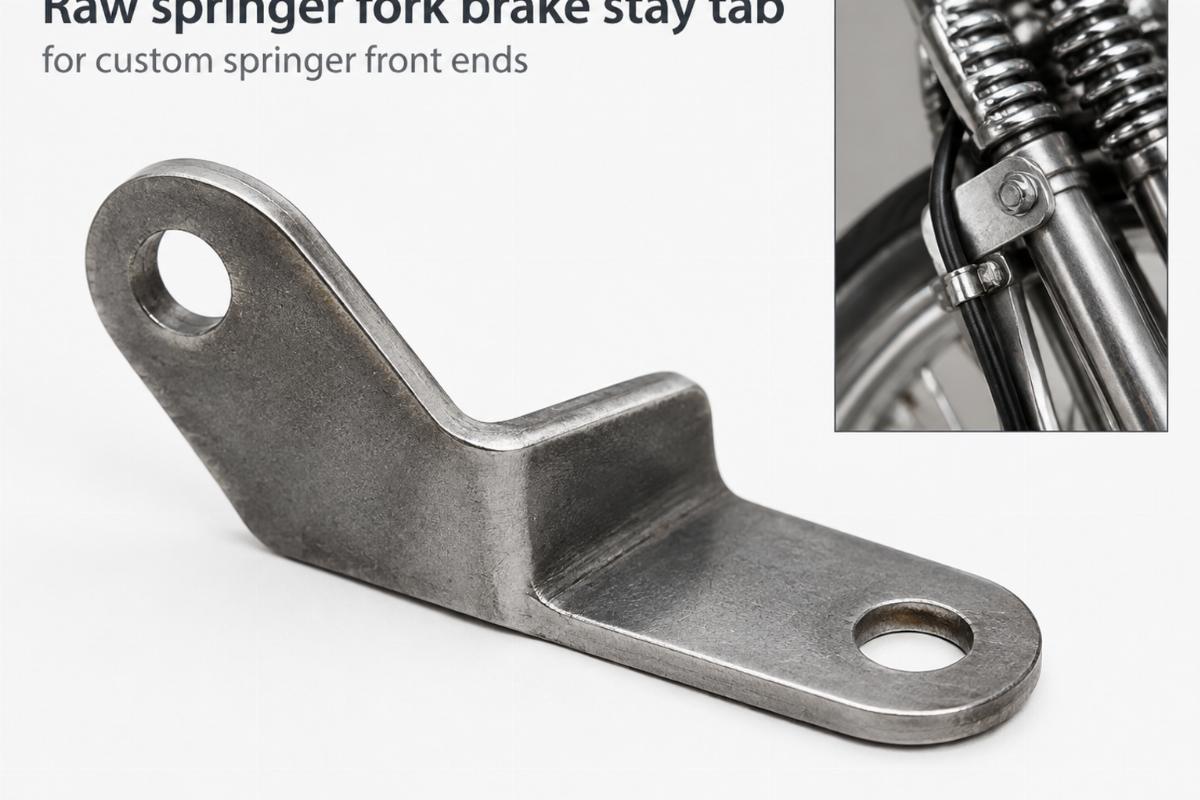

Raw Spring Fork Brake Stay Tab for Custom Springer Front Ends
Fitment Verified Before Quotation — Every springer fork brake stay tab is checked against your exact fork length and custom springer leg spacing before we confirm the order.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Brake Stay Tab |
| Finish | Raw |
| Installation | Must be welded on |
| Application | Custom springer front ends |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Front Ends | Confirm with model and year | Verify brake caliper and rotor alignment before welding. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Dimensions Ruin Custom Springer Builds
A missing dimension on a brake stay tab forces you to cut, re-weld, and delay the build.
Custom builders often face missing or poorly fitting brake mounts when assembling springer front ends. When a standard spacing tab is welded onto an over-stock leg, the mounting holes end up misaligned by a fraction of an inch. This misalignment prevents the brake caliper from seating correctly, compromising braking stability and forcing the fabricator to start over. I once saw a shop receive standard spacing tabs for a build using 20-inch over-stock legs. The tabs were welded on, but the holes were off by half an inch, ruining the raw material and wasting a full day of labor [NEED_CITE: frame geometry changes with over-stock springer lengths].
Checking Leg Spacing Before Welding
Before tacking this springer fork brake stay tab to your leg, you must measure the exact distance between the left and right legs at the axle and caliper plane. Over-stock springer front ends alter the track width and the angle of the legs. If you assume the spacing matches a stock frame, the caliper will not center over the rotor. We verify the exact fork length and leg geometry to ensure the tab matches your specific custom springer setup.
Confirming Caliper Alignment
The raw finish of this springer fork brake stay tab is designed to be welded directly to the springer leg, but placement is critical. You need to mock up the caliper and rotor to confirm the tab provides a solid mounting point without interfering with the wheel or fender. Failing to check this alignment before the final weld means the caliper bracket will sit at an angle, leading to uneven pad wear and binding [NEED_CITE: caliper alignment requirements for custom springer brakes].
Understanding the Raw Finish Specs
This springer fork brake stay tab arrives in a raw finish, which is ideal for welding and custom finishing. The raw steel accepts TIG or MIG welding without the interference of pre-applied coatings like chrome or powder coat. Once the tab is permanently welded and the welds are ground smooth, you can apply your preferred finish to match the rest of the front end. The raw state ensures maximum weld penetration and structural integrity for the brake stay integration.
The Hidden Cost of Incorrect Tab Placement
When a springer fork brake stay tab is placed without verifying the over-stock length, the consequences go beyond just a bad weld. If the holes are offset, you cannot simply bend the caliper bracket; the structural stress will crack the mount under heavy braking. The bike ends up stuck on the lift while the fabricator cuts the raw tab off, preps the leg again, and re-welds a new tab. This cycle wastes raw materials, delays the customer delivery, and ruins the finish on the surrounding leg tubes [NEED_CITE: structural stress on misaligned brake mounts].
Sourcing From a Front End Specialist
We manufacture our own springer front ends and chassis hardware, meaning we understand exactly how a springer fork brake stay tab needs to sit on the leg. We confirm fitment against your specific platform family and model year range before sending a quotation. You can order a single piece for a one-off custom build without worrying about minimum order quantities blocking your shop. We also provide sample supply for fitment confirmation before you commit to bulk orders for your catalogue line.
Documentation Provided With Your Order
- Fitment sheet stating applicable platforms and year ranges for your custom springer front end.
- Key dimensions detailing the tab spacing and mounting hole distances.
- Finish specification confirming the raw steel condition for welding.
- Quality inspection record verifying the tab meets our chassis hardware standards.
- Packing photographs showing the raw springer fork brake stay tab securely boxed.
Receiving And Inspecting Your Brake Tabs
- Verify the raw springer fork brake stay tab matches the requested dimensions for your custom springer leg spacing.
- Check the raw steel surface for any shipping damage or excessive rust before welding preparation.
- Confirm the mounting holes are drilled to the correct diameter for your specific brake caliper bolts.
- Store the raw tabs in a dry environment to prevent surface oxidation before your fabrication schedule.
- Have a qualified technician mock up the tab and caliper to verify alignment prior to the final weld.
Requesting A Fitment Check
Send us your exact fork length, over-stock measurement, and a photograph of your current springer legs so we can verify the springer fork brake stay tab will align perfectly. Let us know if you need a single piece for a custom build or a sample to test fit before placing a larger order. We will cross-reference your requirements and confirm the exact dimensions before we quote.
Frequently Asked Questions
Q: How do I confirm this brake stay tab fits my custom springer front end?
A: You need to provide the exact over-stock length of your springer front end and the measured distance between the left and right legs at the caliper mounting plane. We use these dimensions to verify the springer fork brake stay tab will align correctly with your brake rotor before confirming the fitment.
Q: What dimensions should I measure on my springer legs before welding?
A: Measure the distance between the inner and outer faces of both legs at the axle centerline and the caliper mounting height. These measurements ensure the raw springer fork brake stay tab provides the correct spacing and angle for your specific custom springer geometry.
Q: Can I order a single brake stay tab for a one-off custom build?
A: Yes, we support custom builders and independent repair shops by offering a minimum order of one piece. You can order a single raw springer fork brake stay tab for your specific project without being blocked by high minimum order quantities.
Q: Is the raw finish suitable for welding directly to the springer leg?
A: The raw finish is specifically prepared for direct welding. It allows for clean TIG or MIG weld penetration without the interference of pre-applied coatings, ensuring a solid structural mount for your brake stay integration before you apply your final custom finish.
Q: Can I get a sample to test fit before placing a bulk order?
A: We provide sample supply for fitment confirmation before you commit to bulk orders. This allows you to weld and test the springer fork brake stay tab on your actual springer legs to verify caliper alignment and spacing before ordering for your entire catalogue line.
