Jackknife Handlebars for Touring Models 1982-Up – Fitment Checked
Fitment Verified Against Platform Years — Every jackknife handlebars for touring models is checked against the 1982 and later year range to confirm riser mount diameter and wiring drill points before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1 1/4″ (1″ at riser mount) |
| Total Width | 34″ |
| Center Width | 15″ |
| Height | 14″ |

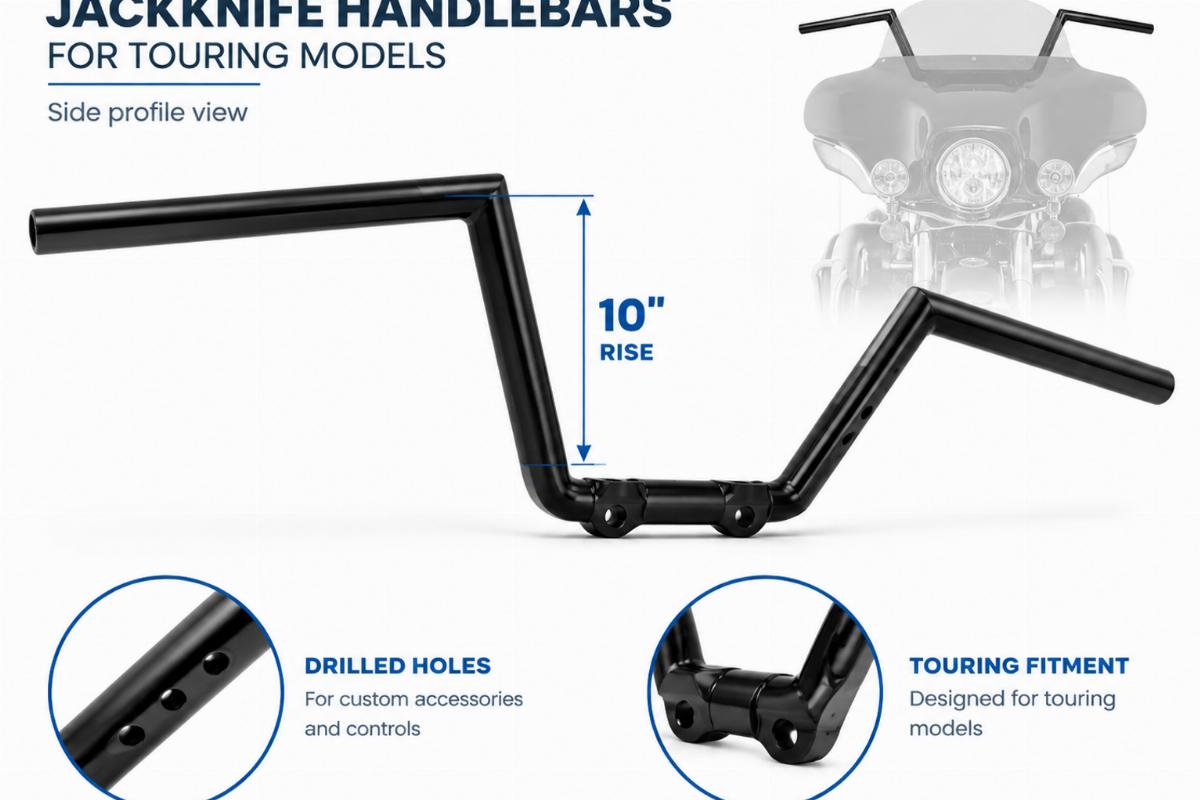

| Rise | 10″ |
| Pull back | 6″ |
| Wiring | Drilled for internal wiring |
| Finish | Offered in chrome or black |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Touring Models | 1982 and later | 10″ rise normally uses stock hose and wires and is not visible from front with Batwing Fairing; includes Fly-By-Wire fitment. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riser Mount Diameter Causes Fitment Failures
Listings that omit the riser mount diameter or wiring-hole details cause immediate installation failures when the part arrives.
Working in the parts hub, I see shops order 14-inch jackknife handlebars for Touring models assuming the 1 1/4-inch big look means the entire bar. They assume their 1 1/4-inch risers will clamp perfectly, but the bar steps down to 1 inch at the riser mount. Their risers cannot clamp the bar, and the internal wiring holes miss the Fly-By-Wire routing path entirely. Verifying the riser mount diameter and wiring drill points for 1982 and later models prevents the bike from sitting on the lift [NEED_CITE: service manual specifications for riser clamp diameters by model year].
Verifying Riser Clamp Compatibility

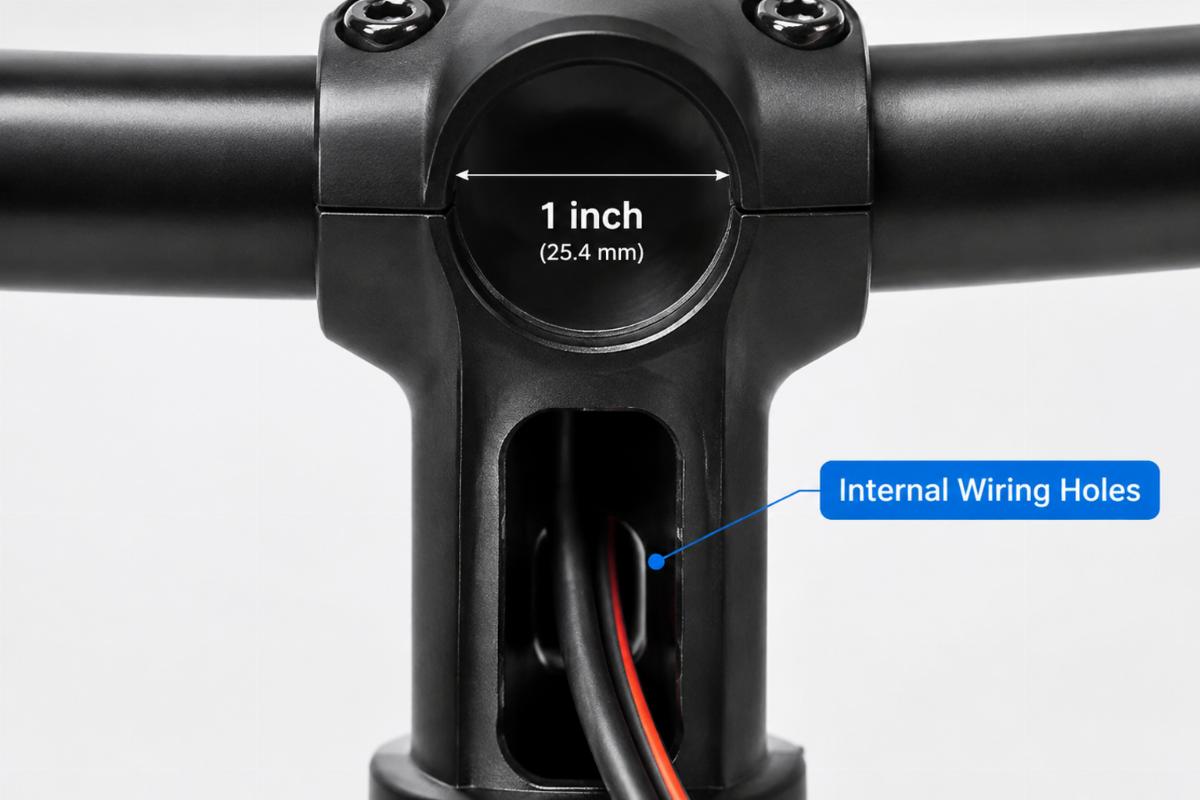

When sourcing jackknife handlebars for touring models, the 1 1/4″ outer diameter tapers to a 1″ section at the riser mount. If your existing risers are sized for a straight 1 1/4″ bar, they will slip or fail to tighten. You must match the 1″ riser mount section to your specific clamp size to ensure a secure hold without crushing the tube.
Routing Internal Wiring for Fly-By-Wire
The 1982 and later Touring platforms require precise cable and wire routing, especially with Fly-By-Wire setups. These bars are drilled for internal wiring, but the drill points must align with your specific frame’s entry holes. Misaligned drill points force you to drill new holes or run wires externally, which compromises the clean look of the front end [NEED_CITE: wiring routing paths for Touring models with Batwing Fairing].
Interpreting Key Bar Dimensions
The 34″ total width and 15″ center width dictate how the bar spans across your triple tree and where the controls sit relative to your body. A 10″ rise combined with a 14″ overall height and 6″ pull back changes your riding posture significantly. The 10″ rise is specifically noted to work with stock hoses and wires when paired with a Batwing Fairing, keeping the lines hidden and functional without needing extended cable kits.
Hidden Costs of Incorrect Handlebar Specs
Ordering based on incomplete dimension lists leads to immediate shop delays. If the pull back or center width is wrong, the controls will not align with the rider’s natural reach, requiring a complete teardown to swap bars. Furthermore, if the finish quality varies between chrome and black batches, mismatched components will be visible once fitted side by side. Replacing a batch or waiting for a correct set leaves the bike occupying a service bay and delays the final delivery to the customer [NEED_CITE: impact of incorrect handlebar dimensions on custom build timelines].
Sourcing Controls With Fitment Certainty
We verify the riser mount diameter and wiring drill points against the platform and year range before confirming your order. Our control parts come from qualified manufacturing partners, supplied under one account and one warranty. You can order a single piece for a custom build without meeting high minimums. We also provide cross-reference sheets against Harley-Davidson numbers marked reference only, ensuring you get the exact replacement spec for 1982 and later models.
Documentation Provided With Your Order
- Fitment sheet stating Touring Models and 1982 and later year ranges.
- Key dimensions including 1 1/4″ diameter, 1″ riser mount, and 10″ rise.
- Finish specification for your chosen chrome or black option.
- Quality inspection record and standard warranty terms.
- Packing photographs showing the drilled wiring holes and bar profile.
Receiving And Pre-Installation Checks
- Verify the 1″ riser mount diameter matches your existing riser clamps.
- Check that the internal wiring drill points align with your frame routing.
- Inspect the 34″ total width and 15″ center width against your triple tree spacing.
- Examine the chrome or black finish for any shipping damage or plating defects.
- Have a qualified technician confirm fitment before final assembly and tightening.
- Store the handlebars in a dry environment to prevent surface corrosion before install.
Requesting A Fitment Check
Send your exact Touring model designation and year to confirm the 10″ rise works with your stock hoses. Provide a photograph of your current riser mount or the old handlebars to verify the 1″ clamp diameter. Let us know your required finish and quantity, and we will confirm if a sample is needed for your specific Fly-By-Wire routing path.
Frequently Asked Questions
Q: How do I confirm my Touring model year fits these handlebars?
A: These jackknife handlebars for touring models fit 1982 and later, including Fly-By-Wire. Send your exact model and year so we can verify the 10″ rise works with your stock hoses and wires, especially if you are using a Batwing Fairing.
Q: What are the key dimensions to measure for handlebar fitment?
A: You must check the 1″ riser mount diameter to ensure your clamps will grip properly. Also, verify the 34″ total width and 15″ center width match your triple tree spacing, and confirm the wiring drill points align with your frame.
Q: Are these handlebars drilled for internal wiring?
A: Yes, they are drilled for internal wiring. This is critical for 1982 and later models to maintain a clean front end. We verify the drill points match your specific routing path before finalizing the order.
Q: Can I order a single piece for my custom build?
A: Yes, we accept single piece orders. You do not need to meet a high minimum quantity to get a fitment-checked set of jackknife handlebars for touring models in your preferred chrome or black finish.
