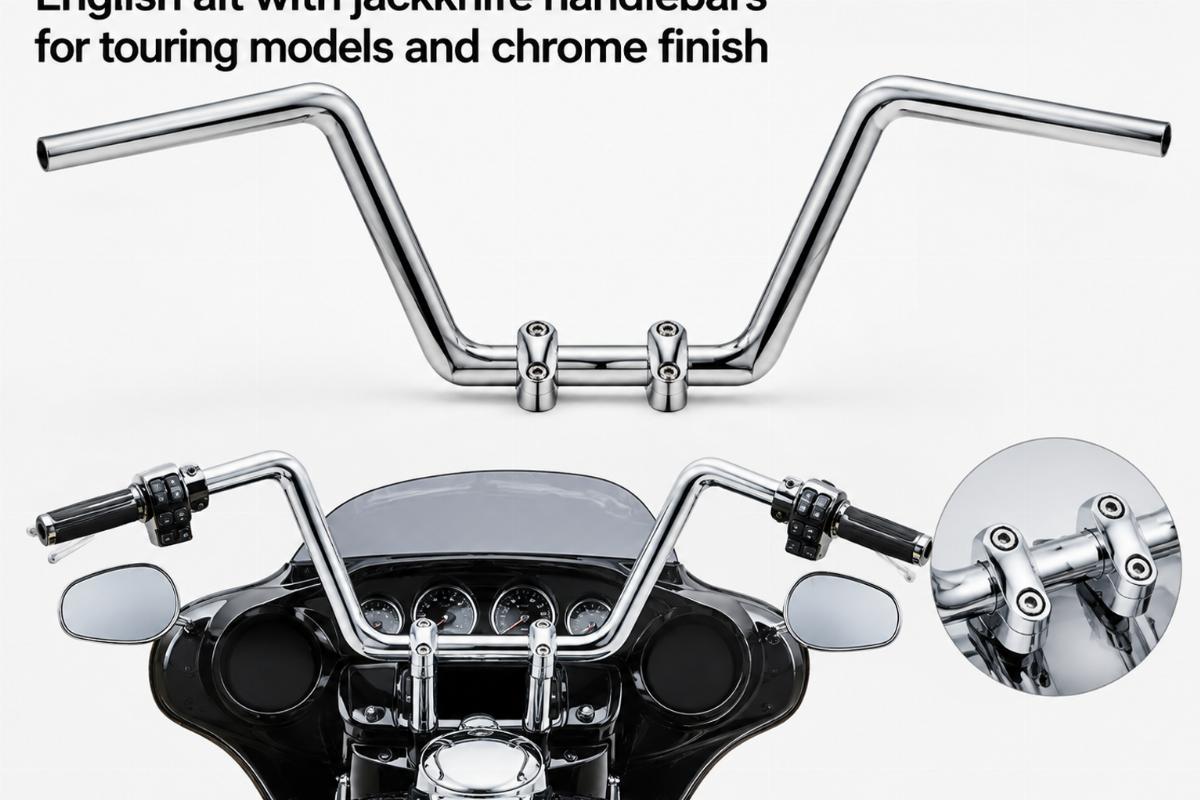

Jackknife Handlebars 10″ Rise for Touring Models 1982-Up
Fitment Verified Before Dispatch — Every jackknife handlebars for touring models is checked against your exact model year and fly-by-wire routing requirements before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Overall Diameter | 1 1/4″ |
| Riser Mount Diameter | 1″ |
| Rise | 10″ |
| Pullback | 6″ |
| Total Width | 34″ |
| Center Width | 15″ |
| Finish Options | Available in chrome or black |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Touring models | 1982-later | Including fly-by-wire setups; verify riser mount diameter and internal wiring routing for specific electronic configurations. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Avoiding Riser Mount and Routing Mismatches
Confirming the exact year and fly-by-wire details prevents mounting base and internal routing failures.
I spent years handling complaints about handlebars that simply would not fit. I still remember shipping a set of 10″ bars for a Touring model where the buyer only provided the model name without the year. We sent 1 1/4″ diameter bars, but it was a later fly-by-wire model. The riser mounts did not match, and the internal wiring holes were drilled wrong for that specific electronic setup. The bars looked right from the front with the Batwing fairing, but the 1″ mounting base and routing were completely off. Now, strict verification of the exact year and fly-by-wire details is mandatory before quoting jackknife handlebars for touring models [NEED_CITE: connector changes across model years for this platform].
Verifying Riser Clamp Compatibility
The 1 1/4″ overall diameter stepping down to 1″ at the riser mount requires exact clamp matching. You must verify that your existing risers or triple tree clamps accept a 1″ mounting base. If the clamp spacing or diameter is overlooked, the bars will not seat correctly, regardless of the visual profile.
Checking Fairing and Control Clearance
A 34″ total width and 6″ pullback dictate specific rider ergonomics and control placement. You need to confirm that these dimensions clear your fairing, such as a Batwing, and allow proper mirror placement. Overlooking total width often leads to control interference once the front end is fully assembled [NEED_CITE: factory service manual specifications by model year].
Interpreting Key Handlebar Dimensions
The 10″ rise is a critical dimension for cable and hose routing. When fitted with a Batwing Fairing, this rise normally uses stock hose and wires, but this assumes the internal routing path is correct. The 15″ center width determines where the control housings will sit relative to the steering neck. Drilled for internal wiring means the holes must align perfectly with the steering neck entry points to avoid pinching the harness.
The Hidden Cost of Incorrect Fitment
When a handlebar listing misses critical dimensions like riser mount diameter or pullback, the bike ends up stuck on the lift. A mismatched 1″ mounting base means the entire front end must be disassembled to source the correct risers. If the internal wiring holes are drilled for the wrong electronic setup, routing the harness becomes impossible without modifying the bars. This leads to delayed builds, wasted labor, and the frustration of returning parts that looked correct in the listing but failed on the bench.
Sourcing with Fitment Certainty
We confirm fitment against the platform family and model year range before providing any quotation. Our catalogue offers front-end depth, ensuring you get the correct 10″ rise and 6″ pullback for your specific build. We provide chrome and black finish options on main front-end lines to match your aesthetic requirements. Cross-reference against Harley-Davidson OEM numbers is available, marked reference only, to help you identify superseded parts. We support a minimum order from one piece, allowing shops to order a single pair for a custom build without blocking inventory.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for 1982-later Touring models.
- Key dimensions listing bar diameter, rise, pullback, and total width.
- Finish specification detailing chrome or black options.
- Quality inspection record verifying internal wiring hole alignment.
- Sample supply available for fitment confirmation before bulk orders.
Receiving and Pre-Installation Checks
- Verify the 1 1/4″ overall diameter and 1″ riser mount diameter match your order sheet.
- Measure the 34″ total width and 6″ pullback to confirm fairing clearance.
- Inspect the drilled holes for internal wiring to ensure they are clear of debris.
- Check the chrome or black finish for consistency across the center and riser areas.
- Have a qualified technician verify the 10″ rise against your stock hose lengths.
- Store the bars in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check
Send your exact model and year, including fly-by-wire details, to verify compatibility. Provide your old part photos or key measurements if the year is uncertain. Let us know your required finish and whether you need a sample for trial fitting before committing to a larger order.
Frequently Asked Questions
Q: How do I confirm my specific Touring model year and fly-by-wire setup is compatible?
A: Provide the exact model year and confirm if your bike uses a fly-by-wire throttle setup. We verify the 1″ riser mount diameter and internal wiring hole placement against your specific year range to ensure the jackknife handlebars for touring models will mount correctly and route the harness without interference.
Q: What are the exact diameter measurements at the riser mount versus the control housing area?
A: The overall diameter is 1 1/4″, which steps down to exactly 1″ at the riser mount. This design allows for a substantial visual profile while maintaining standard 1″ clamp compatibility for your existing risers or triple trees.
Q: Will the 10″ rise work with my stock brake lines and wiring harness?
A: A 10″ rise normally uses stock hose and wires when fitted with a Batwing Fairing. However, you must verify your specific model year and routing path, as cable lengths can vary across the 1982-later range.
Q: Can I order a single pair of handlebars for a custom build without a minimum order quantity?
A: Yes, we support a minimum order from one piece. You can order a single pair of jackknife handlebars for touring models for your custom build or restoration project without being forced to meet a high bulk minimum.
Q: How consistent is the chrome or black finish quality across different production batches?
A: We maintain strict finish specifications for both chrome and black options. Every batch undergoes a quality inspection record check to ensure visual consistency, so the finish matches perfectly whether you are ordering a single pair or stocking multiple units.
