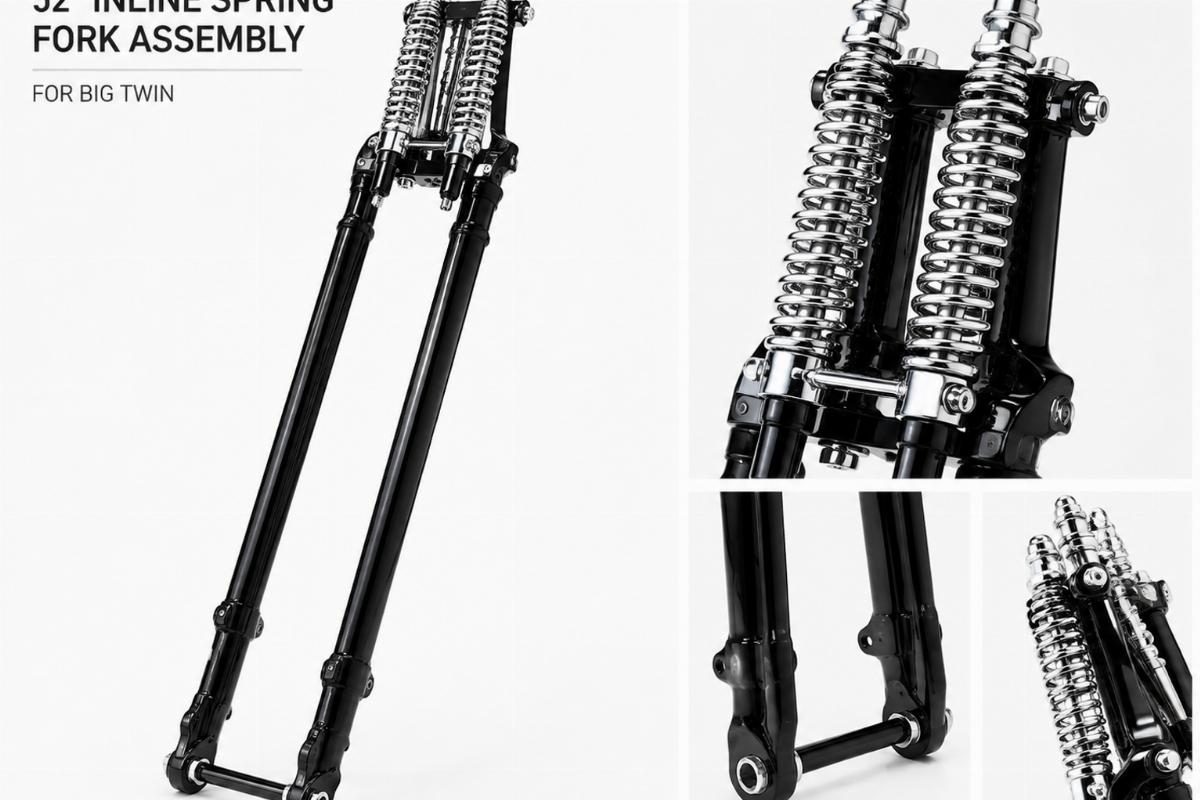

Inline Spring Fork Assembly 52″ for FL FX FLST FXST 1948-1999
Cross-Reference Verified Fitment — Every inline spring fork assembly for big twin platforms is checked against superseded reference numbers to ensure exact stem and rocker compatibility before dispatch.
Product Specification
Part Type | Inline Spring Fork Assembly
| Parameter | Value |
|---|---|
| Overall Length | 52″ (20″ over stock) |
| Measurement Method | Top of rear leg to front axle center line |
| Stem Type | 1″ inline stem |
| Rocker Type | Offset outside mount rockers |
| Rocker Dimensions | 7″ side to side (inside), 36″ back to bottom, 44″ back to top |
| Tubing | Oval back tubing |
| Finish | Chrome springs and rockers, black front and rear legs |
| Kit Contents | Inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs and bushings, spring rods with bushings |
| Exclusions | Top clamp, neck races and cone nut not included |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL | 1948-1984 | Confirm with model and year |
| FX | 1971-1984 | Confirm with model and year |
| FLST | 1986-1999 | Confirm with model and year |
| FXST | 1984-1999 | Confirm with model and year |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Over-Stock Lengths Without Clear Mounting Specs Cause Build Delays
A 52″ overall length changes ride height and steering geometry significantly if the stem and rocker spacing are not verified first.
When builders order an inline spring fork assembly for big twin projects based solely on the over-stock length, they often discover the stem diameter or rocker offset does not match their specific frame year. I have seen shops halt a build for weeks because the axle spacing was completely wrong, forcing them to return the unit and wait for a replacement. Verifying the exact year range and mounting dimensions before ordering prevents these costly delays. [NEED_CITE: frame geometry changes across early and late springer models]
Verifying Stem and Rocker Compatibility Across Generations

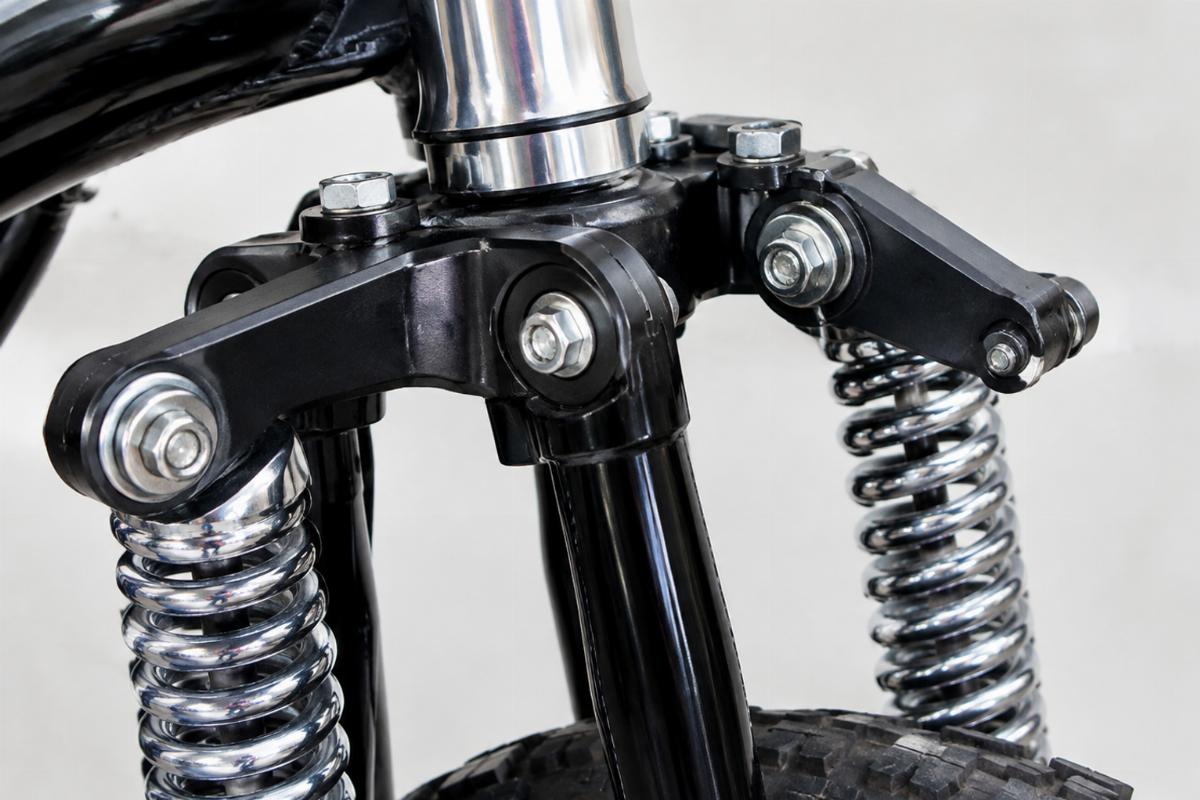

Selecting the correct inline spring fork assembly for big twin applications requires matching the 1″ inline stem to your specific triple tree neck bearing. The offset outside mount rockers on this unit feature a 7″ inside side-to-side spacing, which must align with your front brake drum setup. Failing to confirm these mounting points against your exact model year can result in a fork that physically bolts to the frame but binds during steering. [NEED_CITE: steering head cup and neck bearing variations by frame year]
Matching Brake Drum Setups to Rocker Offsets
The offset outside mount rockers included in this kit are designed for specific lug bolt type drum and mechanical front brake drum configurations. If your build uses a non-standard brake setup, the 36″ back to bottom and 44″ back to top rocker dimensions must be measured against your existing hardware. This ensures the axle hardware and caliper mounts will clear the wheel without interference.
Interpreting the 52″ Overall Length Measurement
The 52″ overall length, which is 20″ over stock, is measured strictly from the top of the rear leg tube to the front axle center line. This specific measurement dictates your final ride height and how the front end sits relative to the rear fender. The oval back tubing and black front and rear legs provide the structural baseline, while the chrome springs and rockers define the visual profile of the front end.
The Hidden Cost of Incorrect Year Range Assumptions
Assuming a springer front end fits all FL or FX models without checking the exact year range often leads to parts sitting on a shop shelf. A fork designed for a 1986-1999 FLST requires different stem and rocker specs than a 1948-1984 FL to clear custom wheels and maintain correct axle spacing. When these details are overlooked, the entire front end must be disassembled, returned, and reordered, wasting labor hours and delaying the customer delivery. [NEED_CITE: axle spacing and stem differences between early and late springer frames]
Sourcing Front End Depth From a Single Account
We produce this inline spring fork assembly in our own facility, ensuring the chrome and black finish options remain consistent across batches. You can order a single piece for a custom build without meeting high minimum order quantities, and every unit is checked against platform family and model year range before quotation. This approach guarantees that the 1″ stem and offset rockers you receive are the exact match for your project.
Documentation Provided With Your Shipment
- Fitment sheet listing each year range this part was checked against
- Key dimensions detailing fork length over stock and stem diameter
- Finish specification confirming chrome springs and black legs
- Quality inspection record for the specific assembly shipped
- Packing photographs showing the kit contents before dispatch
Receiving And Inspecting Your Fork Assembly
- Verify the kit includes inner and outer springs, legs, stem, rockers, and spring rods.
- Check that the 1″ inline stem is straight and free of shipping damage.
- Inspect the chrome springs and rockers for consistent plating without pitting.
- Measure the 52″ overall length from the rear leg top to the axle center line.
- Store the assembly in a dry environment to prevent rust on the black legs.
Requesting A Fitment Check For Your Build
Send your exact model and year range, along with a photograph of your current steering head or triple tree, to confirm this 52″ unit is the correct match. If you are unsure about the rocker offset or stem diameter, providing your key实测 dimensions helps us verify compatibility before dispatch. We can also supply a sample for fitment confirmation if you are preparing a bulk order for your shop.
Frequently Asked Questions
Q: How is the 52″ overall length measured on this inline spring fork assembly?
A: The 52″ overall length is measured strictly from the top of the rear leg tube down to the center line of the front axle. This 20″ over stock measurement determines your final ride height and front end stance relative to the frame.
Q: Does this assembly include the top clamp, neck races, and cone nut?
A: No, the top clamp, neck races, and cone nut are explicitly excluded from this kit. The assembly includes the inner and outer springs, front and rear legs, 1″ inline stem, offset rockers, studs, bushings, and spring rods.
Q: How do I confirm my 1948-1999 FL, FX, FLST, or FXST model year fits this fork?
A: You must verify that your specific model year matches the 1″ inline stem diameter and the offset outside mount rocker spacing. Send your exact model and year to our team for a fitment check against the platform family before ordering.
Q: What brake drum types are compatible with the offset outside mount rockers?
A: The offset outside mount rockers are designed for standard lug bolt type drum and mechanical front brake drum setups. If your build uses a custom brake configuration, you must check the 7″ inside side-to-side rocker spacing against your hardware.
