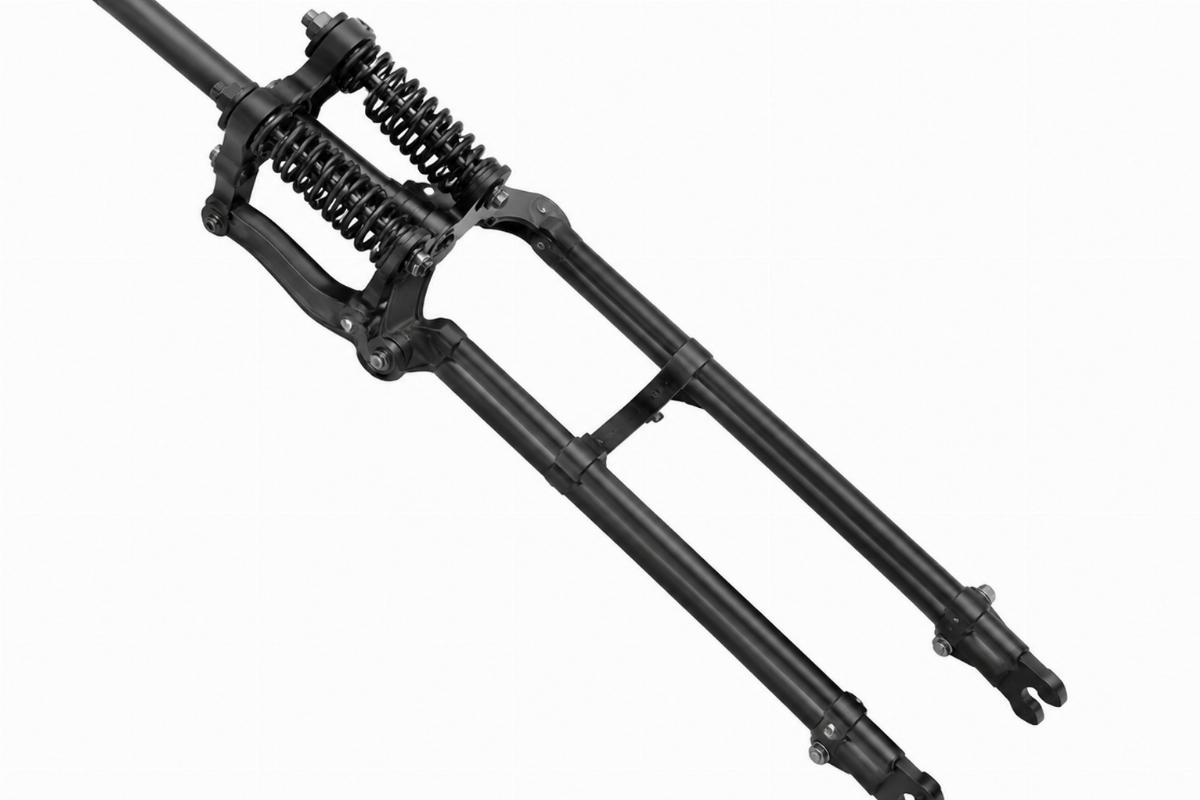

Inline Spring Fork Assembly 22″ Black for Springer Softail
Verified Front-End Depth — Complete inline spring fork assemblies offered in multiple over-stock lengths to match exact frame geometry requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Finish | Black (parkerized springs, rockers, front and rear leg) |
| Length | 22″ (4″ over stock length) |

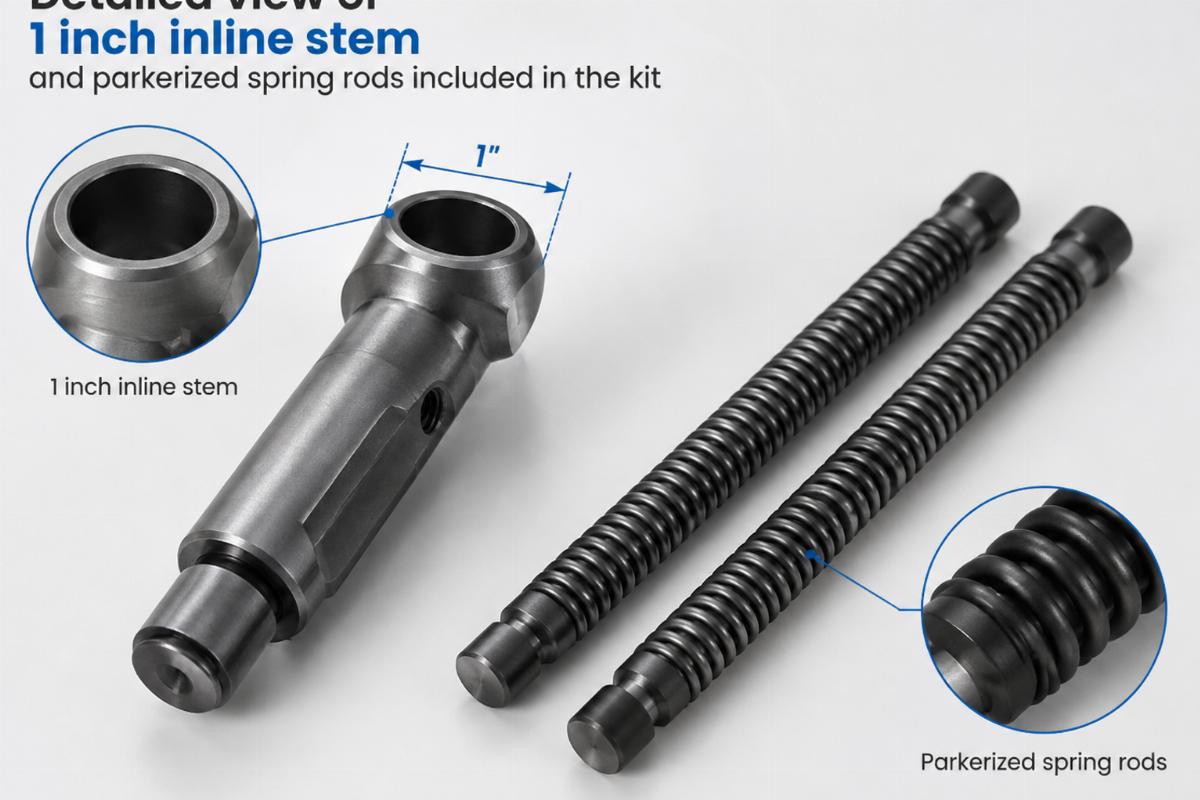

| Stem Diameter | 1″ inline stem |
| Rocker Type | Offset outside mount rockers |
| Brake Compatibility | Lug bolt type drum and mechanical front brake drum |
| Construction | Electric welded and brazed construction |
| Kit Contents | Inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs and bushings, spring rods with bushings |
| Exclusions | Top clamp, neck races and cone nut not included |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer / Springer Softail | Confirm with model and year | Measures 22″ from top of rear leg to front axle center line; 4″ over stock length. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Measuring the True Impact of an Over-Stock Fork
An inline spring fork assembly 22 inch over changes ride height and steering geometry significantly if the exact measurement points are ignored.
Springer forks offered “over stock” often lack clear statements on overall length and measurement points, making it hard to judge ride height. I remember a builder ordering a 22-inch assembly for a Springer Softail, assuming it would just bolt on without checking the 4-inch over stock length. When he finally mocked it up, the extra length completely ruined the rake and trail, and the front fender smashed right into the tire [NEED_CITE: frame geometry changes caused by extended fork lengths]. That extra inch in stem length or overall measurement changes everything, which is why we always double-check those exact dimensions against the frame before anything gets shipped out.
Confirming Frame Geometry Before Mockup
When sourcing an inline spring fork assembly 22 inch over, the primary concern is how the 4-inch over stock length interacts with your specific frame tree spacing and neck angle. You must verify the steering stem diameter matches your 1″ inline stem requirement and ensure the offset outside mount rockers align correctly with your lug bolt type drum brake setup. Failing to confirm these dimensions means the front end will either not seat properly in the trees or the brake components will not clear the fender [NEED_CITE: steering stem and neck bearing compatibility across custom frames].
Verifying Brake and Stem Compatibility
The 1″ inline stem and offset outside mount rockers on this assembly are designed specifically for lug bolt type drum and mechanical front brake drums. If your custom build uses a different brake configuration, the rocker mounting points will not align, requiring costly modifications. Always cross-reference your existing drum setup and measure the neck bearing bore to guarantee the 1″ stem drops in without binding or requiring aftermarket adapters [NEED_CITE: brake drum mounting variations on custom springer builds].
Interpreting the 22-Inch Overall Length
The 22″ overall length is measured strictly from the top of the rear leg to the front axle center line, which dictates the 4″ over stock stance. This specific measurement point is critical because measuring from the wrong location, such as the top of the stem, will give a false reading and lead to incorrect ride height expectations. The electric welded and brazed construction replicates stock unit dimensions, meaning the parkerized springs and legs will maintain their structural integrity under the load calculated for this exact extended length.
The Hidden Cost of Incorrect Stem and Bearing Fits
Ordering a fork without verifying the 1″ inline stem diameter against your frame’s neck bearing size often results in the front end arriving but not seating correctly. If the stem is too large, it will not fit the trees; if too small, it will wobble and destroy the neck races over time. Furthermore, because the top clamp, neck races, and cone nut are excluded, assuming they are included leads to immediate project delays while you source the missing hardware separately [NEED_CITE: consequences of mismatched steering stem diameters and missing neck hardware].
Sourcing from a Front-End Specialist
We produce complete springer front ends in our own facility, ensuring the electric welded and brazed construction meets strict dimensional tolerances for every 4″ over stock length. Our catalogue maintains front-end depth by stocking multiple over-stock lengths and offering consistent black finish options with parkerized components across batches. We support custom builders by allowing a minimum order from one piece, so you can order a single assembly for a custom chopper build without meeting high volume thresholds. Every fitment is confirmed against the platform and year range before quotation, and we cross-reference against Harley-Davidson OEM numbers, marked reference only, to ensure you get the exact replacement needed.
Documentation and Verification Sheets
- Fitment sheet stating applicable platforms and year ranges for the 22″ length.
- Cross-reference sheet with OEM numbers marked reference only.
- Key dimensions detailing the 4″ over stock length and 1″ stem diameter.
- Finish specification confirming parkerized black treatment on springs and legs.
- Quality inspection record verifying electric welded and brazed construction.
Receiving and Pre-Installation Checks
- Verify the kit includes inner and outer springs, legs, 1″ stem, and offset rockers.
- Confirm the 22″ length from the rear leg top to the axle center line matches your mockup.
- Check the black parkerized finish on all components for consistency before assembly.
- Ensure the 1″ inline stem slides freely into your neck bearings without force.
- Have a qualified technician verify the lug bolt drum compatibility before mounting.
- Store the assembly in a dry environment to protect the parkerized finish before install.
Requesting a Fitment Check
Send your model and year along with a photograph or measurements of your current steering stem and neck bearing bore to confirm this inline spring fork assembly 22 inch over fits your frame geometry. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop. We will provide a fitment sheet and cross-reference details to ensure the 4″ over stock length matches your build requirements.
Frequently Asked Questions
Q: How is the 22″ overall length of the springer fork measured?
A: The 22″ overall length is measured strictly from the top of the rear leg down to the front axle center line. This specific measurement point determines the 4″ over stock stance and ensures you can accurately judge the ride height and steering geometry impact on your frame before mocking it up.
Q: What components are excluded from this inline spring fork assembly kit?
A: The top clamp, neck races, and cone nut are not included in this kit. You must source these steering head components separately to match your specific frame’s neck bearing bore and stem diameter requirements before beginning your front-end assembly.
Q: How do I confirm my custom build’s steering stem and neck bearing fitment?
A: You must measure the inner diameter of your frame’s neck bearing bore and compare it to the 1″ inline stem diameter on this assembly. Providing your model, year, and a photograph of your existing trees allows us to verify compatibility and provide a fitment sheet before you order.
Q: Can I order a single fork assembly for a custom chopper build?
A: Yes, we support custom builders and repair shops by offering a minimum order from one piece. You can order a single inline spring fork assembly for your custom build without meeting high volume thresholds, and we can supply a sample for fitment confirmation if needed.
Q: How do I verify if this 4″ over stock fork will affect my bike’s rake and trail?
A: A 4″ over stock length will change the rake and trail, altering the steering geometry and ride height. You must mock up the 22″ assembly against your frame to check front fender clearance and ensure the offset outside mount rockers align with your lug bolt type drum brake setup.
