Handlebars for Small Frames 1982-Up – Aftermarket Replacement
Cross-Referenced Fitment Verification — Every jackknife handlebars for small frames is checked against platform and year range before dispatch to ensure exact match for your build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1 1/2″ |

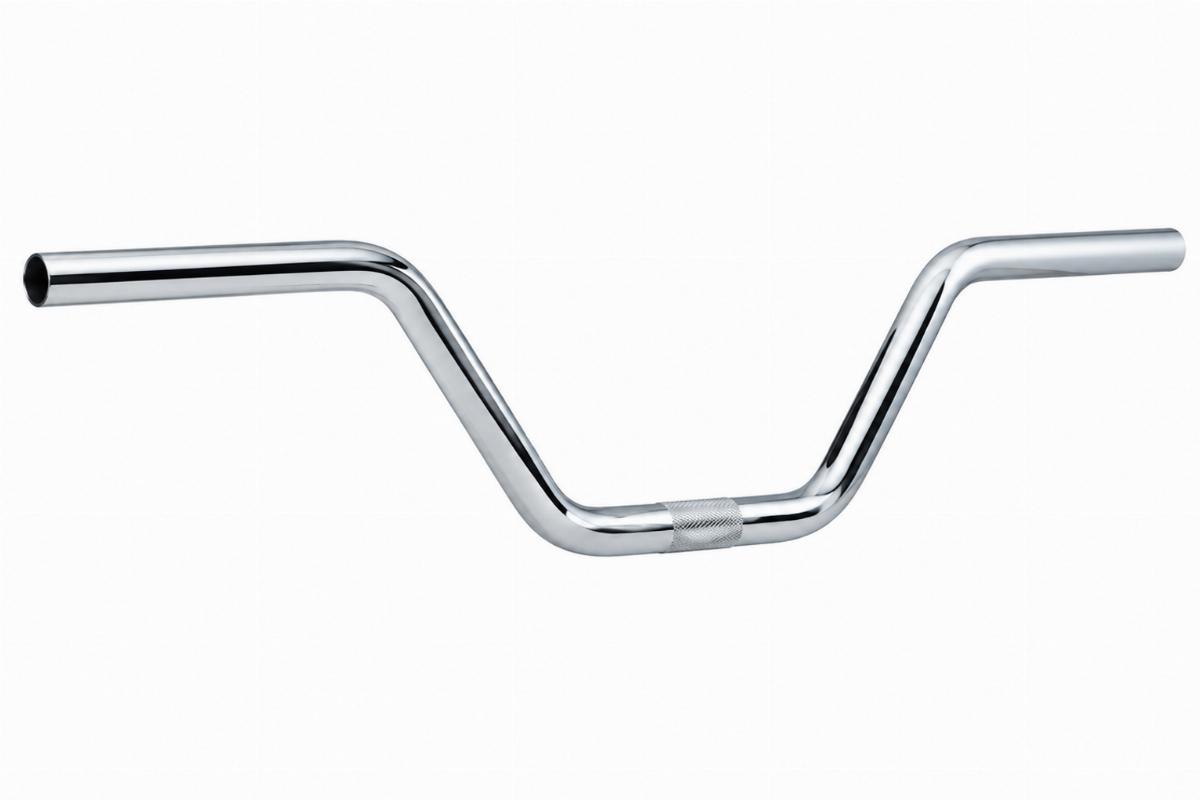

| Finish | Chrome or black |
| Pullback | 8″ |
| Wiring | Drilled for internal wiring |
| Style | Narrow style |
| Total Width | 36″ |
| Center Width | 9 3/4″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Small Frames | 1982-Later | Includes Fly-By-Wire models; verify 1 1/2″ diameter and center width match your risers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why 1 1/2″ Diameter Matters for Fly-By-Wire Builds
Thicker bar diameter requires exact riser clamp matching and precise internal wiring routing.
Handlebar listings often miss critical dimensions like center width, pullback, and wiring hole details, leading to fitment issues on small frame and Fly-By-Wire builds. When a shop receives bars with an unverified 1 1/2″ diameter, the riser clamps may not grip properly, and drilled holes can completely miss the internal wiring path. This forces the build to halt while sourcing the correct width and re-drilling, wasting labor hours and delaying the project. [NEED_CITE: factory service manual specifications by model year for bar diameter and wiring clearance]
Verifying Riser Clamp Compatibility
Before mounting these jackknife handlebars for small frames, you must confirm your riser clamps are machined for a 1 1/2″ diameter. Standard 1″ or 1-1/4″ clamps will not close securely around the thicker tubing, creating a dangerous slip point. The 9 3/4″ center width also dictates how far apart your risers can be mounted without stressing the bar at the bends.
Routing Internal Wiring on Fly-By-Wire Models

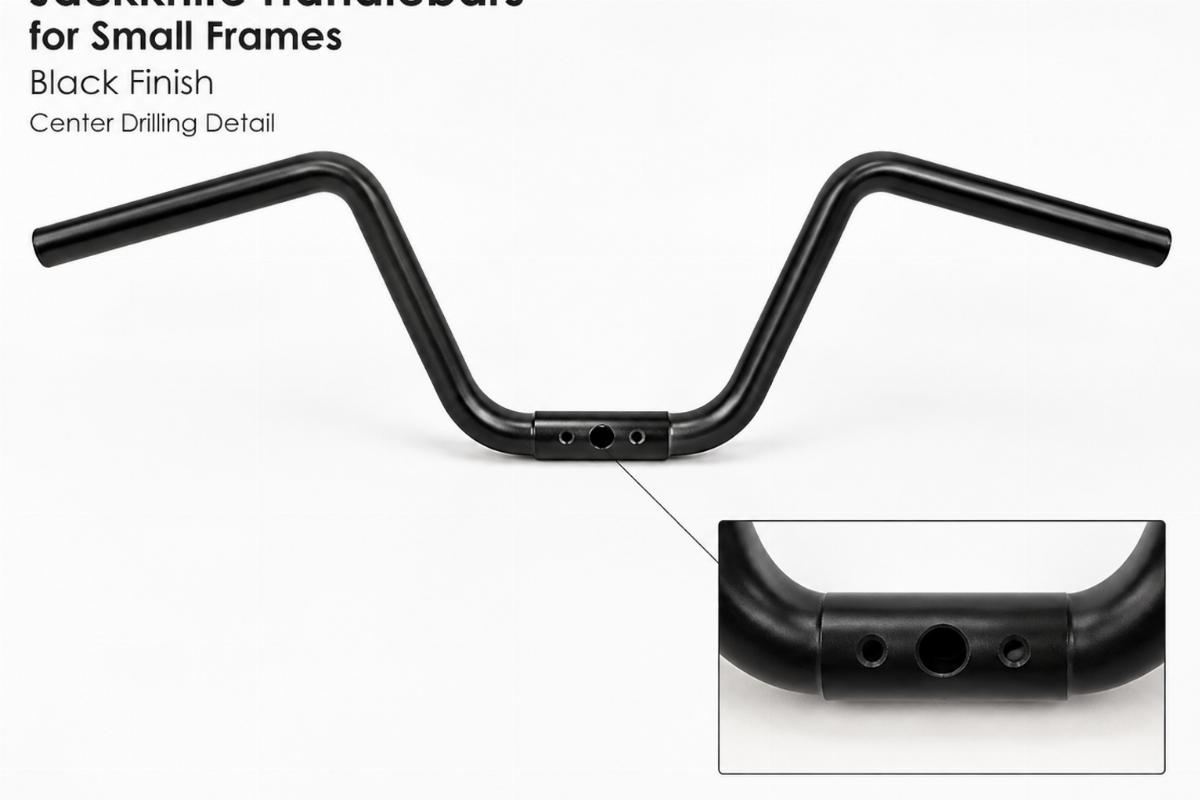

These bars are drilled for internal wiring, which is essential for keeping the cockpit clean on Fly-By-Wire models. However, the drill path must align with your specific switch housings and hand control connectors. If the entry holes are positioned incorrectly, you will have to drill new exits, compromising the finish and structural integrity of the narrow style bar. [NEED_CITE: wiring routing diagrams for Fly-By-Wire models]
Decoding the 36″ Width and 8″ Pullback
The 36″ total width provides a narrow profile suitable for tight custom builds, while the 8″ pullback brings the grips closer to the rider. This specific combination changes the steering geometry and rider posture compared to wider, straighter bars. You must measure your existing setup to ensure this pullback does not interfere with your fuel tank or instrument cluster during full lock-to-lock steering.
The Hidden Cost of Unverified Dimensions
Ordering bars without confirming the center width and pullback often results in parts that physically bolt on but fail functionally. A bar that is too wide will hit the mirrors or brake reservoir at full turn, while incorrect pullback can cause the throttle cables to bind or stretch beyond their adjustment limits. This leads to returning the part, paying return freight, and waiting weeks for a replacement that might have the same unlisted dimension errors. [NEED_CITE: cable length specifications relative to handlebar pullback]
Sourcing with Fitment Certainty
We verify every jackknife handlebars for small frames against the 1982-Later platform and Fly-By-Wire requirements before quoting. Our facility produces these in both chrome and black finishes, ensuring batch consistency so your left and right sides match perfectly. We support single piece orders for custom shops building one bike, and we provide a fitment sheet detailing the exact dimensions you need to check against your risers and controls.
Documentation Provided
- Fitment sheet stating applicable platforms and 1982-Later year ranges
- Key dimensions including 1 1/2″ diameter, 36″ width, and 9 3/4″ center width
- Finish specification for your chosen chrome or black option
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record verifying the internal wiring drill path
###收货与装车前核对
- Measure the 1 1/2″ diameter with calipers to confirm riser clamp fitment.
- Check the 9 3/4″ center width against your riser mounting holes.
- Inspect the drilled holes to ensure they align with your internal wiring path.
- Verify the 8″ pullback clears your fuel tank at full steering lock.
- Examine the chrome or black finish for any plating defects before installation.
- Store in a dry environment to prevent surface corrosion before mounting.
Send Your Model for a Fitment Check
To ensure these jackknife handlebars for small frames fit your project perfectly, send us your exact model code and year range. Provide a photo of your current risers and a measurement of your center width if you are unsure. We will verify the 1 1/2″ diameter and 8″ pullback against your build requirements and confirm if a sample is needed before you commit to a bulk order.
Frequently Asked Questions
Q: How do I confirm my small frame model year fits these handlebars?
A: Check your build against the 1982-Later year range and ensure it is a small frame platform. If your model uses Fly-By-Wire controls, verify that your switch housings can accommodate the drilled holes for internal wiring. We provide a fitment sheet with every order to cross-reference your specific model code.
Q: What are the key dimensions to measure before ordering 1 1/2″ diameter bars?
A: You must measure your riser clamp inner diameter to ensure it accepts 1 1/2″ tubing. Additionally, measure the distance between your riser mounting holes to confirm it matches the 9 3/4″ center width of these bars. Checking your available space for the 8″ pullback is also critical to avoid tank interference.
Q: Are these handlebars drilled for internal wiring on Fly-By-Wire models?
A: Yes, these bars are specifically drilled for internal wiring, making them suitable for Fly-By-Wire models. However, you must verify that the drill path aligns with your specific switch housings and hand control connectors to avoid needing to drill additional holes that could damage the finish.
Q: Can I order a single piece for a custom build?
A: Yes, we support single piece orders with no minimum quantity blocking your shop. Whether you are building one custom bike or stocking a catalog, you can order exactly what you need. We also offer sample supply for fitment confirmation before you place larger bulk orders.
Q: How do you ensure finish consistency between chrome and black batches?
A: We produce these handlebars in our own facility, allowing us to control the plating and coating processes directly. This ensures that the chrome and black finishes are consistent across batches, so if you order multiple sets or need a replacement later, the color and shine will match your existing parts perfectly.
