Handlebars for Harley-Davidson 1982-Up – Fitment Checked
Fitment Verified by Platform — Every set of 1 1/4 inch handlebars for harley-davidson is checked against specific model years and riser spacing before quotation to prevent geometry mismatches.
##
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Material | Steel |
| Outer Diameter | 1 1/4″ |
| Finish | Black |
| Width | 30″ |
| Rise | 16″ |
| Pullback | 5 1/4″ |
| Center Width | 8 1/2″ |
| Riser Center Spacing | 3 1/2″ |

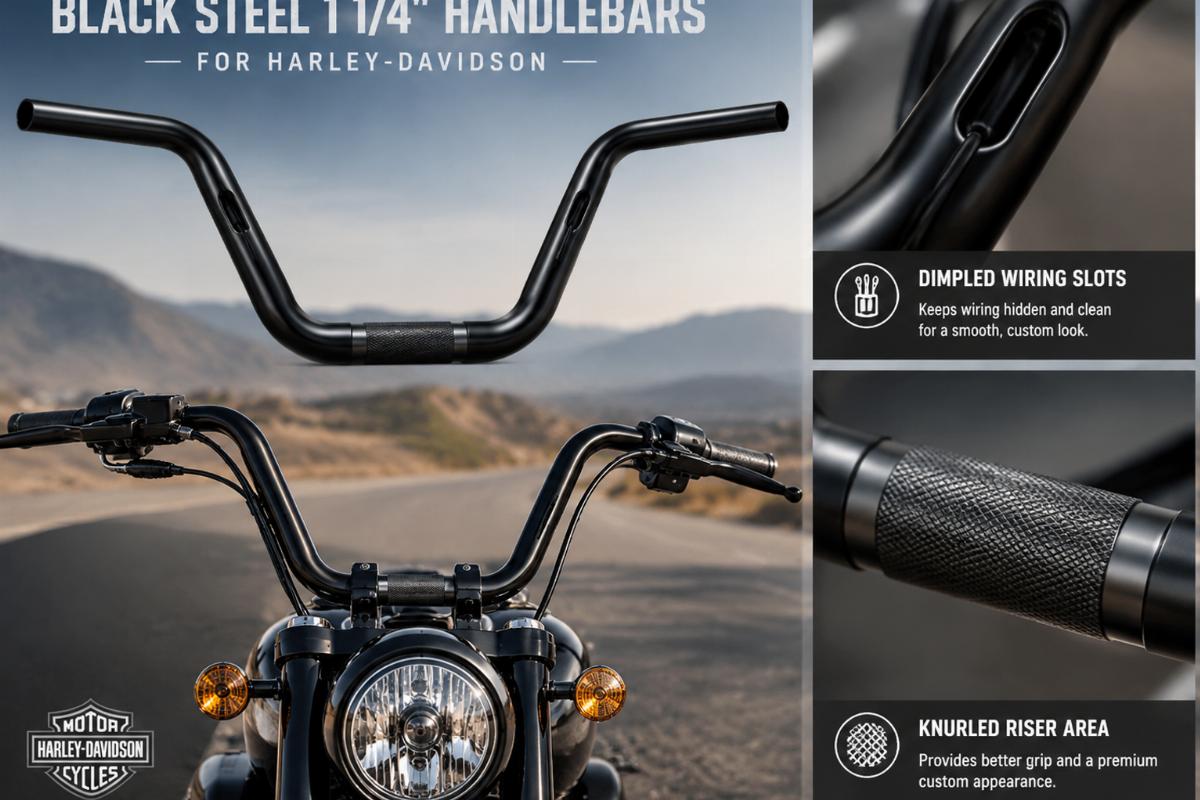

| Features | Dimpled and slotted under switch housing area for internal wiring; knurled at riser area |
Fitment Verification for 1982-Up Models
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-up | Fits 1982/Later OE style switch housings and master cylinders. Brake side clearanced for OE style master cylinders (all years including 1996/Later) and most custom brake master cylinders. Fits risers mounted on 3 1/2″ centers. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riser Spacing Matters for 1 1/4 Inch Handlebars for Harley-Davidson
Ignoring riser center spacing causes massive front-end misalignment. I handled a custom build where the rider ordered these bars but assumed the risers would adapt. The bars are built for 3 1/2″ centers, but his risers were spaced wider, ruining the front-end look and creating stress points [NEED_CITE: frame geometry and steering head stress from misaligned controls]. When sourcing 1 1/4 inch handlebars for harley-davidson, verifying the 3 1/2″ riser center spacing and the 16″ rise ensures the controls sit exactly where the frame geometry expects them.
Checking Riser Mount Compatibility
Before ordering 1 1/4 inch handlebars for harley-davidson, measure the distance between your riser mounting holes. These bars require a strict 3 1/2″ center spacing. If your triple tree uses a different width, the bars will not seat properly against the knurled riser area, leading to clamp slippage and unsafe steering input [NEED_CITE: clamp slippage risks with mismatched riser centers].
Master Cylinder Clearance on the Brake Side
The brake side is specifically clearanced for OE style master cylinders, covering all years including 1996/Later setups, as well as most custom units. Failing to verify this clearance means the master cylinder will not sit flush, which can kink brake lines or prevent the lever from returning properly [NEED_CITE: master cylinder mounting angles across model years].
Interpreting the 16-Inch Rise and 5 1/4-Inch Pullback
A 16″ rise drastically changes the rider’s posture, moving the hands up and back. Combined with the 5 1/4″ pullback and 30″ width, these dimensions dictate the exact cable and wire lengths required. The dimpled and slotted areas under the switch housing allow internal wiring to route cleanly without pinching, but you must calculate the extra wire length needed for this specific rise and pullback combination [NEED_CITE: wiring length requirements for high-rise handlebars].
The Hidden Cost of Incorrect Handlebar Dimensions
When a shop installs handlebars with the wrong rise or pullback, the bike often ends up stranded on the lift. The brake and clutch cables end up too short, or the wiring harness is stretched to the point of tearing [NEED_CITE: cable stretching and harness damage from incorrect pullback]. If the riser centers do not match the 3 1/2″ spacing, the entire front end has to be torn down to swap the triple tree or the bars, turning a simple control upgrade into a costly rebuild.
Sourcing Aftermarket Controls with Certainty
We verify the platform family and model year range before quoting any handlebars. You get a cross-reference sheet with Harley-Davidson OEM numbers marked reference only, so you know exactly what these replace. We offer a minimum order from one piece, allowing custom builders to order a single set for a one-off build without hitting bulk restrictions. Every 1 1/4 inch handlebars for harley-davidson is checked for the correct black finish consistency and knurling depth before dispatch.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and 1982-up year ranges
- Cross-reference sheet with Harley-Davidson OEM numbers marked reference only
- Key dimensions including 1 1/4″ O.D., 16″ rise, and 3 1/2″ riser spacing
- Finish specification for the black steel coating
- Quality inspection record confirming dimpled and slotted wiring areas
Receiving and Pre-Installation Checks
- Verify the 30″ width and 16″ rise match your ergonomic requirements before mounting.
- Check the 3 1/2″ riser center spacing against your specific triple tree.
- Inspect the brake side clearancing to ensure it fits your master cylinder.
- Confirm the dimpled and slotted areas are free of burrs for clean wire routing.
- Ensure the knurled riser area is clean and free of debris to prevent slippage.
- Store the black steel bars in a dry environment to maintain the finish before installation.
Requesting a Fitment Check
Send your specific model and year, along with a photo of your current riser setup, to verify the 3 1/2″ center spacing. Provide your master cylinder type to confirm the brake side clearance matches your needs. Let us know if you require a sample set for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my current handlebars to ensure the 16″ rise and 5 1/4″ pullback fit my riding position?
A: Measure the vertical distance from the base of the risers to the highest point of the bar for the rise. For pullback, measure the horizontal distance from the center of the riser clamp to the leading edge of the grip area. Compare these numbers to the 16″ rise and 5 1/4″ pullback of these bars to ensure they match your ergonomic needs.
Q: What is the difference between 1″ and 1 1/4″ handlebars for riser and control compatibility?
A: The 1 1/4″ outer diameter requires risers and clamps specifically machined for that width. Standard 1″ clamps will not close around these bars, and 1 1/4″ risers will be too loose on 1″ bars. You must match the riser center spacing and clamp diameter exactly to prevent steering slippage.
Q: How do the dimpled and slotted areas affect internal wiring routing for 1982-up models?
A: The dimpled and slotted sections under the switch housing area allow the wires to sit flush against the steel bar. This prevents the switch housings from cracking and stops the wires from being pinched when the clamps are tightened, ensuring a clean internal routing path without external wire guards.
Q: Can I order a single set of handlebars for a one-off custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and independent repair shops to order a single set for a specific project without meeting high bulk minimums, ensuring you get the exact finish and dimensions needed for that specific bike.
