Fitment Checked Triple Clamp for Non-Wishbone Springer Front Ends
Consistent Finish Options — Offered in chrome or black to match your existing front-end components without batch variation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Top Triple Clamp |
| Configuration | Non-wishbone |

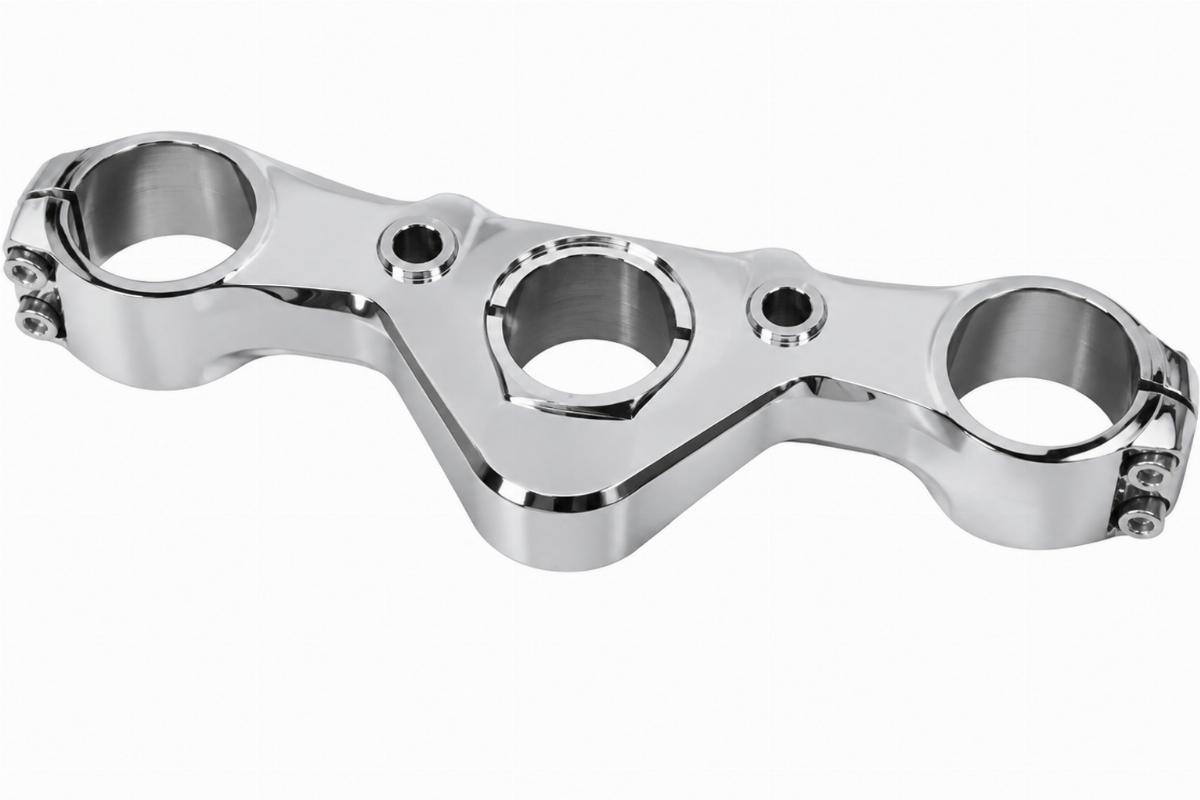

| Finish Options | Chrome or black |
| Fitment Verification | Platform and year range checked |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Springer Front Ends | Confirm with model and year | For non-wishbone Springer front ends only |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Avoiding Steering Stem Mismatches in Non-Wishbone Builds
Verifying steering stem diameter and triple tree width prevents assembly failure on non-wishbone setups.
When rebuilding custom front ends, listings often lack clear statements on triple tree width and stem dimensions, leading to parts that simply will not seat on the neck bearings. I have seen shops order a top clamp based only on the model name, skipping the exact year, only to find the steering stem diameter completely different from their specific fork assembly [NEED_CITE: factory service manual specifications by model year].
Confirming Platform and Year Range for Springer Assemblies
Fitment certainty starts with identifying the exact platform and year range before confirming any front-end setup. A top triple clamp for springer front ends must align with the specific steering stem diameter and triple tree spacing of your fork assembly. Early and late Springer models feature different neck bearing and head cup dimensions, meaning a clamp designed for one generation will not fit another without verifying these critical measurements.
Matching Finish Consistency Across Front-End Components
Visual consistency matters when assembling a custom front end, especially when mixing components from different production runs. We provide this top triple clamp for springer front ends in both chrome and black finish options to ensure batch quality remains uniform across your entire setup. This prevents the frustration of receiving parts with noticeably different plating or powder coating tones once fitted side by side [NEED_CITE: finish quality variations between production batches].
Understanding Key Dimensions for Triple Tree Fitment
The steering stem diameter dictates whether the clamp will properly secure the fork tubes and allow the steering head to rotate freely. If the stem diameter is even slightly off, the bearings will not seat correctly, leading to binding or dangerous looseness in the steering head. Triple tree spacing must also match the fork leg width to ensure the axle and brake mounts align perfectly with the wheel. Measuring these key dimensions on your existing assembly before ordering guarantees the new top triple clamp for springer front ends will integrate seamlessly into your build.
The Hidden Costs of Incorrect Front-End Fitment
Ordering the wrong triple tree based on an incomplete compatibility chart means the bike stays on the lift while you wait for a replacement. A mismatched steering stem diameter requires machining or returns, delaying the build and wasting labor hours. Furthermore, if the neck bearing races do not align with the head cup dimensions, the entire steering geometry is compromised, forcing a complete teardown to source the correct bearings and cups [NEED_CITE: steering geometry changes across model years].
Sourcing Front-End Hardware with Fitment Certainty
We verify fitment against the platform family and model year range before providing any quotation for a top triple clamp for springer front ends. Our own production on springer front ends allows us to check cross-references against Harley-Davidson OEM numbers, marked reference only, to ensure you get the exact part needed. We also offer chrome and black finish options on our main front-end lines and support a minimum order from one piece, making it easy to source a single clamp for a custom build without meeting high volume requirements.
Documentation Provided with Your Order
- Fitment sheet listing each year range this part was checked against
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including stem diameter and tree spacing
- Finish specification and quality inspection record
- Packing photographs showing the exact item dispatched
Receiving and Verifying Your Triple Clamp
- Inspect the top triple clamp for springer front ends for any shipping damage to the chrome or black finish
- Measure the steering stem diameter and compare it to your original fork assembly
- Verify the triple tree spacing matches your specific non-wishbone configuration
- Check the included hardware against the packing list to ensure no mounting bolts are missing
- Store the clamp in a dry environment to prevent surface corrosion before installation
Requesting a Fitment Check for Your Build
Send your exact model and year range to verify if this top triple clamp for springer front ends matches your non-wishbone configuration. Providing a photograph of your current steering stem or the old part number helps us cross-reference the correct dimensions before dispatch. Let us know your required finish and quantity, and we can arrange a sample for fitment confirmation before you commit to a bulk order.
Frequently Asked Questions
Q: How do I confirm if my Springer front end is a non-wishbone configuration?
A: A non-wishbone Springer front end lacks the lower stabilizer bar connecting the two fork legs near the axle. Measure the distance between the fork legs and check the steering stem diameter against your frame specifications. If your setup uses a direct leg-to-leg connection without the wishbone linkage, this top triple clamp for springer front ends is the correct choice for your build.
Q: What key dimensions should I measure on my triple tree before ordering?
A: You must measure the steering stem diameter and the overall width of the triple tree where it contacts the fork legs. These dimensions ensure the new top triple clamp for springer front ends will seat properly on your neck bearings and align with your fork spacing. Providing these measurements during your inquiry allows us to verify fitment against your specific platform and year range.
Q: Can I order a single top triple clamp for a custom build?
A: Yes, we support a minimum order from one piece, allowing shops and custom builders to source individual components without meeting high volume requirements. This is ideal for restorers working on a single bike or builders needing a specific finish to match an existing front end. We verify the fitment against your model and year before dispatching the single unit.
Q: How do you ensure finish consistency between chrome and black batches?
A: We maintain strict quality control over our chrome and black finish options to ensure batch consistency across our main front-end lines. When you order a top triple clamp for springer front ends, the finish specification is documented and checked against your other components. This prevents visible tone differences when fitting multiple parts side by side on a custom build.
