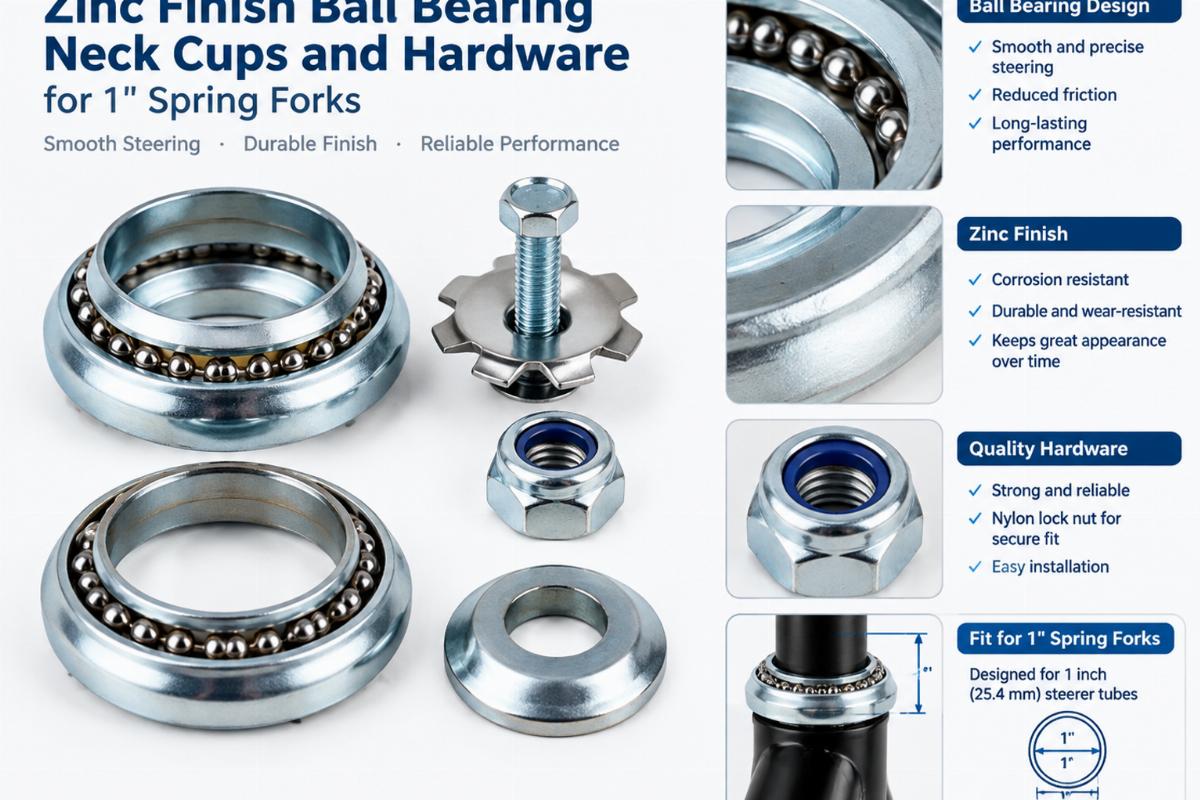

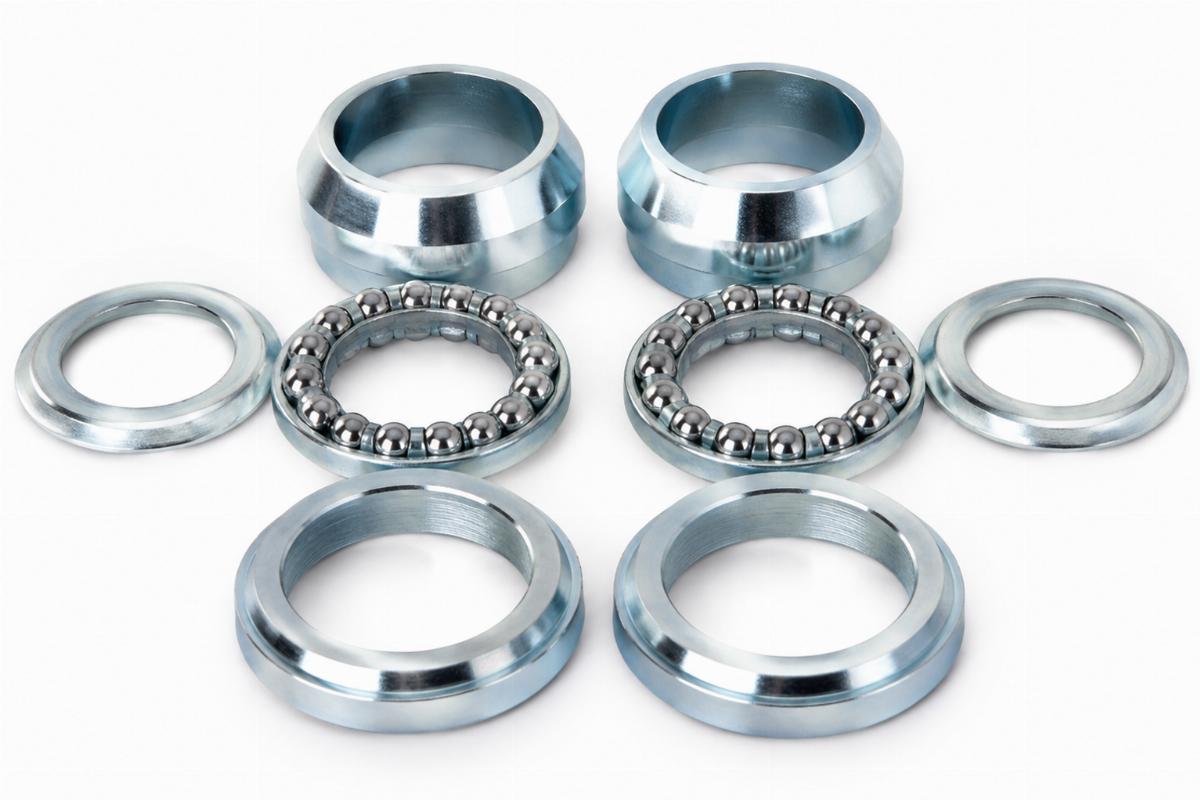

Fitment Checked Spring Fork Neck Cup Set for 1″ Spring Forks
Single Pair Orders Accepted — We verify exact steering head bore dimensions and stem diameters before dispatching this zinc-finished pair, ensuring your custom build gets the precise fitment required without bulk minimums.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Neck Cup Set |
| Size | 1″ |
| Bearing Type | Ball bearing |
| Finish | Zinc |
| Quantity | Pair |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Front Ends | Confirm with model and year | Fits 1″ spring forks; verify steering head bore dimensions before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Steering Head Dimensions Dictate Your Springer Build Success
Mismatched neck cup dimensions force a complete front-end teardown.
Moving from warehouse part number checks to field sales, I spent years stationed in Southeast Asia handling physical measurements and sample fittings. I still remember a batch of 1″ spring fork neck cups sent for classic springer front ends. The listings just said “fits,” but the steering head cup dimensions differed between early and late frames. Because nobody checked the exact neck bearing sizes, the cups wouldn’t seat properly in the frame, and the whole front end had to be torn down. Now, exact frame years and cup dimensions are always verified before any sample goes out [NEED_CITE: frame geometry changes across model years for springer platforms].
Verifying Stem Diameter and Bore Match
When sourcing a spring fork neck cup set for a custom build, the 1″ stem diameter is only half the equation. The outer diameter of these zinc-finished cups must perfectly match the steering head bore machined into your specific frame. If the bore is oversized or undersized by even a fraction, the ball bearing design cannot maintain proper alignment. We cross-reference these dimensions against your frame specifications to prevent geometry issues before the parts leave our facility [NEED_CITE: steering head bore machining tolerances by frame manufacturer].
Ball Bearing vs. Tapered Roller Configurations
This spring fork neck cup set utilizes a ball bearing design, which requires specific race seating compared to tapered roller alternatives. Ball bearings reduce friction for smooth steering head rotation but demand precise preload adjustment. Confirming whether your custom triple tree and fork stem are machined for ball bearings or tapered rollers is critical. Installing the wrong bearing type in the cups will lead to premature wear and unsafe steering play [NEED_CITE: bearing type compatibility for custom springer steering stems].
Understanding Zinc Finish and Pair Quantities
The zinc finish applied to this pair provides basic corrosion resistance for the steering head area, which is exposed to road debris and weather. Because they are supplied as a matched pair, you receive both the upper and lower cups needed for a complete installation. This ensures consistent finish quality and dimensional accuracy across both mounting points, eliminating the risk of mixing batches with slight manufacturing variations.
The Hidden Cost of Incorrect Frame Year Assumptions
Assuming a 1″ fork stem automatically means the cups will fit can halt a custom build for weeks. When neck cups are machined for a later frame year but installed in an early frame, they often sit proud or sink too deep, ruining the steering geometry. This forces the builder to source a completely different spring fork neck cup set, delaying the project and adding unexpected freight costs. Verifying the exact frame year prevents these costly assembly errors [NEED_CITE: steering neck cup depth variations between early and late springer frames].
Sourcing Front-End Hardware with Fitment Certainty
We manufacture our own front-end and chassis hardware, allowing us to control the dimensions of every spring fork neck cup set that leaves the facility. Our fitment verification process checks your specific frame year against our steering head bore database before quotation. We support custom builders with a one-piece minimum order, meaning you can order a single pair for a one-off chopper build without meeting bulk quotas. Every set is inspected for zinc finish consistency and ball bearing smoothness prior to dispatch.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges for 1″ spring forks
- Key dimensions including 1″ stem diameter and cup outer diameter measurements
- Finish specification confirming zinc batch consistency for the pair
- Quality inspection record verifying ball bearing rotation and zinc coating
- Commercial invoice and packing list for customs and inventory tracking
Receiving and Pre-Installation Checks
- Verify the pair includes both upper and lower zinc-finished cups for complete installation
- Measure the 1″ steering stem on your fork to confirm it matches the cup inner diameter
- Check the frame steering head bore with calipers to ensure the cup outer diameter seats flush
- Inspect the zinc finish on both cups for uniform coverage without bare spots or flaking
- Have a qualified technician verify bearing preload settings during the final assembly
Send Your Frame Details for a Fitment Check
To ensure this spring fork neck cup set matches your project, send us your frame model, year, and a photo of the existing steering head. If you have the old cups, measuring the outer diameter and providing those dimensions helps us confirm the exact bore size. Let us know if you need a single pair for a custom build or if you require a sample for test fitting before a larger order.
Frequently Asked Questions
Q: How do I confirm my custom springer fork stem diameter matches this 1″ neck cup set?
A: Measure the diameter of the steering stem on your fork assembly using calipers. The stem must measure exactly 1″ to fit the inner race of this ball bearing set. If your stem is metric or a different imperial size, this set will not seat correctly.
Q: What are the differences between ball bearing and tapered roller neck cups for springer front ends?
A: Ball bearing designs offer smooth rotation with less friction but require precise preload adjustment. Tapered rollers handle heavier axial loads but need different race seating. You must match the bearing type to your fork stem and triple tree machining.
Q: Can I order a single pair of neck cups for a one-off custom build?
A: Yes, we accept minimum orders from one piece. You can order a single pair of these zinc-finished cups for a custom shop build or a personal restoration project without needing to meet a bulk quantity requirement.
Q: How do I verify the steering head bore size on my frame before purchasing?
A: Remove the existing steering stem and measure the inner diameter of the frame’s steering head tube using precision calipers. Compare this measurement against the outer diameter specifications of the 1″ neck cups to ensure a proper press-fit or slip-fit.
Q: Do you provide dimension sheets to check neck cup fitment before bulk ordering?
A: Yes, upon request, we provide a fitment sheet detailing the outer diameter and height of the cups. This allows you to verify the dimensions against your frame’s steering head bore before committing to a larger order for your inventory.
