Fitment Checked Regulator Rectifier for Sportster 2009-2013
Fitment Confirmed Against Platform and Year Range — Every regulator rectifier for Sportster 2009-2013 and Big Twin applications is verified against specific model years and connector layouts before quotation.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 74711-08 (reference only) |
| Part Type | Regulator/Rectifier |
| Electrical Output | 32 Amps |
| Connector Type | Deutsch and Delphi (for 1997/Later applications) |

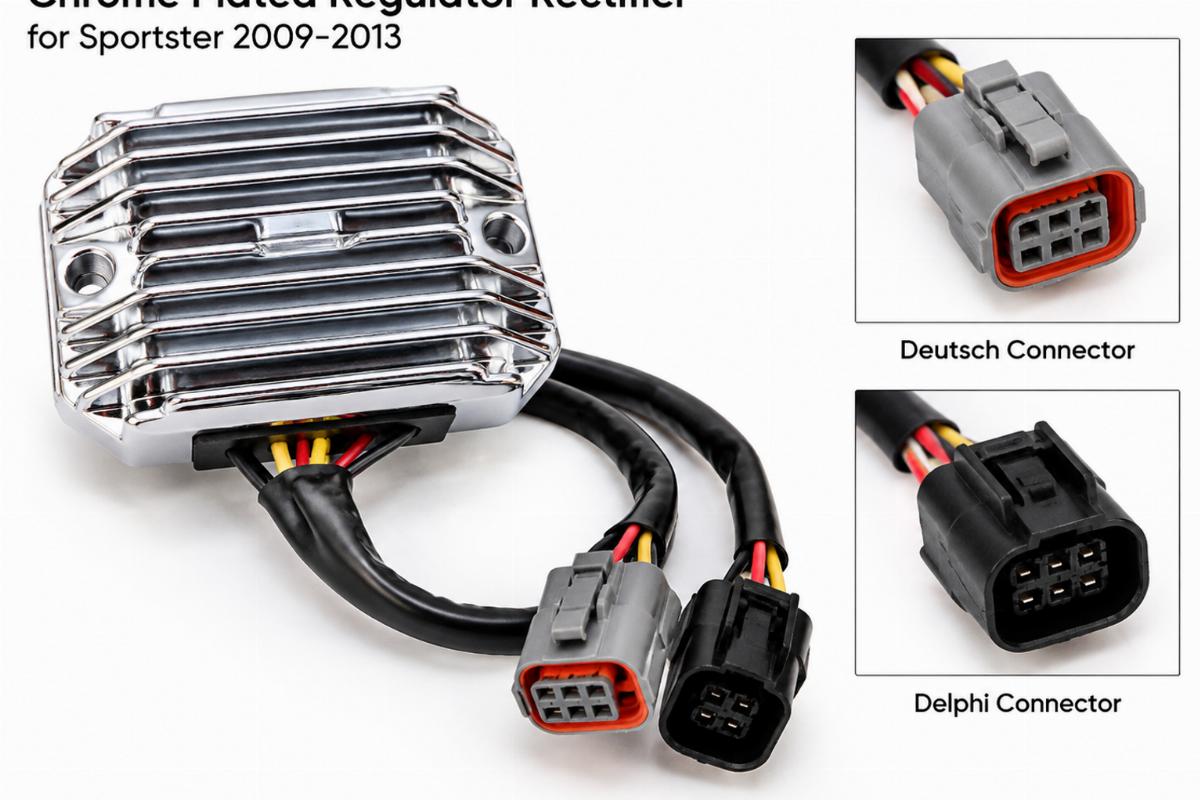

| Finish | Chrome Plated |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Sportster | 2009-2013 | Verify 1997/Later connector layout matches the specific model year. |
| Big Twin | Confirm with model and year | Year range not stated in source; confirm exact fitment before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Connector Layouts Dictate Regulator Rectifier for Sportster Fitment
Matching the exact plug type and amperage is the only way to ensure the electrical unit connects and charges correctly.
Sourcing a regulator rectifier for Sportster 2009-2013 models requires looking past the basic physical shape. Many listings omit the specific connector form, assuming all 32-amp units are interchangeable across the platform. When a shop receives a unit with the wrong terminal pinout, the bike remains dead in the bay regardless of the amperage rating. Verifying the exact connector style for 1997/Later applications prevents this exact failure [NEED_CITE: connector changes across model years for this platform].
Verifying Connector Forms for 1997/Later Applications
Finding the correct regulator rectifier for Sportster 2009-2013 means confirming the plug layout before dispatch. The transition to 1997/Later applications introduced specific Deutsch and Delphi connector styles that differ from earlier generations. If the terminal pinout does not align with the factory harness, the unit cannot be wired without modifying the connectors, which voids the warranty and risks electrical faults. We check the exact connector form against the model year to guarantee a direct plug-in fitment.
Cross-Referencing 74711-08 for Big Twin Platforms
While this regulator rectifier for Sportster 2009-2013 is confirmed, its application for Big Twin platforms requires manual verification. Part numbers are frequently superseded across model years, meaning a number from an older manual might not match the current harness layout. We cross-reference 74711-08 against the specific Big Twin model and year to ensure the 32-amp output and connector type align with the target frame [NEED_CITE: part number supersessions across model years].
Understanding 32-Amp Output and Chrome Plated Specifications
The 32-amp output rating dictates the charging capacity available for the battery and auxiliary accessories. Selecting a unit with a lower amperage will result in a chronic undercharge, especially when running additional lighting or audio equipment. The chrome plated finish provides corrosion resistance for under-seat or exposed mounting locations. This finish is applied in controlled batches to ensure visual consistency when installed alongside other chrome components on the motorcycle [NEED_CITE: electrical load requirements for V-twin charging systems].
The Hidden Cost of Overlooking Connector Changes
Ordering a regulator rectifier for Sportster 2009-2013 without verifying the 1997/Later connector layout often leads to immediate installation failure. When the plug does not match, the motorcycle sits on the lift while the shop waits for a replacement, delaying the build and frustrating the customer. Furthermore, if the amperage rating is incorrect, the battery will fail to hold a charge, leading to a second round of diagnostics. Confirming the exact connector form and output rating eliminates these hidden costs and keeps the project moving forward.
Sourcing Electrical Parts with Fitment Certainty
We verify the connector type and amperage against the specific model year before confirming any fitment for a regulator rectifier for Sportster 2009-2013. Our process includes cross-referencing 74711-08 to ensure the part matches the current harness layout, even if the number has been superseded. We offer a one-piece minimum order, allowing shops to purchase a single unit for fitment confirmation before committing to bulk inventory. Every unit is supplied with a fitment sheet detailing the exact platforms and year ranges it was checked against.
Documentation Provided with Your Shipment
- Fitment sheet listing each year range this regulator rectifier was checked against.
- Cross-reference sheet with 74711-08 marked reference only.
- Key dimensions including 32-amp electrical rating and connector type.
- Finish specification detailing the chrome plated application.
- Quality inspection record verifying output and plug integrity.
- Warranty terms covering electrical performance and finish consistency.
Receiving and Inspecting the Regulator Rectifier
- Verify the 32-amp output rating matches the electrical requirements of the Sportster 2009-2013 model.

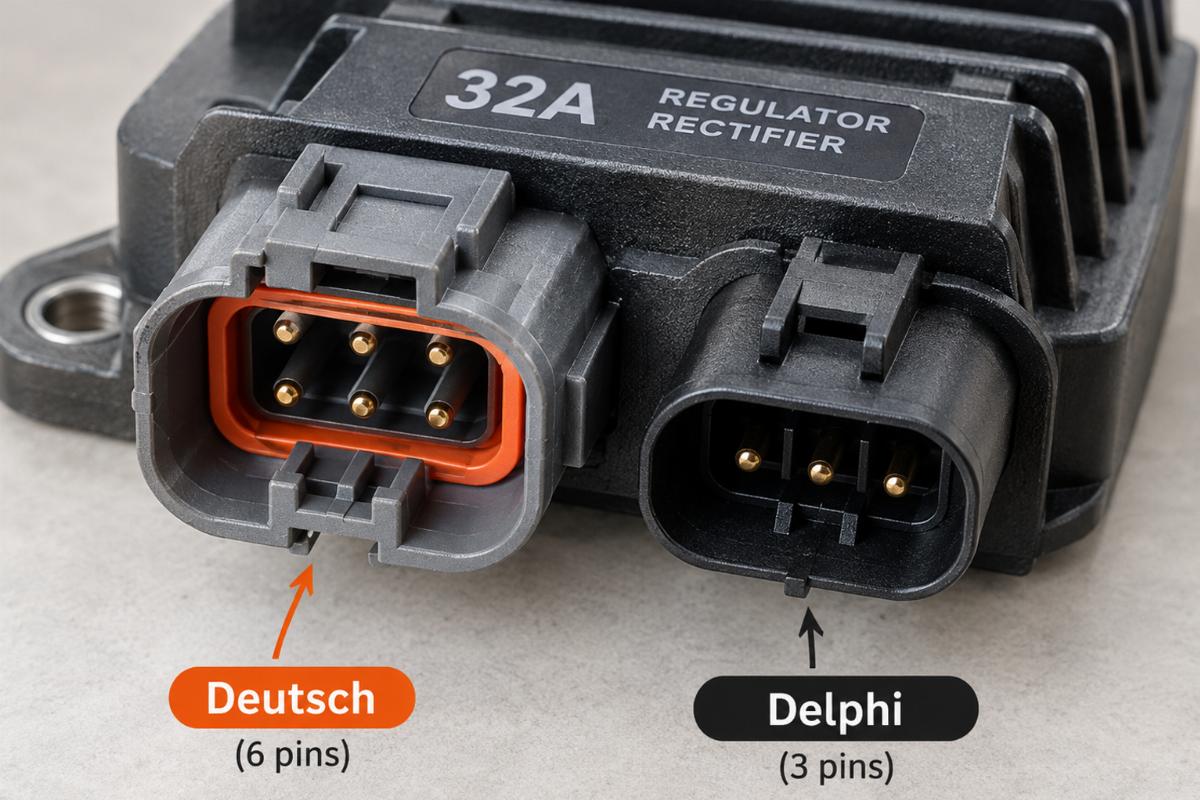

- Inspect the Deutsch and Delphi connector pins for any shipping damage or bent terminals.
- Check the chrome plated finish for consistent coverage without pitting or flaking.
- Confirm the included hardware and mounting brackets match the original setup.
- Store the unit in a dry environment to prevent corrosion before installation.
- Have a qualified technician verify the connector layout against the factory harness before final wiring.
Requesting a Fitment Check for Your Project
Send your specific model and year for a fitment check to confirm this regulator rectifier for Sportster 2009-2013 matches your harness. Provide the OEM number or a clear photograph of the existing connector to verify the 1997/Later layout. Let us know if you require a single sample unit for test fitting before placing a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm if my Sportster 2009-2013 model year fits this regulator rectifier?
A: You must verify that your motorcycle uses the 1997/Later connector layout. We check the exact terminal pinout against your specific model year to ensure the Deutsch and Delphi plugs match your factory harness without requiring modification.
Q: What are the differences in connector types for 1997/Later applications?
A: The 1997/Later applications utilize specific Deutsch and Delphi connector styles that differ from earlier generations. Matching the exact terminal pinout is critical, as using an incorrect plug type will prevent the unit from connecting to the factory wiring harness.
Q: How do I cross-reference 74711-08 if the part number is superseded?
A: We cross-reference 74711-08 against the specific model and year to ensure the 32-amp output and connector type align with the current harness layout. We provide a cross-reference sheet with your order to confirm the match.
Q: Can I order a single piece for fitment confirmation before bulk orders?
A: Yes, we support a one-piece minimum order. You can purchase a single regulator rectifier to verify the connector layout and chrome plated finish on your specific build before committing to a larger quantity for your shop inventory.
Q: Does the chrome plated finish match other chrome parts in the same batch?
A: The chrome plated finish is applied in controlled batches to ensure visual consistency. We provide a finish specification with your documentation so you can verify the quality and appearance before installation alongside other chrome components.
