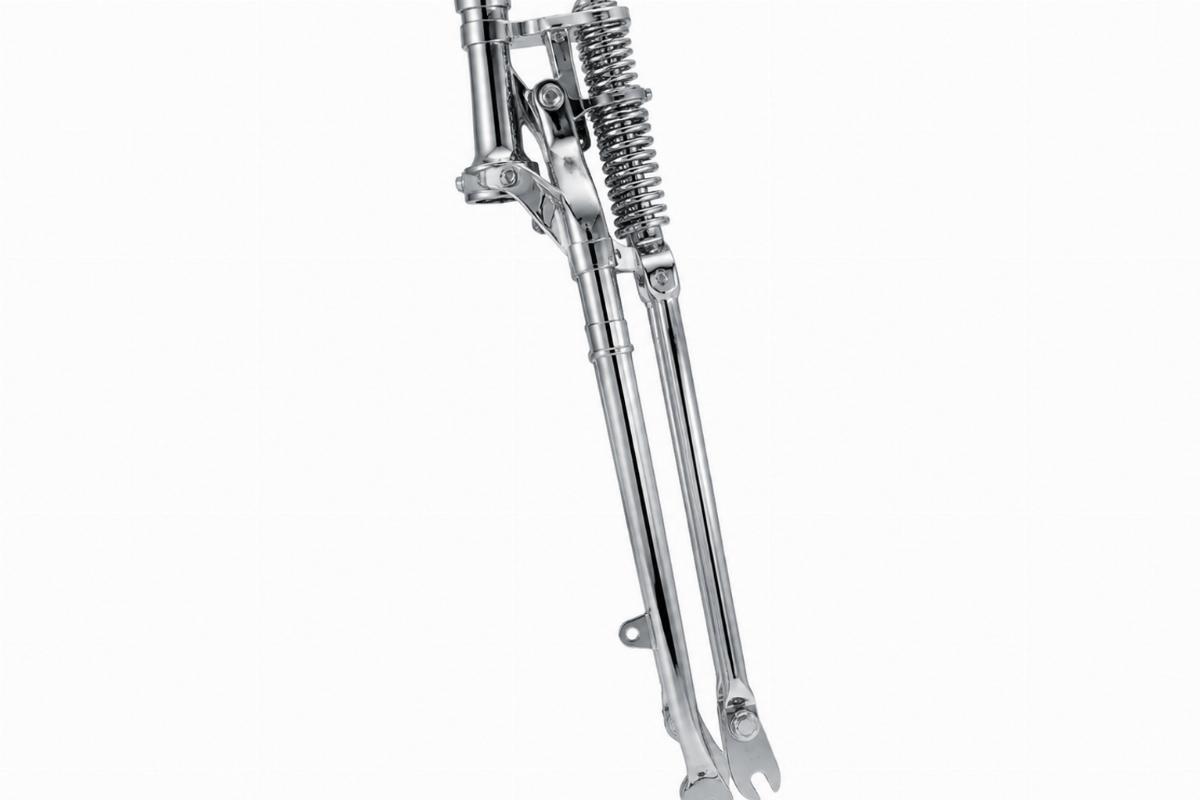

Fitment Checked Narrow Springer Fork Assembly 27″ Chrome
In-House Springer Production — We manufacture complete springer front ends and verify rocker symmetry before dispatch to ensure exact steering geometry.
Product Specification

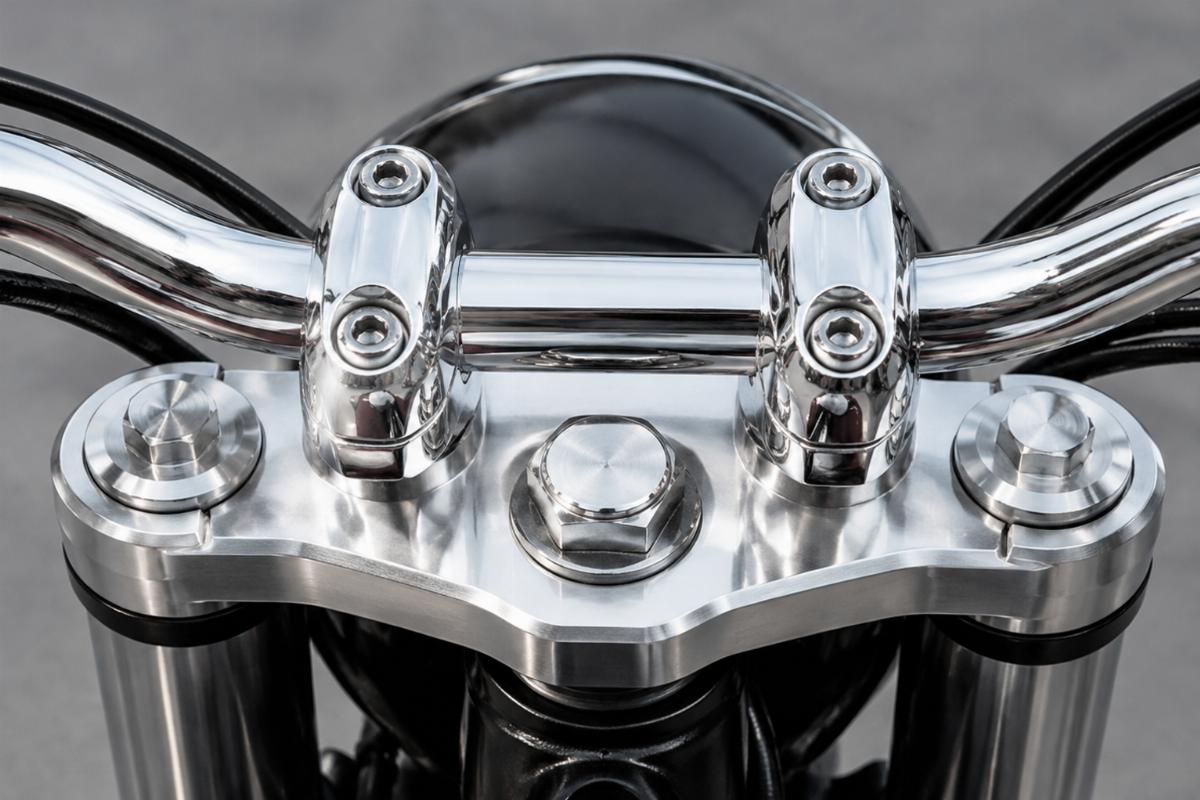

| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | chrome |
| Length | 27″ (4″ over stock) |
| Axle Hole | 3/4″ |
| Top Tree | without ears |
| Thread | 1/2″-20 (legs drilled and tapped to mount risers) |
| Rocker Offset | same on each side, not offset on right side |
| Kit Contents | rockers, top tree, fork legs |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Rockers are the same on each side, not offset on right side |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Overall Length and Rocker Symmetry for Your Narrow Springer Fork Assembly
A 27-inch overall length with 4 inches over stock requires verifying frame clearance and rocker alignment to maintain correct steering geometry.
When sourcing a narrow springer fork assembly, listings often state an over-stock measurement without defining the exact overall length or rocker offset. I once saw a builder receive a front end where the right-side rocker was offset, completely ruining the axle alignment and forcing weeks of rework. We always verify the overall length and ensure the rockers are symmetrical before quoting to prevent these geometry issues. [NEED_CITE: frame geometry specifications for over stock springer setups]
Verifying Platform Compatibility Before Ordering
Fitment certainty begins with matching the front end to your specific frame dimensions and year range. Because this narrow springer fork assembly features a 4-inch over stock length, it will alter the ride height and steering geometry compared to a stock setup. We require your exact model and year to confirm whether the frame clearance and neck bearing spacing will accommodate this specific assembly without interference.
Cross-Referencing Dimensions for Custom Front-End Builds
Custom builders often rely on dimensional cross-references to adapt front ends to non-standard frames. The 1/2″-20 threaded legs on this unit allow for direct riser mounting, but the top tree is designed without ears to maintain a clean profile. We document the exact tube spacing and tree width so you can verify compatibility with your custom triple tree setup before committing to the build. [NEED_CITE: dimensional changes across custom frame builds]
Understanding the 27-Inch Length and 3/4-Inch Axle Hole
The 27-inch overall length dictates the visual stance and the physical trail of the motorcycle, directly affecting how the front end tracks through corners. A 4-inch over stock measurement means the steering head angle and fork offset must be evaluated to ensure the bike remains stable. Additionally, the 3/4-inch axle hole in the rockers determines the specific axle hardware required for the front wheel. Since the rockers are identical on both sides with no right-side offset, the wheel must be spaced perfectly to sit centered between the fork legs. [NEED_CITE: steering geometry calculations for extended springer forks]
The Hidden Cost of Incorrect Rocker Alignment and Fitment
Ordering a front end without confirming rocker symmetry often leads to the wheel sitting off-center, which causes uneven tire wear and binding brakes. If the overall length is not clearly stated, the bike may sit too high or too low, ruining the intended custom profile and making the steering overly heavy or dangerously twitchy. When a supplier copies fitment data without verifying the actual frame year, the neck bearings might not seat correctly, leaving the bike stranded on the lift. These mistakes force shops to halt production and source replacement parts, delaying the entire build schedule. [NEED_CITE: common fitment errors in aftermarket springer installations]
Why Source This Front End From Our Facility
We produce the springer front ends and chassis hardware in our own facility, ensuring strict control over the chrome plating thickness and consistency across batches. Our front-end depth allows us to supply complete assemblies with verified over-stock lengths rather than just individual components. We offer chrome and black finish options, applying the same quality inspection standards to both. Every quotation includes a cross-reference check against dimensional requirements, marked reference only, to confirm the part matches your frame. We support custom builders and repair shops with a one-piece minimum order, meaning you do not need to buy in bulk to get a single replacement for a one-off build.
Documentation Supplied With Your Shipment
- Fitment sheet stating applicable platforms and year ranges checked against this specific assembly
- Key dimensions sheet detailing the 27-inch overall length and 4-inch over stock measurement
- Finish specification document outlining the chrome plating standards applied to the kit
- Quality inspection record verifying rocker symmetry and 3/4-inch axle hole alignment
- Packing photographs showing the rockers, top tree, and fork legs secured for transit
Pre-Installation Checks Upon Delivery
- Verify the kit contents include the rockers, top tree without ears, and fork legs as specified
- Measure the overall length to confirm it matches the 27-inch dimension before mounting
- Inspect the chrome finish on all components for consistency and check for any transit damage
- Confirm the 1/2″-20 threads on the legs are clean and untapped for your riser hardware
- Check the 3/4-inch axle holes on both rockers to ensure they are perfectly round and unobstructed
- Store the assembly in a dry environment to prevent moisture from affecting the chrome surface
Requesting a Fitment Check and Quotation
Send your exact model code and year range so we can verify the frame clearance for this 4-inch over stock setup. Provide a photograph or the key measurements of your current neck spacing if the exact year is unknown. Let us know if you require a single unit for a custom build or if you need a sample to confirm the chrome finish quality before placing a larger order.
Frequently Asked Questions
Q: How does a 4-inch over stock springer fork affect rake and trail on a custom frame?
A: Extending the length by 4 inches changes the physical trail and alters the steering geometry, which can make the front end feel heavier or change the turning radius. You must calculate the new rake angle based on your specific frame’s neck spacing and tree offset to ensure the motorcycle tracks correctly and remains stable at speed.
Q: What riser base cup size is required for the 1/2″-20 threaded legs?
A: The fork legs are drilled and tapped with a 1/2″-20 thread specifically to accept standard riser mounting hardware. You need to select risers that feature a 1/2-inch base stud with 20 threads per inch to screw directly into the legs, ensuring a secure connection without the need for additional adapters or modifications.
Q: Are the rockers symmetrical, and how does this affect front wheel alignment?
A: Yes, the rockers are identical on each side and are not offset on the right side. This symmetry requires the front wheel to be perfectly centered between the fork legs using the correct axle spacers. If the wheel is not spaced evenly, it will sit off-center, leading to brake binding and uneven tire wear.
Q: Can I order a single springer fork assembly for a one-off custom build?
A: Yes, we support independent repair shops and custom builders with a one-piece minimum order. You do not need to meet a high volume threshold to purchase a complete assembly for a single project. We provide the same fitment verification and quality inspection for a single unit as we do for bulk distributor orders.
Q: How is the chrome finish quality controlled across different production batches?
A: We manufacture the front ends in our own facility, allowing us to monitor the plating process directly. Every batch undergoes a quality inspection to check for uniform thickness, adhesion, and surface consistency. We supply a finish specification document with your order so you can verify the visual standards match your expectations before installation.
