Fitment Checked Leaf Spring Fork Assembly for Custom Springer
Fitment Verified Before Quotation — Every leaf spring fork assembly for custom springer builds is checked against your specific frame geometry and stem requirements before we issue a quote.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Stem Diameter | 1″ |
| Stem Thread | 1″ x 24 |
| Axle Diameter | 3/4″ |
| Overall Length | 44cm (from lever tree base to axle) |

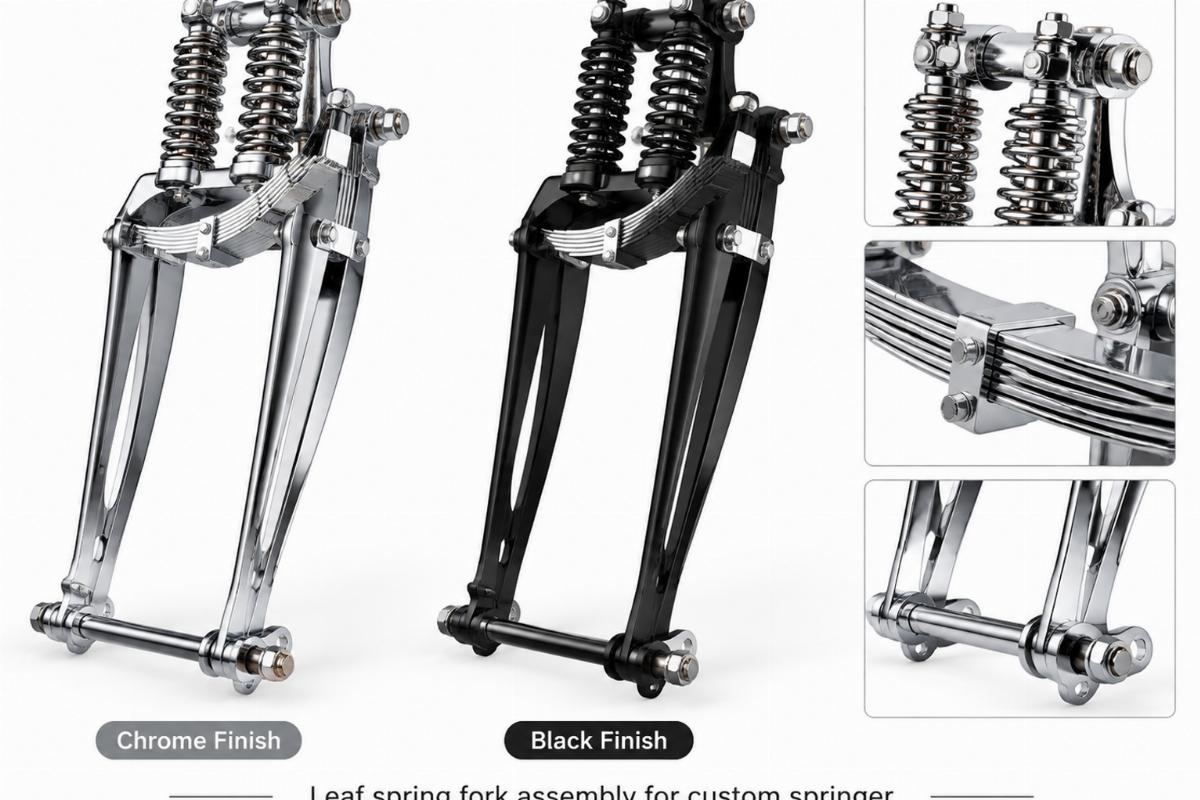

| Finish | Chrome (all components), Black (rear leg) |
| Kit Contents | Spring, rockers, top tree, stay bars, 3/4″ axle, chrome acorn nuts, top crown nut, headlamp brackets |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Chopper / Custom Springer | Confirm with model and year | Verify 1″ x 24 stem thread and 44cm length match your steering neck and desired front-end profile. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Incomplete Springer Kits Delay Custom Builds
Custom builders often struggle with incomplete springer kits that lack essential hardware or require sourcing mismatched brackets separately, delaying the build process. This leaf spring fork assembly for custom springer applications arrives with all structural and mounting hardware included. When a kit misses the top crown nut or headlamp brackets, the bike sits on the lift while the shop waits for replacement parts. We have seen shops lose days of labor simply because a supplier shipped a bare spring assembly without the stay bars or axle hardware. [NEED_CITE: common missing hardware items in aftermarket springer kits]
Checking Stem Diameter and Thread Pitch
The 1″ stem diameter and 1″ x 24 thread pitch are the primary factors that determine whether this front end will mate with your steering neck. If your custom frame was built for a different stem size, this leaf spring fork assembly for custom springer setups will not seat correctly, leading to dangerous steering play. Always measure the inner diameter of your triple tree and the thread pitch of your existing stem before ordering. [NEED_CITE: steering neck dimension variations across custom chopper frames]
Evaluating the 44cm Overall Length
Measuring from the lever tree base to the axle, this unit provides a 44cm overall length that dictates your bike’s ride height and steering geometry. A front end that is too long will raise the front of the bike and alter the rake, while one that is too short will cause the fender to rub against the tire. Compare this 44cm measurement directly against your current setup or your frame’s design specifications to ensure the leaf spring fork assembly for custom springer builds maintains your intended stance.
Understanding the Two-Tone Finish
This kit features a distinct two-tone finish with chrome components and a black rear leg, requiring careful batch matching during production. The chrome acorn nuts, stay bars, and top tree are plated for a bright reflection, while the rear leg is finished in black to create a contrasting visual depth. When sourcing a leaf spring fork assembly for custom springer projects, finish consistency between the chrome and black parts is critical, as mismatched batches become highly visible once the front end is fully assembled. [NEED_CITE: plating consistency standards for mixed-finish front end components]
The Hidden Cost of Mismatched Front-End Dimensions
Ordering a front end without verifying the stem diameter and overall length often results in the bike being torn apart in the shop. I remember a builder ordering a leaf spring fork assembly, just stating the model without checking the stem diameter. The 1″ stem and 44cm length from the triple tree base to the axle completely mismatched his early frame, leaving the bike disassembled for weeks. When dimensions are overlooked, the shop faces extended downtime, additional shipping costs for returns, and delayed customer deliveries. [NEED_CITE: shop downtime costs related to incorrect front-end fitment]
Sourcing Directly from the Front-End Specialist
We produce our springer front ends and chassis hardware in our own facility, allowing us to control the machining of the 1″ x 24 stem and the welding of the headlamp brackets. Our minimum order starts from one piece, which supports custom shops building a single chopper without forcing bulk purchases. Every leaf spring fork assembly for custom springer applications is backed by a unified warranty and verified against your platform before we finalize the quotation. We also offer sample supply for fitment confirmation, ensuring the top tree configuration aligns with your riser setup before you commit to a larger order.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and confirming the 44cm length and 1″ stem compatibility
- Cross-reference sheet with OEM numbers marked reference only for your records
- Finish specification detailing the chrome plating and black rear leg coating standards
- Quality inspection record verifying the welded headlamp brackets and thread pitch
- Packing photographs showing the complete kit contents before dispatch
- Warranty terms covering manufacturing defects on the spring, rockers, and axle
Receiving and Pre-Installation Checks
- Verify the kit includes the spring, rockers, top tree, stay bars, 3/4″ axle, and chrome acorn nuts.
- Measure the 1″ x 24 stem thread to confirm it matches your steering neck requirements.
- Check the 44cm length from the lever tree base to the axle against your frame geometry.
- Inspect the chrome and black finishes for any shipping damage or plating inconsistencies.

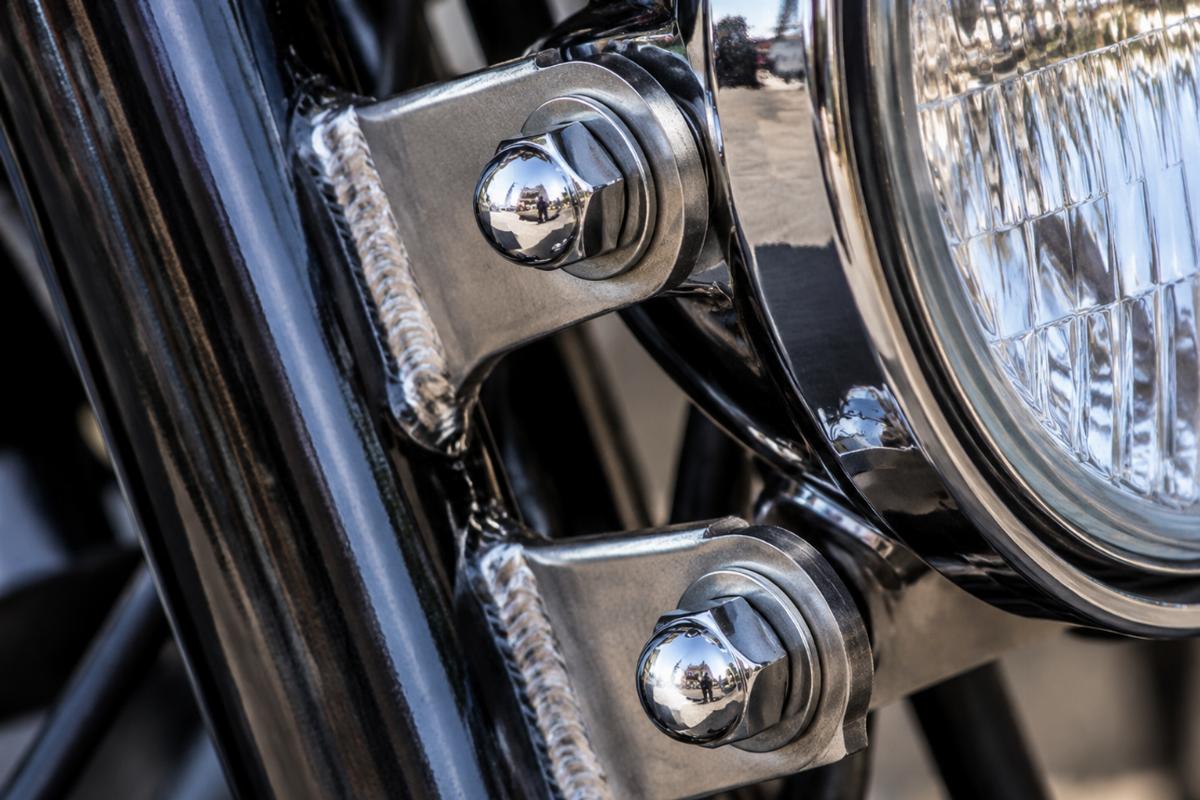

- Ensure the welded headlamp brackets are aligned for your specific bottom-mount headlamp.
- Store the assembly in a dry environment to prevent surface oxidation before installation.
Requesting a Fitment Check
Send us your custom chopper frame details, the required stem diameter, and your target front-end length to begin the verification process. If you have an existing leaf spring fork assembly for custom springer reference or specific measurements for the triple tree base, include those in your inquiry. We can also arrange a single sample for trial installation to confirm the 44cm length and two-tone finish meet your build standards before processing the full order.
Frequently Asked Questions
Q: How do I confirm if this leaf spring fork fits my specific custom chopper frame?
A: You need to verify the 1″ x 24 stem thread matches your steering neck and that the 44cm length from the lever tree base to the axle aligns with your desired geometry. Send us your frame specifications or a photo of your current setup, and we will confirm compatibility before you order.
Q: What are the critical dimensions to measure before ordering a custom springer fork?
A: The most critical dimensions are the stem diameter and thread pitch, which must match your triple tree, and the overall length from the lever tree base to the axle, which affects your ride height. You should also check the 3/4″ axle diameter to ensure it fits your front wheel hub.
Q: Does the kit include all necessary hardware for a complete front-end installation?
A: Yes, this leaf spring fork assembly for custom springer builds includes the spring, rockers, top tree, stay bars, 3/4″ axle, chrome acorn nuts, top crown nut, and pre-welded headlamp brackets. All essential structural and mounting hardware is included in the box.
Q: Can I order a single sample to verify the fitment and finish quality?
A: We support single-piece orders for custom shops and builders. You can order one sample to verify the 1″ stem fitment, the 44cm length, and the consistency between the chrome components and the black rear leg before committing to additional units.
