Fitment Checked Jackknife Handlebars for Touring Models 1982-Up
Fitment Verified Before Quotation — Every jackknife handlebars for touring models is checked against your specific model year and fairing type to ensure the riser mount and wiring paths align perfectly.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Platform | Touring models (including Batwing Fairing) |
| Year Range | 1982-up (including Fly-By-Wire) |
| Center Diameter | 1 1/4″ |
| Riser Mount Diameter | 1″ |
| Pullback | 6″ |
| Total Width | 34″ |
| Center Width | 15″ |
| Rise Options | 10″ or 16″ |
| Wiring | Drilled for internal wiring |
| Finish Options | Chrome or black |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Touring models | 1982-up | Verify riser clamp compatibility for 1″ mount and check fairing clearance for 10″ or 16″ rise. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riser Mount Dimensions Dictate Your Build Success
A 1/4″ diameter mismatch stops the build entirely.
Handlebar listings often miss critical dimensions like riser mount diameter, pullback, or center width, leading to parts that do not align with your risers or fairing cutouts. I once saw a shop order 16″ Jackknife handlebars for a 1982/Later Touring model without confirming the riser mount. The 1 1/4″ center diameter looked perfect on paper, but the 1″ riser mount section was machined slightly off for their specific triple tree clamp, and the internal wiring holes missed the routing path. The bars arrived, the risers would not seat, and the wires would not route [NEED_CITE: triple tree clamp tolerances and internal wiring drill positions by model year].
Checking Riser Clamp Compatibility

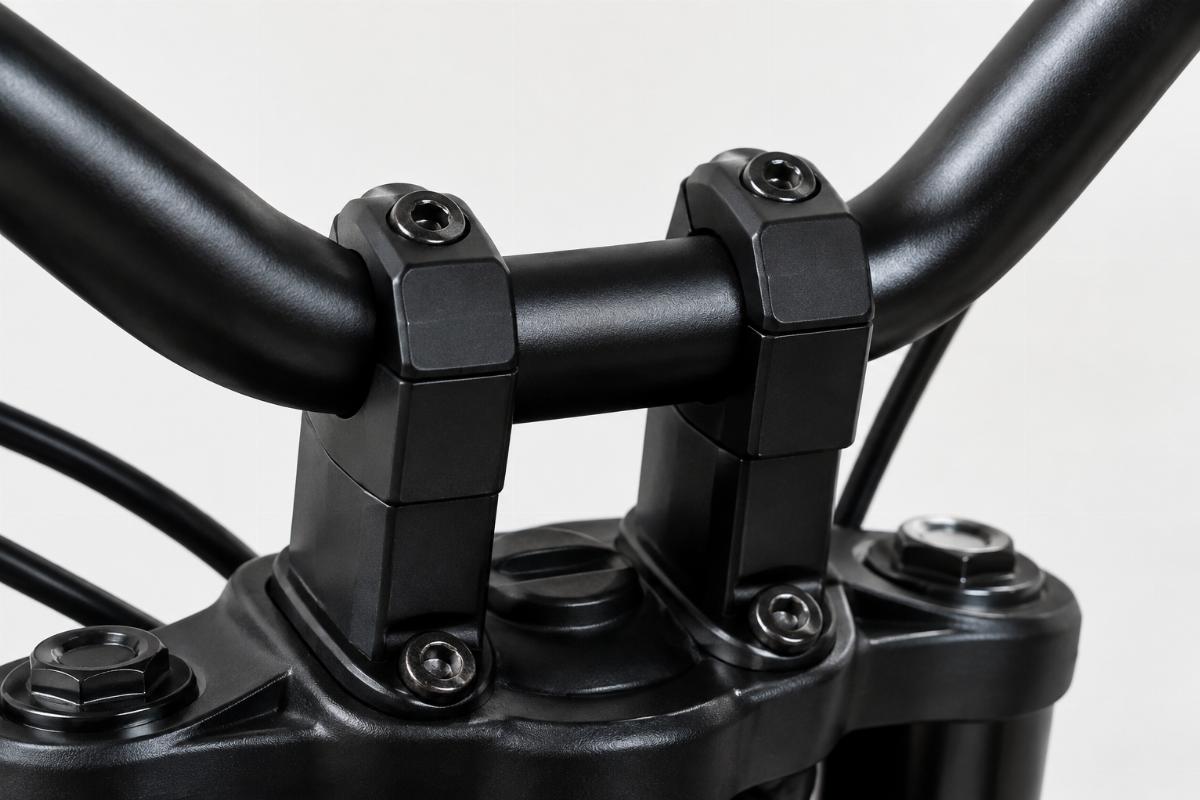

When sourcing jackknife handlebars for touring models, the transition from a 1 1/4″ center section to a 1″ riser mount is the most critical dimension to verify. Your existing risers must accept the 1″ mounting diameter, otherwise the clamps will not grip the bar securely. Always measure your current riser inner diameter before ordering to avoid fitment failures on the workbench.
Verifying Fairing and Throttle Clearance
The 10″ rise is designed to fit stock hoses and wires with a Batwing Fairing, while the 16″ option provides a different profile. You must check that the 6″ pullback and 15″ center width align with your fairing cutout and provide adequate space for electronic throttle housings on later Fly-By-Wire models [NEED_CITE: fairing cutout dimensions and throttle housing spacing across model years].
Understanding Bar Dimensions and Routing

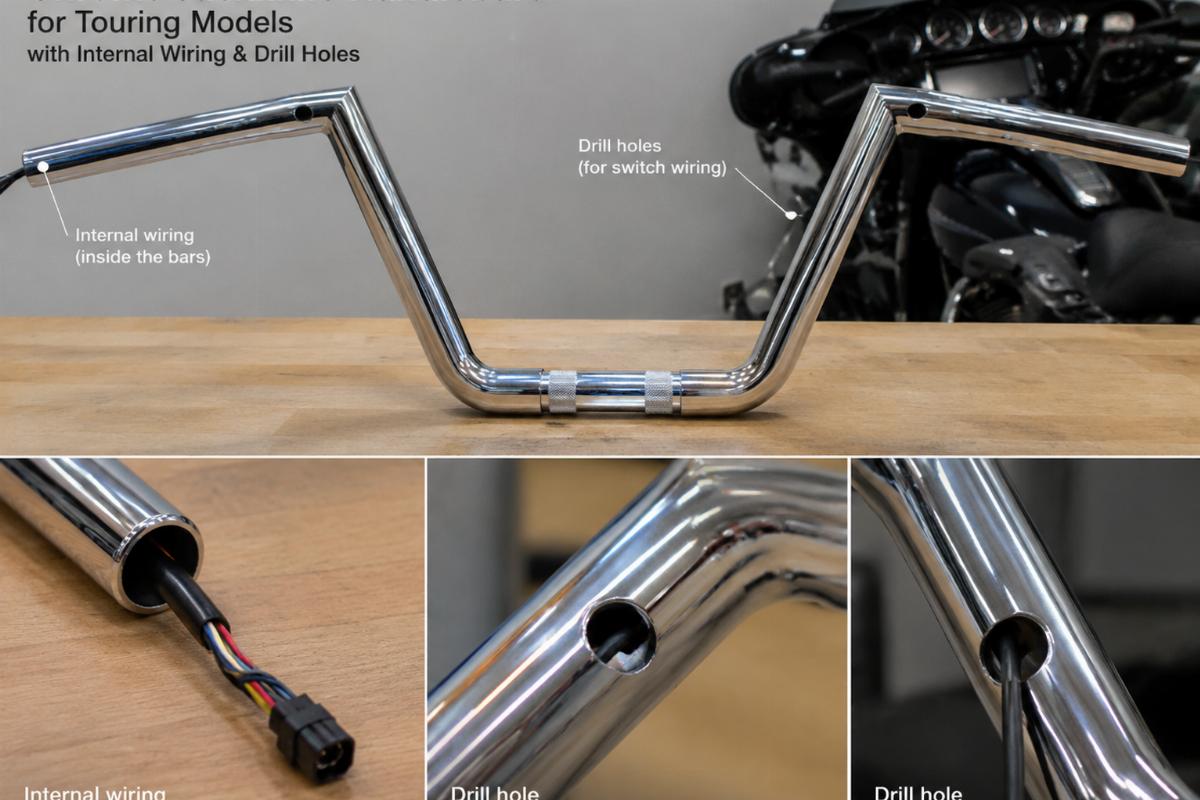

The 34″ total width and 15″ center width determine how the bar sits relative to your mirrors and controls. Drilled for internal wiring, these bars maintain a clean front-end profile, but the drill positions must match your specific routing path. If the holes are offset, you will have to drill new passages, which compromises the finish and structural integrity of the tube.
The Hidden Cost of Incorrect Fitment Data
When a listing omits the riser mount diameter or wiring drill positions, the consequences extend far beyond a simple return. A shop building a single bike will have the motorcycle stuck on the lift, waiting for a replacement bar, while labor hours accumulate. If the finish varies between batches, mixing chrome and black parts on the same bike creates a visible quality issue once assembled. Relying on incomplete specification sheets means the error is only discovered during dry-fitting, delaying the entire project timeline [NEED_CITE: build delays caused by incorrect handlebar dimensions and finish inconsistencies].
Sourcing From a Fitment-Led Catalogue
We confirm fitment against the platform family and model year range before providing a quotation for your jackknife handlebars for touring models. Our catalogue offers consistent chrome and black finish options, ensuring batch consistency for your builds. We support a minimum order from one piece, allowing independent repair shops and custom builders to order exactly what they need for a single project without meeting high volume thresholds.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for your specific build.
- Key dimensions including bar diameter at riser mount, pullback, and center width.
- Finish specification and quality inspection record to ensure batch consistency.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Sample supply available for fitment confirmation before placing bulk orders.
Receiving and Inspecting Your Handlebars
- Verify the 1 1/4″ center diameter and 1″ riser mount section match your order specifications.
- Check the 34″ total width and 15″ center width against your build requirements before installation.
- Inspect the chrome or black finish for any batch inconsistencies or surface defects.
- Confirm the internal wiring drill holes align with your planned routing path.
- Store the handlebars in a dry environment to prevent surface corrosion before fitting.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure these jackknife handlebars for touring models match your specific setup. Provide your riser mount requirements and fairing type so we can verify the 10″ or 16″ rise will clear your Batwing Fairing. Let us know if you need a sample for a dry-fit confirmation before committing to a larger order.
Frequently Asked Questions
Q: How do I confirm my 1982-up Touring model year and fairing type will fit these handlebars?
A: Provide your exact model year and confirm whether you are running a Batwing Fairing. We will verify if the 10″ or 16″ rise and 6″ pullback clear your specific fairing cutout and stock hose routing before quotation.
Q: What is the difference between the 1 1/4″ center diameter and the 1″ riser mount diameter?
A: The center section is 1 1/4″ to accommodate controls and housings, while the section clamped by your risers is machined down to 1″. Your risers must specifically accept a 1″ mounting diameter to ensure a secure grip.
Q: Will the 10″ profile and 6″ pullback work with my stock Batwing Fairing and wiring?
A: The 10″ rise is engineered to fit stock hoses and wires with a Batwing Fairing. However, you must verify that the 6″ pullback and 15″ center width provide adequate clearance for your specific fairing cutout and electronic throttle housings.
Q: Are these handlebars compatible with Fly-By-Wire throttle housings?
A: Yes, they fit 1982-up models including Fly-By-Wire setups. You must confirm that the 15″ center width and 6″ pullback provide enough physical space for the electronic throttle housings on your specific later model year.
Q: Can I order a single pair of handlebars for a custom build without a minimum order quantity?
A: Yes, we support a minimum order from one piece. You can order a single pair of jackknife handlebars for touring models for your custom build or repair job without being blocked by high volume requirements.
