Fitment Checked Custom Springer Front End for Harley-Davidson 1″ Neck
In-house Springer Production — Every fork is physically measured from the lower tree to the axle centerline to guarantee exact frame geometry before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Neck Size | 1″ |
| Stock Length | 23″ |
| Finish | Chrome plated |
| Steering Stem | Zinc-plated |
| Rocker Bushings | Bronze |
| Axle | 3/4″ included |
| Leg Thread | 1/2″-20 (drilled and tapped for risers) |
| Construction | Welded |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson frames with 1″ neck | Confirm with model and year | Fits frames with 1″ neck; built for narrow wheels. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Springers Fail Without Clear Geometry Data

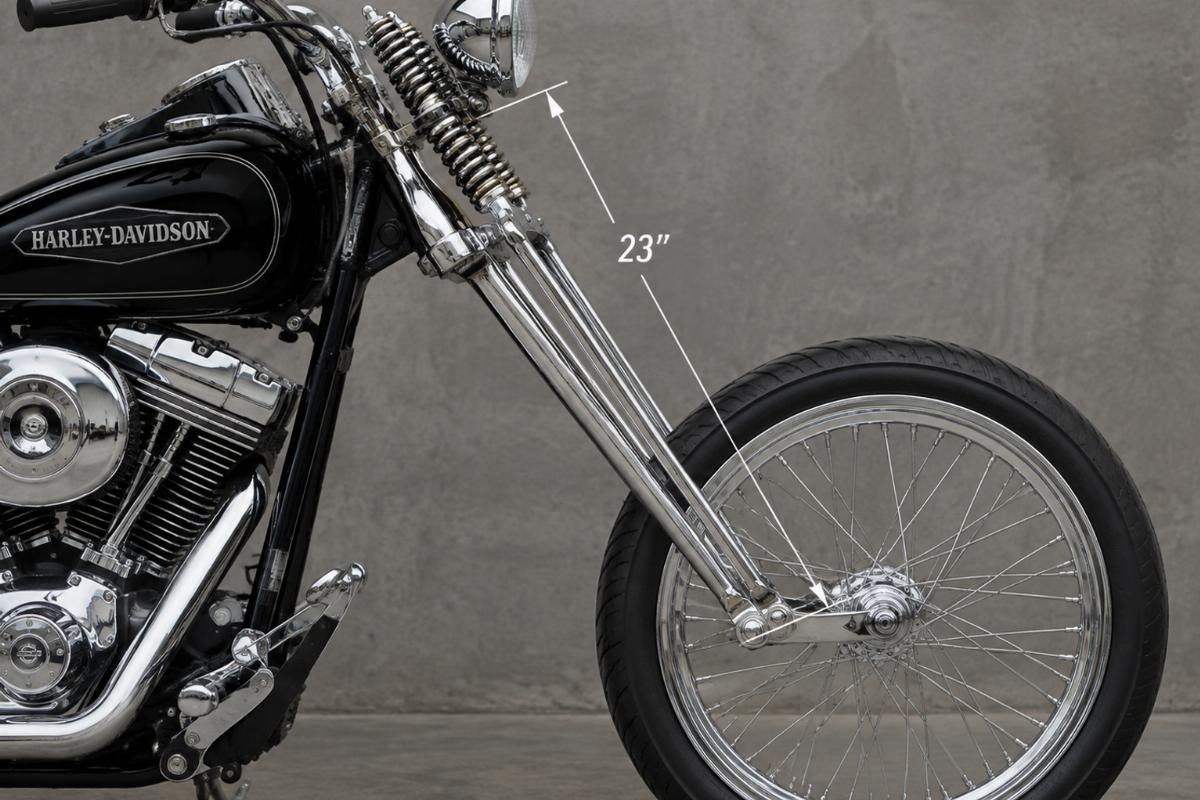

A 23″ stock length is only useful if your frame geometry matches that exact vertical drop.
When a custom springer front end for harley-davidson is listed without a definitive measurement from the top surface of the lower tree to the axle centerline, the steering geometry is completely thrown off. I have seen shops spend days chasing alignment issues, only to realize the ride height was wrong because the overall length was never verified against the specific frame. [NEED_CITE: frame geometry specifications by model year]
Verifying the 1-Inch Neck Dimension
Before installing this custom springer front end for harley-davidson, you must confirm the steering neck diameter. A 1″ neck size is a hard physical boundary; if your frame requires a different dimension, the steering stem will not seat properly, making installation impossible regardless of the fork length.
Checking the Vertical Drop and Trail Impact
The 23″ stock length dictates the front-end profile and trail. Measuring from the top of the lower tree to the axle centerline ensures the fork aligns with your intended ride height. Altering this vertical dimension without recalculating the rake will negatively affect the steering feel and overall stance of the motorcycle. [NEED_CITE: rake and trail calculations for custom front ends]
How Bronze Bushings and Zinc Plating Define Longevity

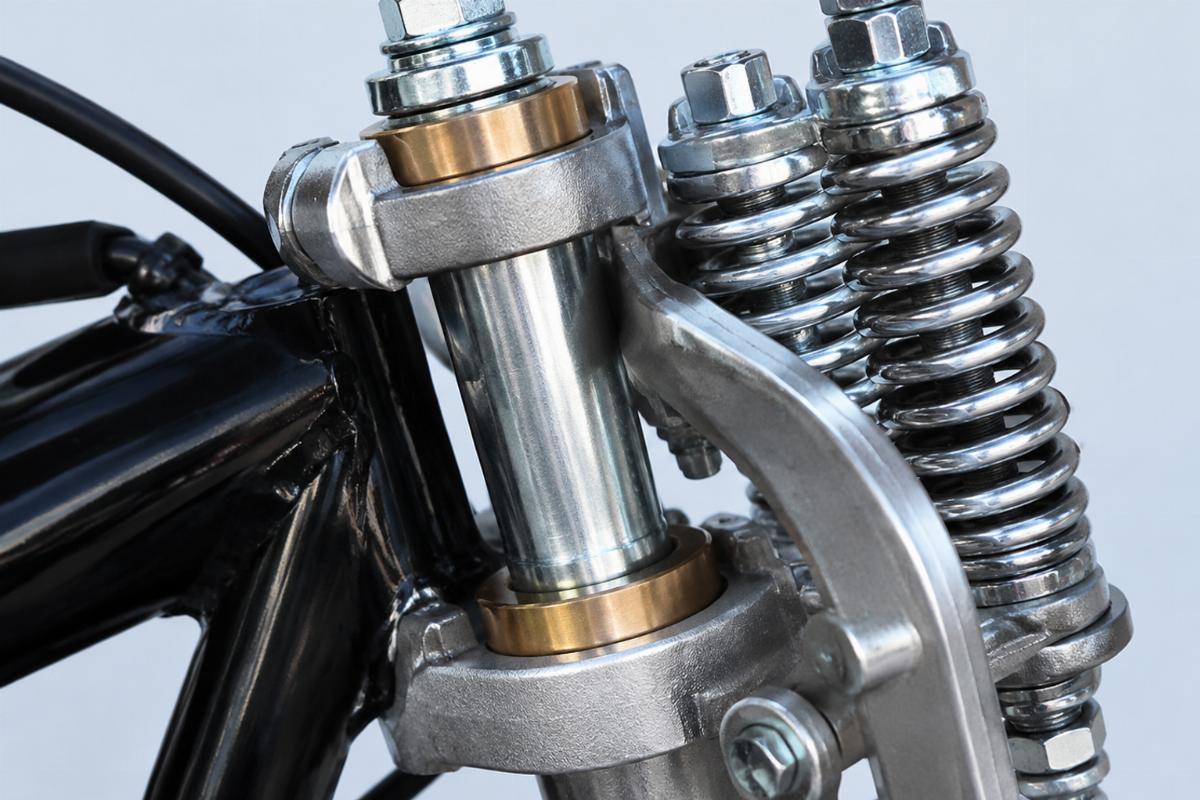

The precision-fit bronze rocker bushings provide a solid pivot point for the springer legs, reducing play over time. Combined with a zinc-plated steering stem and a chrome plated finish, this custom springer front end for harley-davidson resists corrosion while maintaining a traditional appearance. The welded construction and included 3/4″ axle ensure the assembly remains rigid under load.
The Hidden Cost of Unverified Frame Dimensions
Ordering a front end without confirming the neck size or tree spacing leads to immediate installation failure. The bike sits on the lift, the build is delayed, and the shop absorbs the cost of return shipping and re-measurement. Inaccurate fitment data passed down through catalogs only compounds this issue, causing the same wrong part to be ordered repeatedly. [NEED_CITE: common fitment errors in aftermarket front ends]
Why Builders Source This Fork From Us
We manufacture our own springer front ends, allowing us to physically measure every 23″ fork before it leaves the facility. Our fitment verification process checks the 1″ neck size against your specific frame requirements before quotation. We offer a one-piece minimum order, supporting custom builders who need a single unit for a specific project. Every shipment includes a detailed fitment sheet confirming the platform and dimensions.
Documentation Provided
- Fitment sheet stating applicable platforms and confirmed dimensions
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including neck size and 23″ fork length
- Finish specification for the chrome plated surfaces
- Quality inspection record for the bronze bushings and welding
- Packing photographs showing the included 3/4″ axle
Pre-Installation Verification Checklist
- Verify the frame neck size is exactly 1″ before mounting
- Measure the 23″ length from the lower tree top to the axle centerline
- Check the 1/2″-20 leg threads to ensure riser compatibility
- Inspect the chrome plated finish for any transit damage
- Confirm the 3/4″ axle is included and undamaged
- Store the zinc-plated steering stem in a dry environment
Send Your Model Details for a Fitment Check
To ensure this custom springer front end for harley-davidson fits your project perfectly, provide your frame model and year range. Include a photograph of your current steering neck or the measured 1″ dimension. Let us know if you require a sample for physical fitment confirmation before placing a bulk order.
Frequently Asked Questions
Q: How is the 23″ stock length measured on this springer front end?
A: The 23″ stock length is measured vertically from the top surface of the lower triple tree down to the centerline of the axle. This specific measurement determines the ride height and ensures the fork matches the intended geometry for frames requiring this exact vertical drop.
Q: How do I confirm my frame has a 1″ neck size for this fork?
A: You must physically measure the inner diameter of your frame’s steering neck or the outer diameter of your existing steering stem. This custom springer front end is strictly built for a 1″ neck; if your frame requires a different size, the steering stem will not fit or seat correctly.
Q: What riser thread size is tapped into the springer legs?
A: The legs are drilled and tapped with a 1/2″-20 thread specifically designed to mount risers. You must ensure your chosen risers match this exact 1/2″-20 thread pitch and diameter to guarantee a secure and proper connection to the fork legs.
Q: Can I order a single springer front end for a custom build?
A: Yes, we support single-piece orders with a minimum order quantity of just one unit. This allows custom builders and independent repair shops to purchase exactly what they need for a specific motorcycle project without being forced into large bulk quantities.
