Fitment Checked Chrome Upper Spring Fork Springs for Custom Springer Front Ends
Fitment Verified Springer Components — Every upper spring fork springs for custom springers setup is checked against your specific fork leg dimensions before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Upper Spring Fork Springs |
| Finish | Chrome |
| Feature | Bend to prevent rattle |
| Quantity | Sold as a pair |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Front Ends | Confirm with model and year | Verify bend angle and spring rod spacing to prevent binding. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Preventing Internal Binding in Springer Legs

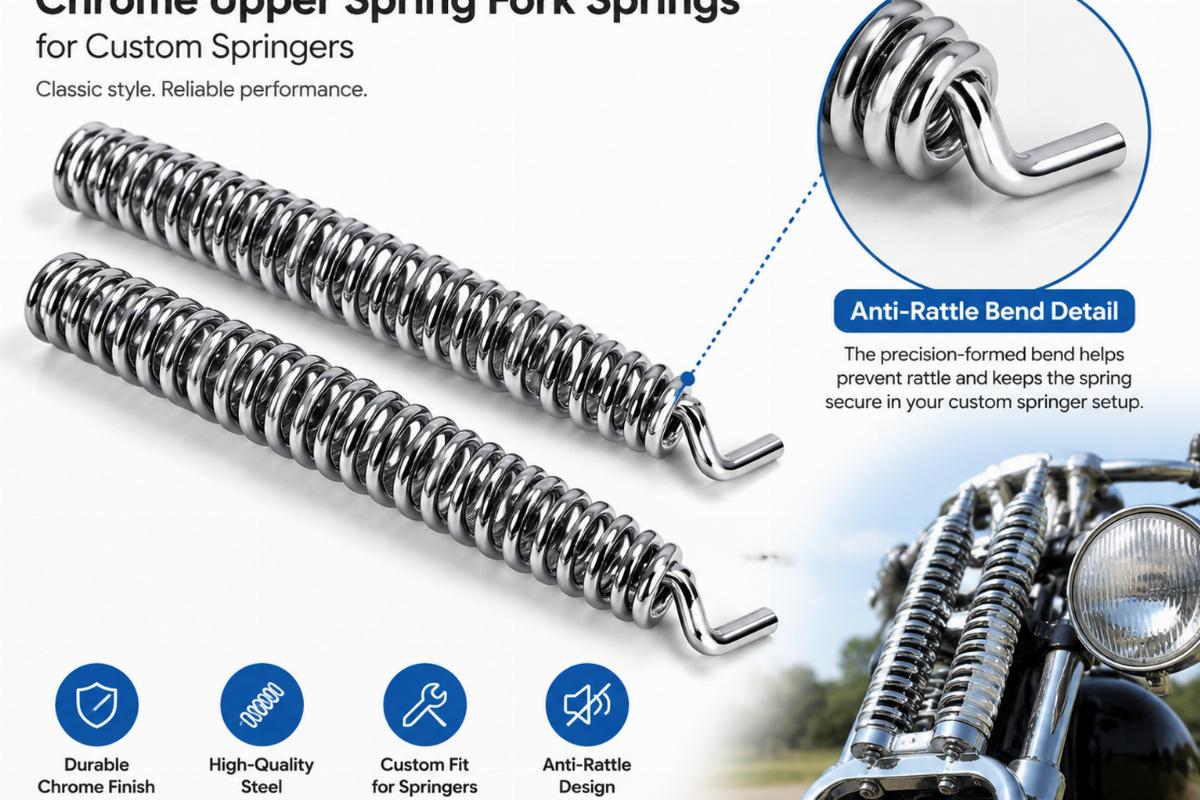

A precise bend angle keeps the spring seated correctly during full compression.
When building or rebuilding a front end, the internal geometry of the fork legs dictates how the spring behaves under load. If the bend on the spring does not align with the machined recess or the spring rod spacing, the coil will bind against the inner wall of the leg. This misalignment creates friction that prevents smooth rebound and generates a persistent metallic rattle over uneven surfaces. Confirming the exact model year and measuring the bend ensures the upper spring fork springs for custom springers operate without internal interference [NEED_CITE: factory service manual specifications for springer fork leg internal clearances by model year].
Verifying the Bend Angle for Your Fork Legs
The primary reason these coils fail to seat properly is a mismatch between the spring’s bend angle and the internal contour of your specific fork legs. Even when the overall length and wire thickness appear correct, a slight deviation in the bend will cause the spring to catch on the leg wall during compression. Measuring this angle against your existing setup or providing the exact model year allows us to supply upper spring fork springs for custom springers that drop in without binding.

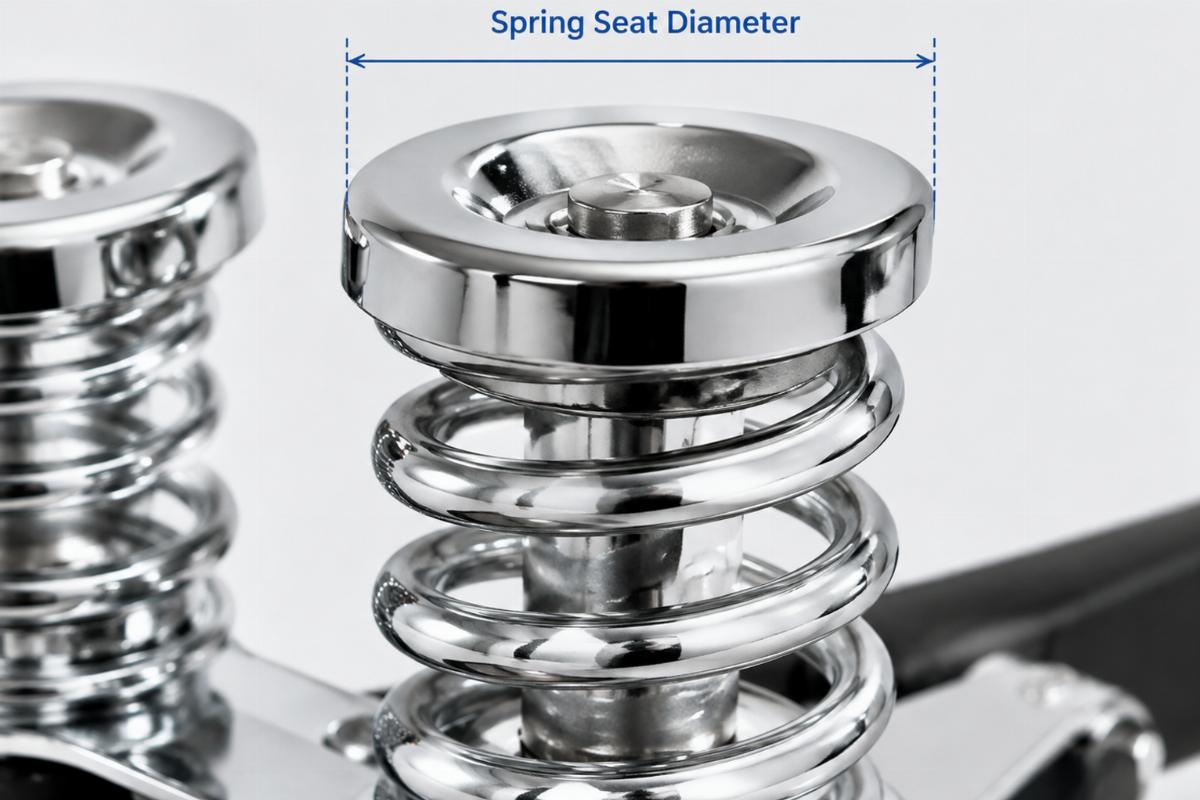

Matching Spring Rod Spacing and Seat Diameter
Beyond the bend, the distance between the spring rods and the diameter of the spring seat must align perfectly with the machined recess in your sliders or legs. If the seat diameter is too large, the spring shifts laterally; if it is too small, it drops too deep and alters the ride height. We cross-reference these dimensions to ensure the chrome finish and physical profile match your front-end requirements [NEED_CITE: dimensional variations in custom springer fork legs across different builders and eras].
Understanding the Chrome Finish and Pair Supply
These units are supplied as a pair to guarantee a balanced spring rate across both sides of the front end, which is critical for maintaining consistent steering geometry. The chrome finish is applied to provide visual consistency with other polished front-end hardware. Because plating thickness can vary slightly between batches, ordering both springs together ensures uniform appearance and performance [NEED_CITE: electroplating thickness standards for aftermarket motorcycle fork components].
The Hidden Cost of Incorrect Spring Geometry
Installing springs with the wrong bend or seat diameter forces the front end to operate under constant internal stress. This stress accelerates wear on the fork leg bushings and can cause the spring rods to bend over time. A bike that leaves the shop with a rattle in the front end will inevitably return to the lift, costing you labor hours and damaging your reputation with the rider. Verifying these dimensions before installation prevents the bike from becoming a permanent fixture in your service bay [NEED_CITE: wear patterns on springer fork bushings caused by misaligned internal springs].
Sourcing from a Front-End Specialist
We produce front-end components in our own facility, allowing us to control the bending process and ensure the anti-rattle feature is executed correctly on every unit. Our catalogue covers multiple over-stock lengths and early springer parts, meaning we understand the subtle differences between various custom setups. We support a single-piece minimum order, so you can source a replacement pair for a one-off build without committing to bulk quantities. Every order is backed by a fitment check against your provided measurements before it leaves our shop.
Documentation Provided
- Fitment sheet stating the specific custom springer platforms this pair was verified against.
- Key dimensions including overall length, wire thickness, and bend angle measurements.
- Chrome finish specification and quality inspection record for batch consistency.
- Cross-reference sheet with any applicable Harley-Davidson OEM numbers marked reference only.
Pre-Installation Checks
- Measure the overall length and wire thickness of your old coils to confirm the replacement matches.
- Check the bend angle of the new upper spring fork springs for custom springers against your fork leg contour.
- Verify the spring seat diameter matches the machined recess in your fork legs or sliders.
- Inspect the chrome finish for any plating defects before installing the springs into the legs.
- Ensure the pair is stored in a dry environment to prevent surface corrosion before assembly.
Requesting a Fitment Check
Send us your exact model year, a photograph of your existing springs, or the key measurements of your fork legs. We will verify the bend angle and seat diameter to ensure these upper spring fork springs for custom springers fit your specific setup perfectly. Let us know if you need a sample pair for a test fit before committing to a larger batch for your shop.
Frequently Asked Questions
Q: How do I measure the bend angle on my existing springs to confirm the correct replacement?
A: Place the old spring on a flat surface and measure the angle where the top coil transitions into the straight section. Compare this angle to the new upper spring fork springs for custom springers. If the angles differ, the spring will likely bind inside the fork leg during compression, causing noise and premature wear.
Q: Can I order a single pair of these springs for a one-off custom build?
A: Yes, we support a single-piece minimum order for shop builds or sample confirmation. You do not need to meet a high quantity threshold to get a pair of upper spring fork springs for custom springers. We will still perform a full fitment check against your provided measurements before dispatch.
Q: How do you ensure the chrome finish matches my other front-end parts?
A: We provide a chrome finish specification and a quality inspection record with your order. This documentation details the plating process used for that specific batch. If you are matching parts from different production runs, we can check the finish consistency before shipping your upper spring fork springs for custom springers.
Q: What happens if the spring seat diameter does not match my fork legs?
A: If the seat diameter is incorrect, the spring will either shift laterally or sit too deep in the recess. This alters the ride height and can cause the spring to bind against the inner wall of the leg. Always verify this dimension against your machined recess before installing the upper spring fork springs for custom springers.
