Fitment Checked 28″ Narrow Custom Springer Fork Assembly for Custom V-Twin
Consistent Finish Options — Every black and chrome batch is visually verified side-by-side to ensure uniform plating and powder coating across your custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |

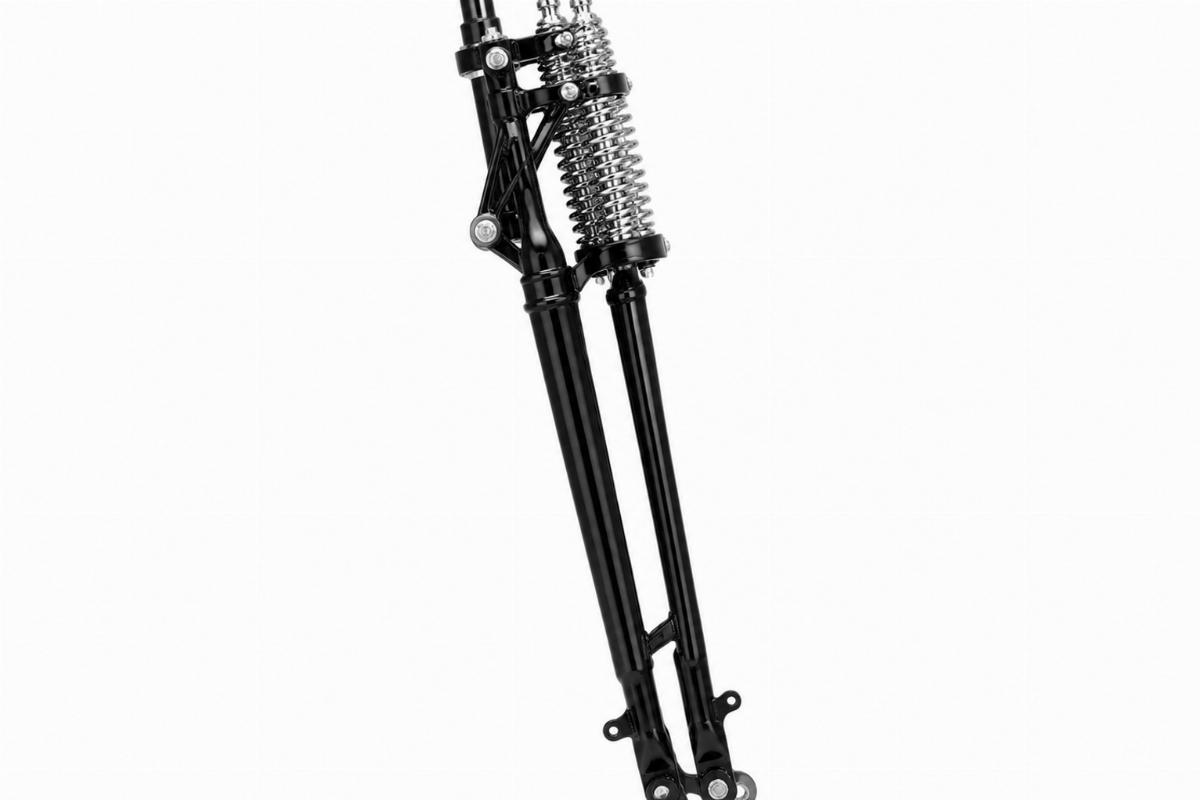

| Finish | Black with chrome springs |
| Overall Length | 28″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Rocker Width | 6″ |
| Leg Thread | 3/4″-18 |
| Kit Contents | Triple tree, 1″ stem, brake boss, 3/4″ axle, original fittings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom V-twin motorcycles | Confirm with model and year | Accepts original spring fork components, headlamp bracket, shock assembly; left side rocker offset for brake system clearance. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Blind Spots in Over-Stock Springer Builds
A 28″ narrow custom springer fork assembly requires exact rocker width and stem dimensions to maintain intended ride height and steering geometry.
Custom shops often receive over-stock units lacking clear length or rocker spacing data, forcing guesswork on frame neck angles. When the 6″ rocker width or 1″ stem diameter is misstated, the front end sits too high or binds at the steering stops [NEED_CITE: frame geometry specifications for custom springer installations].
Verifying Rocker Offset and Brake Clearance
I remember a shop ordering a narrow spring fork assembly for a custom build, expecting standard symmetric rockers. The left side rocker on this unit is specifically offset to clear the brake caliper; without this offset, the brake system simply will not fit. We verify this rocker width and axle spacing before dispatching any narrow custom springer fork assembly to prevent assembly line delays.

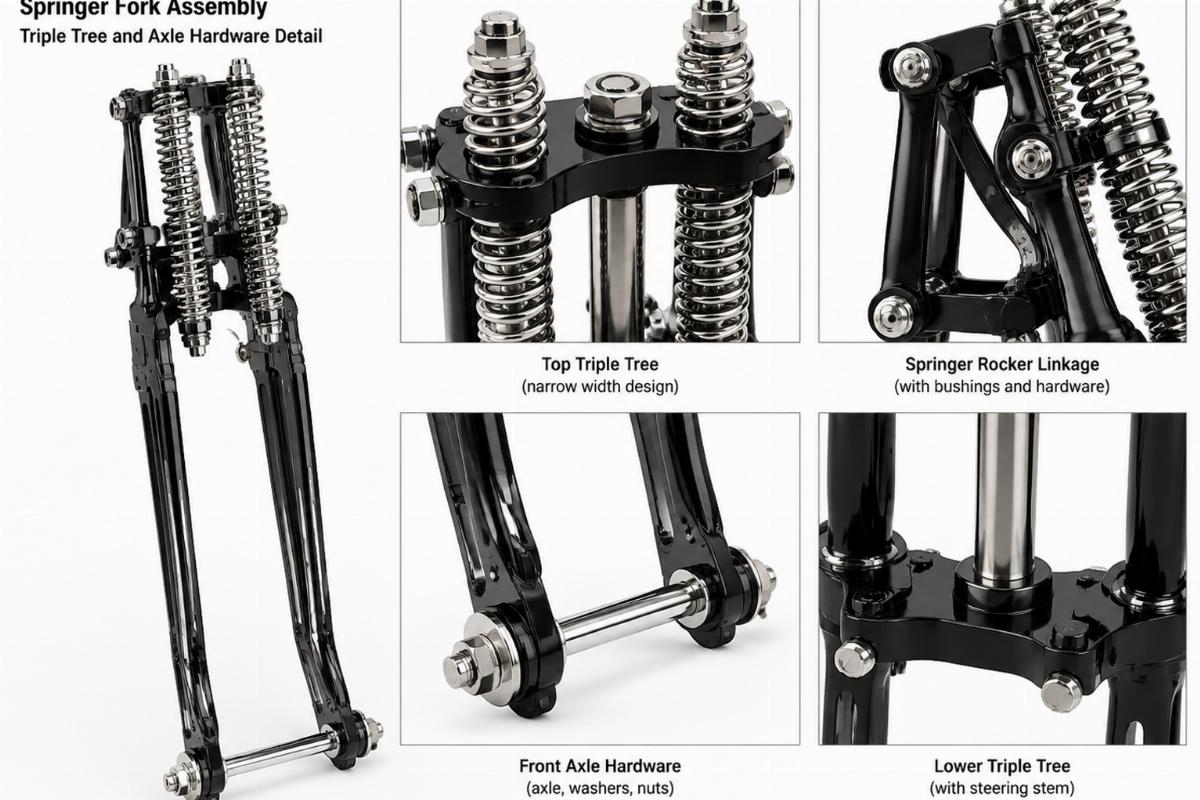

Matching Triple Tree Configurations for Handlebars
The top triple tree on this narrow custom springer fork assembly is designed inline to accept dog bone or stock spring fork handlebars. This specific tree spacing dictates whether your chosen bars will clear the fuel tank without modifying the risers. Checking the 1″ stem diameter against your frame neck ensures the steering stem seats correctly without binding [NEED_CITE: steering stem and tree spacing variations across custom frames].
Interpreting Critical Front-End Dimensions
The 28″ overall length directly dictates your ride height and changes the rake and trail compared to stock setups. A 6″ rocker width provides the necessary clearance for narrower custom tires and fenders, while the 3/4″ axle outer diameter must match your front wheel hub spacing. The legs are drilled and tapped 3/4″-18 specifically for mounting risers, meaning your riser base diameter must align with this thread pitch.
Hidden Costs of Misaligned Front-End Specs
Ordering a front end without confirming the 3/4″-18 leg thread means your risers will not mount, halting the build until adapters are sourced. If the 3/4″ axle outer diameter is slightly off, the wheel hub will not slide on, requiring the axle to be machined or the wheel replaced. Finish inconsistencies between the black body and chrome springs also become glaringly obvious once the narrow custom springer fork assembly is fitted side-by-side with other chrome components on the bike [NEED_CITE: batch finish consistency reports for front-end assemblies].
Sourcing Verified Front-End Components
We manufacture our own springer front ends and chassis hardware, ensuring the 28″ length and 6″ rocker width are machined to specification. Our fitment is confirmed against the platform family before quotation, so you know exactly which custom V-twin geometry this narrow custom springer fork assembly supports. We offer a one-piece minimum order, allowing shops building a single custom bike to procure a verified unit without bulk commitments.
Included Documentation and Records
- Fitment sheet stating applicable custom V-twin platforms and year ranges.
- Key dimensions including 28″ overall length, 6″ rocker width, and 1″ stem diameter.
- Finish specification detailing the black body and chrome spring treatment.
- Quality inspection record verifying the left side rocker offset and axle spacing.
- Packing photographs showing the triple tree, brake boss, and original fittings.
Pre-Installation Inspection Checklist
- Verify the kit includes the triple tree, 1″ stem, brake boss, 3/4″ axle, and original fittings.
- Measure the 28″ overall length and 6″ rocker width against your frame geometry requirements.
- Confirm the 3/4″-18 tapped legs align with your specific riser mounting hardware.
- Inspect the black finish and chrome springs for batch consistency before final assembly.
- Have a qualified technician verify the 1″ stem diameter and 3/4″ axle outer diameter fitment.
Requesting a Fitment Verification
Send your custom V-twin model details, frame year, and key steering neck measurements for a precise fitment check. Provide photos of your current front end or old parts if the dimensions are unknown. Let us know if you require a single sample unit to verify the black and chrome finish consistency before placing a larger order.
Frequently Asked Questions
Q: How do I confirm if this 28″ narrow springer fits my custom frame geometry?
A: You must measure your frame’s steering neck to ensure it accepts a 1″ stem diameter. Additionally, verify that the 28″ overall length and 6″ rocker width align with your intended ride height and tire clearance. We confirm fitment against your specific platform and year range before finalizing the quotation.
Q: What key dimensions should I measure to ensure the triple tree and axle match?
A: Measure your frame neck for the 1″ stem diameter and your front wheel hub for the 3/4″ axle outer diameter. The inline top triple tree spacing must also be checked to ensure your chosen dog bone or stock spring fork handlebars will clear the fuel tank without modification.
Q: Does the left side rocker offset affect the mounting of standard springer components?
A: The left side rocker offset is specifically designed to provide clearance for brake system applications. It does not interfere with standard spring fork components, headlamp brackets, or shock assemblies, but it is mandatory for caliper fitment on this narrow custom springer fork assembly.
Q: Can I order a single sample unit to verify the finish consistency?
A: Yes, we support a one-piece minimum order to accommodate single-bike custom builds. You can order a single sample to verify the black finish and chrome springs side-by-side with your other components before committing to bulk quantities for your shop.
Q: What handlebar styles are compatible with the inline top triple tree design?
A: The inline top triple tree is designed to accept dog bone or stock spring fork handlebars. Because the tree spacing is fixed, you must ensure your chosen handlebar rise and pullback will clear your fuel tank without requiring additional riser modifications.
