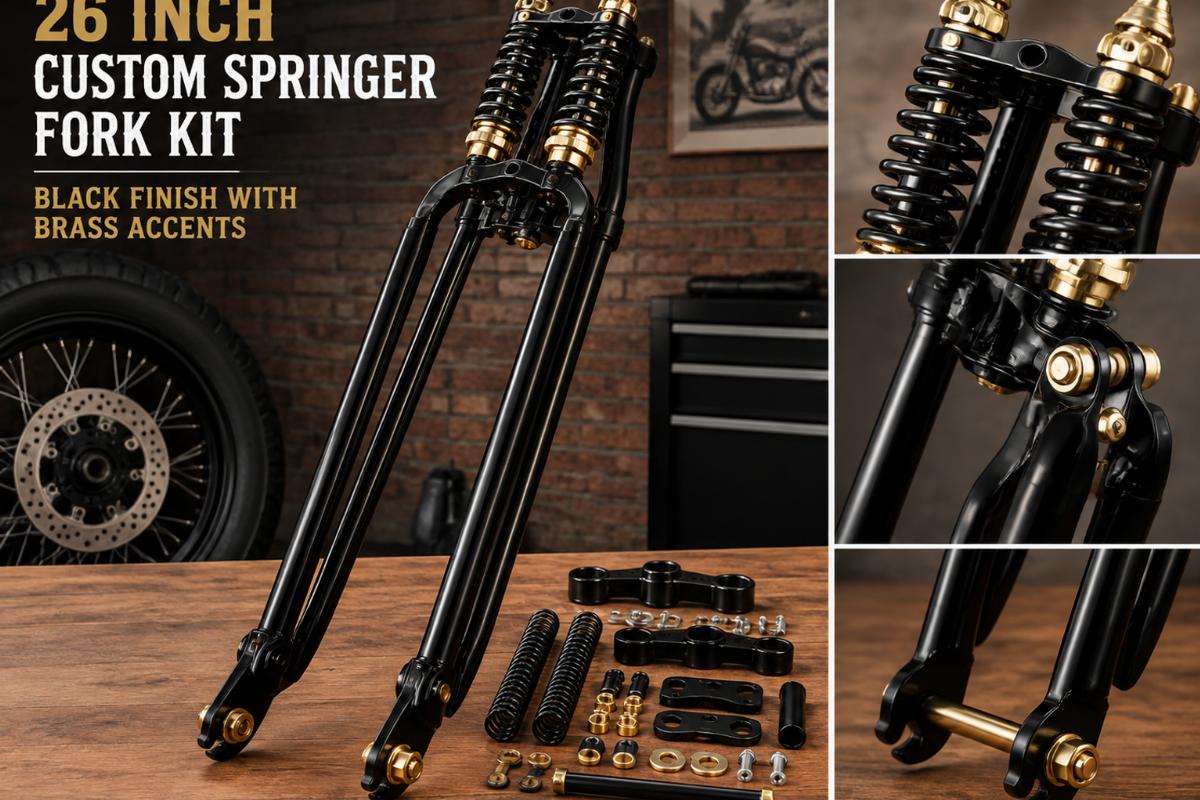

Fitment Checked 26″ Custom Springer Fork Kit Black with Brass Accents
Complete front-end depth — We stock this 26″ custom springer fork kit alongside multiple over-stock lengths to match your exact frame geometry requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Kit |
| Overall Length | 26″ |
| Finish | Black with brass plated rockers, springs, top tree and axle nuts |
| Rear Leg Thread | 3/4″-18 |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom builds | Confirm with model and year | Verify 26″ length and 3/4″-18 thread against your specific frame and riser setup. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why 26″ Over-Stock Lengths Require Exact Geometry Checks
Overall fork length directly dictates ride height and steering geometry.
Springer forks offered “over stock” often lack clear statements on overall length and mounting details. When a builder ignores the rake change on a 26″ setup, the extra length throws off the steering geometry, and the bike will not track straight. Confirming these dimensions before ordering prevents a stalled build on the teardown floor. [NEED_CITE: frame geometry specifications for custom springer setups]
Verifying Rake and Trail for a 26″ Setup
Adding overall length to a front end changes the rake and trail of the motorcycle. You must measure your frame’s neck angle and calculate the new trail before mounting this custom springer fork kit. A mismatch here affects how the front wheel tracks under braking and cornering. We provide the exact over-stock length in our fitment sheet so you can run the math before dispatch.
Matching Riser Studs to Triple Tree Spacing
The rear fork legs on this kit are drilled and tapped 3/4″-18 specifically for riser mounting. I once saw a builder fit a black springer with brass accents to a pre-1984 custom, but the 3/4″-18 riser studs clashed with his aftermarket triple tree spacing. Always confirm the thread pitch matches your chosen post risers to avoid cross-threading or needing custom adapters. [NEED_CITE: thread pitch standards for aftermarket triple trees]
Reading the Core Dimensions

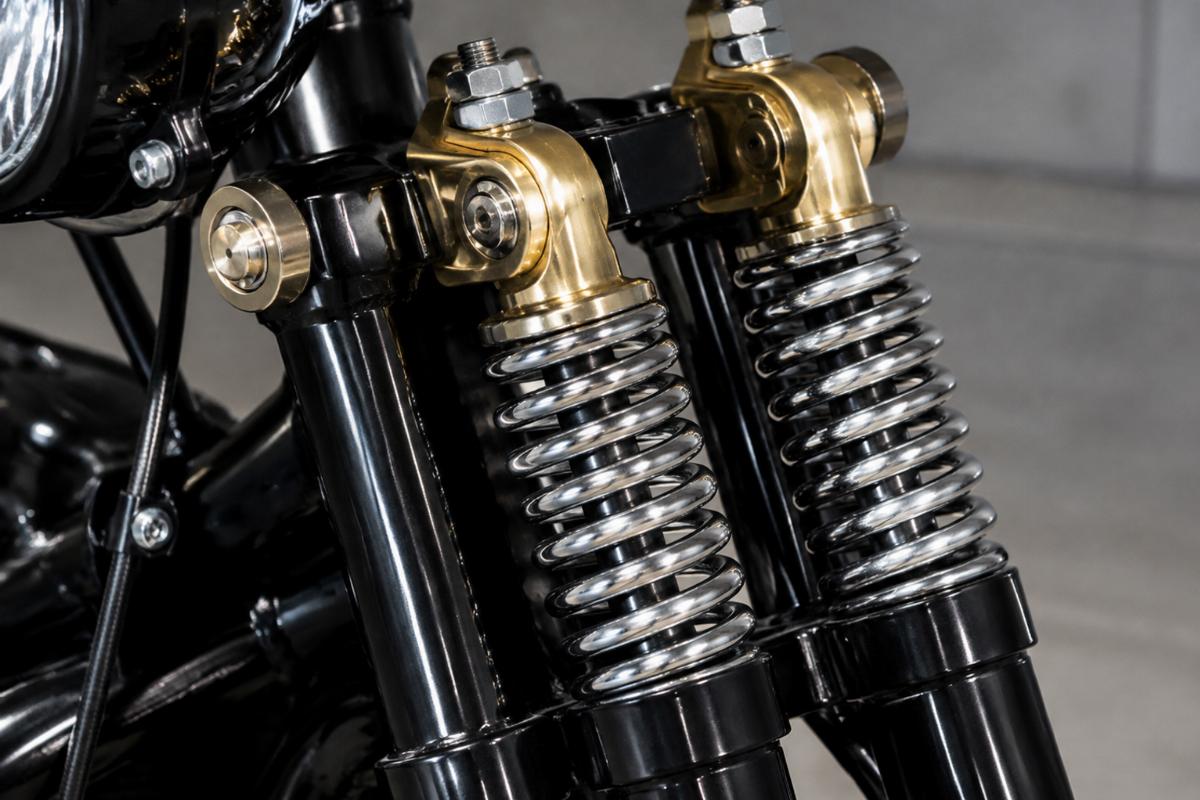

The 26″ overall length is measured from the top tree to the axle centerline, defining your ride height. The black finish with brass plated rockers, springs, top tree and axle nuts provides a specific visual contrast, but the structural focus is the 3/4″-18 rear leg thread. This thread size determines which post risers will bolt directly to the legs. Using post risers with a matching stud to the top of the rear fork legs ensures a secure clamping surface without modifying the legs.
The Hidden Cost of Ignoring Thread Pitch
Ordering a front end without verifying the rear leg thread pitch often leads to immediate返工. If the 3/4″-18 threads do not align with your riser studs, the bike sits unfinished while you source custom adapters or re-tap the legs. Re-tapping can weaken the leg wall if not done perfectly, and adapters add unwanted stack height. Checking the thread specification against your riser hardware before installation saves hours of machine shop time. [NEED_CITE: structural limits of re-tapping fork leg threads]
Sourcing Front Ends for Single-Bike Builds
We produce our springer front ends in-house, allowing us to supply this 26″ custom springer fork kit with a minimum order of just one piece. This supports custom builders working on a single project without forcing bulk inventory purchases. Every kit is checked against platform and year range requirements before quotation, and we offer sample supply for fitment confirmation if you are adapting this to a unique frame.
Documentation Included with Your Shipment
- Fitment sheet stating applicable platforms and year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 26″ fork length and 3/4″-18 thread specs
- Finish specification for black and brass plated components
- Quality inspection record and warranty terms
- Packing photographs and HS code documentation
Pre-Installation Checks for Your Kit
- Verify the 26″ overall length matches your frame geometry calculations.
- Check that the 3/4″-18 rear leg threads are clean and undamaged.
- Inspect the black finish and brass plated accents for transit damage.
- Confirm the kit includes all rockers, springs, and top tree hardware.
- Store the kit in a dry environment to protect the finish before mounting.
- Have a qualified technician verify fitment before final assembly.
Send Your Details for a Fitment Check
To ensure this custom springer fork kit matches your project, send us your frame model, year, and a photo of your current triple tree spacing. Include the overall length you need and the post riser stud size you plan to use. We will verify the 26″ length and 3/4″-18 thread against your setup and confirm fitment before you order.
Frequently Asked Questions
Q: How do I measure and confirm the required fork length for my custom frame geometry?
A: Measure from the steering neck centerline to the axle centerline on your current setup or frame jig. Compare this to the 26″ overall length of this kit. We provide a fitment sheet with exact dimensions so you can calculate the resulting ride height and rake change before ordering.
Q: What is the impact of a 26″ over-stock springer on rake and trail?
A: Increasing the fork length changes the steering head angle, which alters the rake and trail. This affects how the motorcycle tracks and handles. You must calculate these geometry changes based on your specific frame neck angle to ensure the bike handles correctly.
Q: Are the post risers included in the kit, or do I need to source them separately?
A: The post risers are not included. The rear fork legs are drilled and tapped 3/4″-18 to accept your chosen post risers. You must source risers with matching 3/4″-18 studs to ensure they bolt directly to the top of the rear fork legs without adapters.
Q: Can I order a single fork kit for a one-off custom build?
A: Yes, we support single-bike custom builds with a minimum order of one piece. You do not need to buy in bulk. We can also supply a sample for fitment confirmation if you need to verify the 26″ length and thread pitch against your frame before committing to the final order.
Q: How do you ensure finish consistency between the black and brass plated components?
A: The black finish and brass plated rockers, springs, top tree, and axle nuts are processed in controlled batches. We inspect the finish consistency before dispatch and provide a finish specification in your documentation. If you notice any batch variation upon arrival, our warranty terms cover replacement.
