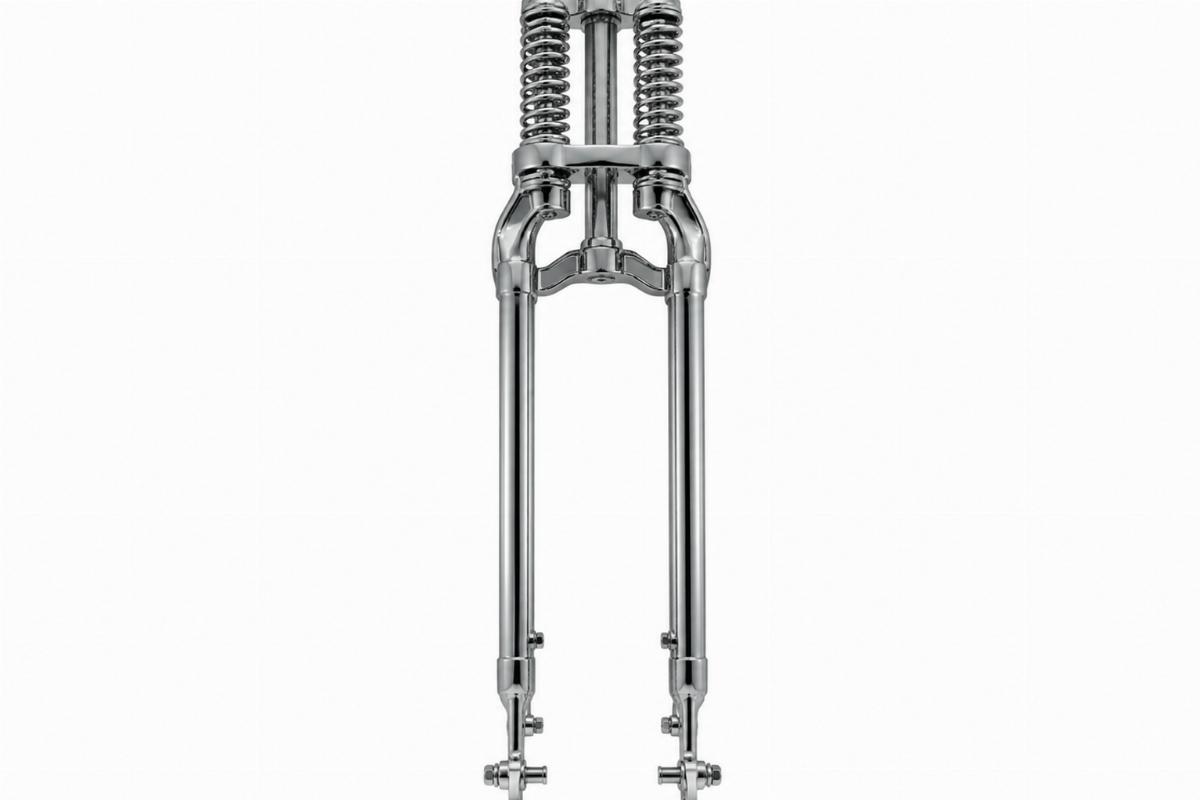

Fitment Checked 24″ Narrow Springer Fork Assembly Chrome
In-house springer production — every 24″ narrow springer fork assembly is dimensionally verified against frame neck specs before dispatch.
Product Specification
Part Type | Springer Fork Assembly
| Parameter | Value |
|---|---|
| Finish | Chrome |
| Overall Length | 24″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Rocker Width | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Inline with standard stem and tube locations |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Accepts standard springer components, headlamp brackets, and shock assemblies; left side rocker is offset for brake system clearance. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Rocker Width and Axle Spacing Cause Custom Build Delays
Clearance mismatches stall projects when brake setups and frame geometries are not calculated beforehand.
Sourcing a 24″ narrow springer fork assembly often reveals hidden spacing issues that halt a build. I recall a custom build where the front end arrived, but the brake caliper simply could not clear the left rocker because the offset was not accounted for in the initial frame measurements. This forces builders to either machine custom adapters or wait weeks for a replacement unit, turning a straightforward assembly into a logistical headache [NEED_CITE: frame geometry and brake clearance specifications across custom springer setups].
Verifying Stem and Triple Tree Alignment
When evaluating a 24″ narrow springer fork assembly, the inline top triple tree dictates how the front end seats into the frame neck. The 1″ stem diameter must perfectly match the inner race of your steering head cups. If the stem is even slightly oversized, the triple tree will not seat, and the steering will bind. Always measure the neck cup inner diameter against the 1″ stem specification to ensure smooth rotation and proper alignment.
Calculating Brake Caliper Clearance
The left side rocker on this unit is specifically offset to accommodate brake systems, a critical detail often overlooked in standard listings. This 6″ rocker width provides the necessary gap for calipers, but the exact offset distance must be measured against your specific rotor and caliper bracket combination. Failing to verify this offset means the caliper may rub against the rocker leg, requiring costly machining or a complete front end swap [NEED_CITE: brake caliper clearance dimensions for custom springer front ends].
Interpreting Core Chassis Dimensions
The 24″ overall length directly influences the visual stance and the resulting rake and trail of the motorcycle, altering the steering geometry compared to stock setups. The 3/4″ outer diameter axle must match the wheel bearing spacing, while the 3/4″-18 leg threads determine which risers and mounting hardware will securely attach to the legs. The inline triple tree ensures that standard springer handlebars mount directly without requiring additional offset risers, maintaining the intended steering geometry.
The Hidden Cost of Incorrect Front End Specs
Ordering a front end without confirming the stem diameter or rocker offset leads to severe workshop delays. A 1-1/4″ stem shipped instead of a 1″ stem will never seat into the neck cups, leaving the bike stranded on the lift while the shop waits for a replacement. Similarly, if the rocker width does not clear the brake caliper, the build stalls until custom spacers are fabricated or a new assembly is sourced, wasting labor hours and delaying the customer’s delivery [NEED_CITE: workshop delays caused by incorrect front end dimensions].
Sourcing Directly from the Front End Specialist
This 24″ narrow springer fork assembly is produced in our own facility, ensuring direct control over the chrome plating process and dimensional accuracy. We maintain front-end depth by keeping multiple over-stock lengths and finish options in one catalogue, allowing you to source the exact specification without mixing suppliers. Cross-reference checks against dimensional standards are performed before quotation, and we support single-piece minimum orders for custom builders working on individual projects.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and year ranges confirmed before dispatch.
- Key dimensions including 24″ fork length, 1″ stem diameter, and 6″ rocker width documented.
- Finish specification and quality inspection record included for chrome batch consistency.
- Sample supply available for physical fitment confirmation before placing bulk orders.
Receiving and Pre-Installation Checks
- Measure the 1″ stem diameter against your frame neck cups to verify steering head compatibility.
- Check the 6″ rocker width and left side offset against your brake caliper and rotor setup.
- Inspect the chrome finish across the legs and triple tree for any plating defects or scratches.
- Verify the 3/4″-18 leg threads are clean and undamaged before mounting risers or hardware.
- Have a qualified technician confirm the 3/4″ axle outer diameter matches your wheel bearing spacing.
Requesting a Fitment Verification
Send your exact model and year, along with a photograph of your current steering neck or old fork stem, to confirm the 1″ stem diameter matches your frame. Provide the measured distance between your wheel bearings to verify the 3/4″ axle spacing, and specify if you require a sample unit for physical trial before committing to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my frame to ensure the 1″ stem and triple tree will fit?
A: Measure the inner diameter of your steering head cups where the stem inserts. The cups must accept a 1″ diameter stem. Also, verify the stack height of your neck bearings and races to ensure the stem length provides enough thread engagement for the top nut to secure the inline triple tree properly without binding the steering.
Q: What is the exact distance between the rockers and how does it affect brake clearance?
A: The rocker width is 6″, which sets the baseline spacing for the front wheel and brake components. The left side rocker is specifically offset to provide additional clearance for brake calipers. You must measure your caliper width and bracket thickness against this 6″ width and the offset distance to ensure the caliper does not rub against the rocker leg during suspension compression.
Q: Does this assembly include the necessary fittings for headlamp brackets and shock assemblies?
A: The assembly is designed to accept standard springer components, including headlamp brackets and shock assemblies. However, the specific mounting hardware, brackets, and shock absorbers are not included in the fork assembly itself. You will need to retain your existing hardware or source the appropriate mounting kits separately to complete the front end installation.
Q: Can I order a single springer fork assembly for a custom build without a minimum order quantity?
A: Yes, we support single-piece minimum orders. Custom builders and restoration shops can order one 24″ narrow springer fork assembly for an individual project without meeting bulk quantity requirements. This allows you to procure the exact front end needed for a specific build, complete with fitment verification and quality inspection records, before considering larger volume purchases.
Q: How do you ensure the chrome finish consistency across different batches?
A: Chrome finish consistency is maintained through our in-house production and strict quality inspection records for every batch. Each 24″ narrow springer fork assembly undergoes a visual and dimensional inspection before dispatch. The finish specification is documented and provided with your order, ensuring that the chrome plating on the legs, rockers, and triple tree meets the same standard across all production runs.
