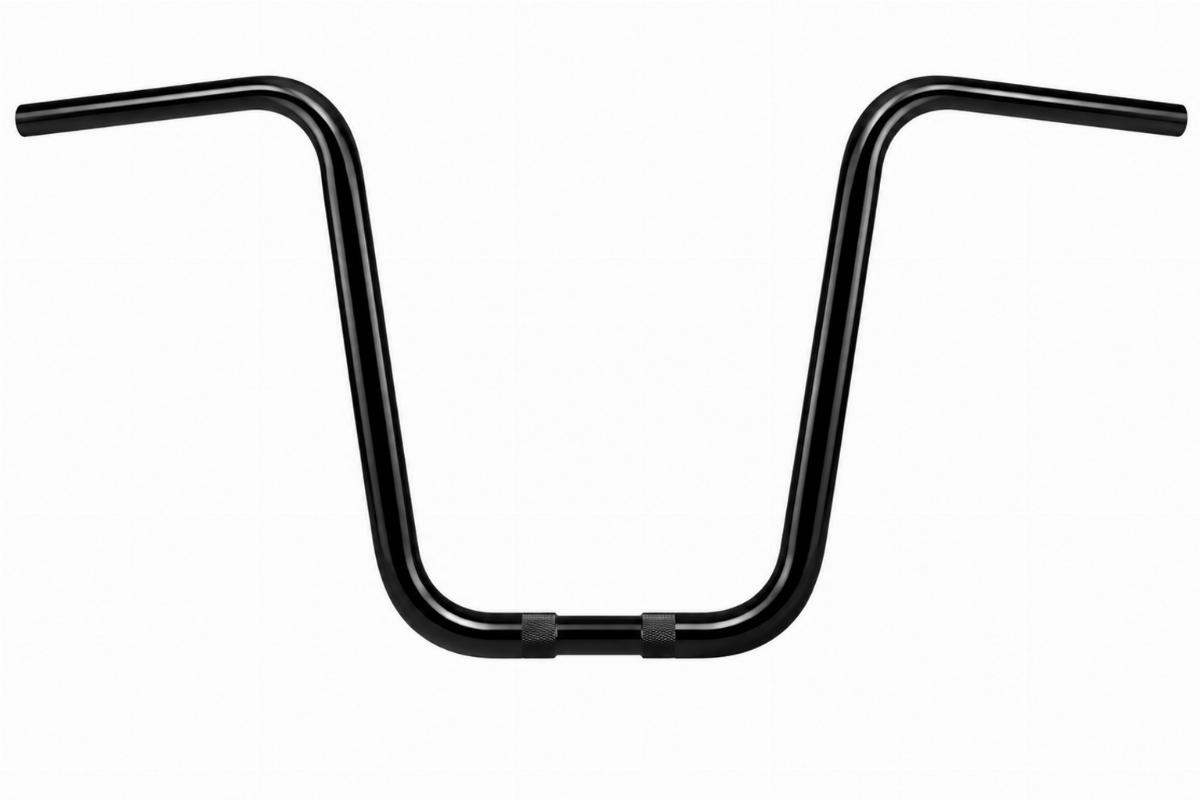

Fitment Checked 1-1/4″ Ape Hanger Handlebars for Custom Use
Single-Piece Ordering — We support custom builders with a one-piece minimum order for these ape hanger handlebars for custom use, allowing you to verify fitment without bulk commitments.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Finish | Black |
| Diameter | 1-1/4″ O.D. |
| Rise | 20″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Switch Area | Dimpled |
| Riser Area | Knurled |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom use | Confirm with model and year | Designed for risers that mount on 3-1/2″ centers; dimpled at the switch area for use with any year handlebar controls. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Geometry Mismatches in Ape Hanger Handlebars for Custom Use
Verify riser center spacing and bar diameter before finalizing the build geometry.
Handlebar listings often omit critical dimensions like rise, pullback, or center width, leading to geometry mismatches and control clearance issues on custom builds [NEED_CITE: frame geometry and riser spacing variations across custom platforms]. When the riser centers do not align with the triple tree spacing, the clamping force becomes uneven. This forces builders to spend hours searching for adapter plates or modifying the trees instead of focusing on the build.
Checking Riser Center Spacing Compatibility
These ape hanger handlebars for custom use feature a 10″ center width specifically designed for risers that mount on 3-1/2″ centers. If your custom triple tree uses a different riser spacing, the bars will not seat properly, creating stress points on the risers. Always measure the exact distance between the mounting holes on your trees to ensure the 10″ center width matches your setup before ordering.

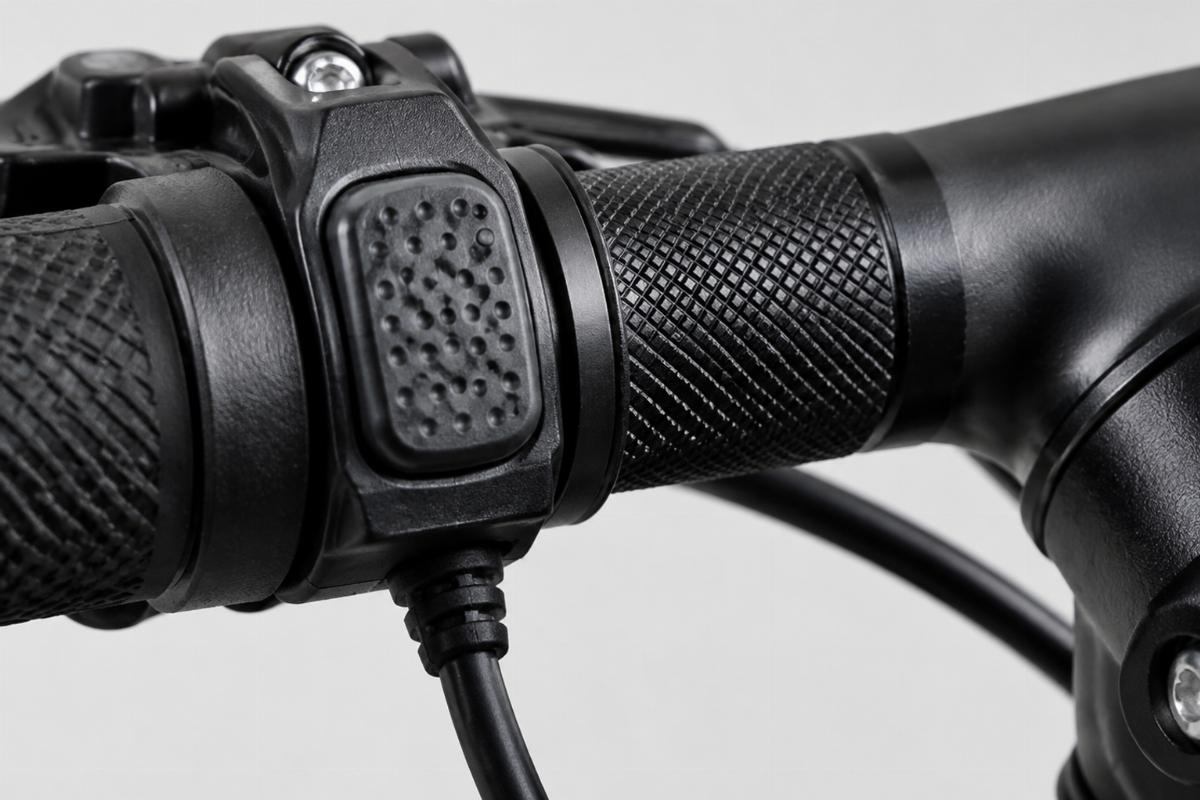

Evaluating Control Clearance and Switch Housing Fit
The switch area is dimpled to accommodate standard handlebar controls, which is essential for maintaining a clean setup on custom builds [NEED_CITE: switch housing dimensions and dimple placement standards]. However, the 1-1/4″ O.D. requires switch housings specifically machined for this diameter. If your existing controls are designed for 1″ bars, they will not clamp securely, leading to rotating grips or loose switch housings once the bike is in motion.
Interpreting Key Dimensions for Custom Geometry
The 20″ rise combined with a 35″ total width and 9″ pullback dictates a very specific riding posture and cable routing path. A 20″ rise significantly alters the steering geometry and requires longer clutch, throttle, and brake cables than stock setups. The 9″ pullback brings the grip position closer to the rider, which must be factored into your overall ergonomics to avoid an uncomfortable reach that compromises control [NEED_CITE: cable length requirements for high-rise handlebar configurations].
The Hidden Costs of Incorrect Handlebar Sizing
Ordering the wrong center width or diameter means the bike sits on the lift while you source new risers or controls. If the dimpled switch area does not align with your specific housings, you risk damaging the wiring harness when trying to force the fit. Furthermore, if the knurled riser area does not match your tree clamp width, the bars can shift under heavy braking, requiring a complete teardown to re-index the controls and re-route the internal wiring.
Sourcing Handlebars with Verified Dimensions
We confirm the fitment of these ape hanger handlebars for custom use against your specific platform family and year range before providing a quotation. Our minimum order from one piece allows you to purchase a single set for a one-off build without meeting high volume thresholds. We also supply samples for fitment confirmation, ensuring the 1-1/4″ O.D. and 20″ rise match your exact requirements before you commit to a larger batch for your shop.
Documentation Provided with Your Shipment
- Fitment sheet listing the custom use platform and confirming riser center compatibility
- Key dimensions document detailing the 20″ rise, 35″ width, and 9″ pullback
- Finish specification sheet confirming the black coating application
- Quality inspection record verifying the dimpled switch area and drilled wiring holes
- Packing photographs showing the protective wrapping for the 35″ total width
- Warranty terms covering manufacturing defects on the handlebar structure
Receiving and Pre-Installation Verification Steps
- Verify the 1-1/4″ O.D. matches your switch housings and grip inner diameter
- Measure the 10″ center width against your triple tree riser mounting holes
- Inspect the black finish for any shipping damage across the 35″ total width
- Confirm the dimpled switch area aligns with your specific control housings
- Check that the internal wiring holes are clear of debris before routing cables
- Store the handlebars in a dry environment to protect the black finish before installation
Requesting a Fitment Check for Your Build
Send us your exact model and year, along with the riser center spacing and control housing diameter, to verify if these ape hanger handlebars for custom use will fit your specific setup. If you are unsure about the 20″ rise or cable lengths, provide a photograph of your current front end for a detailed assessment. Let us know if you need a single piece for a custom build or a sample to verify the black finish and dimensions before placing a larger order.
Frequently Asked Questions
Q: How do I measure my current handlebars to ensure the 20″ rise and 9″ pullback match my custom geometry?
A: Measure the rise from the center of the bar mounting area to the highest point of the grip section. For pullback, measure horizontally from the center of the mounting area to the back edge of the grip. Compare these numbers to the 20″ rise and 9″ pullback to determine if your cable lengths and riding posture will accommodate the new geometry.
Q: Will these 1-1/4″ dimpled handlebars fit my specific year and model switch housings?
A: The dimpled switch area is designed for standard controls, but the 1-1/4″ O.D. requires switch housings specifically machined for this thicker diameter. If your current housings are designed for 1″ bars, they will not clamp correctly. You must verify your housing inner diameter before ordering to ensure a secure fit over the dimpled section.
Q: What is the center width and how does it affect my riser selection for 3-1/2″ centers?
A: The center width is 10″, which is engineered specifically for risers that mount on 3-1/2″ centers. If your custom triple tree uses a different riser spacing, the 10″ center will not align with the mounting holes. You must measure the distance between your tree mounting holes to confirm they match the 3-1/2″ center requirement before installation.
Q: Can I order a single set of these handlebars for a one-off custom build?
A: Yes, we support custom builders with a minimum order of one piece. You do not need to meet bulk quantity thresholds to purchase a single set for a one-off build. This allows you to acquire the exact 20″ rise and 35″ width you need for your specific project without excess inventory.
Q: Do you offer sample handlebars to verify the finish and dimensions before I place a larger order?
A: We provide sample supply for fitment confirmation before you place bulk orders. Ordering a sample allows you to physically check the black finish quality, verify the 1-1/4″ O.D., and test the dimpled switch area against your controls to ensure everything meets your shop standards before committing to a larger purchase.
