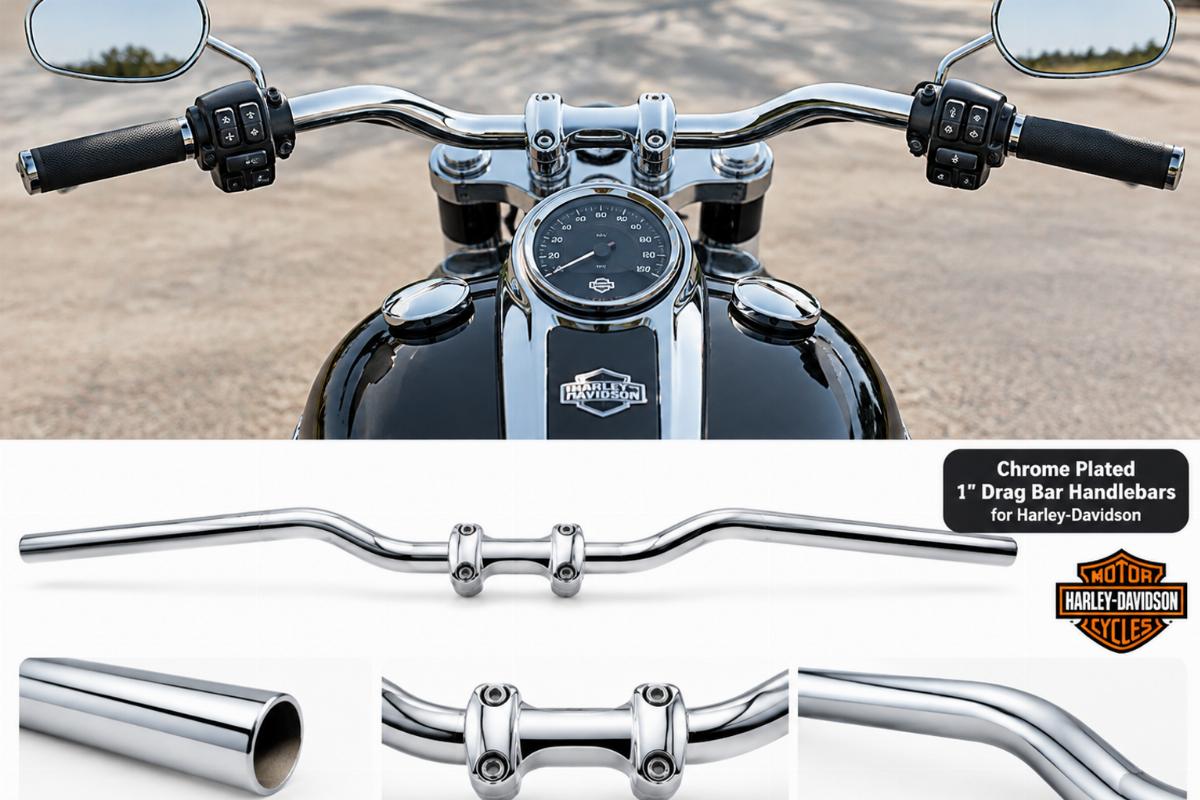

Drag Bar Handlebars 1″ O.D. – Fits Harley-Davidson 1982-Later
Single Piece Minimum Order — Minimum order from one piece allows custom builders to source exact fitment handlebars without bulk requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Drag Bar Handlebars |
| Material | Steel |
| Outer Diameter (O.D.) | 1″ |
| Finish | Chrome Plated |
| Width | 26″ |
| Rise | None (Drag Bar) |
| Pullback | 5 1/2″ |
| Center Width | 8 1/2″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| 1982/Later models (Harley-Davidson style switch housings) | 1982-Later | Not designed for models that have air forks with handlebar type air reservoir. Pre-1982 type bars are smooth for 1972/1981 style switch housings; 1982/Later type bars are dimpled for 1982/Later style switch housings and drilled for wire harness clips. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Switch Housing Styles Dictate Handlebar Selection
Dimpled sections are mandatory for 1982/Later switch housings to seat properly.
Handlebar listings often miss bar diameter, rise, width, pullback or wiring-hole details, causing fitment issues with switch housings and controls. When a builder installs smooth bars on a late model, the switch housings simply will not align or clamp securely. Verifying the exact year range and switch housing style before ordering prevents the bike from sitting on the lift waiting for the correct drag bar handlebars for harley-davidson [NEED_CITE: switch housing mounting specifications by model year].
Verifying Switch Housing Compatibility
Selecting the correct drag bar handlebars for harley-davidson requires matching the bar surface to the switch housing design. Models from 1982 and later utilize dimpled bars to accommodate the specific mounting footprint of their switch housings and wire harness clips. If the year range is misidentified, the smooth surface of an early bar will prevent the later housings from seating flush, leaving controls loose and misaligned.
Checking Front End Clearances
Beyond the control interface, the front end setup must be evaluated before installation. These drag bar handlebars for harley-davidson are not designed for models that have air forks with a handlebar type air reservoir. Overlooking this clearance issue means the bars will physically interfere with the reservoir, forcing a return to the supplier and delaying the build [NEED_CITE: air fork reservoir clearance dimensions for custom handlebars].
Interpreting Key Handlebar Dimensions
The 1″ O.D. steel construction ensures compatibility with standard 1-inch clamps and risers across the platform. A 26″ overall width paired with a 5 1/2″ pullback and 8 1/2″ center width dictates the rider’s reach and shoulder positioning. The lack of rise confirms this is a true drag bar profile, keeping the grip height level with the center section. These dimensions directly influence steering geometry and control cable routing length.
The Hidden Cost of Misidentified Year Ranges
Ordering based on a generic model name without confirming the year range leads to immediate installation failure. A smooth bar sent to a 1982/Later build will lack the dimples for the switch housings, halting the assembly process entirely. This forces the shop to tear down the front end, repack the incorrect parts, and wait for the dimpled replacements, wasting labor hours and delaying the customer delivery [NEED_CITE: handlebar dimple specifications across model generations].
Sourcing from a Fitment-Focused Catalogue
Fitment is confirmed against the platform family and model year range before quotation to prevent mismatched parts. Cross-reference checks against factory numbers ensure the correct dimpled profile is selected for the specific build. Chrome and black finish options allow the bars to match the front end aesthetic without compromising the steel core. Identification from a photograph or measurement is available when the exact year is unknown. Sample supply is offered for fitment confirmation before committing to bulk orders.
Documentation and Shipping Details
- Fitment sheet stating applicable platforms and 1982-Later year ranges
- Cross-reference sheet with factory numbers marked reference only
- Key dimensions including 1″ O.D., 26″ width, and 5 1/2″ pullback
- Finish specification for chrome plated steel batches
- Quality inspection record and warranty terms
- Packing photographs and customs documentation support
Pre-Installation Inspection Checklist
- Verify the 1″ O.D. matches your riser and clamp specifications
- Confirm the dimpled sections align with 1982/Later style switch housings
- Check the 26″ width and 5 1/2″ pullback for your desired riding posture
- Inspect the chrome plated finish for any shipping damage or surface defects
- Ensure the drilled holes for wire harness clips are clear and unobstructed
- Store in a dry environment to preserve the chrome plating before installation
Requesting a Fitment Check
Send your model and year for a fitment check to confirm these drag bar handlebars for harley-davidson match your switch housing style. Provide the exact year range and a photograph of your current switch housings if the year is uncertain. Specify if you need a single piece for a custom build or a sample to verify the chrome finish before a larger order.
Frequently Asked Questions
Q: How do I confirm if my model year fits the 1982/Later dimpled handlebars?
A: Check your switch housings. If they require a recessed mounting area to sit flush against the bar, you need the dimpled 1982/Later type. Smooth bars are strictly for 1972/1981 style housings.
Q: What is the difference between pre-1982 smooth and 1982/Later dimpled bars?

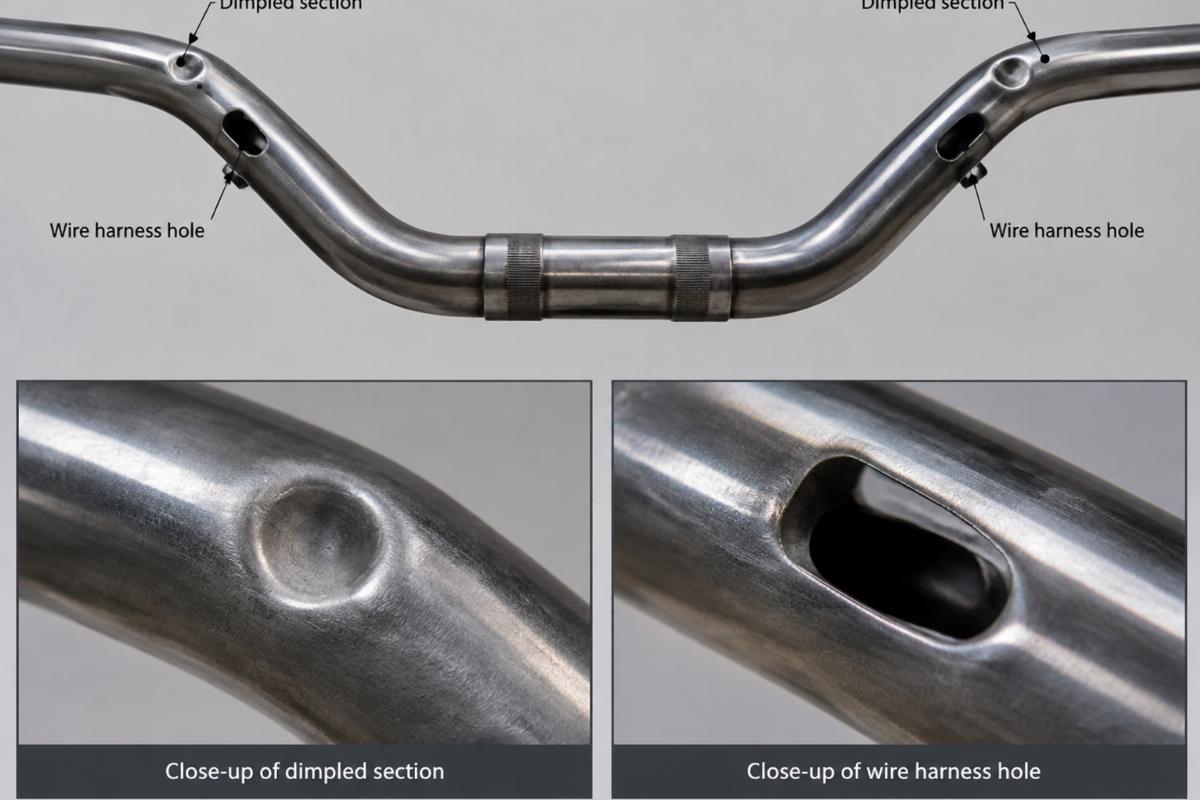

A: Pre-1982 bars feature a completely smooth surface for early switch housings. The 1982/Later bars have dimpled sections to accept later switch housings and are drilled for wire harness clips.
Q: Are these handlebars compatible with internal wiring or only external cables?
A: These drag bars are designed specifically for use with external throttle cables. They do not feature internal routing holes, so all wiring and cables must be run externally along the bars.
Q: Can I order a single piece of drag bar handlebars for a custom build?
A: Yes, we support a minimum order of one piece. This allows custom builders and repair shops to source exact fitment parts for a single project without meeting high bulk quantity requirements.
