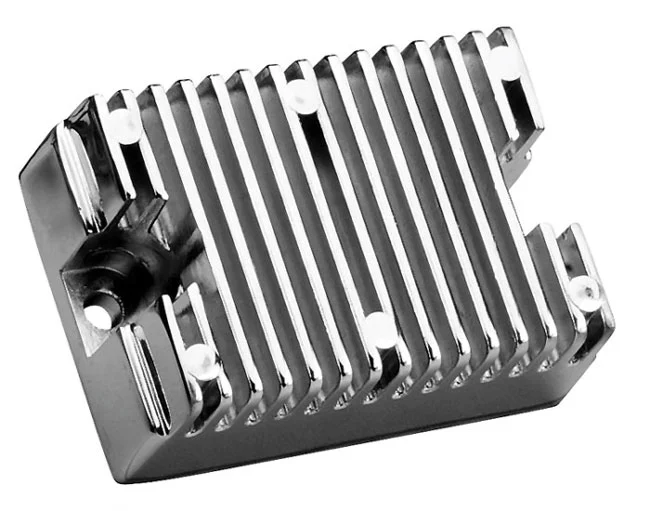

Chrome Voltage Regulator Rectifier 22A – Fits Sportster 2004-2006

Cross-reference verified against OEM numbers — Every unit is checked against 74490-04 to confirm exact connector match for 2004-2006 Sportster models before dispatch.

Product Specification

Fitment

Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.

Why Connector Types Dictate Your Electrical Upgrade

A 22-amp output means nothing if the plug will not mate with the harness.

Regulator listings that omit amperage and connector types often lead to parts that arrive but fail to plug in or handle the electrical load. Moving from warehouse part number checks to sales over the years, I learned that matching a regulator requires more than just a visual glance at the casing. You must verify the Deutsch and Delphi terminals against the specific wiring harness of your build.

Confirming Deutsch and Delphi Terminal Mating

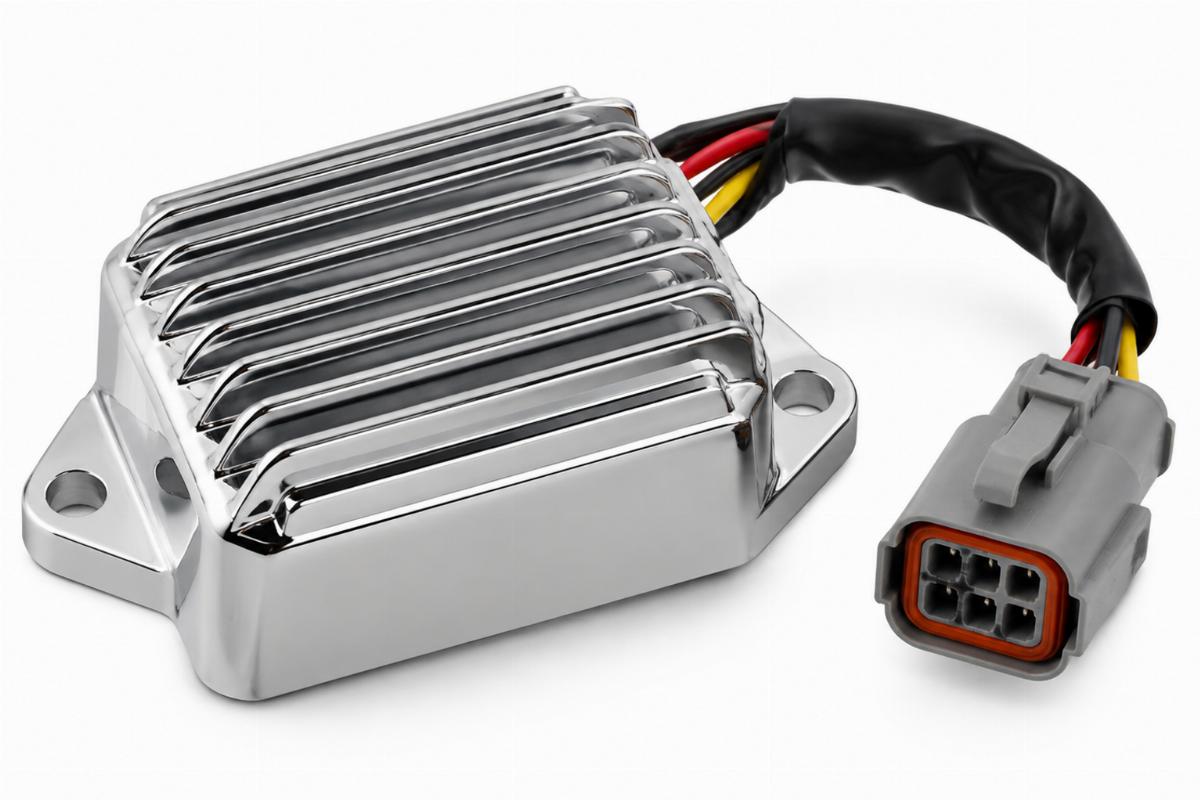

Finding the right voltage regulator rectifier for sportster builds starts with the plug. This unit features Deutsch and Delphi connectors and terminals designed for 1997 and later applications. If your wiring harness was modified or replaced during a previous customization, the factory-style plug might no longer be present. Always trace the wiring back to the stator to ensure the terminal housing matches the Deutsch and Delphi standard before assuming a direct plug-and-play fitment.

Verifying 22-Amp Output Against Stator Capacity

The 22-amp output capacity must align with your stator’s generation capability. Installing a unit that demands more current than the stator can produce will result in a chronic undercharged battery and dimming lights at idle. Conversely, if your electrical accessories draw significantly more than the rated output, the unit will overheat. Check your total accessory load and stator specifications to ensure this voltage regulator rectifier for sportster applications can sustain your specific riding configuration.

The Hidden Cost of Superseded Part Numbers

When a part number is superseded across model years, the physical connector shape often changes even if the electrical function remains similar. A catalog listing that only references an older manual number might ship a unit with a completely different plug, leaving your bike stranded on the shop lift. Relying solely on a visual match of the chrome casing without checking the terminal layout is a frequent mistake. This is why we cross-reference against Harley-Davidson OEM numbers, marked reference only, to ensure the physical interface matches your exact year range.

Sourcing Electrical Components with Fitment Certainty

We treat electrical components with the same scrutiny as chassis hardware, verifying the connector type and amperage against your specific platform before quotation. Our fitment sheet will explicitly state the applicable year ranges and cross-reference the OEM numbers marked reference only so your purchasing team has absolute clarity. Because we support single piece orders, independent repair shops can order exactly one unit for a customer build without being blocked by minimum order quantities. We also supply samples for fitment confirmation, allowing you to physically test the Deutsch and Delphi terminals against the bike’s harness before committing to a bulk order for your distribution catalog.

Documentation Provided

• Fitment sheet stating applicable platforms and year ranges for this unit.
• Cross-reference sheet with 74490-04 marked reference only.
• Key dimensions including 22-amp electrical rating and connector type.

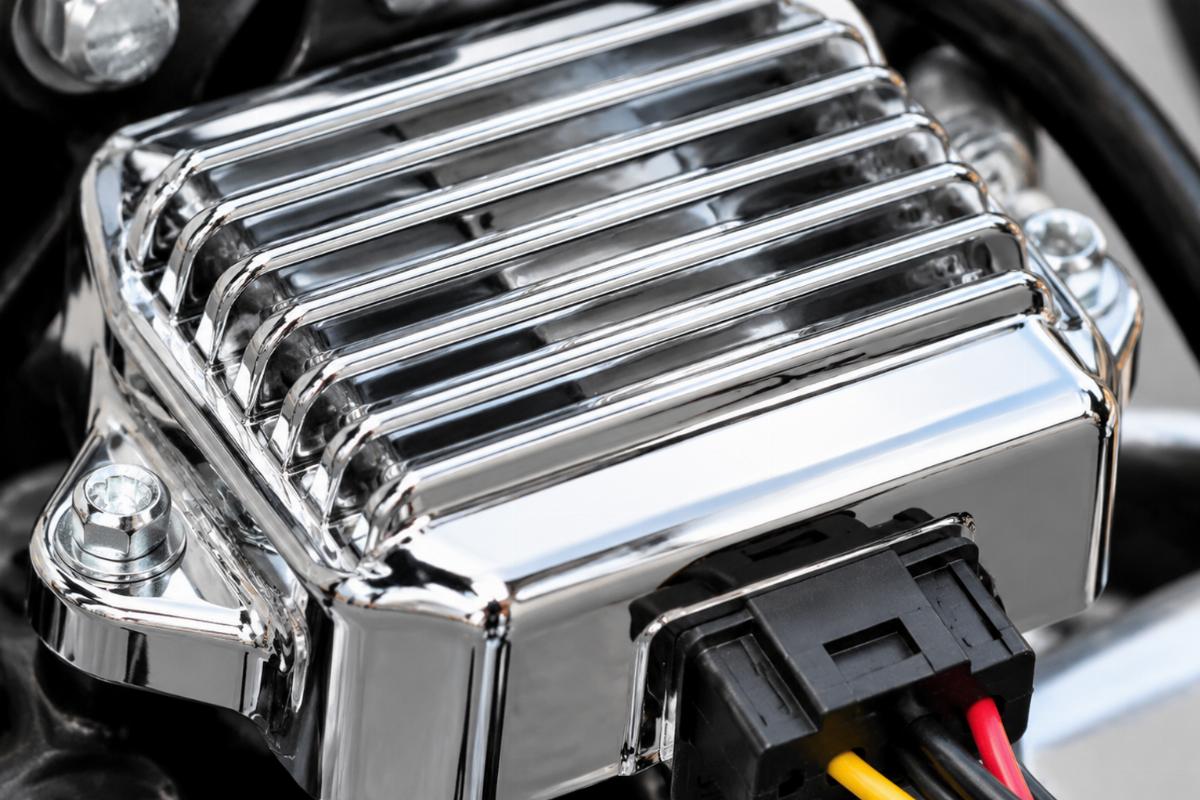

• Finish specification detailing the chrome plated surface treatment.
• Quality inspection record verifying output capacity before dispatch.

Receiving and Pre-Installation Checks

• Verify the Deutsch and Delphi connectors match your harness before removing original packaging.
• Check the chrome plated finish for any transit damage that could compromise the housing seal.
• Confirm the 22-amp rating label matches your stator output requirements.
• Store the unit in a dry environment to prevent terminal corrosion before installation.
• Have a qualified technician verify the wiring diagram for 1997 and later applications.

Send Your Model Details for a Fitment Check

To ensure this unit matches your specific build, send us your exact model code and year range along with a photograph of your current connector. If you are sourcing for a catalog, let us know your required finish and quantity so we can prepare a sample for physical verification. We will reply with a confirmed fitment sheet and cross-reference details marked reference only.

Frequently Asked Questions

Q: How do I confirm if my specific model year is compatible with this unit?

A: Provide your exact model code and year range. We will cross-reference 74490-04, marked reference only, and verify that the Deutsch and Delphi connectors match your specific wiring harness configuration for 1997 and later applications.

Q: What happens if my wiring harness was modified by a previous owner?

A: If the original terminal housing was cut or replaced, the Deutsch and Delphi connectors on this unit may not mate directly. You will need to trace the wiring back to the stator or consider adapting the terminals to ensure a secure electrical connection.

Q: Can I order a single unit to test the fitment before buying in bulk?

A: Yes, we support single piece orders. You can order one unit to physically verify the chrome plated finish, the 22-amp output label, and the connector mating against your specific motorcycle before placing a larger bulk order.

Q: How do I verify the electrical output matches my motorcycle’s needs?

A: Check your stator’s maximum current generation and compare it to the 22-amp output of this unit. Ensure your total electrical accessory load does not exceed this capacity to prevent undercharging or overheating the internal components.
