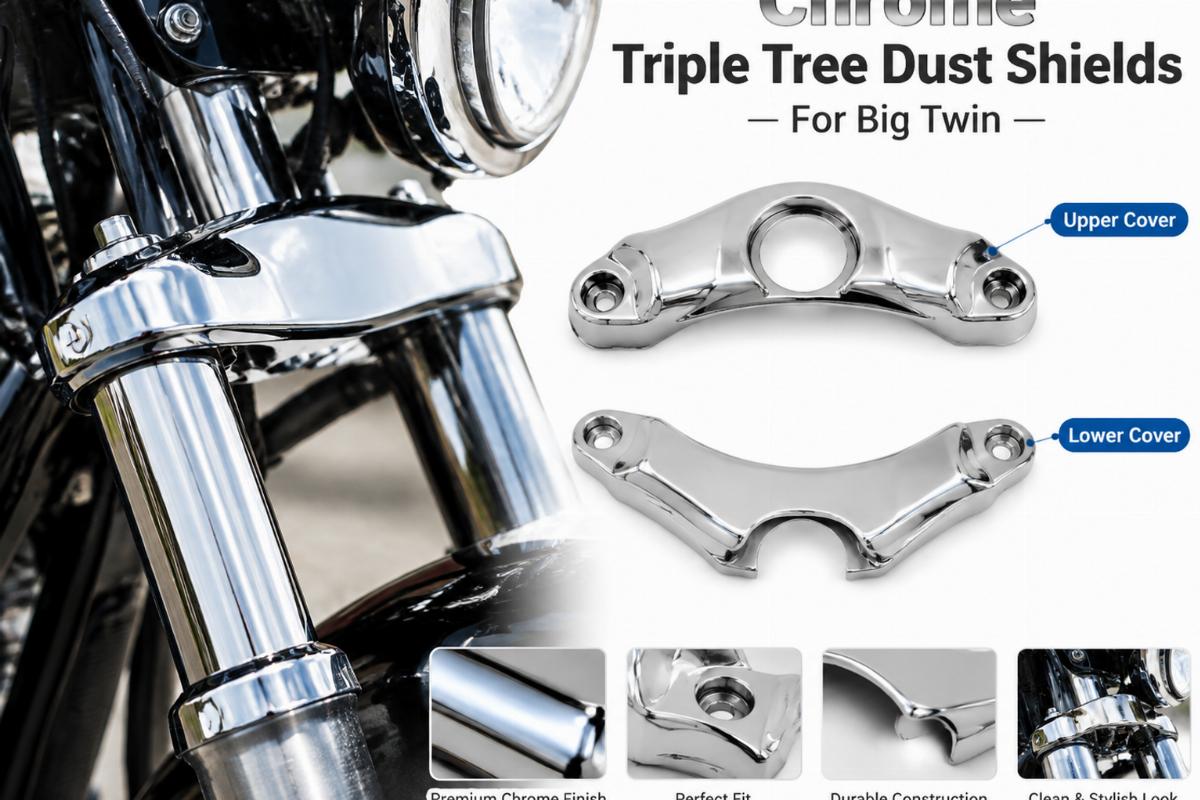

Chrome Triple Tree Dust Shields Timken Bearing – Fits Big Twin
Cross-Reference Fitment Checked — Every triple tree dust shield set is verified against exact model years and bearing types before dispatch, ensuring the upper and lower covers match your specific steering head requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Triple Tree Dust Shields |
| Finish | Chrome |
| Quantity | Pair (upper and lower) |
| Bearing Compatibility | Timken style bearings |
| Cover Style | Original style lower, late style upper |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin models | Confirm with model and year | Requires Timken style bearings; lower cover is original style, upper cover is late style. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Triple Tree Dust Shields for Big Twin Timken Setups Require Exact Style Matching
Matching the correct upper and lower cover styles to your specific frame year prevents steering head binding and improper bearing seating.
Over the years, handling fitment complaints taught me to never trust a vague model name. I remember a batch of chrome triple tree dust shields for Big Twin models with Timken style bearings that kept coming back because the buyer just said Big Twin without specifying the year. The lower cover profile must match the exact frame generation, otherwise the shields will not seat right against the neck bearings [NEED_CITE: factory service manual specifications for steering head dimensions by model year].
Verifying Bearing Types Before Ordering Triple Tree Dust Shields for Big Twin Frames
When sourcing triple tree dust shields for big twin motorcycles, the first step is confirming the steering head uses Timken style bearings rather than tapered roller or other types. The physical dimensions of the bearing races dictate the inner diameter and seating depth of the dust covers. If the bearing style is misidentified, the covers will either fail to drop over the races or leave a gap that exposes the steering head to debris and moisture.
How Original and Late Style Covers Affect Steering Head Clearance
The lower cover on this set is manufactured in the original style, while the upper cover features a late style profile. This specific combination addresses the dimensional shifts that occurred across different Big Twin generations. The late style upper cover provides the necessary clearance for newer triple tree nuts and locking mechanisms, while the original style lower cover ensures a flush fit against earlier frame necks [NEED_CITE: steering head cup profile changes across model years].

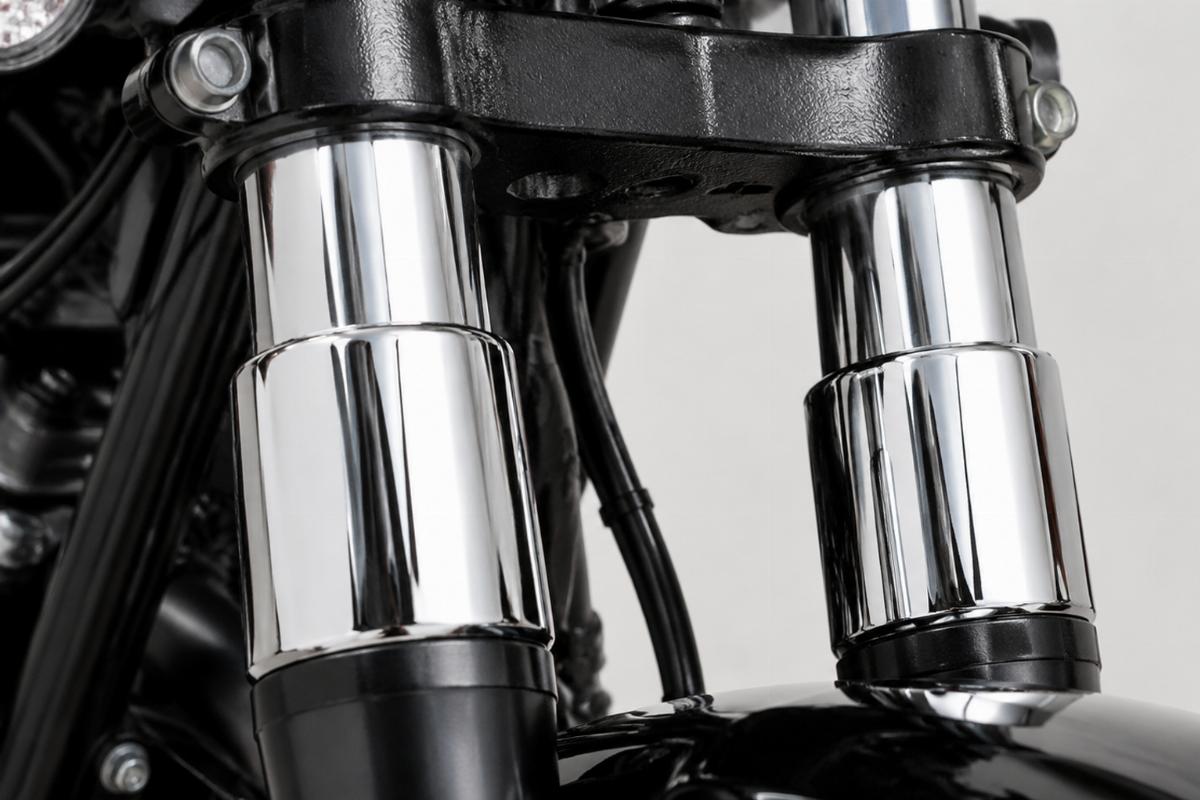

Understanding Chrome Finish Consistency on Dust Shields
Both the upper and lower covers receive a chrome finish, but maintaining visual consistency across different production batches is a known challenge in aftermarket front-end parts. When ordering triple tree dust shields for big twin applications, buyers need to know that finish thickness and polishing techniques can vary slightly between batches. We control this by specifying finish standards for every run, ensuring that when you install the pair side by side, the reflectivity and color tone match perfectly under shop lighting.
The Hidden Cost of Mismatched Steering Head Covers
Sending the wrong cover profile to a shop building a custom Big Twin means the bike sits on the lift while the builder waits for a replacement. If the lower cover is too tall for an early frame, it will not seat against the frame neck, leaving the Timken bearings exposed to water and road grit. This leads to premature bearing wear, steering notchiness, and ultimately a teardown of the front end to replace damaged races and cones [NEED_CITE: consequences of improper dust shield seating on bearing life].
Sourcing Front End Parts With Fitment Certainty
We verify the exact year range for every triple tree dust shield set before it leaves our facility, ensuring the original lower and late upper combination matches your frame. Our catalogue offers deep front-end coverage, keeping both early and late style covers in stock for Timken bearing setups. We provide a fitment sheet detailing the exact platforms and bearing types this pair was checked against. You can order a single pair for a restoration project or bulk quantities for your distribution line, with the same one-piece minimum order policy.
Documentation Provided With Your Shipment
- Fitment sheet listing each Big Twin year range this pair was checked against
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification detailing the chrome plating standards applied
- Quality inspection record confirming upper and lower cover dimensions
- Warranty terms covering manufacturing defects in the chrome finish
Receiving and Inspecting Your Triple Tree Dust Shields
- Verify the package contains both the original style lower and late style upper covers.
- Check the chrome finish on both pieces for consistent reflectivity without pitting.
- Confirm the inner diameters match your Timken style bearing outer races.
- Compare the lower cover profile against your specific Big Twin frame neck.
- Store the pair in a dry environment to prevent surface oxidation before installation.
Requesting a Fitment Check for Your Project
Send us your exact Big Twin model and year range to verify this original and late style combination is correct for your steering head. If you are unsure about the bearing type, provide a photograph of the existing steering head or the old covers. Let us know if you need a sample pair for test fitting before committing to a larger batch order for your shop.
Frequently Asked Questions
Q: How to confirm if my Big Twin model uses Timken style bearings?
A: You need to check the steering head bearing specification for your exact model year. Timken style bearings have a specific cup and cone design that differs from standard tapered roller bearings. If your steering head uses Timken cups, these triple tree dust shields for big twin frames will provide the correct inner diameter and seating depth for proper coverage.
Q: What is the physical difference between original style and late style dust covers?
A: The original style lower cover features a profile designed to sit flush against earlier Big Twin frame necks. The late style upper cover has a modified outer edge to clear newer triple tree nuts and locking hardware. This specific pair combines both styles to accommodate frames that require this exact dimensional transition.
Q: Can I order a single piece or is it only sold as a pair?
A: These triple tree dust shields for big twin motorcycles are sold strictly as a complete pair containing both the upper and lower covers. We do not split the set, ensuring you have the matched original lower and late upper combination required for correct steering head coverage and consistent chrome appearance.
Q: How to check if the chrome finish is consistent across different batches?
A: We apply strict finish specifications to every production run to maintain visual consistency. When you receive your pair, inspect both covers under direct light to ensure the reflectivity and tone match. If you are ordering for a large inventory, we can provide finish specifications and inspection records to verify batch consistency before dispatch.
