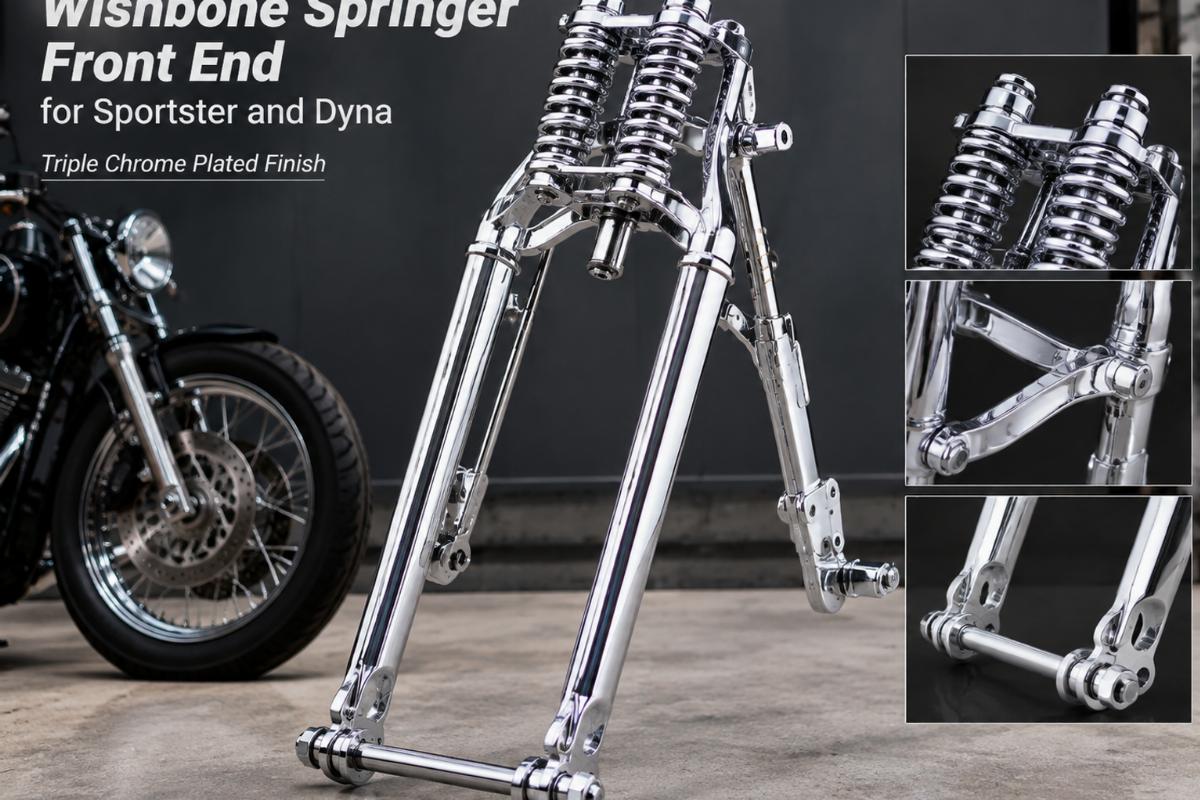

Chrome Springer Front End – Fits Sportster 2004-Up and Dyna 1991-2017
Front-End Depth Verified — This wishbone springer front end for sportster and dyna is checked against specific frame geometries and steering tube placements before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Front End |
| Finish | Triple chrome plated or black powder coated |
| Material | One piece forged rear legs, bronze rocker bushings, zinc-plated axle and steering stem |
| Diameter | 1″ diameter front legs, 3/4″ axle |
| Length | Stock length 23 1/2″ (measured from the upper surface of the lower tree to the centerline of the axle vertically) |
| Construction | TIG-welded, tubular wishbone front leg design |

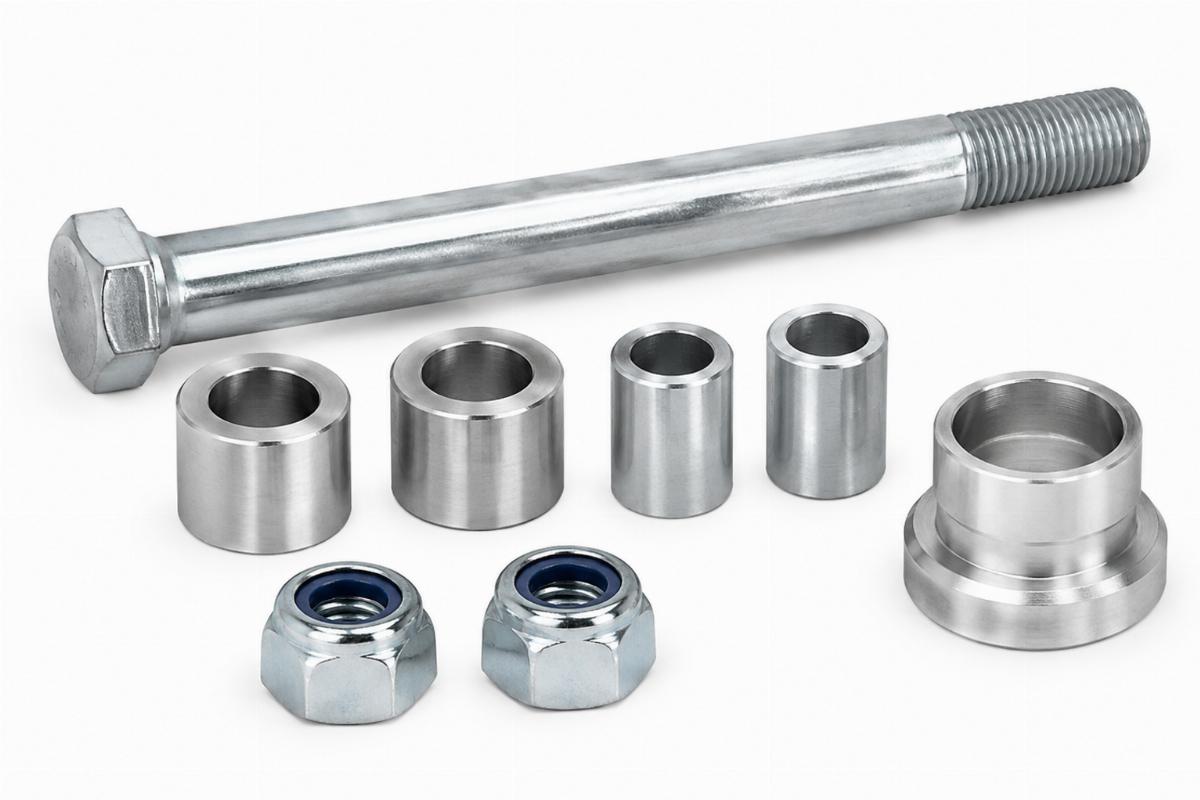

| Kit Contents | 3/4″ axle, spacers, nuts, spacer for recessed lower bearing, shorter top nut |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Sportster | 2004-Up | Includes spacer for recessed lower bearing and shorter top nut; requires 2000-2007 front wheel. |
| Dyna | 1991-2017 | Features steering stops placed for Dyna frames; requires 2000-2003 front wheel. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Steering Tube Boss and Recessed Bearing Alignment
Universal springers often ignore frame-specific steering stops and lower bearing depths, causing binding or tank contact.
When a generic front end is bolted onto a frame with a recessed lower bearing cup, the standard top nut bottoms out before clamping the trees, leaving the steering stem loose. I have seen custom builds where the steering flopped until the rider hit a bump, cracking the fuel tank paint against the risers. This wishbone springer front end for sportster and dyna includes a dedicated spacer for the recessed lower bearing and a shorter top nut to ensure proper clamping force. The steering stops are also pre-positioned to match the OEM stop boss on these specific steering tubes, preventing the fork from over-rotating and damaging the frame neck [NEED_CITE: steering stem spacer and stop placements by model year].
Verifying Rake and Trail for Specific Frames
Mounting a front end changes the steering geometry, and the predetermined rake and trail on this unit are calculated for the Sportster and Dyna wheelbases. If the steering stem length or tree offset is incorrect for your specific frame, the bike will wander at highway speeds or require excessive effort to turn. We verify the 23 1/2″ stock length against the platform family to ensure the front end sits level without altering the factory head angle beyond acceptable limits.
Wheel Axle and Spacer Integration
The included 3/4″ axle, spacers, and nuts are sized specifically to accept a front wheel from a 2000-2007 Sportster or a 2000-2003 Dyna. Using a wheel from a different year range will result in incorrect bearing spacing, causing the wheel to bind or the brake rotor to misalign with the caliper mount. Always confirm the donor wheel year before assembling the axle hardware [NEED_CITE: front wheel bearing spacer dimensions across model years].
Decoding the 23 1/2″ Stock Length Measurement
The overall length is measured vertically from the upper surface of the lower tree to the centerline of the axle. This specific 23 1/2″ dimension dictates the ride height and how the fork legs interact with the frame downtubes. If a front end is too long, it raises the front of the motorcycle, steepening the rake and making the steering twitchy; if it is too short, it slackens the geometry and reduces ground clearance.
The Cost of Ignoring Frame-Specific Steering Stops
Fork legs that over-rotate because the steering stops do not align with the frame boss will smash into the frame neck, bending the triple tree or cracking the steering head cup. Replacing a bent tree means tearing the entire front end down again, losing days of shop time and requiring new bearings and seals. Ensuring the stops match the frame prevents catastrophic structural damage and keeps the steering geometry intact.
Sourcing from a Front-End Specialist
We produce our springer front ends in-house, allowing us to control the TIG-welding quality and the tubular wishbone construction directly. Every unit is cross-referenced against platform families and year ranges before quotation to guarantee the steering stops and bearing spacers match your frame. We offer this wishbone springer front end for sportster and dyna in both triple chrome plated and black powder coated finishes to match your build theme. You can order a single piece for a custom build without meeting high minimum order quantities, and we provide a sample for fitment confirmation before you commit to bulk inventory.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges for this specific front end
- Cross-reference sheet with key dimensions including fork length over stock
- Finish specification detailing the triple chrome or black powder coat process
- Quality inspection record verifying the TIG welds and bronze rocker bushings
- Packing photographs showing the included axle, spacers, and shorter top nut
Receiving and Pre-Installation Checks
- Verify the included spacer for the recessed lower bearing matches your frame’s steering tube depth.
- Confirm the shorter top nut threads cleanly onto the zinc-plated steering stem without binding.
- Check that the 1″ diameter front legs and TIG-welded wishbone design show no shipping damage or finish flaws.
- Ensure the 3/4″ axle and spacers are present to accommodate the correct 2000-2007 or 2000-2003 donor wheel.
- Have a qualified technician inspect the bronze rocker bushings and steering head bearings before final assembly.
Requesting a Fitment Check
Send your exact model and year range, along with the donor wheel year, so we can verify the steering stop boss and recessed bearing requirements. If you are unsure about the steering stem length, provide a photograph or measurement of your current setup. Let us know if you need the triple chrome plated or black powder coated finish, and whether you require a sample unit to test the geometry on the frame before placing a larger order.
Frequently Asked Questions
Q: How do I confirm my specific model year fits this front end?
A: Check the fitment table for your platform. This unit is designed for Sportster 2004-Up and Dyna 1991-2017. We verify the steering stop boss and recessed lower bearing requirements for these specific years. If your bike has aftermarket triple trees or a modified steering stem, provide a photo or measurement for final verification.
Q: What front wheel years are compatible with the included hardware?
A: The kit includes a 3/4″ axle and spacers sized for a front wheel from a 2000-2007 Sportster or a 2000-2003 Dyna. Using a wheel from outside these year ranges will result in incorrect bearing spacing and brake rotor misalignment. Confirm your donor wheel year before assembly.
Q: How does the integrated steering stop work with my frame?
A: The steering stops on this front end are pre-positioned to mate with the existing stop boss on the Sportster and Dyna steering tubes. This prevents the fork from over-rotating and damaging the frame neck. If your frame has been modified or uses an aftermarket steering stem, verify the stop boss location.
Q: Can I order a single piece for a custom build?
A: Yes, we support single-piece orders for custom builders and repair shops. There are no minimum order quantities blocking a single unit. We can also supply a sample for fitment confirmation on the frame before you place a bulk order for your inventory.
Q: What dimensions are included in the fitment sheet?
A: The fitment sheet includes the overall fork length measured from the lower tree to the axle centerline, the 1″ front leg diameter, and the specific year ranges verified for the steering stops and recessed bearing spacer. This ensures you have the exact geometry data needed for your build.
