Chrome Springer Fork Top Tree with Riser Kit 4-1/2″ Offset – Fitment Checked
In-house front-end production — every springer fork top tree with riser kit is manufactured and dimension-checked in our own facility before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Top Tree with Riser Kit |
| Finish | Chrome |
| Riser Height | 4-1/4″ |

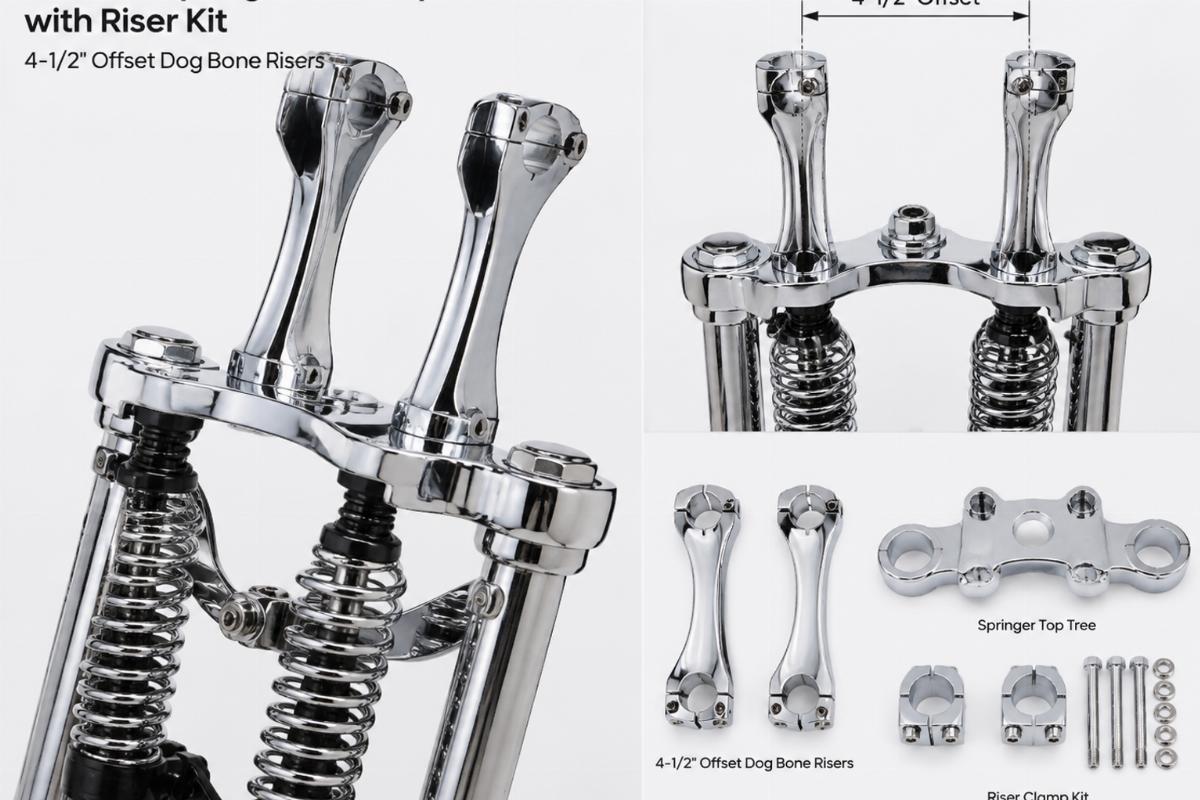

| Offset | 4-1/2″ |
| Mounting | Rubber mounted |
| Thread | 1/2″ x 13 |

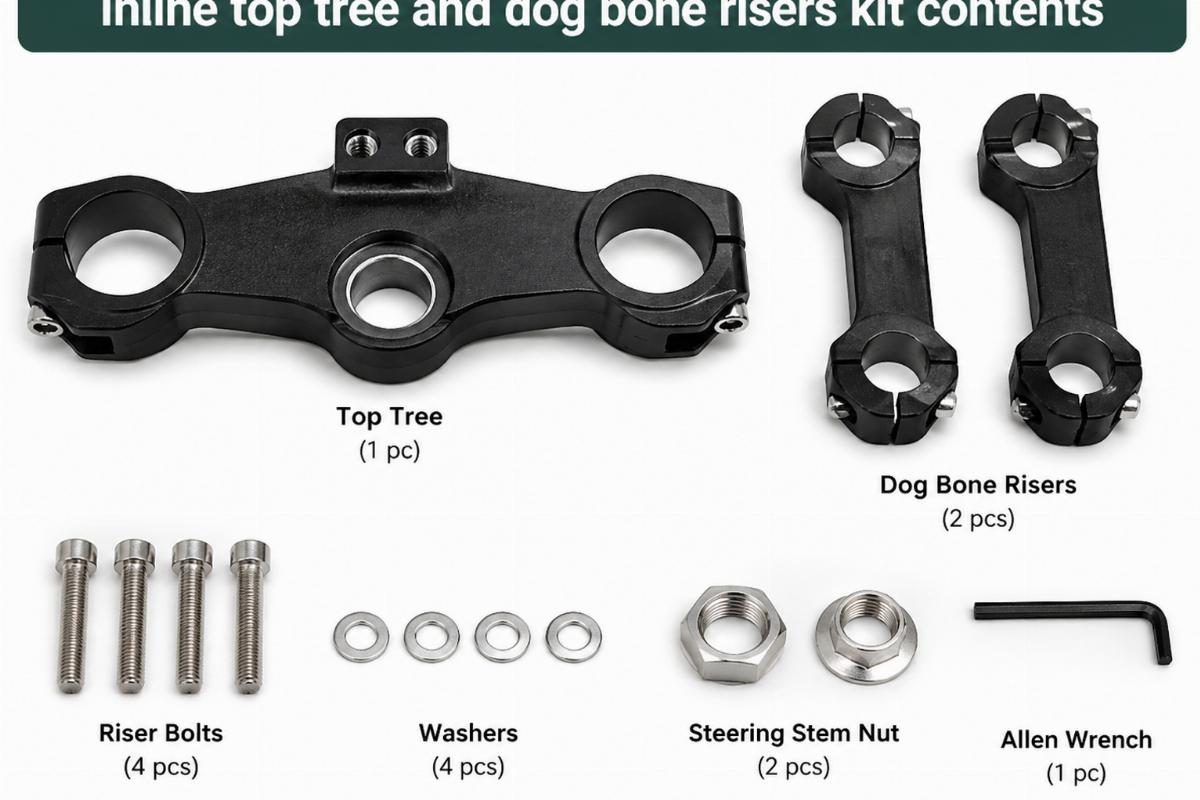

| Kit Contents | Inline top tree, dog bone risers |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
