Chrome Springer Fork Assembly 28″ Narrow – Fitment Checked
In-house Springer Production — Every front end is manufactured in our own facility to guarantee exact rocker spacing and offset details for precise frame fitment.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Overall Length | 28″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
| Handle
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Accepts existing Spring Fork components, headlamp bracket, shock assembly or ride control; includes existing fittings; left side rocker is offset to allow space for brake system applications. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Rocker Width and Offset for Brake Clearance
Assuming all springers share identical rocker spacing will stall your build before the brake caliper can mount.
Working with custom builders, I remember a shop ordering a narrow spring fork assembly for a Springer Softail project. They assumed all springers were identical. The six-inch rocker width and the offset left side rocker for brake clearance caught them off guard. The brake caliper simply would not mount, and the build stalled [NEED_CITE: frame geometry and brake caliper mounting clearances for custom springer setups]. That mistake taught me to always verify rocker spacing and offset details before confirming fitment for any custom Springer project.
Checking Stem and Axle Dimensions Against Your Frame

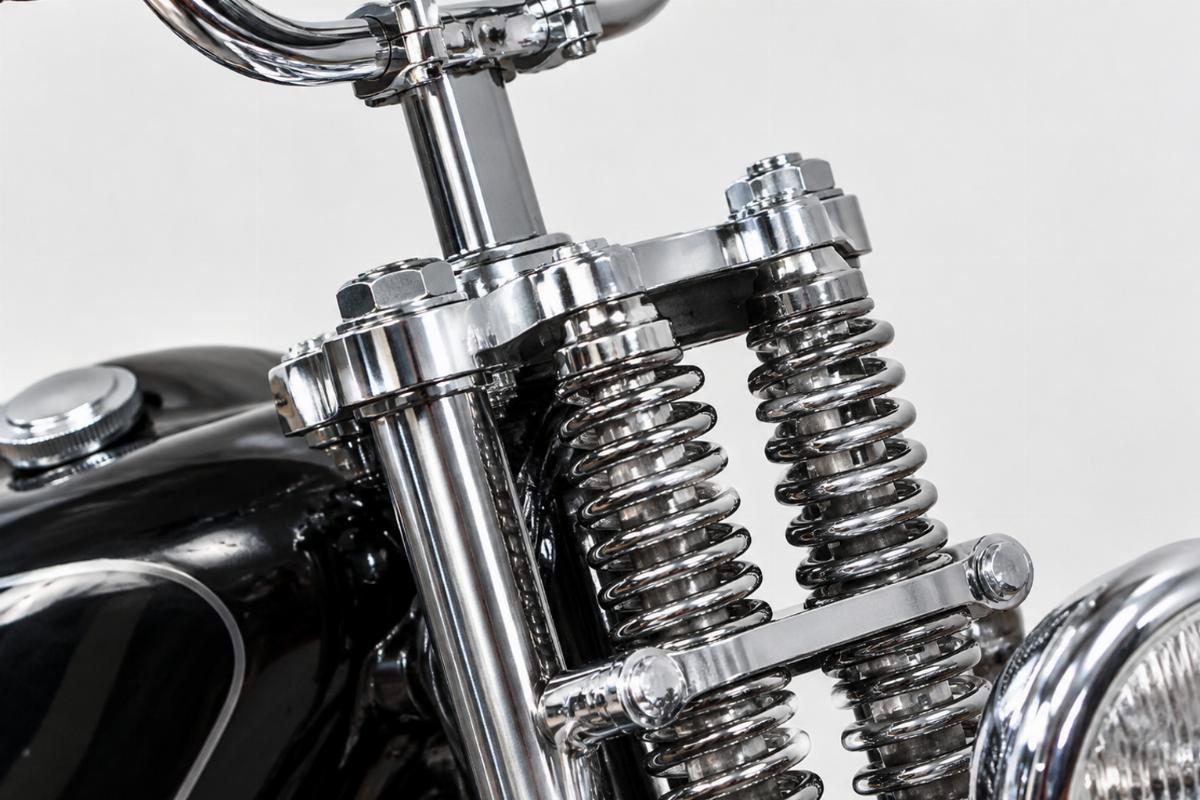

When evaluating a 28″ narrow spring fork assembly, the 1″ stem diameter and 3/4″ axle outer diameter must match your existing wheel and bearing setup perfectly. The inline top triple tree with standard stem and tube locations ensures that dog bone or stock Spring Fork handlebars align correctly without binding. If these critical dimensions are off by even a fraction, the steering head bearings will not seat properly, leading to unsafe handling characteristics [NEED_CITE: steering head bearing race specifications and stem diameter tolerances].
Understanding the Inline Triple Tree Configuration

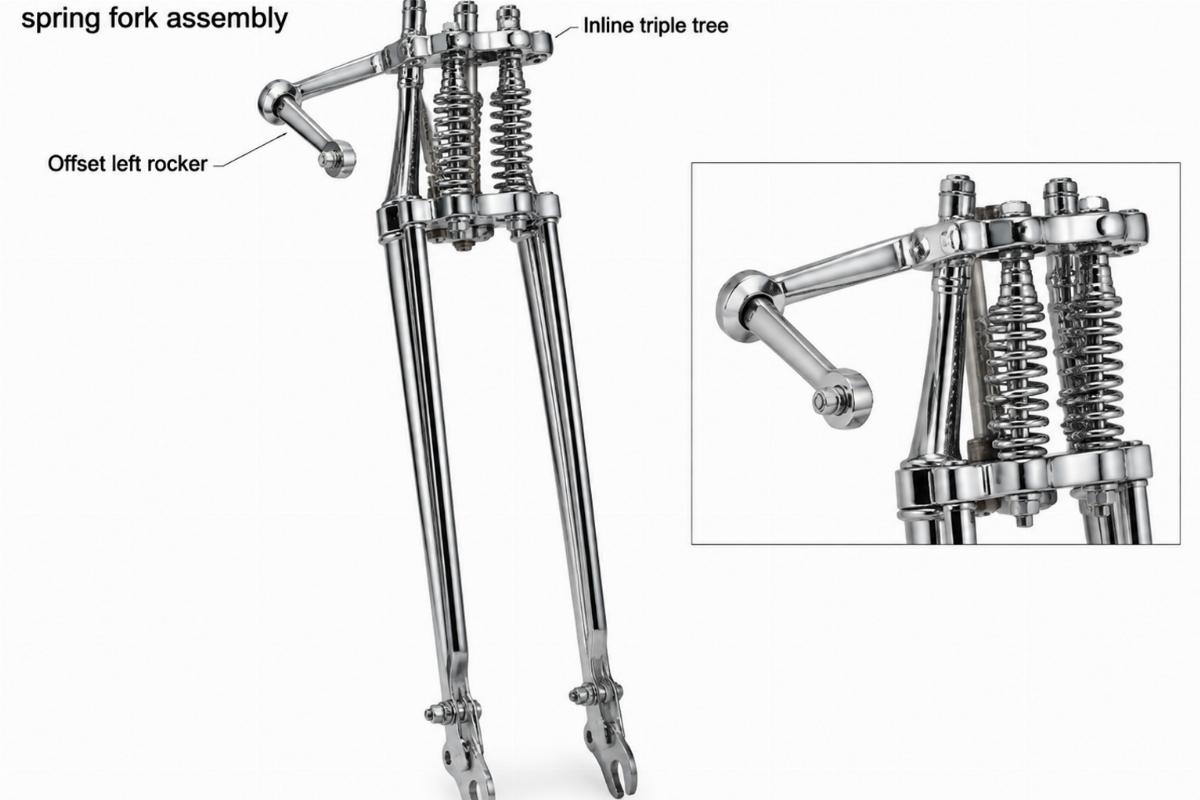

This 28″ narrow spring fork assembly features an inline top triple tree, which keeps the handlebar mounting points directly above the stem. This configuration is essential for maintaining the intended steering geometry on custom frames that do not require additional rake. The legs are drilled and tapped 3/4″-18, providing secure mounting points for your chosen risers or handlebars. Always confirm that your frame’s neck angle complements the inline design to preserve the intended trail and ride height [NEED_CITE: triple tree offset and rake angles for custom springer front ends].
The Hidden Cost of Ignoring Left Side Rocker Offset
Failing to account for the offset left side rocker can result in the brake caliper hitting the fork leg, forcing you to machine custom adapters or return the part. Many listings omit this crucial detail, leaving builders to discover the interference only after the wheel is mounted. A narrowed 6″ width between rockers changes the stance, but the offset is what actually clears the braking system. Overlooking this specification means the bike sits on the lift while you source a different caliper bracket or modify the rocker [NEED_CITE: brake caliper clearance requirements for narrowed springer front ends].
Sourcing Front Ends with Verified Dimensions
We produce this 28″ narrow spring fork assembly in our own facility, ensuring the 6″ rocker width and 1″ stem dimensions are consistent across every batch. You can order a single piece for a custom build without facing minimum order blocks that delay your project. Before quotation, we confirm the fitment against your specific platform and year range to prevent the wrong part from reaching your shop. Our chrome finish is applied under controlled conditions, guaranteeing visual consistency whether you are building a single bike or stocking multiple units.
Documentation Supplied with Your Order
- Fitment sheet stating applicable platforms and year ranges for this 28″ narrow spring fork assembly
- Key dimensions including 28″ overall length, 6″ rocker width, and 1″ stem diameter
- Chrome finish specification and quality inspection record for the batch
- Commercial invoice and packing list detailing all included fittings and hardware
- Warranty terms covering manufacturing defects on the springer front end
Pre-Installation Inspection Checklist
- Measure the 28″ overall length and 6″ width between rockers to verify frame clearance
- Confirm the 1″ stem diameter slides smoothly into your steering head neck
- Check that the 3/4″ axle outer diameter matches your wheel bearing spacing
- Inspect the offset left side rocker to ensure adequate brake caliper clearance
- Verify the 3/4″-18 leg threads are clean and free of chrome buildup
- Store the assembly in a dry environment to prevent surface corrosion before mounting
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this 28″ narrow spring fork assembly matches your frame geometry. Provide your existing stem diameter, axle size, and brake caliper mounting requirements so we can verify the 6″ rocker width and offset details. If you are unsure about the overall length, share your desired ride height and rake specifications. We can also supply a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure the overall length and rocker width to ensure the 28″ narrow fork fits my custom frame?
A: Measure the overall length from the bottom of the axle mounting point to the top of the stem. For the rocker width, measure the distance between the inner faces of the left and right rockers. Compare these dimensions to your frame’s clearance and desired stance. The 6″ width between rockers on this 28″ narrow spring fork assembly provides a narrowed profile, but you must verify that your brake caliper and wheel setup fit within this spacing.
Q: What is the difference between an inline triple tree and a raked triple tree for springer handlebars?
A: An inline triple tree positions the handlebar mounting points directly above the steering stem, maintaining a standard steering geometry. A raked triple tree angles the mounting points forward, increasing the trail and changing the steering feel. This 28″ narrow spring fork assembly uses an inline top triple tree with standard stem and tube locations, making it suitable for frames designed for standard springer geometry without additional rake adjustments.
Q: Will this assembly accept my existing headlamp brackets and shock components?
A: Yes, the 28″ narrow spring fork assembly is designed to accept existing Spring Fork components, including your headlamp bracket and shock assembly or ride control. It includes the necessary existing fittings for these attachments. However, you should verify that your specific shock mounting points align with the fork legs, as custom frame builds sometimes require minor adjustments to the shock length or mounting brackets.
Q: Can I order a single spring fork assembly for a custom build, or is there a minimum order quantity?
A: You can order a single 28″ narrow spring fork assembly for your custom build. We understand that custom builders and independent repair shops often need just one unit to complete a specific project. There is no minimum order quantity blocking a single-piece order. We support shops building one bike at a time, providing the same fitment verification and documentation for a single assembly as we do for larger distributor orders.
