Chrome Springer Fork Assembly 22″ – Fitment Checked

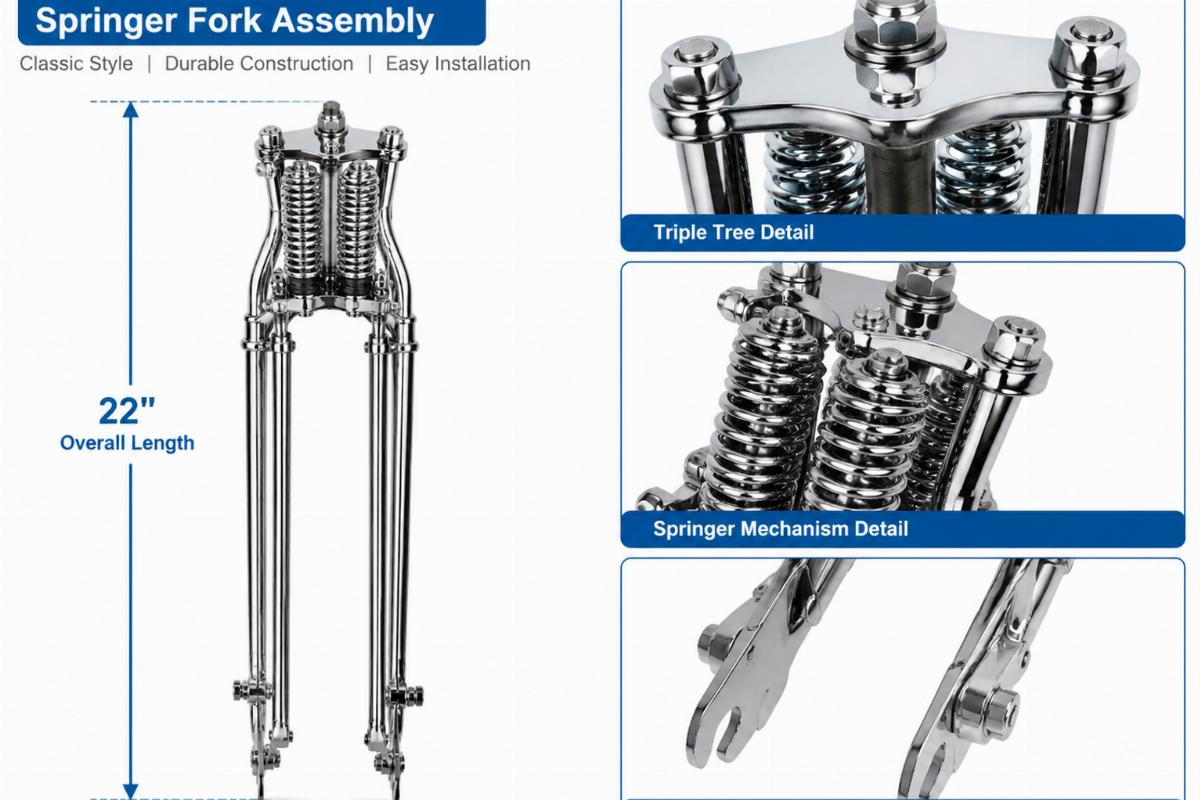

Consistent Chrome Finish — Every narrow springer fork assembly undergoes strict finish specification checks to ensure batch-to-batch visual consistency for your custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Overall Length | 22″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Width Between Rockers | 6″ |
| Leg Thread | 3/4″-18 |
| Kit Contents | Triple tree, 1″ stem, brake boss, 3/4″ axle, standard fittings |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Custom Builds | Confirm with model and year | Accepts standard springer components, headlamp bracket, shock assembly or ride control; left side rocker is offset to allow space for brake system applications. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Rocker Width and Offset Dictate Your Brake Setup
A 6-inch rocker width means nothing if the left-side offset fails to clear your specific caliper.
Sourcing a narrow springer fork assembly often leaves builders guessing about rocker spacing and whether the triple tree will accept preferred handlebars without modification. I once supplied a springer front end for a custom build without checking the rocker width and left-side offset. The assembly had a 6-inch rocker width, but the left leg lacked the offset for the brake caliper. When the builder tried to mount the brake system, there was zero clearance, and the whole setup failed [NEED_CITE: frame geometry and caliper clearance variations across custom builds]. That mistake forced us to tear it down and swap the assembly. Now, verifying the 3/4-inch axle spacing and offset details is mandatory before shipping any narrow springer fork assembly.
Decoding the 22-Inch Overall Length and Stem Spacing
Choosing a narrow springer fork assembly requires matching the 22″ overall length to your frame’s neck angle and desired ride height. The 1″ stem diameter must align perfectly with your steering head bearings to prevent binding. An inline top triple tree with standard stem and tube locations ensures the assembly accepts dog bone or stock springer handlebars directly. If the stem diameter or triple tree spacing is off by even a fraction, the steering geometry shifts, altering the trail and making the front end unpredictable [NEED_CITE: steering head bearing and neck angle specifications by frame family].
Understanding the 3/4-Inch Axle and Leg Thread Dimensions

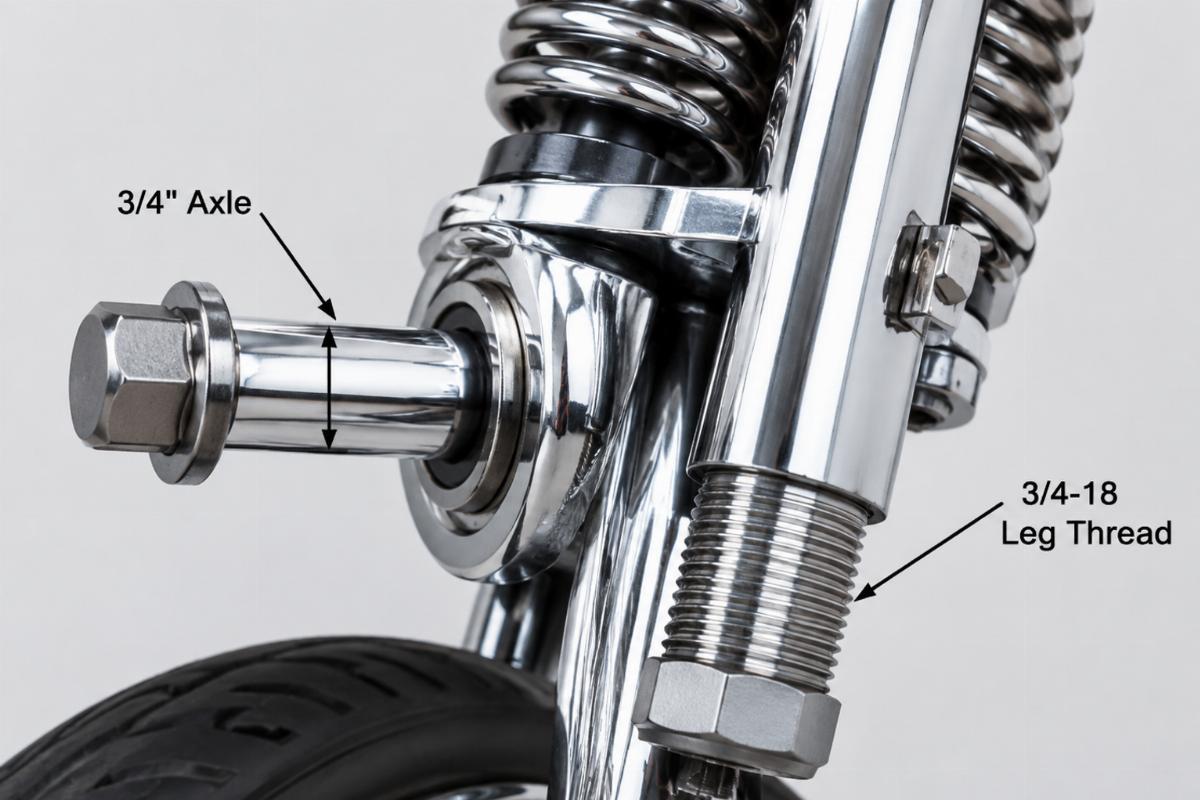

The 3/4″ axle outer diameter dictates the hub spacing and bearing compatibility for your front wheel. The legs are drilled and tapped 3/4″-18 for direct riser mounting, which eliminates the need for custom adapters. This specific thread pitch and axle diameter combination is critical for maintaining structural integrity under braking loads. Always confirm that your wheel hubs and riser patterns match these exact dimensions before finalizing the build [NEED_CITE: axle diameter and thread pitch standards for springer front ends].
The Hidden Cost of Ignoring Left-Side Brake Clearance
Ordering a front end without confirming the left side rocker offset often results in the bike sitting on the shop floor. If the offset is missing, the brake caliper will physically interfere with the fork leg, requiring expensive machining or a complete teardown. Furthermore, if the 6″ width between rockers does not accommodate your specific headlamp bracket or shock assembly, you face delayed projects and wasted labor hours. These dimensional oversights compound when parts are shipped without a verified fitment sheet, forcing shops to guess dimensions from generic catalog photos [NEED_CITE: brake caliper clearance and rocker offset requirements for custom springers].
Why Builders Trust Our Front-End Depth
We manufacture complete springer assemblies and early springer parts in our own facility, ensuring direct control over the 3/4″-18 leg threading and chrome plating process. Our catalog consolidates multiple over-stock lengths, allowing you to source the exact 22″ profile without mixing suppliers. Every narrow springer fork assembly is checked against platform families and year ranges before quotation, eliminating the guesswork from your procurement. We offer chrome and black finish options with strict quality inspection records to guarantee visual consistency across batches. Finally, we support single-piece minimum orders, enabling custom builders to procure one assembly for a one-off project without facing bulk quantity barriers.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable platforms and year ranges for the 22″ assembly.
- Key dimensions including fork length, stem diameter, and rocker width confirmed against build requirements.
- Finish specification and quality inspection record ensuring chrome consistency.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Packing photographs verifying the triple tree, brake boss, and standard fittings included.
Receiving and Pre-Installation Checks
- Verify the kit contents include the triple tree, 1″ stem, brake boss, 3/4″ axle, and standard fittings.
- Measure the 22″ overall length and 6″ width between rockers against your frame geometry.
- Inspect the chrome finish for any plating defects or inconsistencies before assembly.
- Confirm the left side rocker offset provides adequate clearance for your specific brake caliper.
- Check that the legs are properly drilled and tapped 3/4″-18 for your riser mounting pattern.
- Store the assembly in a dry environment to prevent surface corrosion before installation.
Send Your Model Details for a Fitment Check
To ensure this narrow springer fork assembly matches your project, send us your frame model, year range, and any old part photographs. Include your required finish, quantity, and whether you need a sample for physical trial fitting. We will verify the 1″ stem and 3/4″ axle compatibility against your steering head and wheel hub specifications before quoting.
