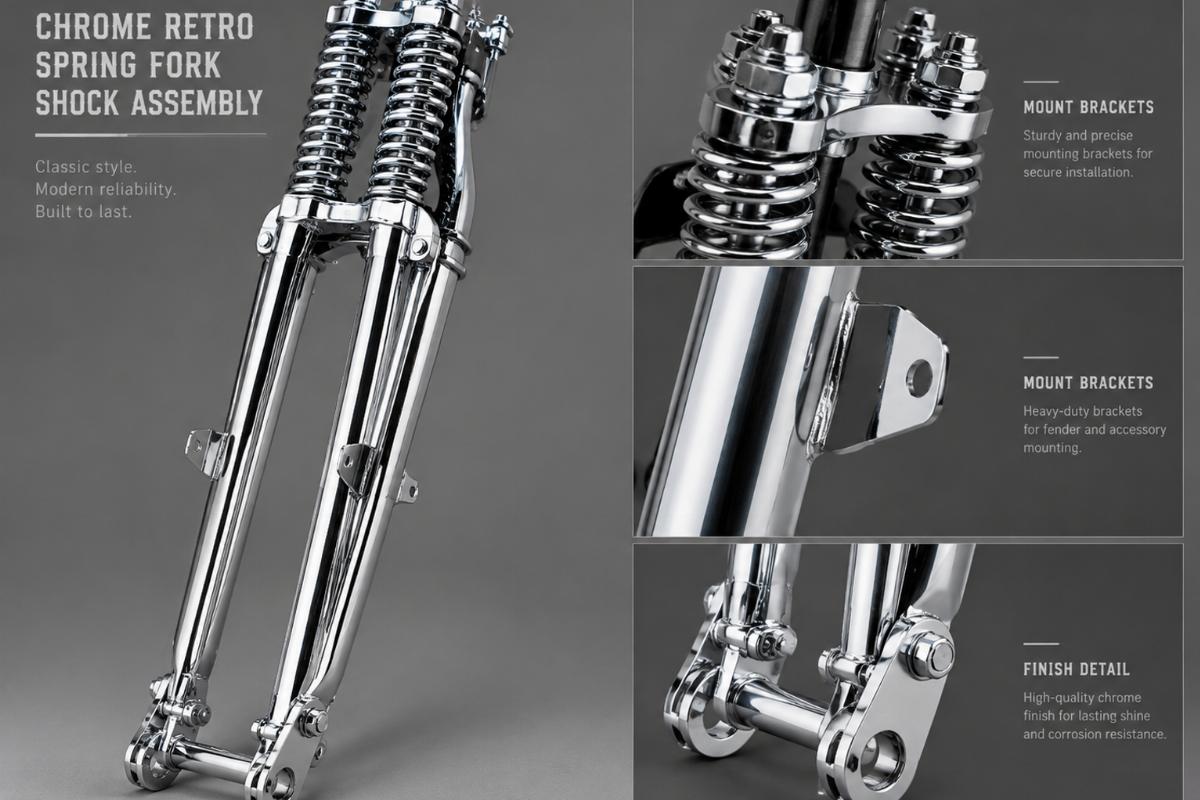

Chrome Retro Spring Fork Shock Assembly Mount Brackets – Fitment Checked
Own-Produced Front Ends — Every mounting point is measured before dispatch to guarantee exact alignment with your custom frame geometry.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Retro Spring Fork Shock Assembly |
| Finish | Chrome |
| Kit Contents | Shock assembly with mount brackets |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom springer builds | Confirm with model | Retro style; includes mount brackets. Verify shock length and bracket spacing against your specific frame. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Springer Shock Mounting Variables
A retro spring fork shock assembly requires precise bracket spacing to seat correctly on custom frames.
Custom builders frequently encounter alignment issues when shock mounting dimensions or bracket offsets are unclear. We have seen batches shipped based on visual matching alone fail to seat right because the shock length and bracket offset were off by a few millimeters [NEED_CITE: frame geometry variations across custom springer generations]. Verifying the exact model and frame geometry before quotation prevents these installation failures and keeps the bike moving through the build schedule.
Verifying Bracket Spacing for Custom Frames
When integrating a retro spring fork shock assembly, the distance between the frame tabs and the fork legs dictates whether the unit will seat properly. We measure every mounting point to ensure the included brackets match your specific springer fork legs. This prevents the assembly from binding or sitting at an incorrect angle, which is critical for maintaining the intended stance of your custom build.
Matching Shock Length to Fork Travel
The overall length of the shock directly impacts fork travel and fender clearance. If the retro spring fork shock assembly is too long, it can restrict movement or cause the fender to rub during compression. We check the overall assembly dimensions against your fork specifications to ensure smooth operation without interference [NEED_CITE: suspension clearance requirements for custom springer setups].
Interpreting Chrome Finish Consistency
The chrome finish on this retro spring fork shock assembly is applied to provide consistent visual matching across your front-end components. When ordering multiple chrome parts separately, batch variations can become visible once fitted side by side. We track finish specifications to ensure the shock assembly blends seamlessly with your fork tubes and trees, maintaining a uniform appearance on the finished bike.
The Hidden Cost of Incorrect Fitment
Shipping a retro spring fork shock assembly with incorrect bracket spacing means the bike sits on the shop floor instead of rolling out the door. When mounting points vary between different springer generations, relying on copied fitment tables often leads to parts that simply will not bolt up. This forces the builder to halt the project, return the part, and wait for a replacement, delaying the entire build timeline and increasing labor costs [NEED_CITE: downtime costs associated with misfitted front end components].
Sourcing From a Fitment-Focused Supplier
We produce our springer front ends and chassis hardware in our own facility, allowing us to control the dimensions of every retro spring fork shock assembly. Our catalogue offers front-end depth, combining complete assemblies and individual components under one account. We provide chrome finish options on our main lines and cross-reference against OEM numbers for identification. Most importantly, we support a one-piece minimum order, allowing you to buy exactly what you need for a single custom build without meeting high volume thresholds.
Documentation Provided With Your Order
- Fitment sheet stating applicable platforms and year ranges verified for this assembly.
- Key dimensions including shock length and bracket spacing documented for your records.
- Finish specification detailing the chrome plating process and batch consistency.
- Quality inspection record confirming all mounting points were measured before dispatch.
Pre-Installation Checks Upon Arrival
- Verify the kit contents include the shock assembly and both mount brackets.
- Measure the bracket hole spacing and compare it directly to your frame tabs.
- Check the overall shock length to ensure adequate fork travel and fender clearance.
- Inspect the chrome finish for any shipping damage or plating defects before mounting.
- Have a qualified technician handle the structural mounting of the front end.
- Store the assembly in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check
Send us your custom frame details, including the specific springer generation and year, along with photographs or measurements of your current mounting points. Let us know the exact finish you need and if you require a sample for trial fitting before committing to the final build. We will verify the dimensions and confirm compatibility before processing your order.
Frequently Asked Questions
Q: How do I confirm if this retro shock assembly fits my specific custom springer frame?
A: We verify fitment by checking the shock length and mounting bracket spacing against your specific springer fork legs and frame geometry. Since mounting points vary between different springer generations and custom frames, we require your frame details or measurements to confirm alignment before dispatch.
Q: What key dimensions should I measure on my fork to ensure proper fitment?
A: You need to measure the distance between the frame mounting tabs and the corresponding holes on the fork legs. Additionally, check the overall length of the shock to ensure it allows for adequate fork travel without causing the fender to interfere with the tire during compression.
Q: Can I order a single shock assembly with mount brackets for a one-off build?
A: Yes, we support a one-piece minimum order. You can purchase a single retro spring fork shock assembly complete with its mount brackets for a custom build without needing to meet bulk quantity requirements, making it ideal for shops building one bike at a time.
Q: How do you ensure the chrome finish matches other front-end components?
A: We track finish specifications and quality inspection records to ensure batch consistency across our chrome lines. This minimizes visible variations when the shock assembly is fitted side by side with other front-end components like fork tubes and trees ordered at different times.
