Chrome Regulator/Rectifier 45/60 Amp – Fits FLT 2006-2008
Qualified Sourced Electrical Supply — Electrical components are sourced from qualified manufacturing partners and consolidated under one account and one warranty, ensuring your regulator rectifier for flt arrives with consistent documentation and support.
Product Specification
| Parameter | Value |
|---|---|
| OEM Reference | 74505-06 (reference only) |
| Part Type | Regulator/Rectifier |
| Finish | Chrome Plated |
| Output | 45/60 Amp |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin (FLT) | 2006-2008 | for Alternator Models |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Amperage and Plug Type for FLT Alternator Models
Connector changes and amperage requirements shift silently between model years.
When sourcing a regulator rectifier for flt, buyers often rely on old manual numbers without checking the exact plug type and amperage for the specific year. A shop once ordered a unit for Big Twin FLT models using an outdated reference. We shipped a 45-amp unit, but the later model required a 60-amp system with a different connector. The part arrived but simply would not plug in. Always confirm the exact plug type and amperage for FLT models before finalizing the order [NEED_CITE: connector and amperage changes across model years for this platform].

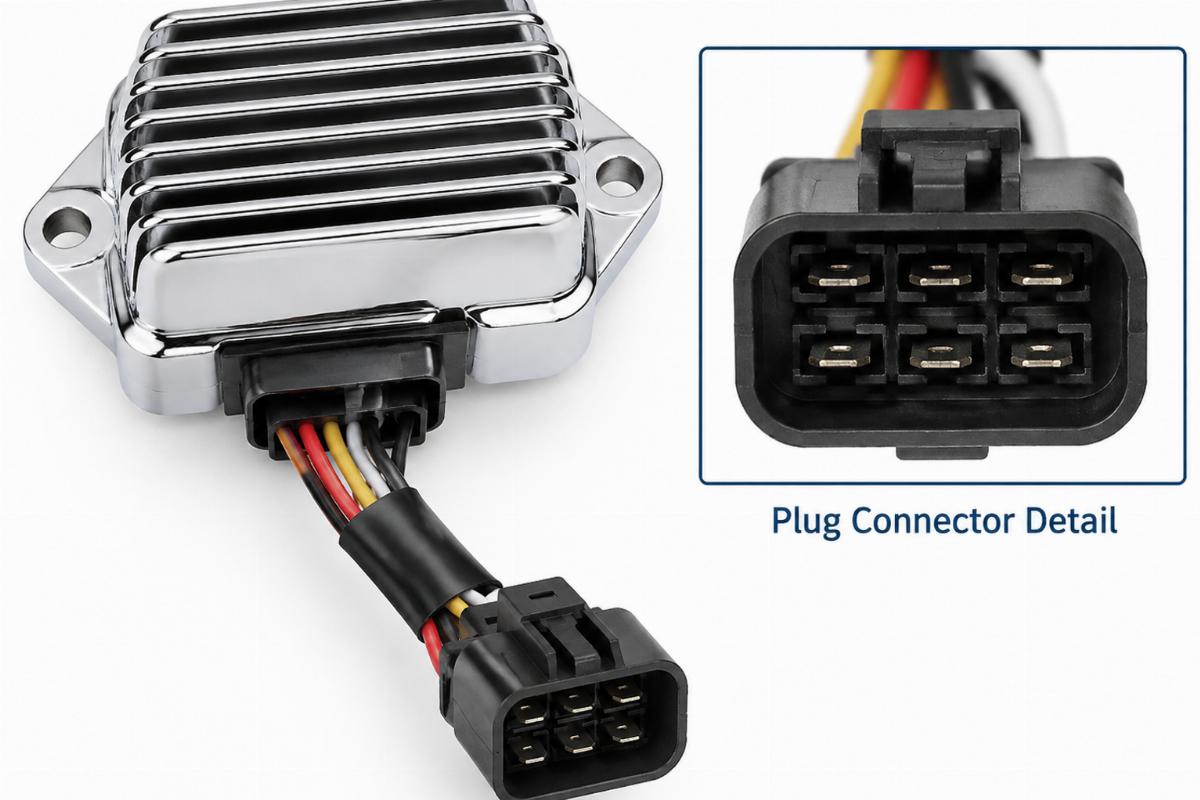

Matching the Connector to the Factory Harness
Before ordering a regulator rectifier for flt, you must verify that the plug type matches the existing wiring harness on your 2006-2008 FLT. Electrical plug types can change without obvious external cues, meaning a visual match of the casing is not enough. Compare the pin layout and connector shape against additional reference images to ensure it will mate correctly with the factory harness. This step prevents the frustration of receiving a part that physically cannot connect to the bike’s electrical system [NEED_CITE: factory service manual specifications by model year].
Understanding the 45/60 Amp Output Capacity
This unit is rated for 45/60 Amp output, specifically designed for FLT models equipped with an alternator charging system rather than a generator. The amperage capacity dictates how much current the unit can manage to keep the battery charged under load. If the charging system requirements are mismatched, the electrical system will fail to maintain voltage. Confirming whether your FLT uses an alternator setup is critical before selecting this output rating.
Chrome Plated Finish and Visual Consistency
The chrome plated finish on this regulator rectifier for flt provides a consistent appearance that matches other polished components on the bike. Finish quality can vary between batches, which becomes highly visible once parts are fitted side by side on a custom build or restoration. Sourcing from a single supplier ensures that the chrome plating maintains a uniform look across your entire order, avoiding mismatched shades of silver on the engine or frame.
The Hidden Cost of Incorrect Fitment Verification
Ordering the wrong amperage or plug type means the bike remains stuck on the lift, blocking the bay and delaying other jobs. When part numbers are superseded across model years, an old number from a manual no longer matches the physical plug on the new replacement. This leads to repeated shipping returns, wasted labor hours, and delayed revenue for the shop. Verifying the exact connector and output rating eliminates these hidden costs and keeps the workflow moving.
Why Source This Regulator/Rectifier Here
We verify fitment strictly against the platform family and model year range before providing a quotation for your regulator rectifier for flt. Our cross-reference sheets map your old numbers to 74505-06, clearly marked for reference only, so you know exactly what is being replaced. We offer a minimum order from one piece, allowing independent repair shops to order a single unit for a one-off repair without facing bulk minimums. Sample supply is available for fitment confirmation before you commit to larger bulk orders. All electrical parts are sourced from qualified partners and backed under one account, simplifying your purchasing and warranty claims.
Documentation Provided with Your Shipment
- Fitment sheet stating the 2006-2008 FLT platform and year range.
- Cross-reference sheet with 74505-06 marked reference only.
- Key dimensions including the 45/60 Amp electrical rating and connector type.
- Finish specification detailing the chrome plated surface.
- Quality inspection record and warranty terms for the electrical unit.
Receiving and Pre-Installation Checks
- Verify the 45/60 Amp rating matches your FLT alternator system requirements.
- Check the chrome plated finish for any shipping damage or plating defects.
- Confirm the plug connector shape matches your 2006-2008 FLT wiring harness.
- Ensure the unit is stored in a dry environment to protect the electrical contacts.
- Have a qualified technician inspect the solid state circuitry before final installation.
Send Your Details for a Fitment Check
To ensure this regulator rectifier for flt is the correct match, send us your exact model code and year range. Provide the old part number or a clear photograph of the original plug connector so we can verify the fitment against our cross-reference data. Let us know your required finish and quantity, and whether you need a sample unit for trial fitting before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm the plug type matches my 2006-2008 FLT wiring harness?
A: Compare the pin layout and physical shape of the connector on the new regulator rectifier for flt against your existing harness. Do not rely solely on the part number, as plug types can change silently between model years. If unsure, send a photograph of your current connector for verification.
Q: What is the difference between 45 Amp and 60 Amp regulator/rectifiers for my charging system?
A: The amperage rating indicates the maximum current the unit can handle. A 45/60 Amp unit is designed for FLT models with specific alternator charging system requirements. Using an incorrect amperage rating can lead to charging failures, so always confirm your bike’s exact system requirements.
Q: How do I cross-reference my old part number to 74505-06 to ensure it is the correct replacement?
A: Send us your old part number, and we will check it against our cross-reference sheet. We will confirm if 74505-06 is the correct aftermarket replacement for your specific model and year, ensuring the plug type and amperage match your original setup.
Q: Can I order a single regulator/rectifier for a one-off custom build or repair?
A: Yes, we support a minimum order from one piece. This allows independent repair shops and custom builders to order a single unit for a specific job without being forced to meet high bulk minimums, complete with full fitment documentation.
Q: How do I verify if my FLT model uses an alternator or generator setup before ordering?
A: Check your model’s service manual or existing charging components to confirm the presence of an alternator. This regulator rectifier for flt is specifically designed for alternator models. If your bike uses a generator, this unit will not be compatible.
