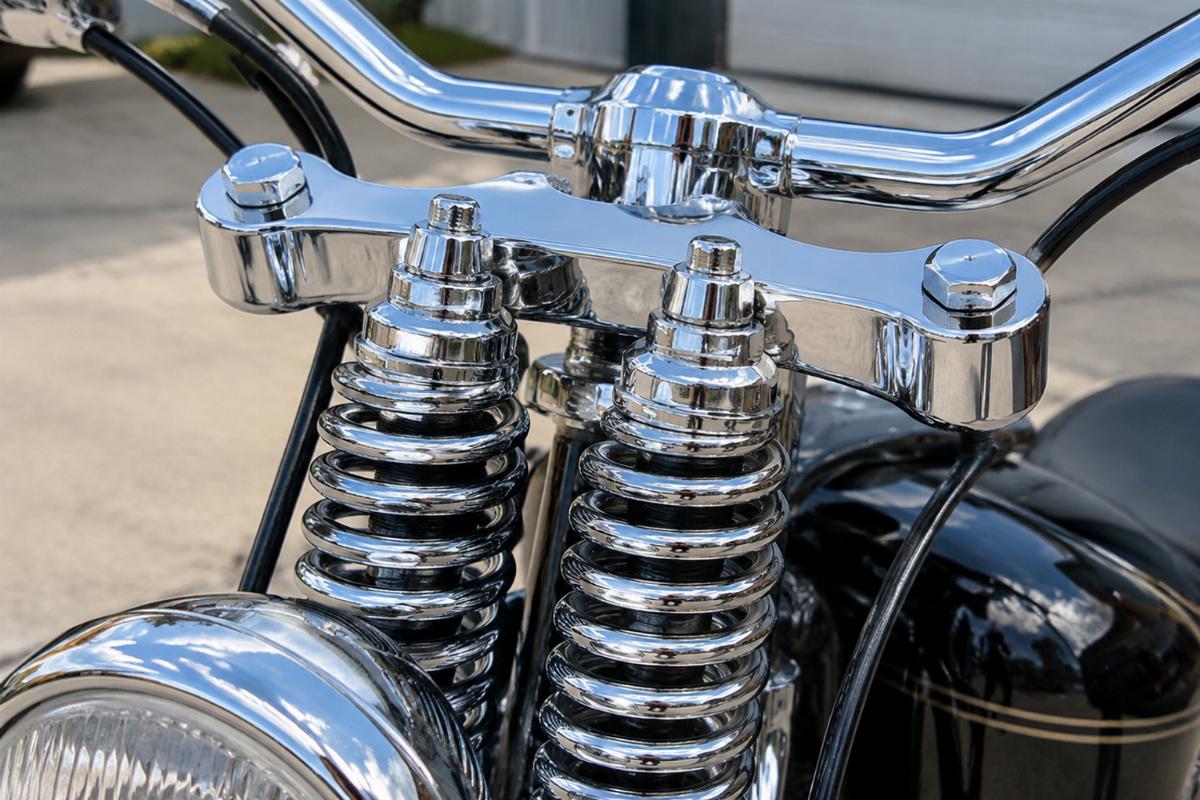

Chrome Plated Top Tree with Pinch Bolts for Wide Style Springer
Consistent Chrome Finish — Each top tree for wide style springer front ends is plated to match the included pinch bolts, eliminating batch-to-batch color variations.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Top Tree |
| Finish | Chrome Plated |
| Kit Contents | Chrome Plated Top Tree, Chrome pinch bolts |
| Fitment Platform | Wide Style Springer |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Wide Style Springer | Confirm with model and year | Verify tree width and slider spacing for your specific front end assembly. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Preventing Mismatched Chrome on Springer Builds
Finish consistency matters when assembling a unified front end.
Springer front end listings often omit pinch bolts or show visible finish variations between batches, forcing builders to source hardware separately or deal with mismatched chrome. When a top tree for wide style springer assemblies arrives with a slightly different plating tone than the fork legs, the entire front end looks unbalanced. Sourcing a complete kit with matching hardware ensures the chrome reflection remains uniform across the triple tree and mounting points. [NEED_CITE: plating batch variations in aftermarket chrome components]
Verifying Tree Width and Slider Spacing
Selecting the correct top tree for wide style springer setups requires checking the physical width between the slider mounts. A tree designed for a narrow setup will force the sliders inward, preventing the axle from seating properly and causing binding in the steering stem. Always measure the existing assembly or consult the frame geometry to confirm the spacing matches the wide style configuration before finalizing the order.
Checking Steering Stem and Neck Compatibility
Beyond the slider spacing, the steering stem diameter and neck bearing interface must align with your frame’s head cup dimensions. A mismatched stem will either rattle in the bearings or fail to seat, leading to unsafe steering play. Cross-reference the stem diameter and bearing race specifications against your frame’s head cup to ensure a direct fit for this top tree for wide style springer applications. [NEED_CITE: steering stem diameter variations across custom springer frames]
Understanding Kit Contents and Hardware

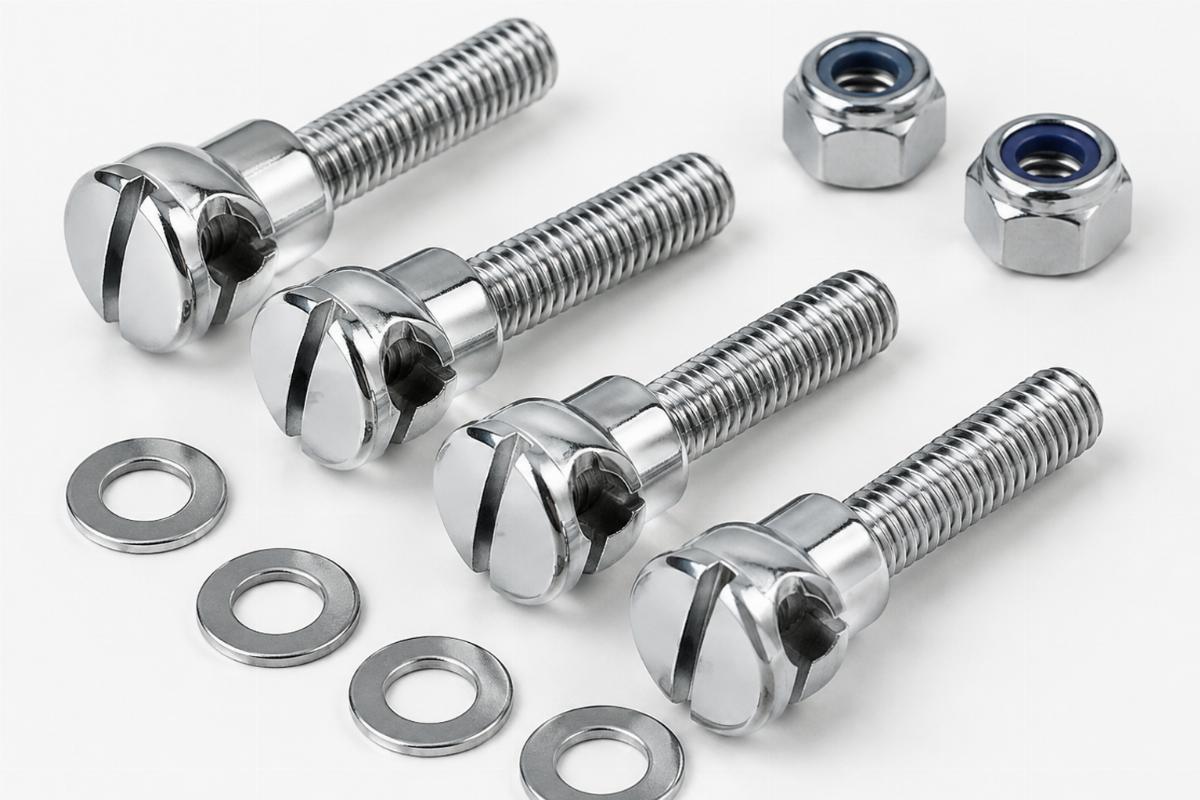

This kit includes both the chrome plated top tree and the matching chrome pinch bolts, providing all necessary upper mounting hardware in one package. Receiving the pinch bolts with the tree prevents the need to hunt for separate hardware that might feature a different thread pitch or plating quality. Having the complete upper assembly components ready simplifies the staging process before the front end goes onto the workbench.
The Cost of Incorrect Spacing Dimensions
Ordering a tree based solely on visual shape without verifying the exact width often leads to assembly failure. I once saw a shop receive a top tree that looked correct but had slider spacing off by a fraction of an inch. The sliders completely failed to align with the axle mounts, leaving the bike stranded on the lift while the builder waited for a replacement. Confirming the specific spacing dimensions prevents this exact type of downtime and wasted labor. [NEED_CITE: assembly failures due to unverified triple tree spacing]
Sourcing Verified Front End Components
We produce our springer front end and chassis hardware in-house, allowing us to control the dimensions and finish quality of every top tree for wide style springer kits. Fitment is confirmed against the platform family before quotation, ensuring the tree width matches the intended assembly. We offer a one-piece minimum order, so custom builders can purchase a single sample to verify the chrome finish and spacing before committing to a larger batch for multiple builds.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and year ranges for the top tree
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification detailing the chrome plating process
- Quality inspection record verifying tree width and stem dimensions
- Packing photographs showing the top tree and pinch bolts before dispatch
Receiving and Pre-Installation Checks
- Verify the kit includes both the chrome plated top tree and the matching pinch bolts
- Measure the tree width and compare it against your existing wide style springer assembly
- Check the steering stem diameter against your frame’s head cup bearing specifications
- Inspect the chrome finish on the tree and bolts for any plating defects or scratches
- Store the components in a dry environment to prevent surface corrosion before installation
Requesting a Fitment Check
Send your model and year, along with a photograph or the key measurements of your current front end, to verify if this top tree for wide style springer assemblies is the correct match. Providing the steering stem diameter and tree width ensures we confirm the exact spacing before dispatch. Let us know if you need a single sample to check the chrome finish consistency before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm this top tree fits my specific wide style springer front end?
A: Measure the distance between the slider mounts on your current assembly and compare it to the tree width. You must also verify the steering stem diameter matches your frame’s head cup bearings. Providing these measurements along with your model details allows us to confirm the exact fitment before you order.
Q: What key dimensions should I measure to ensure the tree width matches?
A: Measure the exact distance between the centers of the slider mounting holes. You should also check the overall width of the tree and the steering stem diameter. These dimensions dictate whether the sliders will align with the axle mounts and if the stem will seat correctly in your frame.
Q: Does the kit include all necessary pinch bolts for installation?
A: Yes, the kit includes the chrome plated top tree along with the matching chrome pinch bolts. This ensures you have the correct hardware with the proper thread pitch and finish to complete the upper assembly without needing to source separate bolts.
Q: Can I order a single sample to check the chrome finish consistency?
A: We support a one-piece minimum order, allowing you to purchase a single sample. This lets you verify the chrome plating quality and check the physical dimensions against your front end before placing a larger bulk order for multiple builds.
Q: How do I cross-reference this top tree if my original part number is superseded?
A: Send us the superseded number, your model, and year range. We will cross-reference it against our fitment data, marked reference only, and verify if the tree width and stem dimensions match your specific wide style springer application.
