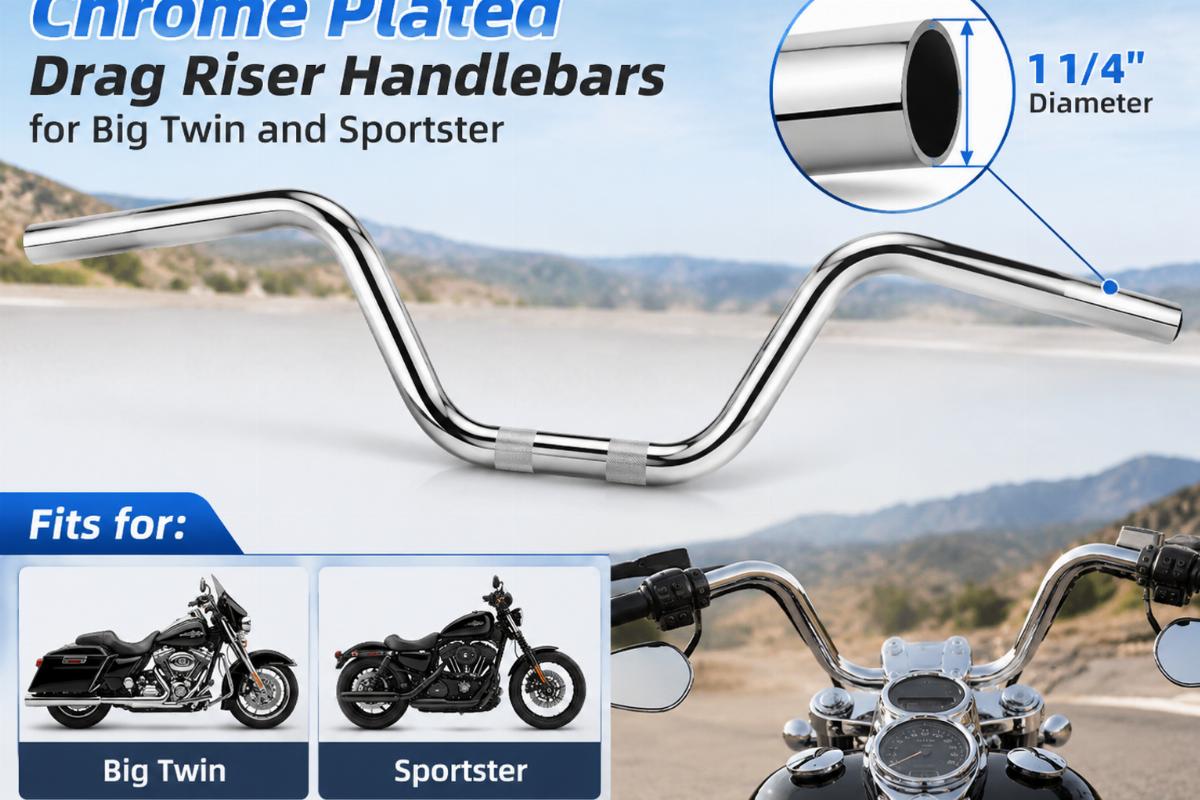

Chrome Plated Drag Riser Handlebars 1 1/4″ O.D. – Fits Big Twin & Sportster
Fitment Verified by Platform — Every handlebar is checked against Big Twin and Sportster platform families and year ranges before quotation, ensuring your drag riser handlebars for big twin and sportster match the exact clamp and switch dimensions.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Finish | Chrome Plated |
| Diameter | 1 1/4″ O.D. |
| Width | 29″ |
| Rise | 10″ |
| Pullback | 9″ |
| Thread | 1/2-13 |
| Mount Centers | 3 1/2″ |
| Switch Area | Dimpled and drilled |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | Confirm with model and year | Verify riser mount spacing and clamp diameter |
| Sportster | Confirm with model and year | Check switch housing dimple alignment |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Dimensions Ruin Handlebar Fitment
Handlebar listings often omit critical measurements, causing parts to arrive but fail to align with risers or switch housings.
When sourcing drag riser handlebars for big twin and sportster builds, buyers frequently focus only on width and rise, ignoring mount centers and switch area details. A bar might look correct in photos, but if the 3 1/2″ mount centers do not match the triple tree spacing, or if the dimples miss the switch housings entirely, the build halts. We see this happen when specifications are copied from older catalogs without verifying current platform requirements [NEED_CITE: factory service manual specifications by model year].
Checking Riser and Clamp Compatibility
Before ordering drag riser handlebars for big twin and sportster platforms, confirm that the 1 1/4″ O.D. matches your existing clamp sizes for mirrors and controls. The 3 1/2″ mount centers must align perfectly with your riser setup to prevent stress on the steering stem. If your current setup uses a different diameter or spacing, these bars will not seat correctly.
Verifying Switch Housing Alignment

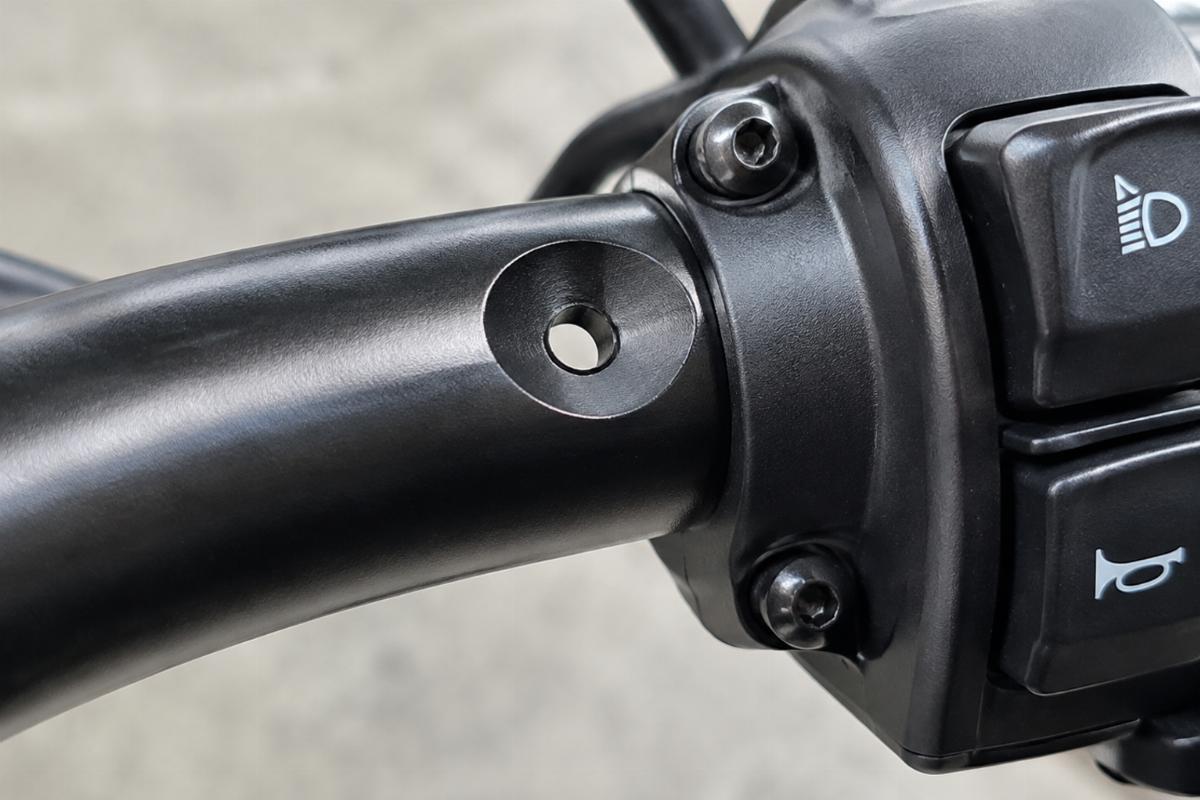

The dimpled and drilled switch area is critical for internal wiring routing. On many Big Twin and Sportster models, the switch housings require precise dimple placement to sit flush against the bar. If the dimples are misplaced or missing, the switches will not clamp securely, leading to rotating controls or damaged wiring harnesses [NEED_CITE: switch housing dimple configurations across model years].
Interpreting Key Handlebar Dimensions
The 10″ rise and 9″ pullback directly affect riding ergonomics and cable length requirements. A 10″ rise pulls the rider upright, which may require longer brake and clutch cables than stock. The 9″ pullback brings the bars closer to the seat, changing the reach. Always measure your existing cables or check manufacturer specifications before finalizing the rise and pullback for your drag riser handlebars for big twin and sportster application.
Hidden Costs of Incorrect Handlebar Specs
Ordering handlebars without verifying mount centers or thread pitch often leads to wasted time and additional shipping costs. If the 1/2-13 thread does not match your existing hardware, or if the mount centers are off by even a fraction of an inch, the bars cannot be installed safely. Shops end up with unusable inventory or must pay to return the part, delaying the customer’s build while the bike sits on the lift [NEED_CITE: return rates for mismatched control components].
Sourcing Handlebars with Confidence
We verify fitment against platform families and model year ranges before providing a quotation for any drag riser handlebars for big twin and sportster. Our catalog includes key dimensions like bar diameter, rise, width, and pullback to ensure compatibility. We accept single piece orders for custom builds or restorations, and sample supply is available for fitment confirmation before bulk orders are placed.
Documentation and Quality Records
- Fitment sheet listing each platform and year range this part was checked against
- Key dimensions including diameter, rise, width, and pullback confirmed in writing
- Chrome finish specification and quality inspection record supplied with shipment
- Cross-reference sheet available if replacing a superseded part number (reference only)
Receiving and Pre-Installation Checks
- Verify the 1 1/4″ O.D. matches your control clamps and mirror mounts before removal from packaging
- Measure the 3 1/2″ mount centers to ensure alignment with your triple tree or riser block
- Inspect the dimpled and drilled switch area for correct placement relative to your switch housings
- Check the chrome finish for consistency and ensure no shipping damage occurred during transit
- Store in a dry environment to prevent surface oxidation before installation
Requesting a Fitment Check
Send your model and year for a fitment check on these drag riser handlebars for big twin and sportster. Provide your existing handlebar measurements or a photograph of the current setup if the part number is unknown. Let us know if you require a sample for trial fitment before committing to a larger quantity for your shop or custom build.
Frequently Asked Questions
Q: How do I confirm my Big Twin or Sportster model year fits these handlebars?
A: Provide your specific model and year range during inquiry. We verify the 1 1/4″ O.D., 3 1/2″ mount centers, and dimple placement against platform specifications to ensure compatibility before quotation.
Q: What are the key dimensions to measure for drag riser handlebar fitment?
A: Measure your existing bar diameter, mount center spacing, and switch housing dimple locations. Compare these to the 1 1/4″ O.D., 3 1/2″ centers, and dimpled switch area on this part to confirm alignment.
Q: How are the switch housing dimples and drill holes configured for wiring?
A: The switch area is dimpled and drilled to allow internal wiring routing and flush mounting of switch housings. Verify the dimple placement matches your specific switch housing design before installation.
Q: Can I order a single piece for a custom build or restoration?
A: Yes, we accept single piece orders for custom builds, restorations, or repair shop replacements. Sample supply is also available if you need to confirm fitment before placing a bulk order.
Q: How is the chrome finish consistency maintained between batches?
A: We supply a chrome finish specification and quality inspection record with each shipment. This ensures the plating meets visual and durability standards, maintaining consistency across different production batches.
