Chrome Plated Ape Hanger Handlebars 18″ Rise – Fits 1982-Later
Single piece order accepted — Each set of these 18″ rise bars is checked for dimpled centers and 3 1/2″ knurling before dispatch, even for a single custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Material | Steel |
| Outer Diameter | 1″ O.D. |
| Finish | Chrome Plated |
| Rise | 18″ |
| Total Width | 33 1/2″ |
| Center Width | 8 1/2″ |
| Pullback | 7 1/2″ |
| Switch Housing Design | Dimpled for 1982/Later style |
| Wiring | Drilled for wire harness clips |
| Riser Mount | Knurled for 3 1/2″ centers |
| Throttle Setup | Designed for external throttle cables |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Later | Designed for 1982/Later style switch housings |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Switch Housing Dimples Before Ordering Ape Hanger Handlebars for 1982-Later

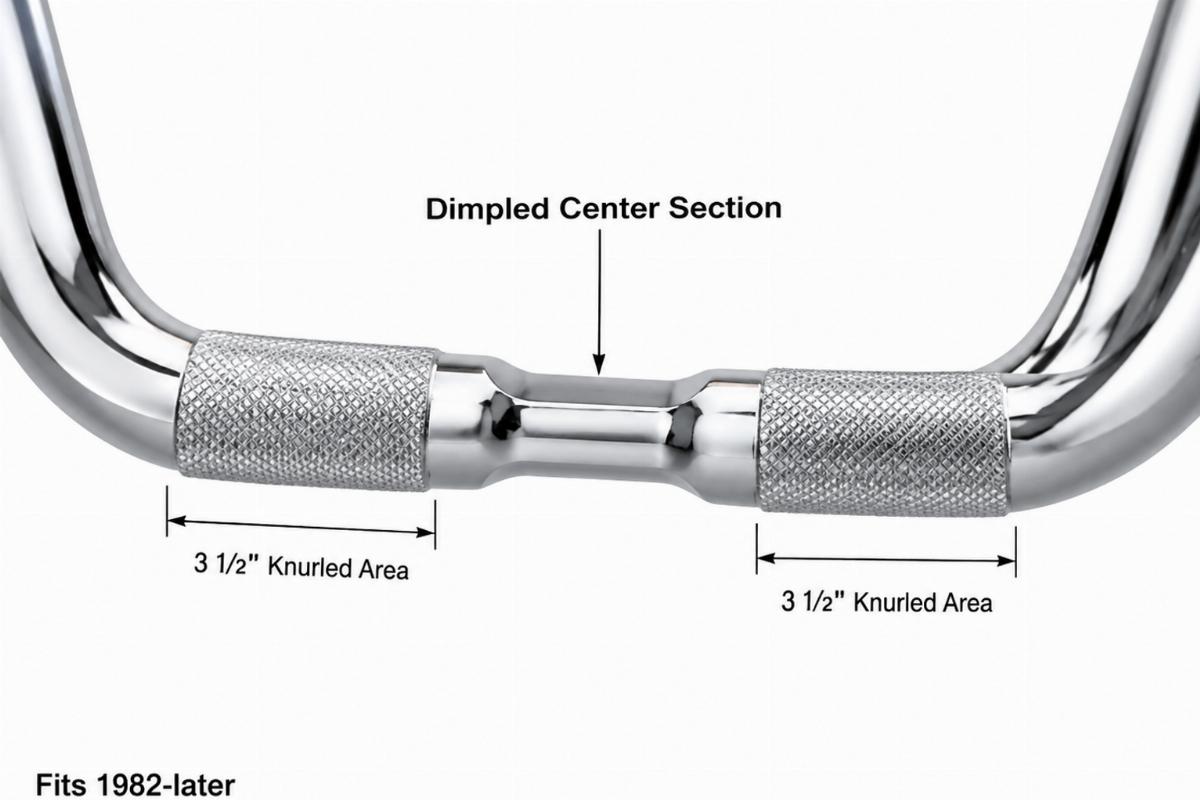

Dimpled centers are mandatory for 1982 and later switch housings.
I once sent a set of ape hanger handlebars for 1982-later models to a shop without double-checking their exact build year. The bars had dimpled centers for the newer switch housings, but their bike was a 1981 model requiring smooth bars. The switch housings would not sit flush against the steel, forcing the entire front end to be torn down again. That mistake taught me to always verify if the bars need to be smooth or dimpled, and whether the 3 1/2″ center knurling matches the risers, before anything leaves the warehouse [NEED_CITE: switch housing design changes across model years for this platform].
Checking Riser Center Spacing for Proper Clamp Grip
When fitting these ape hanger handlebars for 1982-later models, the 8 1/2″ center width must align with your riser setup. The 3 1/2″ knurled section is specifically designed to bite into the riser clamps, preventing the 1″ O.D. steel bars from rotating under throttle load. If your risers are mounted on different centers, the clamps will sit on the smooth or un-knurled steel, compromising grip. Always measure your riser spacing against this 3 1/2″ knurled zone before finalizing the build [NEED_CITE: riser mounting center specifications by model and year].
Routing External Throttle Cables with Drilled Bars

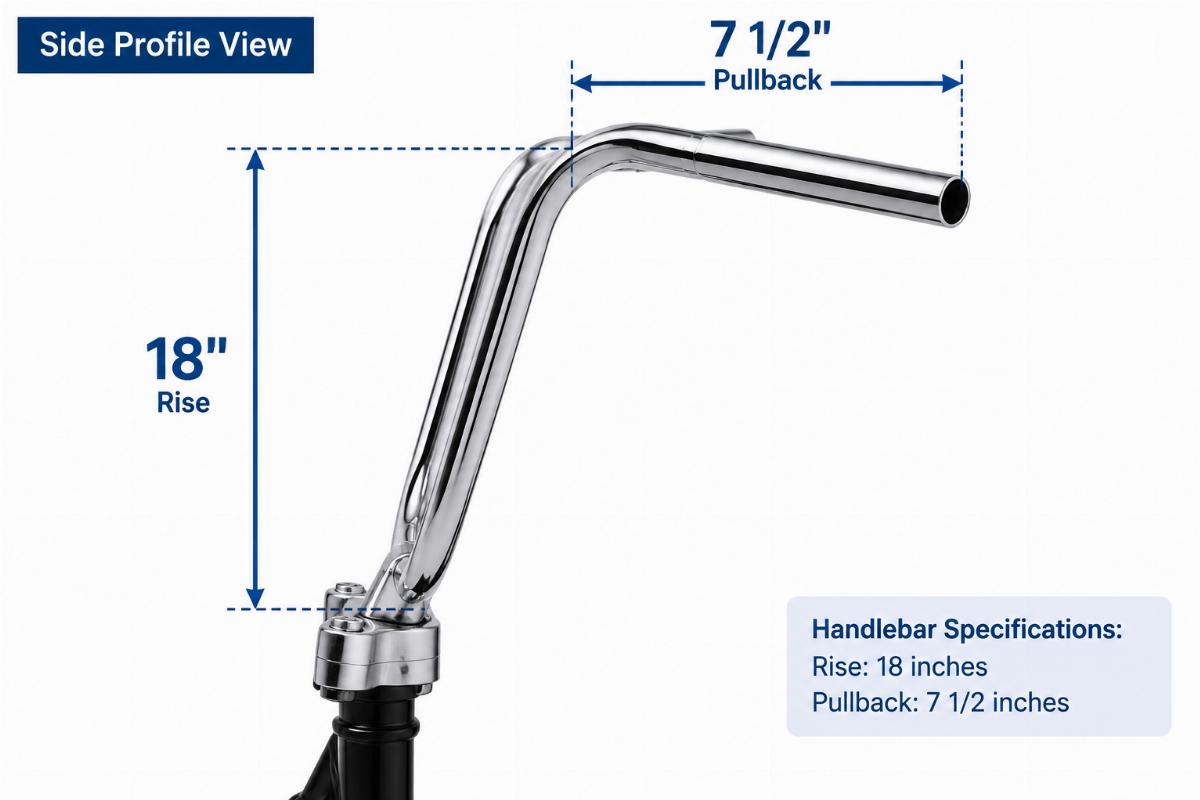

These handlebars feature pre-drilled holes specifically intended for wire harness clips, keeping the wiring tidy along the 18″ rise and 33 1/2″ total width. Because they are designed for external throttle cables, you will not be routing cables internally through the steel tubes. This setup requires careful measurement of your external cable lengths to accommodate the 7 1/2″ pullback and the height of the ape hanger profile. Ensure your cable routing accounts for the full steering lock without binding [NEED_CITE: external cable routing requirements for high rise handlebars].
The Hidden Cost of Overlooking Bar Diameter and Pullback
Ordering handlebars without confirming the exact rise, width, and pullback often leads to stalled projects. A 33 1/2″ total width might be too wide for a rider’s shoulder stance, while a 7 1/2″ pullback changes the reach to the controls, affecting comfort and leverage. If the 1″ O.D. does not match your existing controls or riser clamps, the parts sit in a box while the bike occupies a lift. Verifying these dimensions against your specific frame geometry prevents costly return shipping and rebuild delays [NEED_CITE: ergonomic dimensions and control compatibility across custom builds].
Sourcing Fitment-Checked Handlebars for Custom Builds
We confirm fitment against the platform family and model year range before quotation, ensuring these dimpled bars match your 1982-Later style switch housings. Our catalogue provides detailed key dimensions, including the 18″ rise and 8 1/2″ center width, so you know exactly what is arriving. We offer chrome plated finish options on main front-end and control lines, maintaining consistency across your build. You can order a single piece for a custom shop project without meeting high minimum order quantities. We also supply samples for fitment confirmation before you commit to bulk orders for your dealership or distribution line.
Documentation and Build Records
- Fitment sheet stating applicable platforms and the 1982-Later year range
- Key dimensions sheet listing rise, total width, center width, and pullback
- Finish specification detailing the chrome plated surface treatment
- Quality inspection record verifying dimpled and drilled features
- Cross-reference sheet with OEM numbers marked reference only
- Warranty terms covering material and finish defects
Pre-Installation Inspection Checklist
- Verify the 1″ O.D. matches your riser clamps and control housings
- Confirm the dimpled centers align perfectly with 1982/Later style switch housings
- Check that the 3 1/2″ knurled section is free of plating defects for riser grip
- Measure the 18″ rise and 33 1/2″ width against your custom build geometry
- Ensure drilled holes are clear for wire harness clips before routing
- Store in a dry environment to protect the chrome plated finish before installation
Requesting a Fitment Check for Your Project
Send your model and year for a fitment check to confirm these ape hanger handlebars for 1982-later models match your switch housing style. Provide your riser center spacing and a photo of your current controls if the part number is unknown. Let us know if you need a single piece for a custom build or a sample for fitment confirmation before a larger order.
Frequently Asked Questions
Q: How do I know if these handlebars fit my specific model year?
A: These bars are designed for 1982-Later models requiring dimpled centers for the switch housings. If your bike is a 1981 or earlier model, it likely requires smooth bars. Always verify your switch housing style and riser center spacing against the 18″ rise and 3 1/2″ knurled section specifications before ordering to ensure a proper fit.
Q: What are the exact dimensions of these ape hanger handlebars?
A: The handlebars feature an 18″ rise, a 33 1/2″ total width, an 8 1/2″ center width, and a 7 1/2″ pullback. The outer diameter is 1″ O.D. steel. These dimensions are critical for determining rider reach, riser compatibility, and overall stance, so measure your current setup or frame geometry to confirm they meet your build requirements.
Q: Are these handlebars drilled for internal or external wiring?
A: These handlebars are drilled for wire harness clips and designed specifically for external throttle cables. They are not drilled for internal wiring routing through the bars. You will need to use external cable setups and secure the wiring harness along the outside of the bars using the provided drilled holes and clips.
Q: Can I order a single set for a custom build?
A: Yes, we accept minimum orders from one piece, making it easy to source parts for a single custom build or restoration project without meeting high bulk thresholds. We also offer sample supply for fitment confirmation before you place larger orders, ensuring the dimpled centers and dimensions match your specific requirements.
