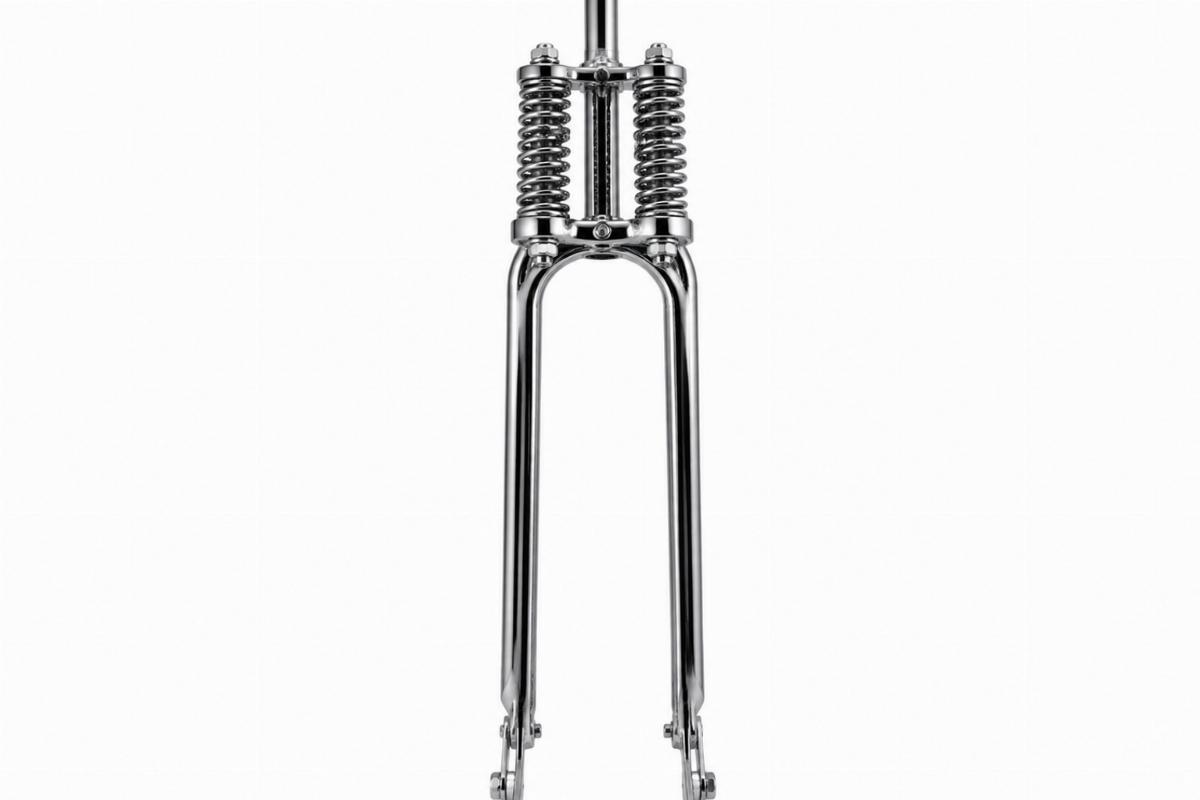

Chrome Narrow Springer Fork Assembly 27″ – Fitment Checked
Front-End Depth Verified — Complete springer assemblies with multiple over-stock lengths checked against specific platform families and year ranges before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |
| Finish | Chrome |
| Length | 27″ (4″ over stock) |
| Axle Hole | 3/4″ |
| Top Tree | Without ears |
| Leg Thread | 1/2″-20 (drilled and tapped to mount risers) |
| Rockers | Same on each side, not offset on right side |

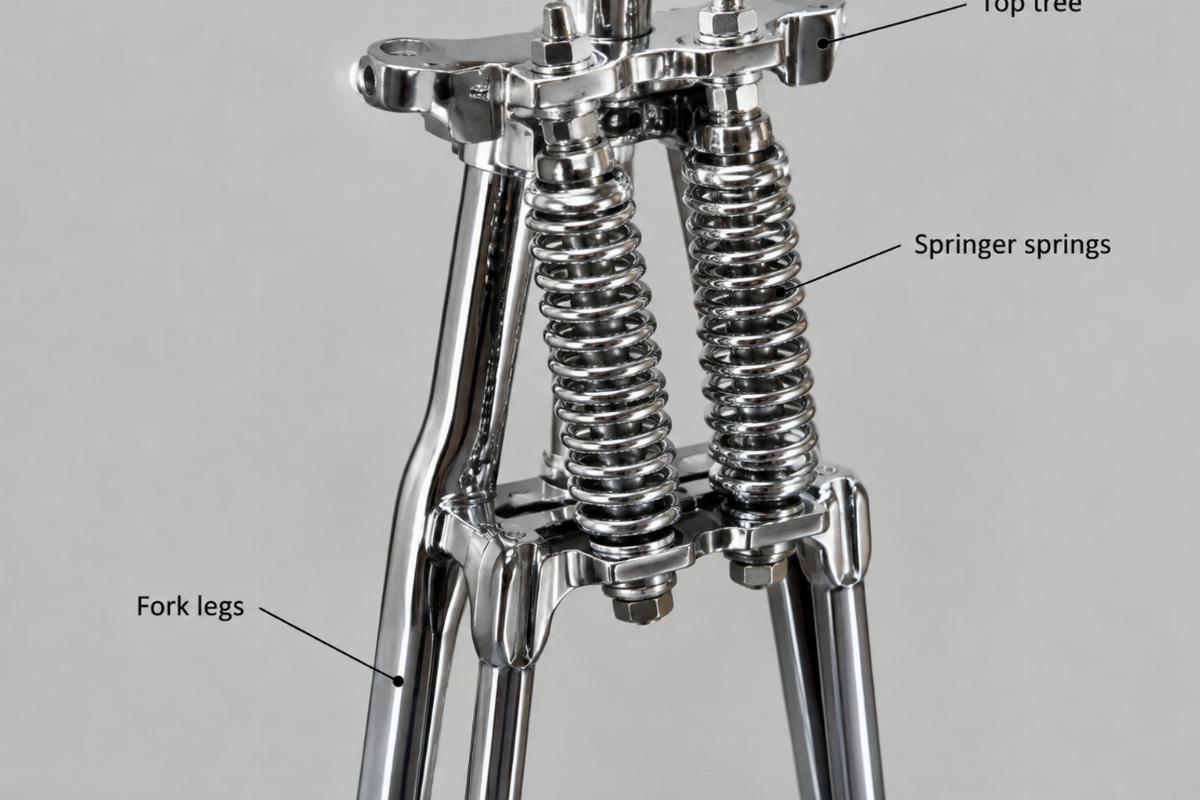

| Kit Contents | Rockers, top tree, fork legs |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year. Verify frame neck width and axle diameter. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Lengths Cause Steering Geometry Issues
A 27″ narrow springer fork assembly changes rake and trail significantly compared to stock setups.
Builders often order extended front ends without calculating the final ride height or steering geometry impact [NEED_CITE: frame geometry calculations for over-stock springer lengths]. When a 4″ over-stock length is installed on a frame not designed for that specific extension, the steering head angle shifts, altering how the bike tracks through corners. We see custom shops stall on the lift because the front end pushes wide or feels unstable at low speeds, entirely due to unverified length changes rather than a manufacturing defect.
Confirming Frame Neck Width and Triple Tree Spacing
The narrow profile of this narrow springer fork assembly requires exact frame neck width measurements before installation. If the triple tree spacing does not match your specific frame’s steering stem dimensions, the top tree will not seat correctly, leading to binding or excessive play in the steering head. Always measure the inner and outer races of your frame neck to ensure the without-ears top tree design aligns perfectly with your steering stem setup.
Verifying Axle Diameter and Hub Compatibility
The 3/4″ axle hole on the included rockers must match your wheel hub’s axle diameter precisely. A mismatch here means the wheel cannot be secured safely, forcing a return to the bench to source different spacers or a different hub [NEED_CITE: axle diameter variations across custom wheel builds]. We always recommend measuring the hub width and axle size of your specific wheel before finalizing the front-end build to avoid mid-assembly delays.
Interpreting Fork Leg Threading and Riser Mounts
The fork legs on this narrow springer fork assembly are drilled and tapped with a 1/2″-20 thread specifically to mount handlebar risers directly. This threading depth and pitch dictate which riser bolts you can use and how much clamping force is applied to the handlebars. If your chosen risers require a different thread pitch or rely on pinch bolts instead of direct leg threading, you will need to adapt your mounting strategy or select different risers.
The Hidden Cost of Unverified Rocker Offsets
Assuming rockers are offset for the right side when they are actually identical on both sides can ruin a custom build’s symmetry and brake alignment. We once saw a shop halt a build because they expected a right-side offset for a specific brake caliper mount, but the identical rockers required them to fabricate a custom adapter [NEED_CITE: brake caliper mounting variations on custom springer builds]. This narrow springer fork assembly features identical rockers on each side, meaning your brake and axle alignment must be planned around this symmetrical design from the start.
Sourcing Complete Front-End Kits with Fitment Checks
We supply this narrow springer fork assembly as a complete kit including rockers, top tree, and fork legs to eliminate missing hardware delays. Every unit undergoes a fitment check against your stated platform and year range before dispatch, ensuring the 27″ length and 3/4″ axle hole match your project requirements. Our one-piece minimum order allows custom builders to procure a single verified assembly without being blocked by high minimums, backed by a fitment sheet confirming the exact dimensions checked.
Documentation Provided
- Fitment sheet listing each year range this part was checked against
- Key dimensions including 27″ fork length over stock and 3/4″ axle hole
- Finish specification for the chrome plating process
- Quality inspection record verifying rockers and top tree alignment
- Packing photographs showing the complete kit contents
Receiving and Pre-Installation Checks
- Verify the kit includes rockers, top tree, and fork legs upon arrival
- Measure the 27″ overall length and 4″ over-stock extension against your frame
- Check the 3/4″ axle hole on rockers against your wheel hub axle
- Inspect the chrome finish for any shipping damage or plating defects
- Confirm the 1/2″-20 threads on fork legs are clear of debris before mounting
Send Your Details for a Fitment Check
Provide your exact model code, year range, and a photograph of your current steering neck or front end to begin the verification process. Include the measured frame neck width and wheel hub axle diameter to ensure this narrow springer fork assembly matches your custom build. Let us know if you require a sample for physical fitment confirmation before committing to a bulk order.
Frequently Asked Questions
Q: How do I confirm my motorcycle model and year will fit this narrow springer assembly?
A: You must provide the exact model code, year range, and frame neck width. We verify the 27″ length and without-ears top tree against your specific platform family before dispatch. A fitment sheet detailing the confirmed year ranges is included with your documentation.
Q: Does this kit include the triple tree, rockers, and fork legs?
A: Yes, this narrow springer fork assembly is supplied as a complete kit containing the rockers, top tree, and fork legs. All necessary front-end structural components are included to ensure you have everything required for the custom build without waiting for missing hardware.
Q: Are the rockers offset for the right side or identical on both sides?
A: The rockers on this assembly are identical on both sides and are not offset on the right side. You must plan your brake caliper mounting and axle alignment based on this symmetrical design, as they do not feature a dedicated right-side offset.
