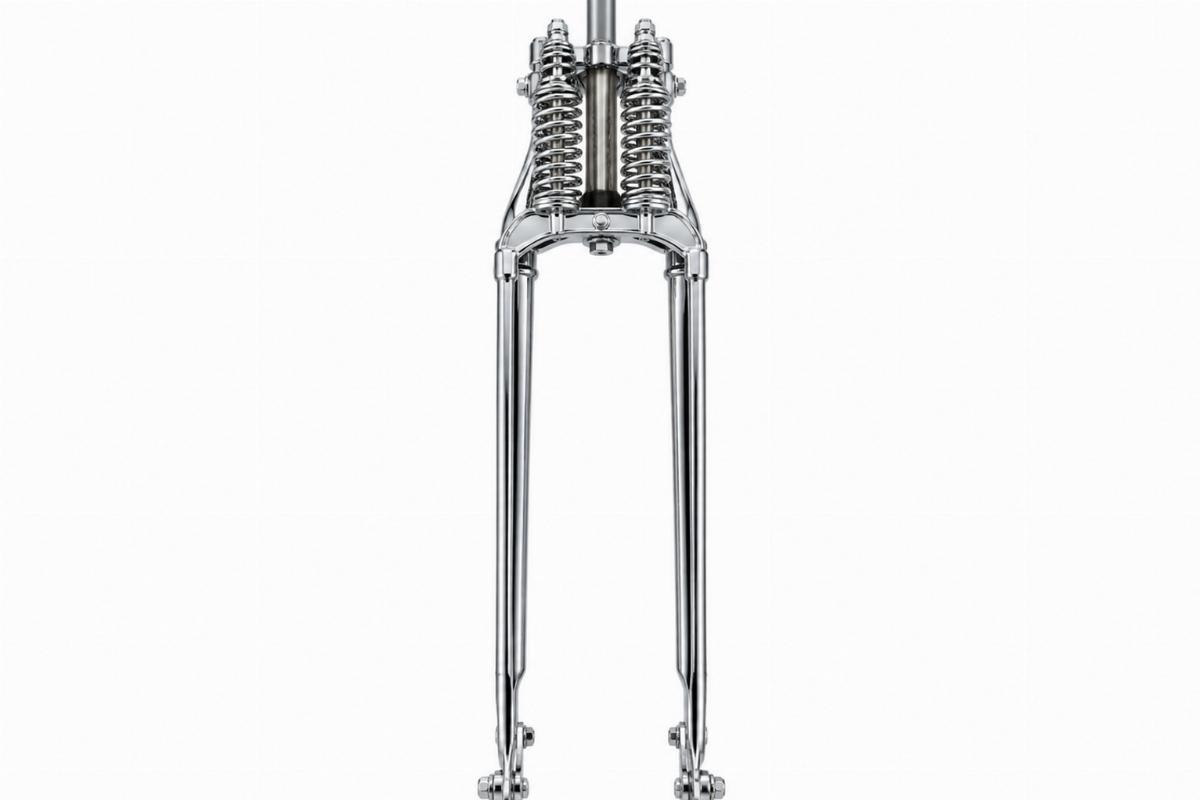

Chrome Narrow Springer Fork Assembly 23″ – Aftermarket
Single-piece minimum order — Custom builders and repair shops can order one narrow springer fork assembly for a specific build without meeting bulk thresholds, backed by fitment verification before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Narrow Springer Fork Assembly |
| Finish | Chrome |
| Length | 23″ stock length |
| Axle hole | 3/4″ |
| Top tree | Without ears |

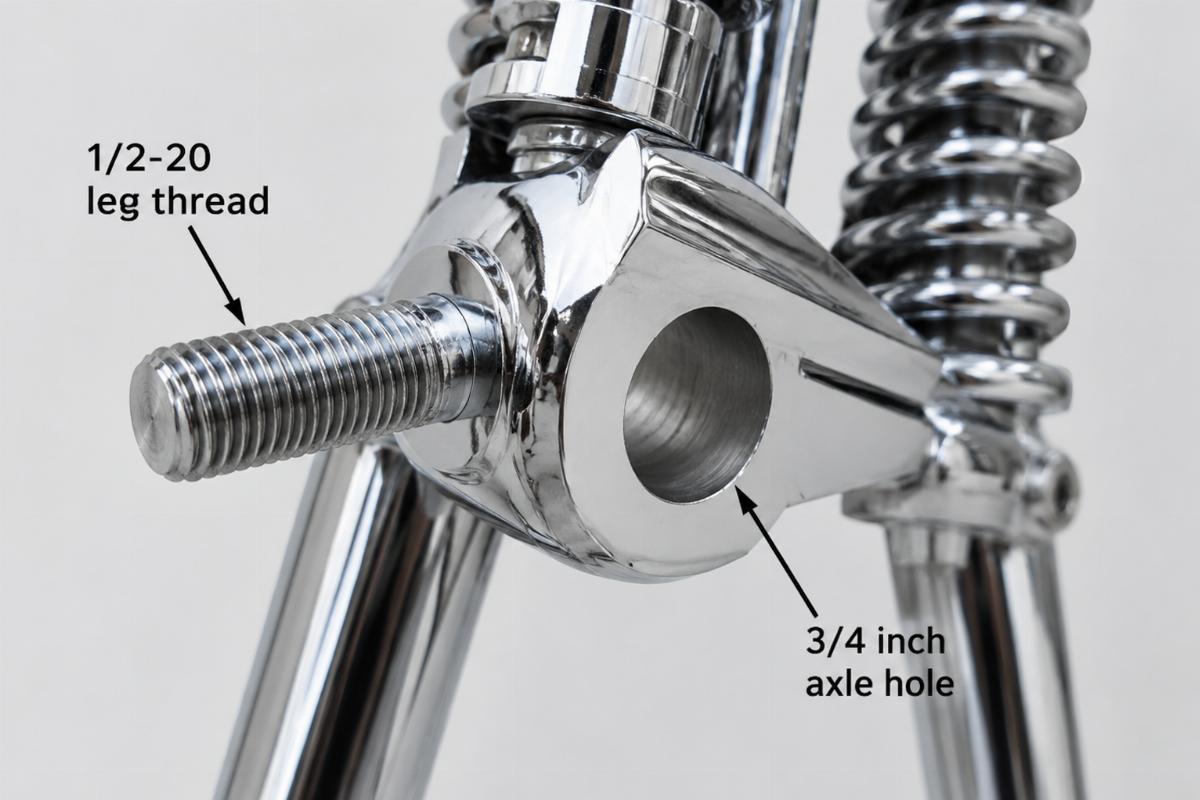

| Leg thread | 1/2″-20 |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Not stated | Confirm with model and year; rockers are the same on each side, not offset on right side |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Eliminating Geometry Guesswork with Definite Lengths
Clear stock-length specs prevent steering geometry errors.
When a narrow springer fork assembly is listed without a definitive overall length, builders cannot accurately predict ride height or steering geometry. This ambiguity often leads to custom frames requiring costly rework after the front end is already mounted. Verifying the exact 23″ stock length and rocker configuration ensures the build plan matches the physical part before fabrication begins [NEED_CITE: frame geometry calculations based on fork length and rake].
Verifying Rocker Offset and Model Year Match
I started out verifying part numbers in the warehouse before moving to fitment support, and I still remember a customer who ordered a springer front end without specifying the exact model year. We sent the standard setup, but the rockers on the later models are the same on each side and not offset on the right side like the earlier ones. The front axle did not align, and the whole assembly had to be torn down. That mistake taught me to always double-check the exact model year and rocker offset before quoting a custom springer. This specific narrow springer fork assembly features identical rockers on both sides, which must be matched to the correct frame year to avoid axle misalignment [NEED_CITE: rocker offset variations across model years for springer platforms].
Matching Triple Tree Spacing and Axle Dimensions
Proper fitment of a narrow springer fork assembly requires confirming the frame neck dimensions and triple tree spacing, especially for narrow glide setups. The top tree on this unit is manufactured without ears, which dictates the specific triple tree style needed to secure the steering stem correctly. Additionally, the 3/4″ axle hole on the rockers must align perfectly with the front axle diameter of the wheel hub. Overlooking these dimensional details results in a front end that binds or fails to seat properly in the frame neck [NEED_CITE: steering stem and triple tree spacing specifications by frame family].
Interpreting Core Dimensions for Build Planning
The 23″ stock length is measured to provide a predictable ride height that maintains the intended chassis proportions without altering the steering head angle. A 3/4″ axle hole is a standard dimension that requires matching the correct axle hardware and wheel hub spacing to prevent lateral play. The legs are drilled and tapped with a 1/2″-20 thread, which is the standard pitch for mounting handlebar risers directly to the fork legs. Understanding how these specific dimensions interact with your frame and handlebar choices is essential for a successful assembly.
The Hidden Cost of Incorrect Rocker Identification
Ordering a front end without confirming the rocker configuration often results in the bike sitting in the bay while the builder waits for a replacement. If a narrow springer fork assembly with symmetrical rockers is installed on a frame designed for an offset right-side rocker, the front axle will not align with the caliper mounts or the wheel spacers. This forces a complete teardown of the front end, wasting labor hours and delaying the build. Verifying the rocker style against the specific model year prevents this costly misalignment and ensures the axle seats correctly.
Sourcing Front Ends with Verified Dimensions
We manufacture our own springer front ends and chassis hardware, allowing us to verify every dimension before the narrow springer fork assembly leaves our facility. You can order a single piece for a custom build without being blocked by minimum order quantities. Every unit is checked against platform families and model year ranges to confirm the 23″ length and rocker style match your requirements. We also provide cross-reference data against original part numbers marked for reference only, helping you identify the correct replacement when older manual numbers have been superseded.
Documentation Provided with Your Shipment
- Fitment sheet stating applicable platforms and year ranges checked before dispatch
- Key dimensions including 23″ fork length and 3/4″ axle hole size confirmed
- Finish specification and quality inspection record for the chrome plating
- Cross-reference sheet with original numbers marked reference only
- Packing photographs showing the top tree without ears and leg threads
Receiving and Pre-Installation Checks
- Verify the 23″ stock length matches your build plan before removing packaging
- Confirm the rockers are identical on both sides and not offset on the right
- Check the 1/2″-20 leg threads for any shipping damage before mounting risers
- Inspect the chrome finish for consistency across the legs and top tree
- Ensure the 3/4″ axle holes align smoothly with your axle hardware
- Have a qualified technician verify frame neck dimensions before final assembly
Requesting a Fitment Check for Your Build
Send your exact model and year along with any old part photographs or key measurements to initiate a fitment check. Let us know if you require the chrome finish and whether you need a single unit or a sample for trial fitting. We will verify the rocker offset and triple tree spacing against your specific frame before confirming the quotation.
Frequently Asked Questions
Q: How do I confirm if this 23″ narrow springer fits my specific frame and year?
A: You must verify the frame neck dimensions, triple tree spacing, and the required rocker offset for your specific model year. This narrow springer fork assembly features identical rockers on both sides, which fits frames designed for symmetrical rocker setups. Send your model and year for a fitment check to confirm compatibility before ordering.
Q: What dimensions should I measure on my frame before ordering this assembly?
A: Measure the steering stem diameter, the triple tree spacing, and the distance from the frame neck to the axle to ensure the 23″ stock length maintains your desired ride height. You must also confirm the front axle diameter matches the 3/4″ rocker hole on this narrow springer fork assembly to guarantee proper wheel alignment.
Q: Are the rockers offset or identical on both sides for this assembly?
A: The rockers on this narrow springer fork assembly are identical on both sides and are not offset on the right side. This configuration is specific to certain model years, so you must verify your frame requirements to ensure the front axle will align correctly with the wheel hub and brake components.
Q: Can I order a single springer fork assembly for a custom build?
A: Yes, we support single-piece minimum orders for custom builders and repair shops working on individual projects. You can order one narrow springer fork assembly in the 23″ stock length with the chrome finish, and we will verify the fitment against your frame specifications before dispatching the unit.
