Chrome Narrow Springer Fork Assembly 23″ 3/4″ Axle – Aftermarket Replacement
Consistent Chrome Finish — Every narrow springer fork assembly 23″ undergoes strict batch inspection to ensure uniform plating across all components before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 23″ stock length |
| Axle Hole | 3/4″ |
| Top Tree | Without ears |
| Leg Thread | 1/2″-20 (drilled and tapped to mount risers) |
| Rocker Configuration | Same on each side, not offset on right side |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year. Verify 3/4″ axle hole and 1/2″-20 leg thread pitch match your specific front hub and riser setup. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Axle and Thread Pitch for Your Custom Springer Build
Builders often receive a narrow springer fork assembly 23″ only to discover the axle hole or riser threads do not align with their existing hardware. When the 3/4″ axle hole is slightly off from your specific front hub spacing, or the 1/2″-20 leg thread pitch mismatches your chosen risers, the entire front end sits unassembled on the workbench. This mismatch forces shops to either machine new adapters or wait weeks for a replacement, completely halting the build schedule [NEED_CITE: axle spacing variations across custom front wheel setups].
Checking Rocker Symmetry Before Installation
A common mistake during assembly is assuming the rockers have a specific left or right orientation. On this narrow springer fork assembly 23″, the rocker configuration is exactly the same on each side and is not offset on the right side. Forcing a rocker onto the wrong leg because of an assumed offset will immediately misalign the 3/4″ axle hole, preventing the wheel from seating properly. Always verify this symmetry against your front wheel setup before tightening any hardware [NEED_CITE: rocker symmetry requirements for springer front ends].
Understanding the Earless Top Tree Design

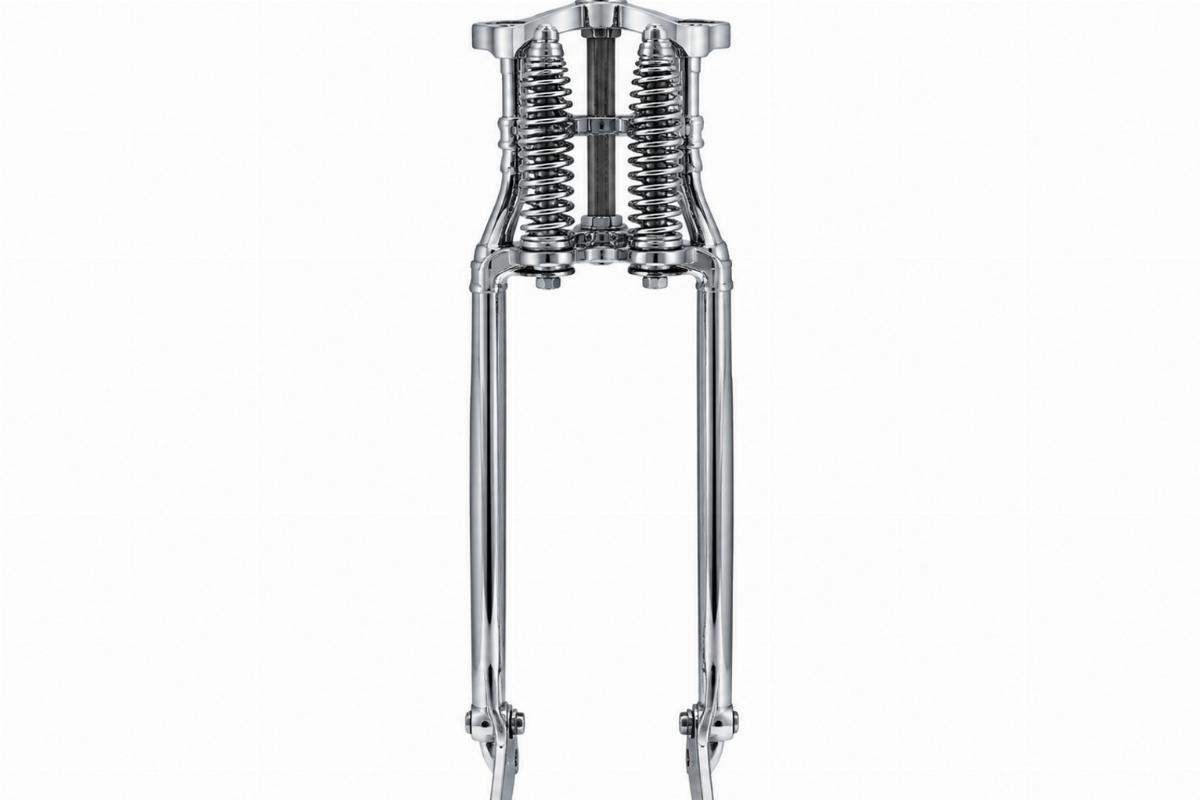

The top tree on this unit is designed without ears, which directly impacts how your handlebars and steering stem will interface with the fork. Without ears, the clamping area and stem nut access differ from traditional designs, requiring you to confirm your specific triple tree or handlebar riser setup can accommodate this profile. This earless top tree design dictates the exact steering geometry and bar rise you can achieve, making it critical to measure your current stem requirements before ordering.
The Hidden Cost of Ignoring Leg Thread Specifications
The legs on this narrow springer fork assembly 23″ are drilled and tapped to a 1/2″-20 thread specifically to mount risers. If a builder ignores this thread pitch and orders risers with a different thread, the risers will cross-thread or fail to seat, damaging the chrome finish on the legs. Re-tapping or replacing the legs after they arrive on site adds unexpected labor costs and delays the project, turning a simple front-end swap into a major setback [NEED_CITE: thread pitch mismatches in custom handlebar installations].
Sourcing Front End Components with Fitment Certainty
We produce our springer front ends in-house, allowing us to verify the 23″ stock length and 3/4″ axle hole dimensions against your specific platform before quotation. Our catalogue offers deep front-end coverage, meaning you can source this complete assembly alongside early springer parts or hydraulic fork components from a single account. We maintain strict quality control on our chrome finish options to ensure batch consistency, and we support a minimum order from one piece, allowing custom shops to order a single unit for a one-off build without meeting high volume thresholds.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for your specific build.
- Key dimensions sheet detailing the 23″ fork length over stock and 3/4″ axle hole size.
- Finish specification document ensuring chrome batch consistency across your order.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Quality inspection record verifying the 1/2″-20 leg thread pitch and rocker symmetry.
- Packing photographs showing the earless top tree and included rockers before dispatch.
Receiving and Pre-Installation Checks
- Verify the kit includes the rockers and earless top tree as specified for this assembly.
- Confirm the 3/4″ axle hole aligns perfectly with your front hub and brake setup.

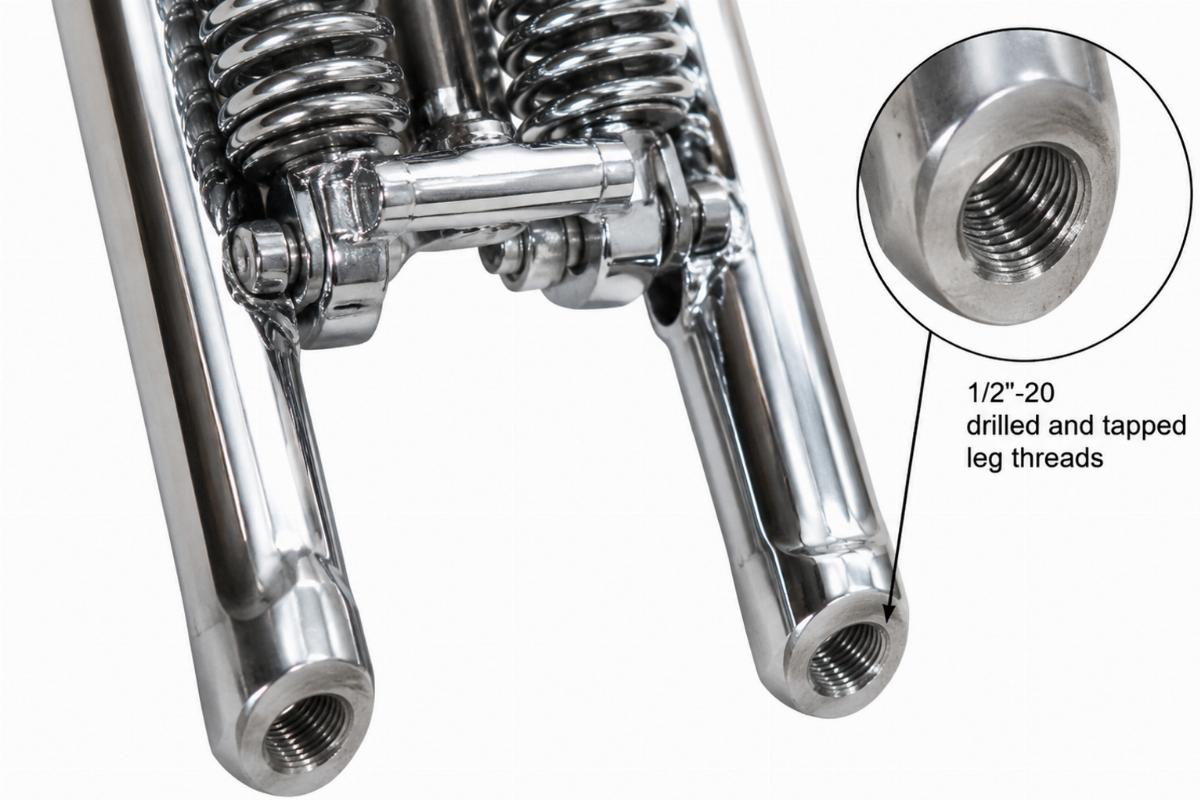

- Check that the 1/2″-20 drilled and tapped leg threads are clean and undamaged.
- Inspect the chrome finish on all legs and rockers for any plating inconsistencies.
- Ensure the rockers are identified as symmetrical and not offset on the right side.
- Store the assembly in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your current front hub and risers, so we can verify if this narrow springer fork assembly 23″ is the correct match for your project. Providing your required finish and quantity helps us check stock and batch consistency. Let us know if you need a sample supply for fitment confirmation before placing a bulk order for your shop.
