Chrome Narrow Springer Fork Assembly 2″ Under Stock – Fitment Checked
Consistent Chrome Finish — Every narrow springer fork assembly undergoes strict finish inspection to ensure batch-to-batch visual matching for your custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 2″ under stock length |
| Rocker Axle Hole | 3/4″ |
| Top Tree | Without ears |
| Leg Thread | 1/2″-20 |
| Rocker Configuration | Same on each side, not offset on right side |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Geometry Clarity Matters for a Narrow Springer Fork Assembly
A 2″ under stock length changes ride height and steering geometry, requiring exact frame verification.
Builders often receive springer forks with vague length statements, making it impossible to judge the final stance or steering response. When a narrow springer fork assembly drops the front end by 2 inches, it alters the rake and trail significantly. Without knowing the exact stock baseline of your specific frame, you cannot predict how the bike will handle or if the fender will clear the tire. We provide exact dimensional data so you can calculate the geometry before cutting or welding [NEED_CITE: frame geometry calculations based on stock vs. under-stock fork lengths].

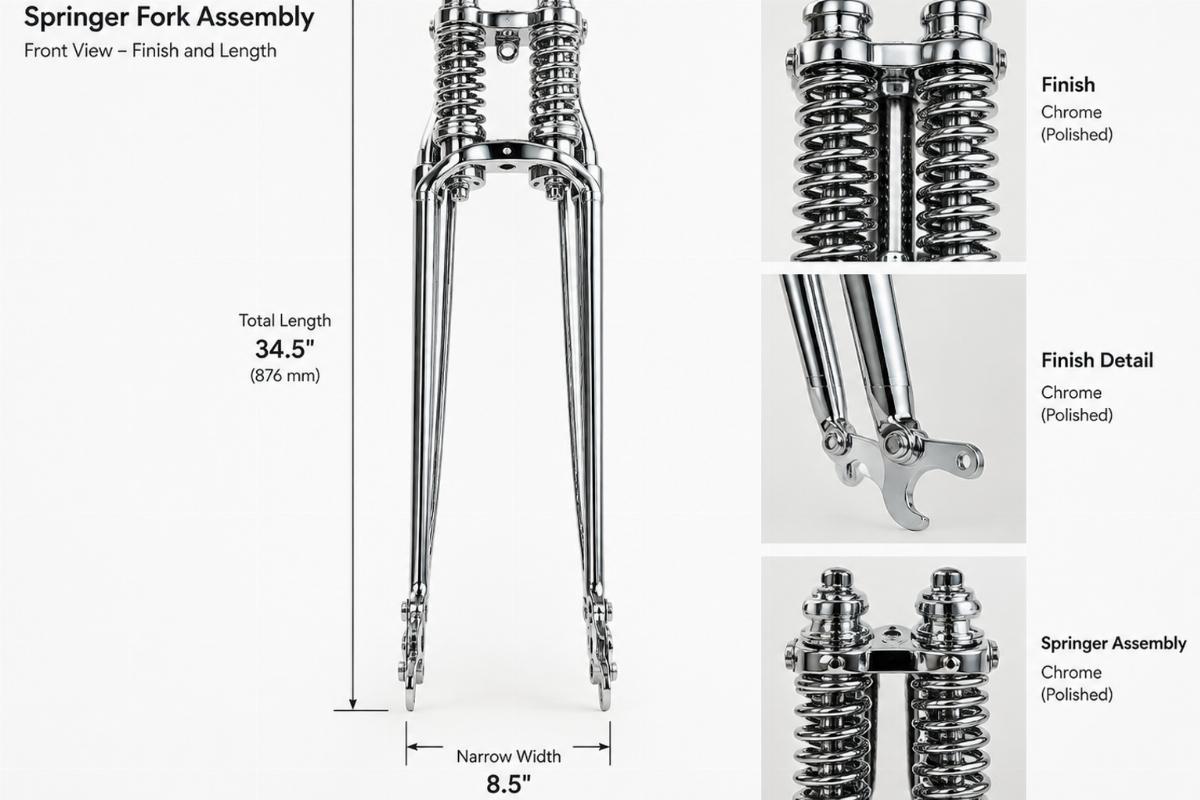

Verifying the 2-Inch Drop and Top Tree Setup
This narrow springer fork assembly is built to sit exactly 2 inches under the stock length. This specific drop is chosen to lower the front end for a customized stance, but it demands that your frame neck and triple tree spacing can accommodate the shorter assembly. The top tree is manufactured without ears. If your custom build requires earless mounting to maintain a clean, streamlined look across the steering neck, this specification aligns perfectly. Always measure your current neck spacing to ensure the earless design will not interfere with your specific headlight or handlebar mounting plans [NEED_CITE: steering neck spacing variations across custom frames].

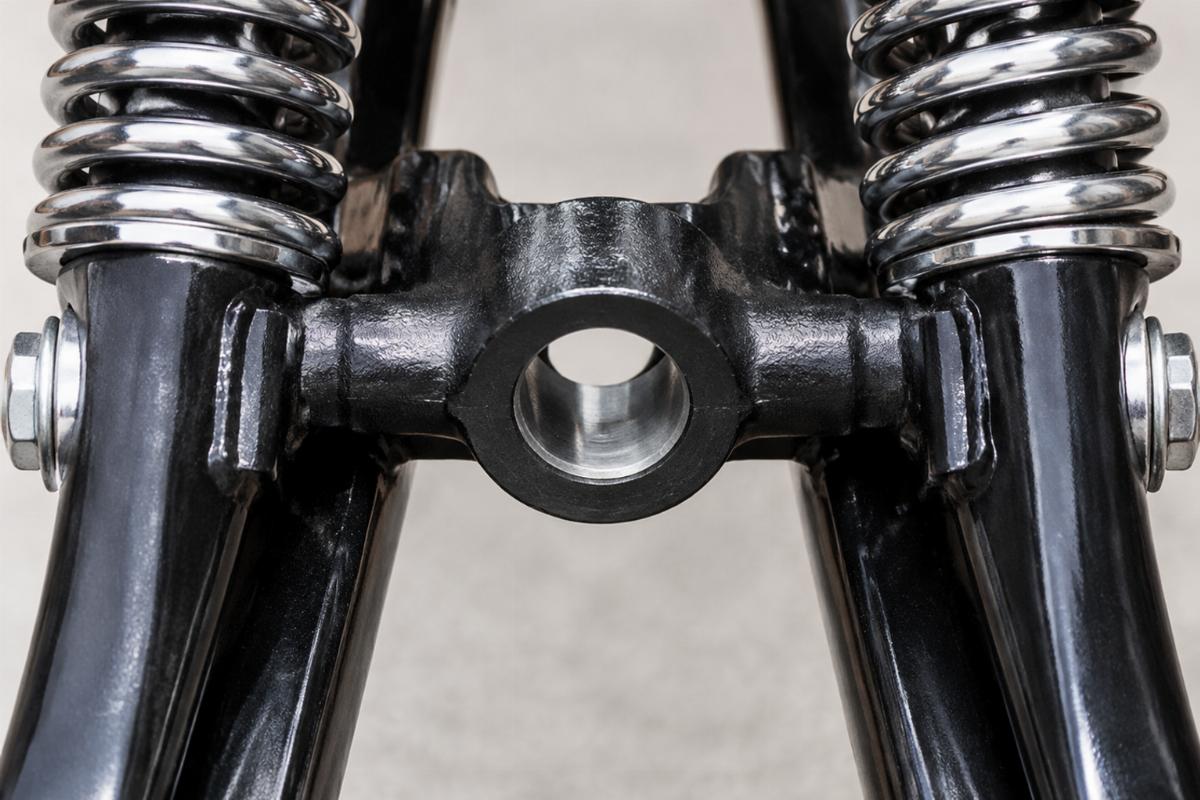

Understanding Rocker Symmetry and Axle Sizing
I once worked with a builder who ordered a front end for a Softail, assuming the right-side rocker was offset like the factory original. When the axle would not align, he blamed the part. I had to measure it and explain that our aftermarket rockers are identical on both sides, not offset on the right side. This narrow springer fork assembly features a standard 3/4″ axle hole on both symmetrical rockers. This design simplifies sourcing replacement axle hardware and ensures consistent wheel alignment, provided your front wheel axle matches the 3/4″ diameter.
Decoding the 1/2″-20 Leg Thread for Riser Mounting
The legs of this assembly are drilled and tapped with a 1/2″-20 thread. This specific thread pitch is the industry standard for mounting fork risers on custom springer setups. If your chosen risers utilize a different thread pitch, they will not seat correctly, leading to cross-threading or loose mounting. Before finalizing your handlebar setup, verify that your riser hardware matches this 1/2″-20 specification. This attention to thread detail prevents the frustration of receiving parts that physically refuse to mate with your existing chassis components [NEED_CITE: standard thread pitches for aftermarket fork risers].
The Hidden Cost of Unverified Springer Dimensions
Ordering a front end without confirming the rocker configuration or axle hole size often leads to the bike sitting on the shop floor. If a builder assumes a right-side offset that does not exist, the wheel will not center, requiring expensive custom machining to fix. Similarly, if the 2″ under stock length is not matched to the frame’s intended geometry, the steering head bearings may bind or the fender may strike the tire under compression. Verifying these hidden geometry details before shipping prevents costly delays and返工 in the custom build process.
Sourcing Front End Depth from a Single Account
We produce our springer front ends in-house, allowing us to control the chrome finish quality and dimensional accuracy directly. This narrow springer fork assembly is backed by a single warranty and supported by one account, simplifying your procurement. We offer a minimum order of one piece, meaning you can order a single assembly for a custom build without being blocked by high minimums. Every unit is checked against platform families and year ranges, ensuring the 3/4″ axle hole and 1/2″-20 threads are exactly as specified.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges confirmed before dispatch.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Key dimensions including 2″ under stock length and 3/4″ axle hole size verified.
- Chrome finish specification and quality inspection record supplied with the shipment.
- Packing photographs showing the earless top tree and symmetrical rockers.
Receiving and Pre-Installation Checks
- Verify the chrome finish for consistency and ensure no shipping damage on the legs.
- Confirm the top tree is without ears and matches your steering neck clearance.
- Measure the overall length to ensure it matches the 2″ under stock specification.
- Check that both rockers feature the 3/4″ axle hole and are not offset.
- Inspect the leg threads for 1/2″-20 pitch and ensure they are free of debris.
- Store the assembly in a dry environment to protect the chrome finish before installation.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this narrow springer fork assembly matches your frame geometry. Provide your current fork length, axle diameter, and riser thread requirements so we can verify compatibility. If you are building a custom chassis, share your triple tree spacing and desired ride height. We can also supply a sample for fitment confirmation before you commit to bulk orders for your shop.
Frequently Asked Questions
Q: How do I confirm if this 2″ under stock springer fits my specific frame?
A: You must measure your current stock fork length and subtract 2 inches to see if the resulting ride height matches your frame geometry. We provide a fitment sheet stating applicable platforms and year ranges. Always verify your steering neck spacing to ensure the earless top tree will clear your specific setup before ordering.
Q: What should I check regarding the 3/4″ axle hole and 1/2″-20 leg thread?
A: Measure your front wheel axle to ensure it is exactly 3/4″ in diameter to fit the rocker holes. For the legs, verify that your chosen fork risers use a 1/2″-20 mounting thread. Mismatched threads or axle sizes will prevent proper assembly and require custom hardware or machining to resolve.
Q: How do the non-offset rockers affect left and right side installation?
A: Our aftermarket rockers are identical on both sides and are not offset on the right side. This means the wheel must be centered using standard spacers or axle adjustments, rather than relying on a factory-style offset rocker. This symmetrical design simplifies axle alignment and hardware sourcing for your custom build.
Q: Can I order a single assembly for a custom build without minimum order blocks?
A: Yes, we support a minimum order from one piece. You can order a single narrow springer fork assembly for a specific custom build without facing bulk quantity requirements. We also offer sample supply for fitment confirmation, allowing you to test the 2″ drop and chrome finish before placing larger orders.
