Chrome Jackknife Handlebars 1-1/4″ – Fits Touring Models 1982-Later
Fitment verified by model year — Exact riser diameter and internal wiring hole placement checked against 1982-later Touring specifications before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1 1/4″ (1″ at riser) |
| Pullback | 6″ |
| Height Options | 10″, 16″ |
| Total Width | 34″ |
| Center Width | 15″ |
| Finish Options | Chrome or Black |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Touring Models | 1982-later | Fits models including Fly-By-Wire; compatible with Batwing Fairing |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Jackknife Handlebars for Touring Models Fail to Mount
Missing riser diameter and wiring hole details cause direct control incompatibility.
Handlebar listings often omit the exact taper from the grip area to the riser clamp zone, leaving buyers to guess if their 1-inch housings will seat properly. When the internal wiring drill holes miss the sensor routing for a specific year, the controls simply will not mount even if the bars look correct from the front. Verifying these dimensions against the specific platform year is the only way to avoid a stalled build [NEED_CITE: wiring routing changes across model years for this platform].

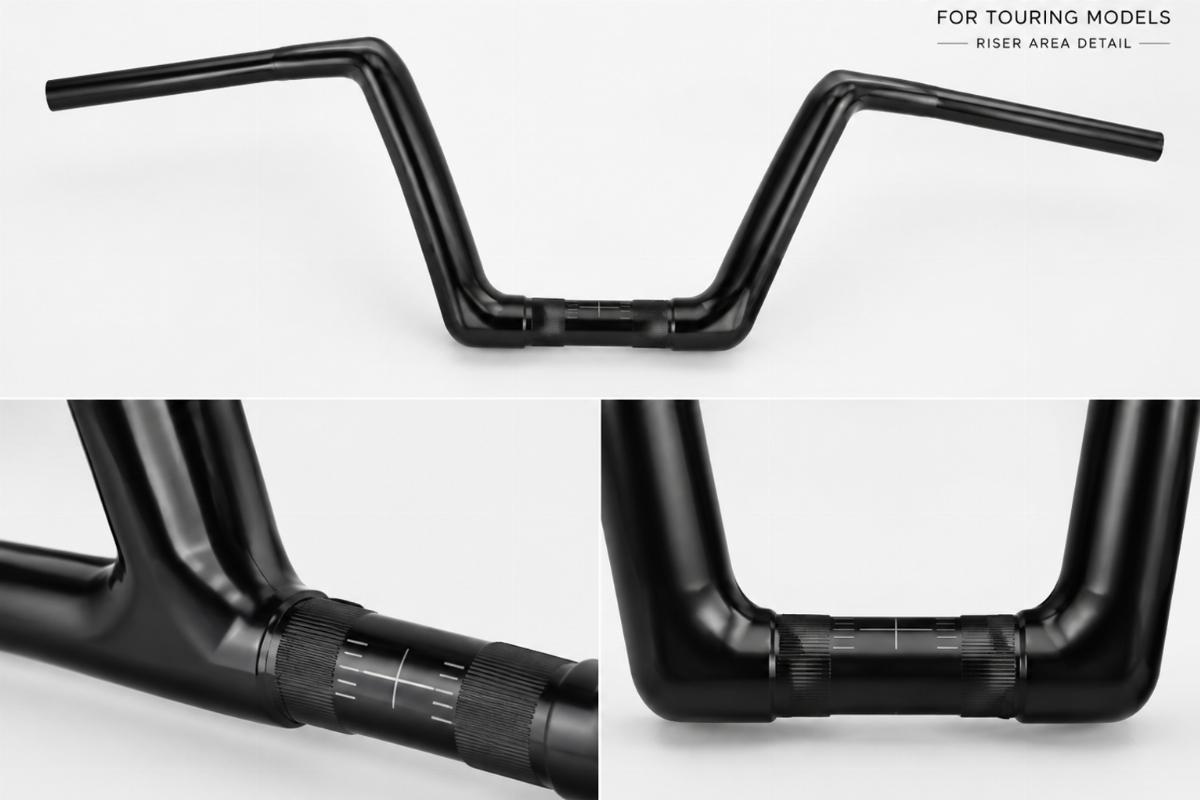

Checking Riser Taper and Clamp Fitment
When sourcing jackknife handlebars for touring models, the transition from the 1 1/4″ main tube to the 1″ riser area must match your specific clamp setup. A mismatch here means the control housings sit at an angle or fail to tighten securely. Always confirm the riser diameter matches your existing mounts before finalizing the order to ensure the bars seat flush and straight.

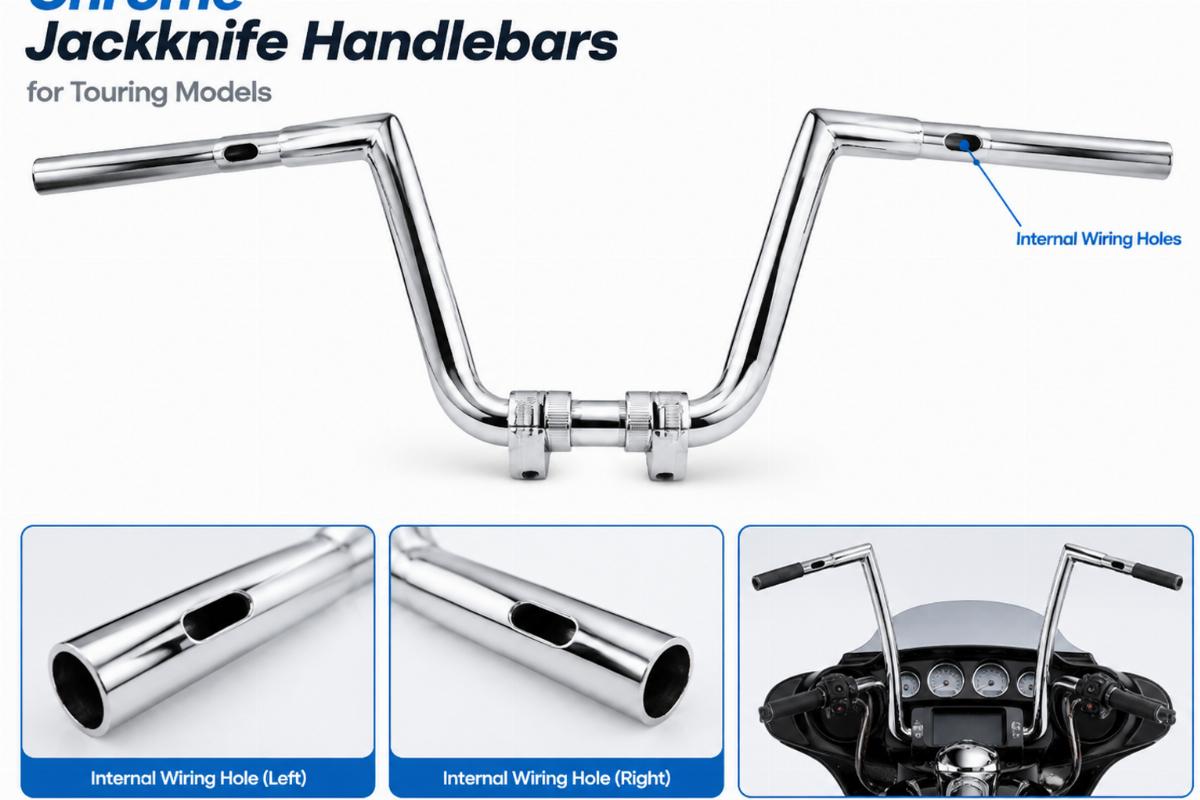

Verifying Internal Wiring Hole Placement
The drilled holes for internal wiring must align perfectly with the sensor routing required by your specific year range. Fly-By-Wire setups introduced on later models have different routing paths compared to earlier cable-operated systems. If the hole placement is off by even a fraction, threading the harness becomes impossible without modifying the bar, which compromises the finish and structural integrity [NEED_CITE: factory service manual specifications by model year].
Understanding Handlebar Dimensions and Geometry
The 34″ total width and 15″ center width dictate your control spacing and mirror mount clearance, especially when paired with a Batwing Fairing. The 6″ pullback combined with the 10″ or 16″ height options directly affects your riding position and the required length for your cables and brake lines. Choosing the wrong height or pullback means your stock hoses will be too tight or hang too low, requiring expensive custom lines.
The Hidden Cost of Incorrect Fitment
Ordering bars without confirming the exact year range often results in parts that physically bolt to the tree but block the fairing or pinch the wiring harness. A shop building a custom Touring bike cannot afford to have the machine stuck on a lift waiting for replacement cables because the 16″ height was chosen without checking the stock line lengths. These fitment errors cascade into delayed deliveries and lost revenue for the builder.
Sourcing with Fitment Certainty
Every set of jackknife handlebars for touring models is checked against the platform family and year range before the quotation is issued. We verify the 1 1/4″ to 1″ taper and the wiring hole placement against your specific model year requirements. Finish consistency between chrome and black batches is maintained across production runs to ensure matching aesthetics. You can order a single piece for a custom build without meeting high minimums.
Documentation Provided
- Fitment sheet listing each year range this part was checked against
- Key dimensions sheet detailing bar diameter, rise, pullback, and width
- Finish specification document for chrome or black batches
- Cross-reference sheet with OEM numbers marked reference only
- Quality inspection record confirming wiring hole placement
Receiving and Pre-Installation Checks
- Verify the 1 1/4″ diameter and 1″ riser area match your specific clamp requirements
- Check the internal wiring holes against your model year sensor routing path
- Measure the 34″ total width and 15″ center width against your fairing clearance
- Inspect the chrome or black finish for consistency across the entire bar surface
- Confirm the 10″ or 16″ height aligns with your stock hose and wire lengths
Requesting a Fitment Check
Send your exact model designation and year range to verify if these jackknife handlebars for touring models will clear your Batwing Fairing and accommodate your Fly-By-Wire setup. Provide a photograph or measurements of your current riser clamps if the year is uncertain. Let us know your required finish and height option so we can confirm cable lengths before dispatch.
Frequently Asked Questions
Q: How do I confirm my 1982-later Touring model year and Fly-By-Wire setup will fit these handlebars?
A: Provide your exact model designation and production year. We verify the internal wiring hole placement and riser taper against the specific routing paths required for Fly-By-Wire systems on that exact year range to ensure the controls mount correctly without modification.
Q: What are the key dimensions to measure to ensure the 1 1/4″ diameter and 1″ riser match my controls?
A: Measure the inner diameter of your riser clamps and the outer diameter of your control housing mounts. The bars taper from 1 1/4″ down to 1″ at the riser zone. Confirming these two measurements ensures your housings seat flush and tighten securely without slipping.
Q: Will the 10″ height work with my stock hoses and wires under a Batwing Fairing?
A: The 10″ height is generally designed to work with stock hoses and wires while remaining hidden behind a Batwing Fairing. However, you must verify the exact cable lengths for your specific model year, as minor variations in routing can affect whether the stock lines reach without stretching.
Q: Can I order a single piece of these jackknife handlebars for a custom build?
A: Yes, we support single-piece minimum orders for custom builders and repair shops. You can order one set in either chrome or black finish for fitment confirmation on a specific bike build without being forced into bulk purchasing requirements.
Q: How do you ensure finish consistency between chrome and black batches?
A: Finish specifications are documented and checked against production records for every batch. We provide a finish specification document with your order detailing the exact treatment applied, ensuring that replacement parts or additional orders match the original set without visible color or gloss variations.
