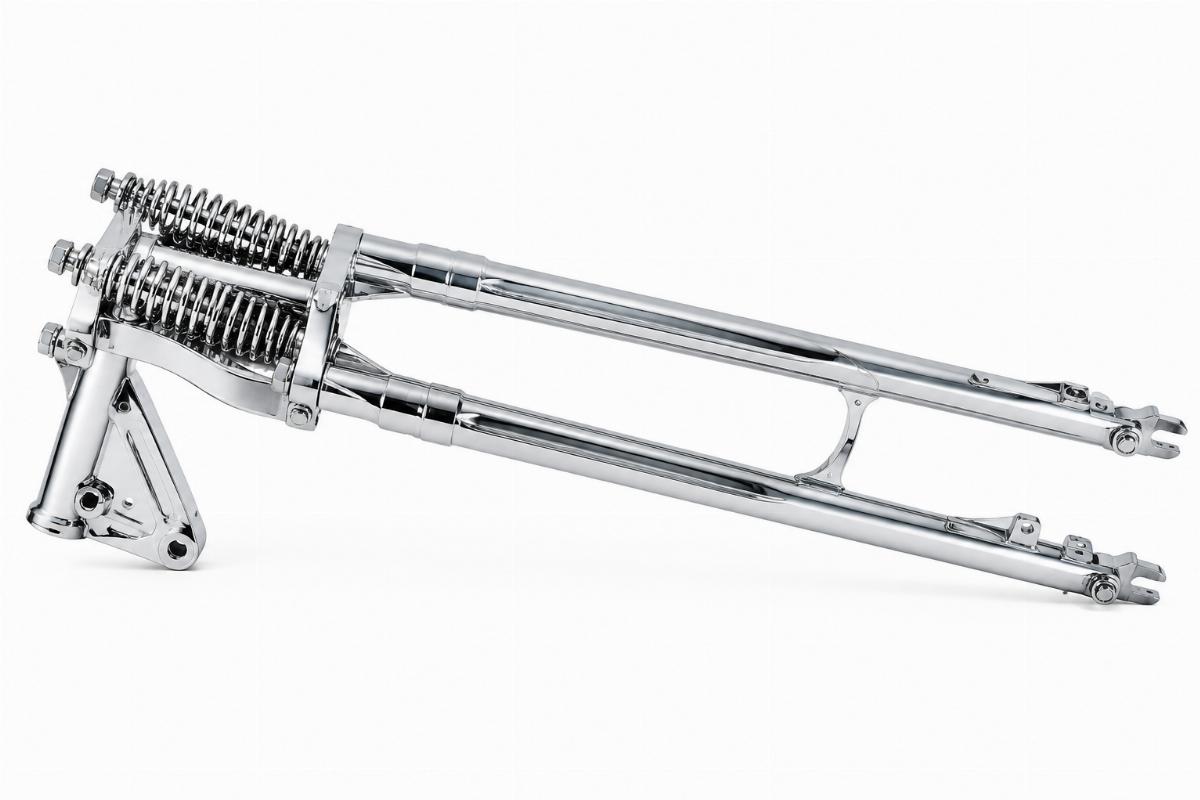

Chrome Inline Spring Fork Assembly 18″ – Fitment Checked
Front-End Assembly Depth — We supply complete springer fork assemblies with verified overall lengths and stem dimensions to ensure exact frame geometry matching.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |

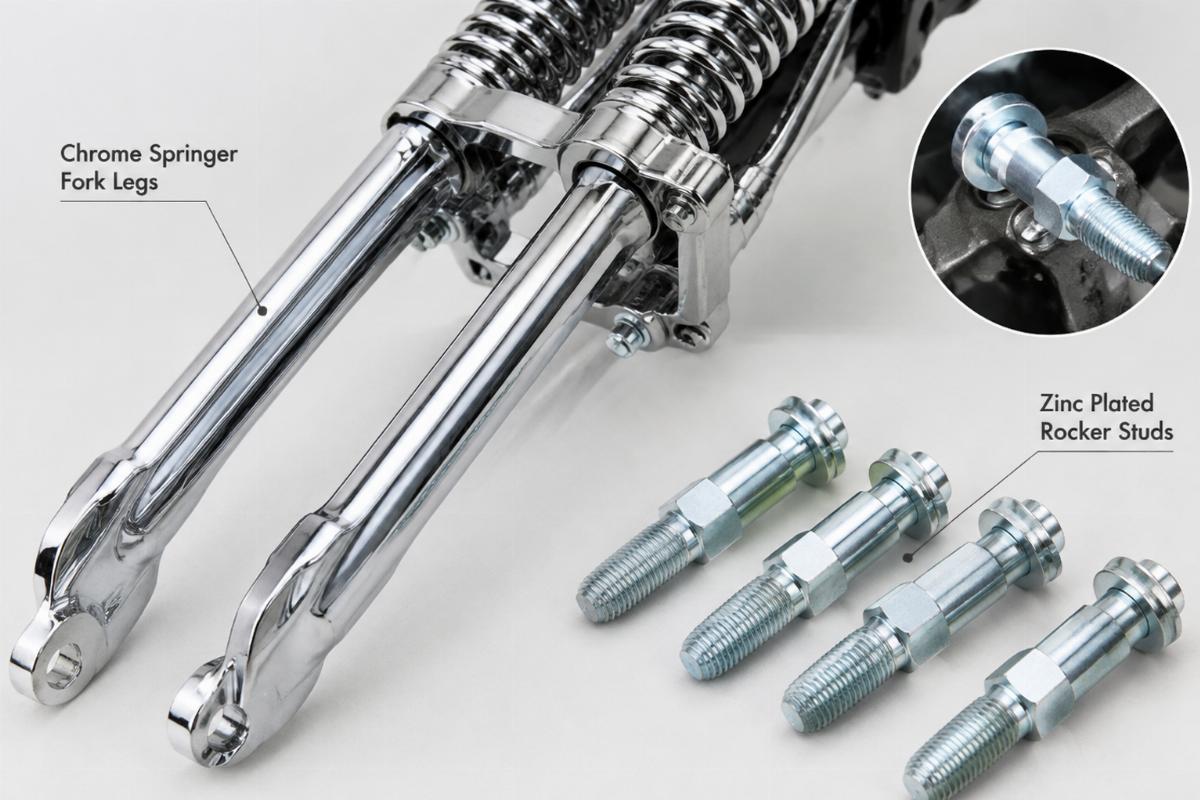

| Finish | Chrome (legs, outer springs, rockers), Zinc plated (rocker studs) |
| Length | 18″ |
| Stem Diameter | 1″ |
| Stem Thread | 1″ x 24 |
| Kit Contents | Front and rear legs, outer springs, rockers, rocker studs (completely assembled) |
| Design Notes | Bottom of neck is larger in diameter to accommodate the Lower Race; rear fork leg is not tapped |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | 18″ overall length measured from top of rear leg to front axle center line |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Overall Length Dictates Your Steering Geometry
An 18″ inline spring fork assembly changes your ride height and rake compared to stock dimensions. When builders order over-stock springers without checking the exact overall length, the bike often sits too high or the steering stem fails to align with the frame neck. We always verify the 18″ measurement from the top of the rear leg to the front axle center line against your specific frame before confirming the order. [NEED_CITE: frame geometry changes with non-stock fork lengths]
Checking Stem Diameter and Thread Pitch
Before ordering this 18″ inline spring fork assembly, you must confirm that the 1″ stem diameter and 1″ x 24 thread pitch match your top tree and steering stem requirements. A mismatch here means the assembly will not seat properly in the neck bearings, causing binding or dangerous looseness. [NEED_CITE: steering stem diameter variations across custom frames]
Evaluating Neck Bottom and Rear Leg Design
The bottom of the neck on this unit is larger in diameter specifically to accommodate the lower race. Additionally, the rear fork leg is not tapped from the factory. You need to verify if your specific brake or axle setup requires tapping the rear leg, or if you are using a mounting bracket that does not rely on threaded holes. [NEED_CITE: brake mount variations for un-tapped springer legs]
The Hidden Cost of Unverified Dimensions
Ordering a springer without confirming the exact platform and year range often leads to the bike sitting on the shop floor. If the 18″ length alters the rake beyond your frame’s design limits, or if the 1″ stem does not match an early frame’s neck bearing, the entire front end must be torn down. We have seen custom builds delayed for weeks because the stem thread pitch was assumed rather than measured. [NEED_CITE: steering neck bearing size differences between early and late frames]
Sourcing From a Front-End Specialist
We manufacture our own springer front ends and chassis hardware, ensuring the 18″ length and chrome finish are controlled in-house. Our catalogue offers front-end depth, keeping complete assemblies and early springer parts under one account. You can order a single piece for a custom build without meeting high minimums. We also provide a fitment sheet stating applicable platforms and cross-reference against Harley-Davidson OEM numbers for identification.
Included Documentation
- Fitment sheet stating applicable platforms and year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length over stock and stem thread
- Finish specification for chrome legs and zinc plated studs
- Quality inspection record for the completely assembled kit
Pre-Installation Checks
- Verify the 18″ overall length matches your frame geometry requirements
- Confirm the 1″ stem diameter and 1″ x 24 thread fit your top tree
- Check the chrome finish on legs and springs for shipping damage
- Ensure the rear fork leg tapping status matches your axle setup
- Have a qualified technician verify steering head cup compatibility
- Store the completely assembled unit in a dry environment before mounting
Requesting a Fitment Check
Send your exact model and year range to verify if this 18″ inline spring fork assembly fits your frame. Provide photos of your current steering neck or key measurements if the year is unknown. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm my motorcycle frame fits this 18″ spring fork?
A: You must measure your frame’s steering neck to ensure it accepts a 1″ stem with a 1″ x 24 thread. We also need your exact model and year range to verify that the 18″ overall length will not negatively alter your steering geometry or ride height. Send us your frame details for a proper fitment check.
Q: What key dimensions must I measure before ordering?
A: Measure your steering stem diameter and thread pitch to ensure compatibility with the 1″ x 24 stem. Check the distance from your triple tree to the axle to confirm the 18″ overall length works for your build. Verify if your brake setup requires a tapped rear fork leg, as this unit arrives un-tapped.
Q: Which additional parts are required for complete installation?
A: This 18″ inline spring fork assembly arrives completely assembled with legs, springs, and rockers. You must order a bearing neck kit, axle kit, top tree, and handlebars separately. Some minor assembly may be required depending on your specific handlebar risers and axle hardware choices.
Q: Can I order a single piece for a custom build?
A: Yes, we support custom builders and repair shops by offering a minimum order of one piece. You do not need to meet high bulk thresholds to purchase this completely assembled unit. We can also supply a sample for fitment confirmation before you commit to larger orders for your shop.
Q: How do you ensure chrome finish consistency across batches?
A: We produce our springer front ends in our own facility, allowing us to control the chrome plating process for the legs, outer springs, and rockers. Each batch undergoes a quality inspection to ensure the finish matches our specifications. Zinc plated rocker studs are also checked for consistent coating before assembly.
