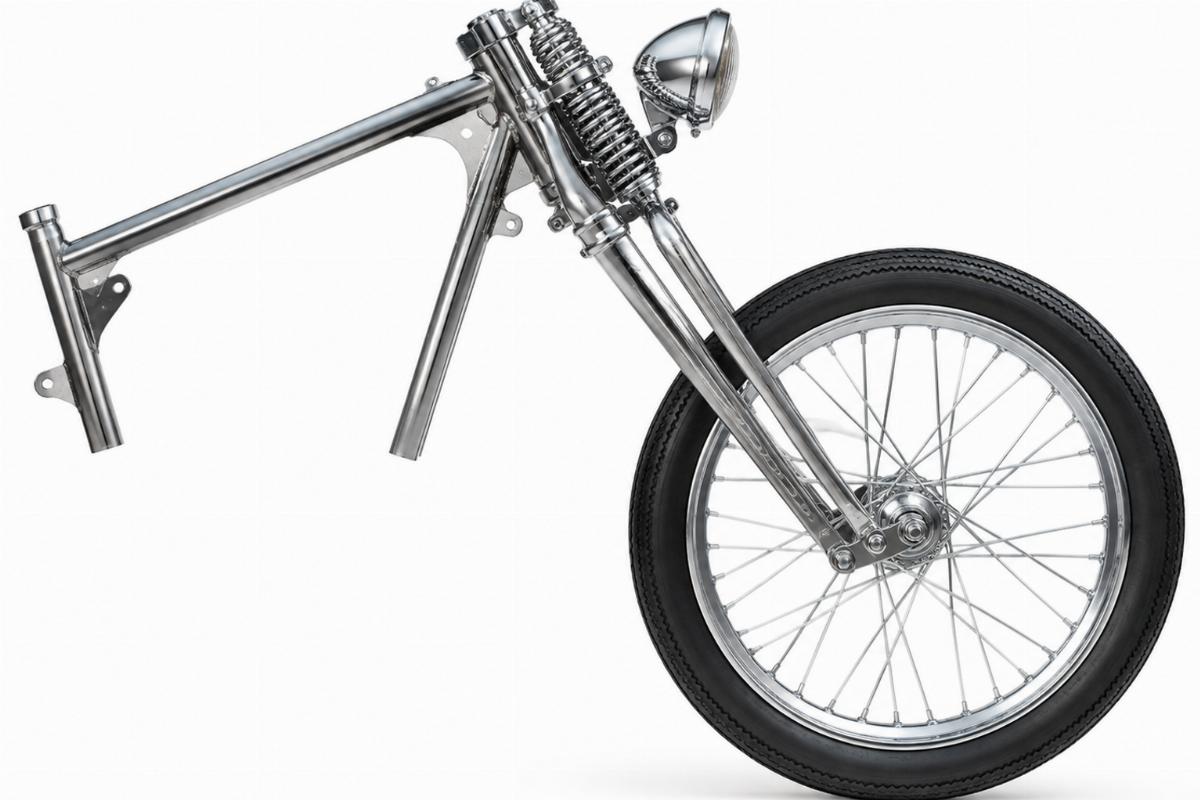

Chrome Custom Springer Front End 1″ Neck – Fits Harley-Davidson Frames
In-house springer production — every front end is built and fitment-checked against specific frame neck dimensions before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Front End |
| Finish | Chrome plated |
| Steering Stem | Zinc-plated |
| Leg Thread | 1/2″-20 (drilled and tapped to mount risers) |
| Axle | 3/4″ (included) |
| Bearing Type | Bronze rocker bushings |
| Construction | Welded |
| Stock Length Measurement | 23″ (from top surface of lower tree to centerline of axle vertically) |
| Wheel Fitment | Narrow wheels |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson Frames | Confirm with model and year | with 1″ Neck |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Neck Diameter Details Ruin Custom Springer Builds
A 1-inch steering neck requires exact frame matching to seat the triple tree properly.
Custom springer front end for harley-davidson listings often omit the steering neck diameter or overall length, leaving builders guessing. When the neck size is wrong, the triple tree simply will not seat into the head cup, forcing the entire front end to be disassembled and returned. Verifying the 1-inch neck dimension and the 23-inch stock length prevents this costly downtime. [NEED_CITE: steering neck dimension variations across frame generations]
Verifying the 1-Inch Steering Neck Before Ordering
A custom springer front end for harley-davidson frames relies entirely on the steering neck diameter matching the frame’s head cup. If the frame requires a 1-inch neck and the triple tree is mismatched, the front end will not align, ruining the steering geometry. We verify the 1-inch neck dimension against your specific frame year to ensure the triple tree seats correctly without modification.
Measuring the 23-Inch Stock Length for Ride Height
The 23-inch stock length, measured from the top surface of the lower tree to the centerline of the axle, dictates your ride height and rake. Builders often overlook this vertical measurement, resulting in a front end that sits too high or too low for the intended chassis stance. Confirming this exact length ensures the custom springer front end for harley-davidson projects maintains the correct visual proportion and ground clearance. [NEED_CITE: rake and trail calculations based on fork length]

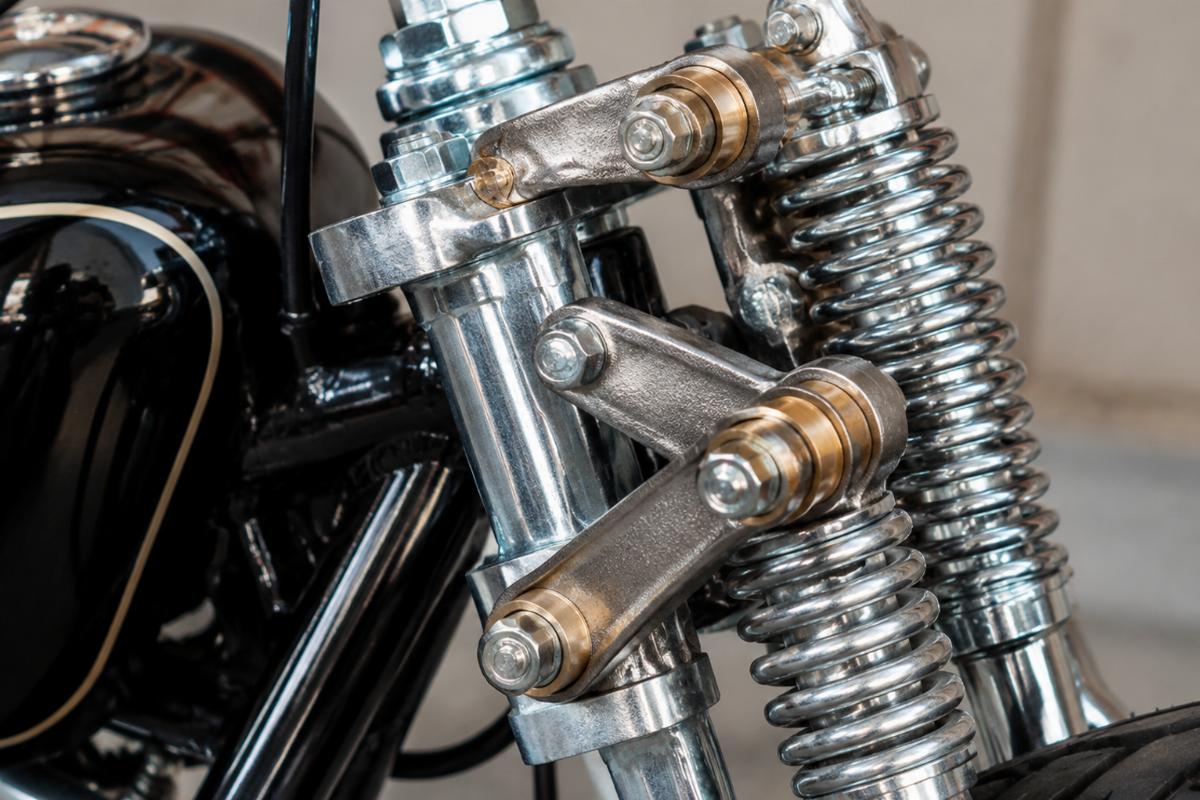

How Chrome Plating and Zinc-Plated Stems Handle Exposure
The chrome plated finish on the legs and the zinc-plated steering stem provide a baseline defense against surface oxidation. While no finish is immune to harsh weather, the plating process ensures the underlying steel remains protected during storage and initial assembly. This consistency in the chrome and zinc layers means the front end looks uniform when first installed, without patchy corrosion appearing around the welded joints or threads.
The Hidden Cost of Unchecked Frame Year Differences
I remember a buyer ordering a 1-inch neck springer front end for a frame without specifying the exact year. We shipped it out, but the early and late frames had different steering neck dimensions. The triple tree simply would not seat into the head cup, and the whole front end had to come back. When frame year differences are ignored, the bike sits on the shop floor waiting for a replacement, delaying the entire build schedule. [NEED_CITE: frame year steering neck dimension changes]
Why Builders Source This Springer From Us
We produce this custom springer front end in our own facility, ensuring the welded construction and chrome finish meet our internal standards. Every unit is checked against the 1-inch neck requirement and the 23-inch length before it leaves the warehouse. We support single piece orders for custom builders working on one-off choppers, removing the barrier of high minimums. You also receive a fitment sheet confirming the exact platform and year range this front end was verified against.
Documentation Included With Your Shipment
- Fitment sheet stating the 1-inch neck platform and confirmed year ranges.
- Key dimensions sheet detailing the 23-inch stock length and 3/4-inch axle spacing.
- Finish specification for the chrome plated legs and zinc-plated stem.
- Quality inspection record covering the welded construction and bronze bushings.
- Commercial invoice and packing list for customs clearance.
Checks To Perform Before Installation
- Measure your frame steering neck to confirm it is exactly 1 inch.
- Verify the 23-inch length matches your desired ride height geometry.
- Check that the 3/4-inch axle spacing aligns with your narrow wheel hub.
- Inspect the chrome finish and zinc-plated stem for any shipping damage.
- Ensure the 1/2″-20 leg threads are clear for riser mounting.
- Have a qualified technician handle the final assembly and steering head adjustment.
Send Your Details For A Fitment Check
Send your exact frame model and year so we can verify the 1-inch neck compatibility. Provide a photograph or measurement of your current steering neck if the year is unknown. Let us know if you need a sample unit for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my frame to confirm it has a 1-inch steering neck?
A: Measure the inner diameter of the frame’s steering head tube where the triple tree inserts. Use calipers to get an exact reading. The inner diameter must be exactly 1 inch for this triple tree to seat properly without binding or excessive play.
Q: How is the 23-inch stock length of the springer front end measured?
A: The 23-inch stock length is measured vertically from the top flat surface of the lower triple tree down to the exact centerline of the axle. This vertical measurement determines your final ride height and front-end stance.
Q: What wheel widths and axle sizes are compatible with this narrow springer?
A: This front end includes a 3/4-inch axle and is built specifically for narrow wheels. You must ensure your chosen narrow wheel hub has the correct spacing and bearing setup to accept the included 3/4-inch axle.
Q: Can I order a single custom springer front end for a one-off build?
A: Yes, we support single piece orders for custom builders and repair shops. There is no high minimum order quantity blocking a single-piece order, allowing you to source exactly what you need for one-off chopper or bobber builds.
