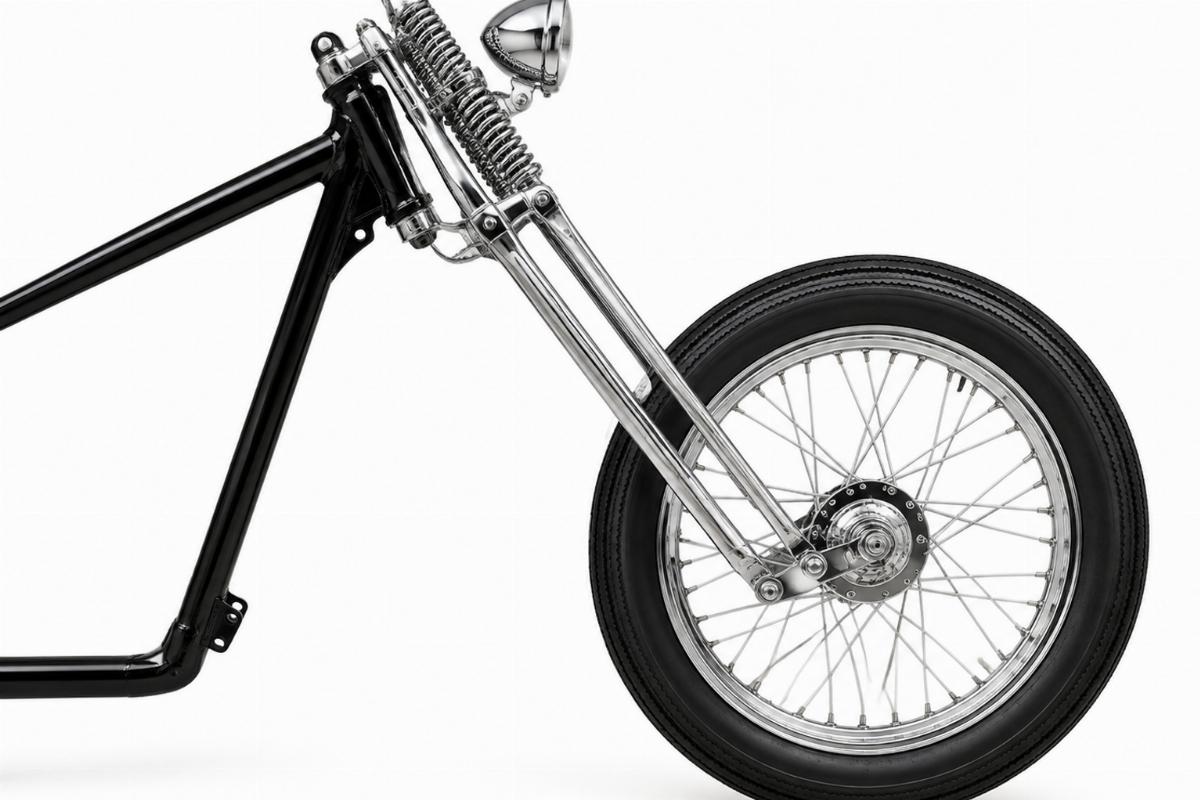

Chrome Custom Springer Fork Assembly 18″ Offset – Fits Rigid Frames
In-house springer production — Complete 18″ offset assemblies are manufactured and measured in our own facility to verify rake alignment before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Assembly |
| Finish | Chrome (front legs, outer springs, rockers, rear leg); unpolished at rear fork stem cross plate and front spring fork rod forging |
| Length | 18″ (measured from top of rear leg to front axle center line) |
| Offset | Offset outside mount rockers |
| Construction | Electric welded and brazed |
| Kit Contents | Inner and outer springs, front and rear legs, offset outside mount rockers, studs and bushings, spring rods with bushings |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Rigid frames | Confirm with model and year | For use with 30° rake frames |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Frame Geometry Before Dispatching an 18″ Custom Springer Fork Assembly for Rigid Frames
A 30° rake is mandatory for this specific 18″ offset configuration.
When sourcing a custom springer fork assembly for rigid frames, buyers often focus entirely on the overall length and overlook the steering neck angle. I once handled a teardown where an 18-inch offset spring fork assembly was mounted on a frame with an incorrect rake angle. Because the frame geometry and axle center line were not checked beforehand, the steering geometry was completely compromised. The offset outside mount rockers failed to align with the lug bolt type drum, forcing a full teardown of the front end. Verifying the 30° rake requirement and the exact axle center line measurement prevents this kind of structural misalignment and wasted labor hours [NEED_CITE: frame geometry specifications for rigid builds].
Checking Rake and Axle Center Line Measurements
Before ordering a custom springer fork assembly for rigid frames, the frame rake must be confirmed to match the 30° requirement. If the rake angle deviates, the 18″ overall length will pull the front end too far forward or push it back, altering the trail and making the steering unstable. The offset outside mount rockers are designed to position the axle correctly for a lug bolt type drum, but this only works if the frame neck angle is exact. Measuring the distance from the steering neck to the expected axle center line ensures the 18″ length translates to the correct ride height.
Understanding the Offset Outside Mount Rockers
The offset outside mount rockers on this custom springer fork assembly for rigid frames dictate wheel placement. Unlike inline mounts, the offset design shifts the wheel outward or inward to clear specific frame widths or tire sizes while maintaining a lug bolt type drum setup. If the rockers are mismatched with the drum or axle spacing, the wheel will not sit centered. This offset is critical for chopper and bobber builds where frame width varies, and it requires checking the drum lug pattern before final assembly [NEED_CITE: axle spacing variations in custom rigid frames].
Interpreting the 18″ Length and Finish Specifications
The 18″ length is strictly measured from the top of the rear leg to the front axle center line, which determines the ride height and ground clearance on a rigid frame. The construction uses electric welded and brazed joints to handle the stress of the spring action without flexing. Visually, the front legs, outer springs, rockers, and rear leg arrive in a chrome finish, while the rear fork stem cross plate and front spring fork rod forging are supplied unpolished. This contrast means the unpolished areas will require additional finishing work if a uniform chrome look is desired for the final build.
The Hidden Cost of Ignoring Rake and Offset Details
Ordering a springer front end without confirming the 30° rake often results in a bike that cannot be ridden safely or looks proportionally wrong. If the offset outside mount rockers do not align with the lug bolt type drum, the builder has to machine custom adapters or wait weeks for a replacement assembly. Furthermore, receiving unpolished cross plates when a fully chrome finish was expected halts the assembly line while the shop arranges local plating. These fitment and finish oversights turn a simple front-end swap into a costly delay, leaving the bike stuck on the lift [NEED_CITE: lead times for local chrome plating and machining corrections].
Sourcing Directly from the Front-End Manufacturer
This custom springer fork assembly for rigid frames is produced in our own facility, meaning every welded joint and brazed connection is inspected before leaving the floor. We maintain front-end depth by offering complete assemblies alongside multiple over-stock lengths, ensuring you get the exact 18″ measurement required for your specific rigid frame. Chrome and black finish options are available across our main front-end lines, allowing you to match your build theme without sourcing from multiple vendors. We support a minimum order from one piece, making it easy for custom builders to order a single assembly for a one-off project without meeting high volume quotas.
Documentation and Fitment Records
- Fitment sheet stating the 30° rake requirement and rigid frame platform compatibility
- Key dimensions sheet detailing the 18″ length from rear leg top to axle center line
- Finish specification document noting the chrome legs and unpolished cross plate
- Quality inspection record covering the electric welded and brazed construction joints
- Packing photographs showing the inner and outer springs, legs, and rockers included
Receiving and Pre-Installation Checks
- Verify the kit includes inner and outer springs, front and rear legs, and offset outside mount rockers
- Confirm the 18″ length matches your frame geometry by measuring from the rear leg top to the axle center line
- Inspect the rear fork stem cross plate and front spring fork rod forging to note their unpolished condition
- Check that the offset outside mount rockers align correctly with your lug bolt type drum before welding or final assembly
- Store the assembly in a dry environment to protect the chrome finish on the front legs and outer springs
Requesting a Fitment Check and Quote
Send your frame type, rake angle, and required overall length to confirm if this 18″ offset configuration matches your rigid build. Provide photographs of your current front end or drum setup to verify the offset outside mount rockers will clear your lug bolt type drum. Let us know if you need a sample unit for a test fitment before committing to a larger batch for your shop.
Frequently Asked Questions
Q: How is the 18″ length measured on this custom springer fork assembly for rigid frames?
A: The 18″ overall length is measured strictly from the top of the rear leg down to the center line of the front axle. This specific measurement determines the ride height and front-end geometry on a rigid frame. It is crucial to compare this exact measurement against your frame’s steering neck to axle distance to ensure the front end sits at the correct angle and height for your specific build.
Q: What finish condition should I expect on the rear fork stem cross plate?
A: The front legs, outer springs, rockers, and rear leg arrive with a chrome finish. However, the rear fork stem cross plate and the front spring fork rod forging are supplied in an unpolished condition. You will need to account for this contrast in your final assembly plan, as these specific components will require additional local finishing work if a fully uniform chrome appearance is required for your custom rigid frame build.
Q: Can I order a single custom springer fork assembly for a one-off rigid frame project?
A: Yes, we support a minimum order from one piece, which is ideal for custom builders and chopper shops working on individual projects. You do not need to meet high volume quotas to purchase this 18″ offset assembly. We can also supply a sample unit for a test fitment on your rigid frame before you decide to proceed with any additional orders for your inventory or upcoming builds.
Q: Will the offset outside mount rockers fit my existing wheel and drum setup?
A: The offset outside mount rockers are specifically designed to work with a lug bolt type drum. Before ordering, you must verify that your wheel hub and drum pattern match this offset configuration. If the rockers do not align with your drum’s lug pattern, the wheel will not mount correctly. We recommend providing photos of your drum and axle setup during the inquiry stage so we can verify compatibility before dispatch.
